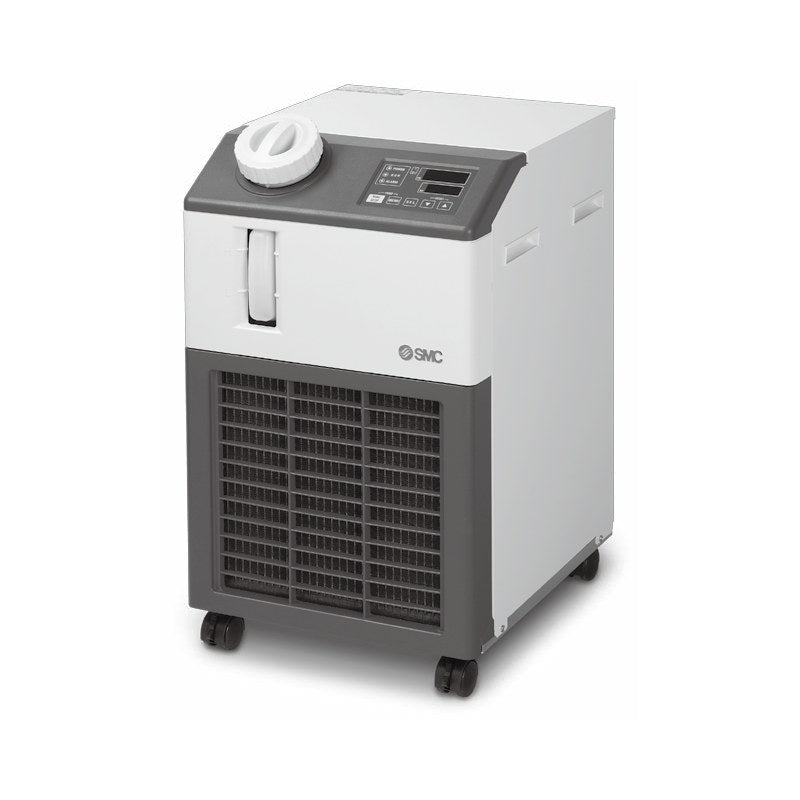

SMC HRSE Thermo-Chiller (Basic Type, Air-Cooled, 1.0 to 2.2 kW)

SMC HRSE Thermo-Chiller (Basic Type, Air-Cooled, 1.0 to 2.2 kW)

SMC HRSE series basic-type air-cooled thermo-chiller for circulating fluid temperature control, in three cooling capacities for single-phase AC100V, AC200V or AC230V supply.

Key features

  • Air-cooled refrigeration with R407C (HFC) refrigerant and refrigerator ON/OFF control
  • Cooling capacity 1000/1200 W (012), 1400/1600 W (018) and 1900/2200 W (024) at 50/60Hz; 024 for AC200V and AC230V only
  • Set temperature range 10 to 30°C with ±2°C temperature stability, approx. 5 L tank
  • Circulating fluid: clear water or 15% ethylene glycol aqueous solution; Rc1/2 circulating fluid ports
  • Option T high-pressure pump (cooling capacity approx. 100 W lower) is ordered as a suffix; mounting brackets, bypass piping set, dustproof filter set and particle filter available separately

Specifications

Cooling method Air-cooled refrigeration (A)
Refrigerant R407C (HFC)
Control method Refrigerator ON/OFF
Set temperature range 10 to 30°C
Temperature stability ±2°C
Rated flow (50/60Hz) 7/7 L/min
Pump capacity (50/60Hz) 0.08/0.11 MPa at 7 L/min (option T: 0.13/0.18 MPa)
Tank capacity Approx. 5 L
Circulating fluid port Rc1/2
Ambient temperature/humidity 5 to 35°C (AC100V), 5 to 40°C (AC200/230V), 30 to 70% RH
Dimensions W377 x D435 x H615 mm (option T: D500)
Source SMC Korea thermo-chiller catalog, HRSE section (SMCKR_HRSE.pdf), p. 212-214 (PDF p. 5-7)
HRSE012-A-10 Cooling capacity (50/60Hz): 1000/1200 W | Power supply: 1-phase AC100V 50/60Hz | Rated power (50/60Hz): 0.53/0.54 kVA | Mass: 32 kg
HRSE018-A-10 Cooling capacity (50/60Hz): 1400/1600 W | Power supply: 1-phase AC100V 50/60Hz | Rated power (50/60Hz): 0.63/0.63 kVA | Mass: 32 kg
HRSE012-A-20 Cooling capacity (50/60Hz): 1000/1200 W | Power supply: 1-phase AC200V 50/60Hz | Rated power (50/60Hz): 0.58/0.74 kVA | Mass: 35 kg
HRSE018-A-20 Cooling capacity (50/60Hz): 1400/1600 W | Power supply: 1-phase AC200V 50/60Hz | Rated power (50/60Hz): 0.73/0.86 kVA | Mass: 35 kg
HRSE024-A-20 Cooling capacity (50/60Hz): 1900/2200 W | Power supply: 1-phase AC200V 50/60Hz | Rated power (50/60Hz): 0.85/1.02 kVA | Mass: 35 kg
HRSE012-A-23 Cooling capacity (50/60Hz): 1000/1200 W | Power supply: 1-phase AC230V 50/60Hz | Rated power (50/60Hz): 0.58/0.74 kVA | Mass: 35 kg
HRSE018-A-23 Cooling capacity (50/60Hz): 1400/1600 W | Power supply: 1-phase AC230V 50/60Hz | Rated power (50/60Hz): 0.73/0.86 kVA | Mass: 35 kg
HRSE024-A-23 Cooling capacity (50/60Hz): 1900/2200 W | Power supply: 1-phase AC230V 50/60Hz | Rated power (50/60Hz): 0.87/1.04 kVA | Mass: 35 kg
ChillersSMC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HRSE Thermo-Chiller (Basic Type, Air-Cooled, 1.0 to 2.2 kW)

Brand SMC·Chillers

Available part numbers (8)

HRSE012-A-10, HRSE018-A-10, HRSE012-A-20, HRSE018-A-20, HRSE024-A-20, HRSE012-A-23, HRSE018-A-23, HRSE024-A-23

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRSE012-A-10Cooling capacity (50/60Hz): 1000/1200 W | Power supply: 1-phase AC100V 50/60Hz | Rated power (50/60Hz): 0.53/0.54 kVA | Mass: 32 kg
HRSE018-A-10Cooling capacity (50/60Hz): 1400/1600 W | Power supply: 1-phase AC100V 50/60Hz | Rated power (50/60Hz): 0.63/0.63 kVA | Mass: 32 kg
HRSE012-A-20Cooling capacity (50/60Hz): 1000/1200 W | Power supply: 1-phase AC200V 50/60Hz | Rated power (50/60Hz): 0.58/0.74 kVA | Mass: 35 kg
HRSE018-A-20Cooling capacity (50/60Hz): 1400/1600 W | Power supply: 1-phase AC200V 50/60Hz | Rated power (50/60Hz): 0.73/0.86 kVA | Mass: 35 kg
HRSE024-A-20Cooling capacity (50/60Hz): 1900/2200 W | Power supply: 1-phase AC200V 50/60Hz | Rated power (50/60Hz): 0.85/1.02 kVA | Mass: 35 kg
HRSE012-A-23Cooling capacity (50/60Hz): 1000/1200 W | Power supply: 1-phase AC230V 50/60Hz | Rated power (50/60Hz): 0.58/0.74 kVA | Mass: 35 kg
HRSE018-A-23Cooling capacity (50/60Hz): 1400/1600 W | Power supply: 1-phase AC230V 50/60Hz | Rated power (50/60Hz): 0.73/0.86 kVA | Mass: 35 kg
HRSE024-A-23Cooling capacity (50/60Hz): 1900/2200 W | Power supply: 1-phase AC230V 50/60Hz | Rated power (50/60Hz): 0.87/1.04 kVA | Mass: 35 kg
