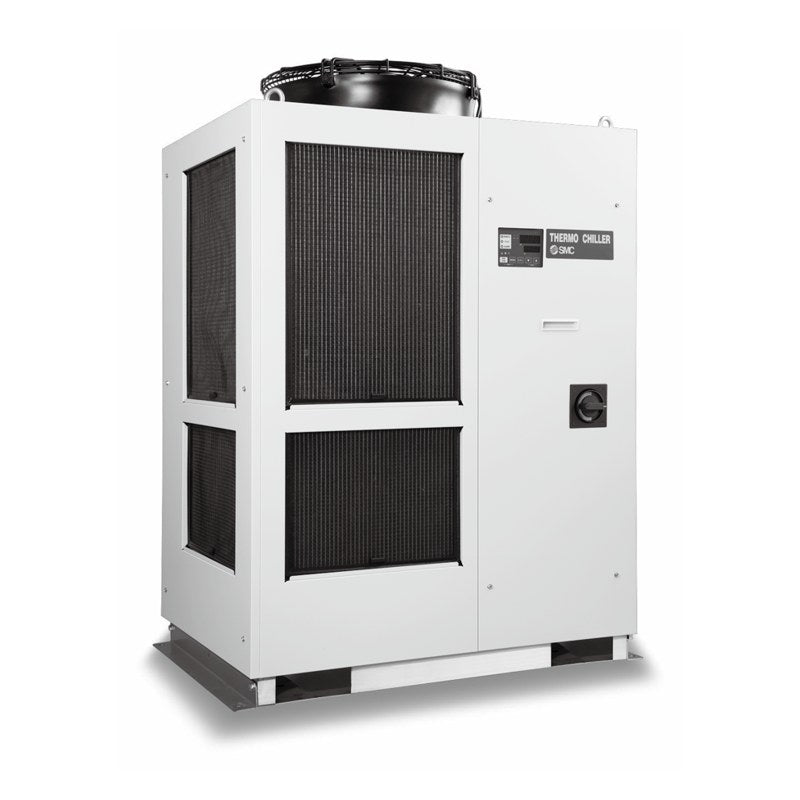

SMC HRSF150/200 Thermo-Chiller (3-Phase 400V, 15.7-20.6 kW)

SMC HRSF150/200 Thermo-Chiller (3-Phase 400V, 15.7-20.6 kW)

SMC HRSF150/200 series large-capacity thermo-chiller with low-GWP R454C refrigerant, air-cooled or water-cooled, for 3-phase 400V class supply.

Key features

  • Cooling capacity 15.7 kW (150) and 20.5 kW air-cooled / 20.6 kW water-cooled (200)
  • Inverter pump with pressure control, rated flow 45 L/min (0.45 MPa), max. flow 130 L/min, max. head 50 m
  • Set temperature range 5 to 35°C with ±0.1°C stability, 42 L tank, built-in automatic water fill
  • Rc1 circulating fluid ports standard; F (G thread) and N (NPT) conversion-fitting versions available
  • Options as suffix: A casters/adjuster feet, K water fill port, M DI water piping, T high-pressure pump (water-cooled)
  • CE marked and Intertek (UL) listed, IPX4 enclosure

Specifications

Refrigerant R454C (HFO/HFC, GWP 146)
Control method PID control
Power supply 3-phase AC380-415V (50Hz) / AC380-480V (60Hz)
Set temperature range 5 to 35°C
Temperature stability ±0.1°C
Rated pump flow 45 L/min (0.45 MPa)
Tank capacity 42 L
Circulating fluid port Rc1 (drain Rc3/4)
Circulating fluid Clear water, 15-40% ethylene glycol, DI water
Ambient temperature -20 to 45°C (air-cooled), 2 to 45°C (water-cooled)
Source SMC Korea catalog CAT.KS40-79A (SMCKR_HRSF150.pdf), p. 2-3 (PDF p. 3-4)
HRSF150-A-40 Cooling method: Air-cooled refrigeration | Cooling capacity: 15.7 kW | Heating capacity: 3.0 kW | Rated power: 8.0 (9.0) kW (kVA) | Mass: 230 kg
HRSF200-A-40 Cooling method: Air-cooled refrigeration | Cooling capacity: 20.5 kW | Heating capacity: 5.5 kW | Rated power: 10.8 (11.7) kW (kVA) | Mass: 230 kg
HRSF150-W-40 Cooling method: Water-cooled refrigeration | Cooling capacity: 15.7 kW | Heating capacity: 3.5 kW | Rated power: 7.6 (8.8) kW (kVA) | Mass: 195 kg
HRSF200-W-40 Cooling method: Water-cooled refrigeration | Cooling capacity: 20.6 kW | Heating capacity: 4.0 kW | Rated power: 9.7 (10.8) kW (kVA) | Mass: 195 kg
ChillersSMC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HRSF150/200 Thermo-Chiller (3-Phase 400V, 15.7-20.6 kW)

Brand SMC·Chillers

Available part numbers (4)

HRSF150-A-40, HRSF200-A-40, HRSF150-W-40, HRSF200-W-40

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRSF150-A-40Cooling method: Air-cooled refrigeration | Cooling capacity: 15.7 kW | Heating capacity: 3.0 kW | Rated power: 8.0 (9.0) kW (kVA) | Mass: 230 kg
HRSF200-A-40Cooling method: Air-cooled refrigeration | Cooling capacity: 20.5 kW | Heating capacity: 5.5 kW | Rated power: 10.8 (11.7) kW (kVA) | Mass: 230 kg
HRSF150-W-40Cooling method: Water-cooled refrigeration | Cooling capacity: 15.7 kW | Heating capacity: 3.5 kW | Rated power: 7.6 (8.8) kW (kVA) | Mass: 195 kg
HRSF200-W-40Cooling method: Water-cooled refrigeration | Cooling capacity: 20.6 kW | Heating capacity: 4.0 kW | Rated power: 9.7 (10.8) kW (kVA) | Mass: 195 kg
