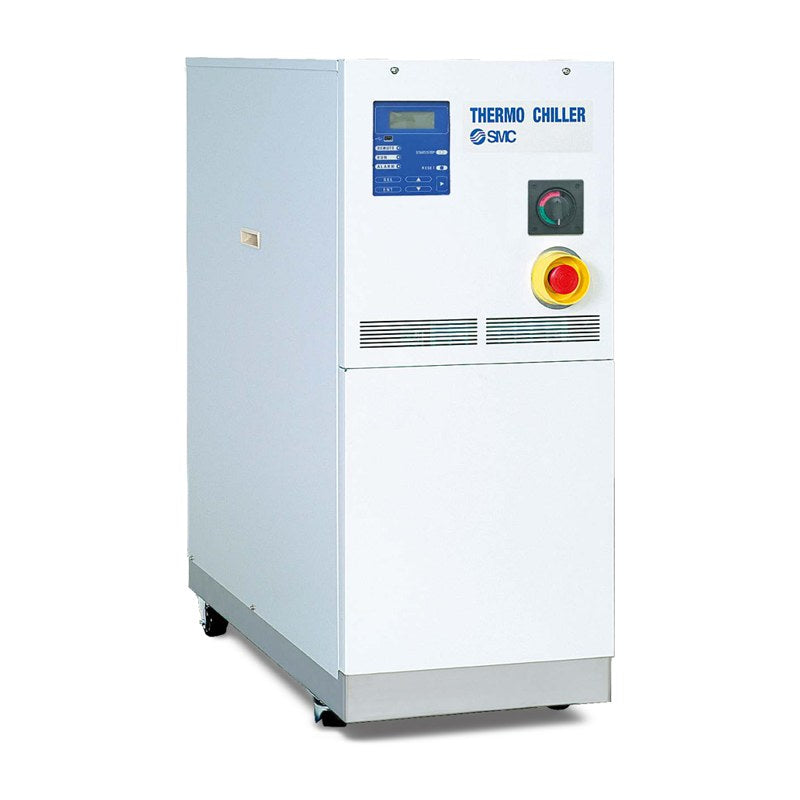

SMC HRZF Thermo-Chiller (Inverter Type, Low-GWP R454C, 10 kW)

SMC HRZF Thermo-Chiller (Inverter Type, Low-GWP R454C, 10 kW)

SMC HRZF series 10 kW water-cooled thermo-chiller with DC inverter refrigerator and inverter pump, using low-GWP refrigerant R454C (GWP 146).

Key features

  • Low-GWP refrigerant R454C (GWP 146)
  • Pump & refrigerator inverter type, 10 kW cooling capacity, -20 to 90 C set temperature range
  • Circulating fluid: fluorinated fluid or 60% ethylene glycol aqueous solution
  • Temperature stability +/-0.1 C; contact I/O and RS-485 serial communication; SEMI, CE/UKCA, UL compliant
  • Options: C (analog communication), D (DeviceNet), N (NPT fitting), Y (DI control kit, not for fluorinated fluid), Z (circulating fluid auto recovery)

Specifications

Cooling method Water-cooled refrigeration, 1 channel
Refrigerant R454C (HFO/HFC, GWP 146)
Cooling capacity 10 kW (4 kW at -10 C)
Set temperature range -20 to 90 C
Temperature stability +/-0.1 C
Pump capacity 0.72 MPa at 20 L/min (inverter flow control)
Power supply 3-ph AC200/200-208V (50/60Hz)
Circulating fluid ports Rc3/4 (drain Rc3/8)
Facility water ports Rc1/2
Dimensions W380 x D870 x H950 mm
Mass 165 +/-5 kg
Port thread Rc (NPT fittings: option N)
Source SMC Korea catalog CAT.KS40-81A (SMCKR_HRZF.pdf), p. 3
HRZF010-WS Circulating fluid: Fluorinated fluid | Fluid examples: Fluorinert FC-3283/FC-40, GALDEN | DI control kit (Y): Not available
HRZF010-W1S Circulating fluid: 60% ethylene glycol | Fluid examples: Ethylene glycol aqueous solution | DI control kit (Y): Available
ChillersSMC
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HRZF Thermo-Chiller (Inverter Type, Low-GWP R454C, 10 kW)

Brand SMC·Chillers

Available part numbers (2)

HRZF010-WS, HRZF010-W1S

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRZF010-WSCirculating fluid: Fluorinated fluid | Fluid examples: Fluorinert FC-3283/FC-40, GALDEN | DI control kit (Y): Not available
HRZF010-W1SCirculating fluid: 60% ethylene glycol | Fluid examples: Ethylene glycol aqueous solution | DI control kit (Y): Available
