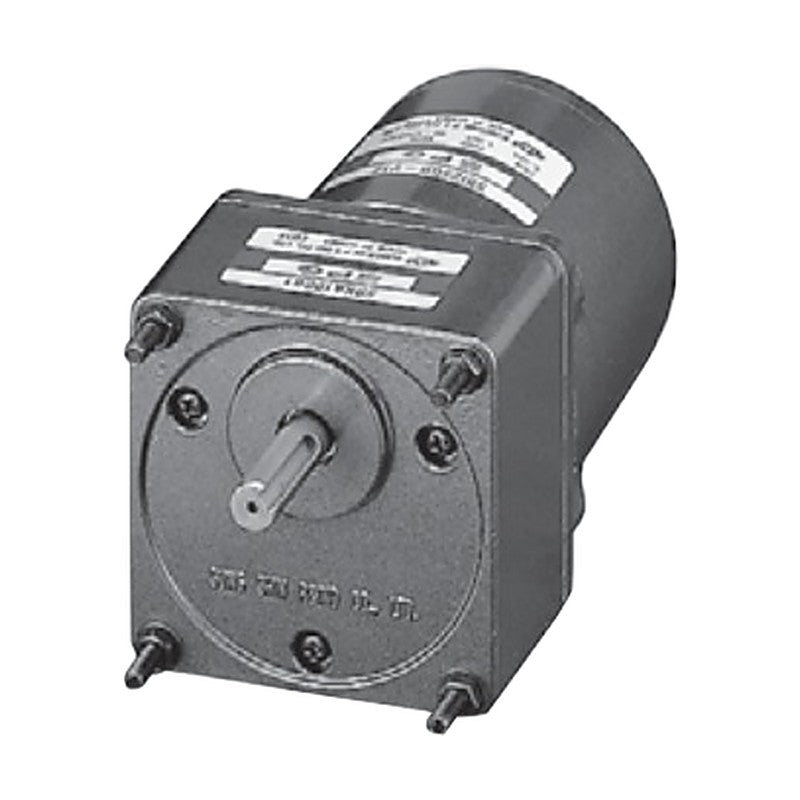

SPG 70 mm Speed Control Induction Motors (15 W, SR/SS Type)

SPG 70 mm Speed Control Induction Motors (15 W, SR/SS Type)

SPG 70 mm single-phase induction speed control motors (15 W) with built-in tacho generator, matched to SR or SS speed controllers.

Key features

  • Built-in tacho generator for feedback control; speed stays constant when supply frequency changes
  • Variable speed with SPG SR (-S12) or SS (-S24) socket-type speed controllers
  • Speed conversion, braking and reversing operation possible; slow run / slow stop with SS controller
  • CE-marked models (suffix CE) available for every voltage
  • (TP) models have a built-in automatic-reset thermal protector; X (220-240 V) models are TP type as standard

Specifications

Frame size 70 mm sq.
Output 15 W
Motor type Induction speed control motor, lead wire type
Phase Single-phase
Poles 4
Duty Continuous
Speed range 50 Hz: 90-1400 rpm; 60 Hz: 90-1700 rpm
Tacho generator -S12: 12 V for SR controller; -S24: 24 V for SS
Insulation class B (130 C)
Shaft Pinion shaft (G) for S7 gearheads; gearheads sold separately
Source SPG Standard AC Geared Motor catalog, p. 241-243
S7I15GA-S12 Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 5 uF
S7I15GA-S12(TP) Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 5 uF
S7I15GA-S12CE Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 5 uF
S7I15GB-S12 Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 1.2 uF
S7I15GB-S12(TP) Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 1.2 uF
S7I15GB-S12CE Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 1.2 uF
S7I15GC-S12 Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 5 uF
S7I15GC-S12(TP) Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 5 uF
S7I15GC-S12CE Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 5 uF
S7I15GD-S12 Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 1.2 uF
S7I15GD-S12(TP) Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 1.2 uF
S7I15GD-S12CE Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 1.2 uF
S7I15GX-S12 Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 0.9 uF
S7I15GX-S12CE Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 0.9 uF
S7I15GA-S24 Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: Standard | Capacitor: 5 uF
S7I15GA-S24(TP) Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 5 uF
S7I15GA-S24CE Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: CE marked | Capacitor: 5 uF
S7I15GB-S24 Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: Standard | Capacitor: 1.2 uF
S7I15GB-S24(TP) Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 1.2 uF
S7I15GB-S24CE Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: CE marked | Capacitor: 1.2 uF
S7I15GC-S24 Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: Standard | Capacitor: 5 uF
S7I15GC-S24(TP) Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 5 uF
S7I15GC-S24CE Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: CE marked | Capacitor: 5 uF
S7I15GD-S24 Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: Standard | Capacitor: 1.2 uF
S7I15GD-S24(TP) Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 1.2 uF
S7I15GD-S24CE Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: CE marked | Capacitor: 1.2 uF
S7I15GX-S24 Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 0.9 uF
S7I15GX-S24CE Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Version: CE marked | Capacitor: 0.9 uF
Speed Control MotorsSPG
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 70 mm Speed Control Induction Motors (15 W, SR/SS Type)

Brand SPG·Speed Control Motors

Available part numbers (28)

S7I15GA-S12, S7I15GA-S12(TP), S7I15GA-S12CE, S7I15GB-S12, S7I15GB-S12(TP), S7I15GB-S12CE, S7I15GC-S12, S7I15GC-S12(TP), S7I15GC-S12CE, S7I15GD-S12 + 18 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S7I15GA-S12Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 5 uF
S7I15GA-S12(TP)Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 5 uF
S7I15GA-S12CEVoltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 5 uF
S7I15GB-S12Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 1.2 uF
S7I15GB-S12(TP)Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 1.2 uF
S7I15GB-S12CEVoltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 1.2 uF
S7I15GC-S12Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 5 uF
S7I15GC-S12(TP)Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 5 uF
S7I15GC-S12CEVoltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 5 uF
S7I15GD-S12Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 1.2 uF
S7I15GD-S12(TP)Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 1.2 uF
S7I15GD-S12CEVoltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 1.2 uF
S7I15GX-S12Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 0.9 uF
S7I15GX-S12CEVoltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 0.9 uF
S7I15GA-S24Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: Standard | Capacitor: 5 uF
S7I15GA-S24(TP)Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 5 uF
S7I15GA-S24CEVoltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: CE marked | Capacitor: 5 uF
S7I15GB-S24Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: Standard | Capacitor: 1.2 uF
S7I15GB-S24(TP)Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 1.2 uF
S7I15GB-S24CEVoltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: CE marked | Capacitor: 1.2 uF
S7I15GC-S24Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: Standard | Capacitor: 5 uF
S7I15GC-S24(TP)Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 5 uF
S7I15GC-S24CEVoltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: CE marked | Capacitor: 5 uF
S7I15GD-S24Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: Standard | Capacitor: 1.2 uF
S7I15GD-S24(TP)Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 1.2 uF
S7I15GD-S24CEVoltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: CE marked | Capacitor: 1.2 uF
S7I15GX-S24Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 0.9 uF
S7I15GX-S24CEVoltage: 1-ph 220-240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Version: CE marked | Capacitor: 0.9 uF
