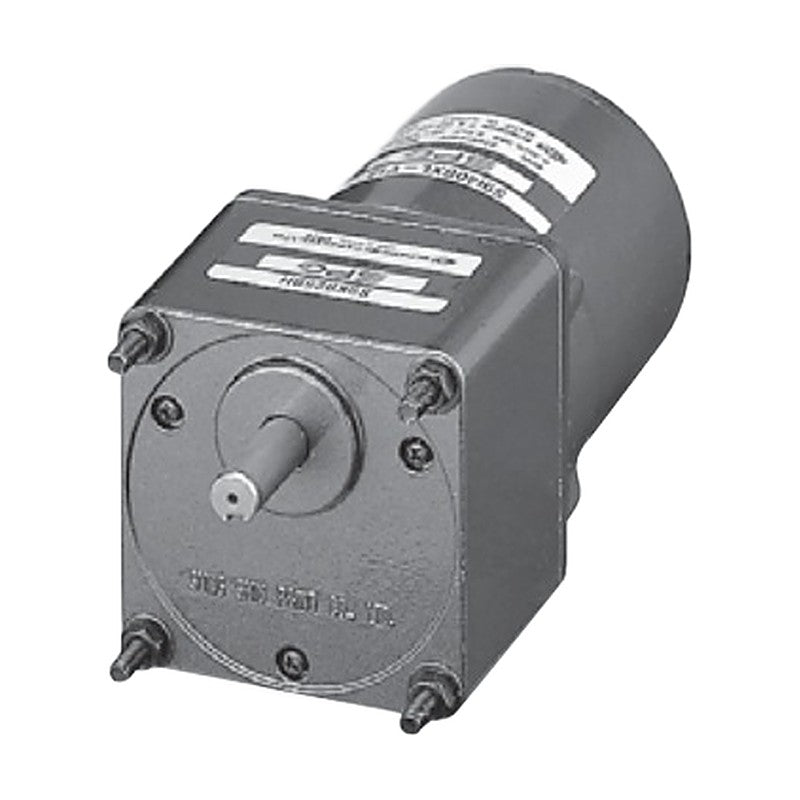

SPG 90 mm Speed Control Induction Motors (40-90 W, SR/SS Type)

SPG 90 mm Speed Control Induction Motors (40-90 W, SR/SS Type)

SPG 90 mm single-phase induction speed control motors (40/60/90 W) with built-in tacho generator, matched to SR or SS speed controllers.

Key features

  • Built-in tacho generator for feedback control; speed stays constant when supply frequency changes
  • Variable speed with SPG SR (-S12) or SS (-S24) socket-type speed controllers
  • Speed conversion, braking and reversing operation possible; slow run / slow stop with SS controller
  • CE-marked models (suffix CE) available for every voltage
  • (TP) models have a built-in automatic-reset thermal protector; X (220-240 V) models are TP type as standard
  • L / H letter in the code selects the matching L or H type gearhead interface

Specifications

Frame size 90 mm sq.
Motor type Induction speed control motor, lead wire type
Phase Single-phase
Poles 4
Duty Continuous
Speed range 50 Hz: 90-1400 rpm; 60 Hz: 90-1700 rpm
Tacho generator -S12: 12 V for SR controller; -S24: 24 V for SS
Insulation class B (130 C)
Shaft Pinion shaft (G); L type mates L gearheads, H type mates H gearheads
Source SPG Standard AC Geared Motor catalog, p. 249-259
S9I40GAL-S12 Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 10 uF
S9I40GAL-S12(TP) Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GAL-S12CE Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 10 uF
S9I40GBL-S12 Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 2.5 uF
S9I40GBL-S12(TP) Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GBL-S12CE Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 2.5 uF
S9I40GCL-S12 Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 10 uF
S9I40GCL-S12(TP) Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GCL-S12CE Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 10 uF
S9I40GDL-S12 Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 2.5 uF
S9I40GDL-S12(TP) Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GDL-S12CE Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 2.5 uF
S9I40GXL-S12 Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 2 uF
S9I40GXL-S12CE Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 2 uF
S9I40GAL-S24 Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: Standard | Capacitor: 10 uF
S9I40GAL-S24(TP) Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GAL-S24CE Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: CE marked | Capacitor: 10 uF
S9I40GBL-S24 Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: Standard | Capacitor: 2.5 uF
S9I40GBL-S24(TP) Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GBL-S24CE Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: CE marked | Capacitor: 2.5 uF
S9I40GCL-S24 Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: Standard | Capacitor: 10 uF
S9I40GCL-S24(TP) Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GCL-S24CE Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: CE marked | Capacitor: 10 uF
S9I40GDL-S24 Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: Standard | Capacitor: 2.5 uF
S9I40GDL-S24(TP) Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GDL-S24CE Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: CE marked | Capacitor: 2.5 uF
S9I40GXL-S24 Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 2 uF
S9I40GXL-S24CE Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Version: CE marked | Capacitor: 2 uF
S9I40GAH-S12 Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 10 uF
S9I40GAH-S12(TP) Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GAH-S12CE Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 10 uF
S9I40GBH-S12 Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 2.5 uF
S9I40GBH-S12(TP) Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GBH-S12CE Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 2.5 uF
S9I40GCH-S12 Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 10 uF
S9I40GCH-S12(TP) Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GCH-S12CE Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 10 uF
S9I40GDH-S12 Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 2.5 uF
S9I40GDH-S12(TP) Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GDH-S12CE Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 2.5 uF
S9I40GXH-S12 Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 2 uF
S9I40GXH-S12CE Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 2 uF
S9I40GAH-S24 Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: Standard | Capacitor: 10 uF
S9I40GAH-S24(TP) Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GAH-S24CE Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: CE marked | Capacitor: 10 uF
S9I40GBH-S24 Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: Standard | Capacitor: 2.5 uF
S9I40GBH-S24(TP) Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GBH-S24CE Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: CE marked | Capacitor: 2.5 uF
S9I40GCH-S24 Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: Standard | Capacitor: 10 uF
S9I40GCH-S24(TP) Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GCH-S24CE Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: CE marked | Capacitor: 10 uF
S9I40GDH-S24 Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: Standard | Capacitor: 2.5 uF
S9I40GDH-S24(TP) Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GDH-S24CE Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: CE marked | Capacitor: 2.5 uF
S9I40GXH-S24 Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 2 uF
S9I40GXH-S24CE Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Version: CE marked | Capacitor: 2 uF
S9I60GAL-S12 Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 20 uF
S9I60GAL-S12(TP) Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GAL-S12CE Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 20 uF
S9I60GBL-S12 Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 5 uF
S9I60GBL-S12(TP) Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GBL-S12CE Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 5 uF
S9I60GCL-S12 Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 20 uF
S9I60GCL-S12(TP) Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GCL-S12CE Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 20 uF
S9I60GDL-S12 Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 5 uF
S9I60GDL-S12(TP) Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GDL-S12CE Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 5 uF
S9I60GXL-S12 Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 3.5 uF
S9I60GXL-S12CE Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 3.5 uF
S9I60GAL-S24 Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Standard | Capacitor: 20 uF
S9I60GAL-S24(TP) Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GAL-S24CE Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: CE marked | Capacitor: 20 uF
S9I60GBL-S24 Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Standard | Capacitor: 5 uF
S9I60GBL-S24(TP) Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GBL-S24CE Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: CE marked | Capacitor: 5 uF
S9I60GCL-S24 Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Standard | Capacitor: 20 uF
S9I60GCL-S24(TP) Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GCL-S24CE Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: CE marked | Capacitor: 20 uF
S9I60GDL-S24 Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Standard | Capacitor: 5 uF
S9I60GDL-S24(TP) Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GDL-S24CE Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: CE marked | Capacitor: 5 uF
S9I60GXL-S24 Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 3.5 uF
S9I60GXL-S24CE Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: CE marked | Capacitor: 3.5 uF
S9I60GAH-S12 Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 20 uF
S9I60GAH-S12(TP) Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GAH-S12CE Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 20 uF
S9I60GBH-S12 Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 5 uF
S9I60GBH-S12(TP) Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GBH-S12CE Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 5 uF
S9I60GCH-S12 Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 20 uF
S9I60GCH-S12(TP) Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GCH-S12CE Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 20 uF
S9I60GDH-S12 Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 5 uF
S9I60GDH-S12(TP) Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GDH-S12CE Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 5 uF
S9I60GXH-S12 Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 3.5 uF
S9I60GXH-S12CE Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 3.5 uF
S9I60GAH-S24 Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Standard | Capacitor: 20 uF
S9I60GAH-S24(TP) Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GAH-S24CE Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: CE marked | Capacitor: 20 uF
S9I60GBH-S24 Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Standard | Capacitor: 5 uF
S9I60GBH-S24(TP) Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GBH-S24CE Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: CE marked | Capacitor: 5 uF
S9I60GCH-S24 Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Standard | Capacitor: 20 uF
S9I60GCH-S24(TP) Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GCH-S24CE Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: CE marked | Capacitor: 20 uF
S9I60GDH-S24 Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Standard | Capacitor: 5 uF
S9I60GDH-S24(TP) Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GDH-S24CE Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: CE marked | Capacitor: 5 uF
S9I60GXH-S24 Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 3.5 uF
S9I60GXH-S24CE Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: CE marked | Capacitor: 3.5 uF
S9I90GAL-S12 Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 24 uF
S9I90GAL-S12(TP) Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GAL-S12CE Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 24 uF
S9I90GBL-S12 Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 7 uF
S9I90GBL-S12(TP) Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GBL-S12CE Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 7 uF
S9I90GCL-S12 Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 24 uF
S9I90GCL-S12(TP) Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GCL-S12CE Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 24 uF
S9I90GDL-S12 Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 7 uF
S9I90GDL-S12(TP) Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GDL-S12CE Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 7 uF
S9I90GXL-S12 Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 5 uF
S9I90GXL-S12CE Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 5 uF
S9I90GAL-S24 Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Standard | Capacitor: 24 uF
S9I90GAL-S24(TP) Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GAL-S24CE Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: CE marked | Capacitor: 24 uF
S9I90GBL-S24 Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Standard | Capacitor: 7 uF
S9I90GBL-S24(TP) Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GBL-S24CE Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: CE marked | Capacitor: 7 uF
S9I90GCL-S24 Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Standard | Capacitor: 24 uF
S9I90GCL-S24(TP) Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GCL-S24CE Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: CE marked | Capacitor: 24 uF
S9I90GDL-S24 Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Standard | Capacitor: 7 uF
S9I90GDL-S24(TP) Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GDL-S24CE Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: CE marked | Capacitor: 7 uF
S9I90GXL-S24 Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 5 uF
S9I90GXL-S24CE Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: CE marked | Capacitor: 5 uF
S9I90GAH-S12 Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 24 uF
S9I90GAH-S12(TP) Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GAH-S12CE Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 24 uF
S9I90GBH-S12 Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 7 uF
S9I90GBH-S12(TP) Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GBH-S12CE Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 7 uF
S9I90GCH-S12 Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 24 uF
S9I90GCH-S12(TP) Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GCH-S12CE Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 24 uF
S9I90GDH-S12 Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 7 uF
S9I90GDH-S12(TP) Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GDH-S12CE Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 7 uF
S9I90GXH-S12 Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 5 uF
S9I90GXH-S12CE Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 5 uF
S9I90GAH-S24 Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Standard | Capacitor: 24 uF
S9I90GAH-S24(TP) Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GAH-S24CE Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: CE marked | Capacitor: 24 uF
S9I90GBH-S24 Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Standard | Capacitor: 7 uF
S9I90GBH-S24(TP) Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GBH-S24CE Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: CE marked | Capacitor: 7 uF
S9I90GCH-S24 Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Standard | Capacitor: 24 uF
S9I90GCH-S24(TP) Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GCH-S24CE Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: CE marked | Capacitor: 24 uF
S9I90GDH-S24 Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Standard | Capacitor: 7 uF
S9I90GDH-S24(TP) Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GDH-S24CE Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: CE marked | Capacitor: 7 uF
S9I90GXH-S24 Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 5 uF
S9I90GXH-S24CE Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: CE marked | Capacitor: 5 uF
Speed Control MotorsSPG
168 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 90 mm Speed Control Induction Motors (40-90 W, SR/SS Type)

Brand SPG·Speed Control Motors

Available part numbers (168)

S9I40GAL-S12, S9I40GAL-S12(TP), S9I40GAL-S12CE, S9I40GBL-S12, S9I40GBL-S12(TP), S9I40GBL-S12CE, S9I40GCL-S12, S9I40GCL-S12(TP), S9I40GCL-S12CE, S9I40GDL-S12 + 158 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S9I40GAL-S12Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 10 uF
S9I40GAL-S12(TP)Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GAL-S12CEOutput: 40 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 10 uF
S9I40GBL-S12Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 2.5 uF
S9I40GBL-S12(TP)Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GBL-S12CEOutput: 40 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 2.5 uF
S9I40GCL-S12Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 10 uF
S9I40GCL-S12(TP)Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GCL-S12CEOutput: 40 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 10 uF
S9I40GDL-S12Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 2.5 uF
S9I40GDL-S12(TP)Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GDL-S12CEOutput: 40 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 2.5 uF
S9I40GXL-S12Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 2 uF
S9I40GXL-S12CEOutput: 40 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 2 uF
S9I40GAL-S24Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: Standard | Capacitor: 10 uF
S9I40GAL-S24(TP)Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GAL-S24CEOutput: 40 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: CE marked | Capacitor: 10 uF
S9I40GBL-S24Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: Standard | Capacitor: 2.5 uF
S9I40GBL-S24(TP)Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GBL-S24CEOutput: 40 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: CE marked | Capacitor: 2.5 uF
S9I40GCL-S24Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: Standard | Capacitor: 10 uF
S9I40GCL-S24(TP)Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GCL-S24CEOutput: 40 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: CE marked | Capacitor: 10 uF
S9I40GDL-S24Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: Standard | Capacitor: 2.5 uF
S9I40GDL-S24(TP)Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GDL-S24CEOutput: 40 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: CE marked | Capacitor: 2.5 uF
S9I40GXL-S24Output: 40 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 2 uF
S9I40GXL-S24CEOutput: 40 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Version: CE marked | Capacitor: 2 uF
S9I40GAH-S12Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 10 uF
S9I40GAH-S12(TP)Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GAH-S12CEOutput: 40 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 10 uF
S9I40GBH-S12Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 2.5 uF
S9I40GBH-S12(TP)Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GBH-S12CEOutput: 40 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 2.5 uF
S9I40GCH-S12Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 10 uF
S9I40GCH-S12(TP)Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GCH-S12CEOutput: 40 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 10 uF
S9I40GDH-S12Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 2.5 uF
S9I40GDH-S12(TP)Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GDH-S12CEOutput: 40 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 2.5 uF
S9I40GXH-S12Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 2 uF
S9I40GXH-S12CEOutput: 40 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 2 uF
S9I40GAH-S24Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: Standard | Capacitor: 10 uF
S9I40GAH-S24(TP)Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GAH-S24CEOutput: 40 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Version: CE marked | Capacitor: 10 uF
S9I40GBH-S24Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: Standard | Capacitor: 2.5 uF
S9I40GBH-S24(TP)Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GBH-S24CEOutput: 40 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Version: CE marked | Capacitor: 2.5 uF
S9I40GCH-S24Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: Standard | Capacitor: 10 uF
S9I40GCH-S24(TP)Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 10 uF
S9I40GCH-S24CEOutput: 40 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Version: CE marked | Capacitor: 10 uF
S9I40GDH-S24Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: Standard | Capacitor: 2.5 uF
S9I40GDH-S24(TP)Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 2.5 uF
S9I40GDH-S24CEOutput: 40 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Version: CE marked | Capacitor: 2.5 uF
S9I40GXH-S24Output: 40 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 2 uF
S9I40GXH-S24CEOutput: 40 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Version: CE marked | Capacitor: 2 uF
S9I60GAL-S12Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 20 uF
S9I60GAL-S12(TP)Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GAL-S12CEOutput: 60 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 20 uF
S9I60GBL-S12Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 5 uF
S9I60GBL-S12(TP)Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GBL-S12CEOutput: 60 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 5 uF
S9I60GCL-S12Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 20 uF
S9I60GCL-S12(TP)Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GCL-S12CEOutput: 60 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 20 uF
S9I60GDL-S12Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 5 uF
S9I60GDL-S12(TP)Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GDL-S12CEOutput: 60 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 5 uF
S9I60GXL-S12Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 3.5 uF
S9I60GXL-S12CEOutput: 60 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 3.5 uF
S9I60GAL-S24Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Standard | Capacitor: 20 uF
S9I60GAL-S24(TP)Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GAL-S24CEOutput: 60 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: CE marked | Capacitor: 20 uF
S9I60GBL-S24Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Standard | Capacitor: 5 uF
S9I60GBL-S24(TP)Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GBL-S24CEOutput: 60 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: CE marked | Capacitor: 5 uF
S9I60GCL-S24Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Standard | Capacitor: 20 uF
S9I60GCL-S24(TP)Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GCL-S24CEOutput: 60 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: CE marked | Capacitor: 20 uF
S9I60GDL-S24Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Standard | Capacitor: 5 uF
S9I60GDL-S24(TP)Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GDL-S24CEOutput: 60 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: CE marked | Capacitor: 5 uF
S9I60GXL-S24Output: 60 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 3.5 uF
S9I60GXL-S24CEOutput: 60 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: CE marked | Capacitor: 3.5 uF
S9I60GAH-S12Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 20 uF
S9I60GAH-S12(TP)Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GAH-S12CEOutput: 60 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 20 uF
S9I60GBH-S12Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 5 uF
S9I60GBH-S12(TP)Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GBH-S12CEOutput: 60 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 5 uF
S9I60GCH-S12Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 20 uF
S9I60GCH-S12(TP)Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GCH-S12CEOutput: 60 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 20 uF
S9I60GDH-S12Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 5 uF
S9I60GDH-S12(TP)Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GDH-S12CEOutput: 60 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 5 uF
S9I60GXH-S12Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 3.5 uF
S9I60GXH-S12CEOutput: 60 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 3.5 uF
S9I60GAH-S24Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Standard | Capacitor: 20 uF
S9I60GAH-S24(TP)Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GAH-S24CEOutput: 60 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: CE marked | Capacitor: 20 uF
S9I60GBH-S24Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Standard | Capacitor: 5 uF
S9I60GBH-S24(TP)Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GBH-S24CEOutput: 60 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: CE marked | Capacitor: 5 uF
S9I60GCH-S24Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Standard | Capacitor: 20 uF
S9I60GCH-S24(TP)Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 20 uF
S9I60GCH-S24CEOutput: 60 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: CE marked | Capacitor: 20 uF
S9I60GDH-S24Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Standard | Capacitor: 5 uF
S9I60GDH-S24(TP)Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 5 uF
S9I60GDH-S24CEOutput: 60 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: CE marked | Capacitor: 5 uF
S9I60GXH-S24Output: 60 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 3.5 uF
S9I60GXH-S24CEOutput: 60 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: CE marked | Capacitor: 3.5 uF
S9I90GAL-S12Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 24 uF
S9I90GAL-S12(TP)Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GAL-S12CEOutput: 90 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 24 uF
S9I90GBL-S12Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 7 uF
S9I90GBL-S12(TP)Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GBL-S12CEOutput: 90 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 7 uF
S9I90GCL-S12Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 24 uF
S9I90GCL-S12(TP)Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GCL-S12CEOutput: 90 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 24 uF
S9I90GDL-S12Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 7 uF
S9I90GDL-S12(TP)Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GDL-S12CEOutput: 90 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 7 uF
S9I90GXL-S12Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 5 uF
S9I90GXL-S12CEOutput: 90 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 5 uF
S9I90GAL-S24Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Standard | Capacitor: 24 uF
S9I90GAL-S24(TP)Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GAL-S24CEOutput: 90 W | Gearhead mount: L type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: CE marked | Capacitor: 24 uF
S9I90GBL-S24Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Standard | Capacitor: 7 uF
S9I90GBL-S24(TP)Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GBL-S24CEOutput: 90 W | Gearhead mount: L type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: CE marked | Capacitor: 7 uF
S9I90GCL-S24Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Standard | Capacitor: 24 uF
S9I90GCL-S24(TP)Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GCL-S24CEOutput: 90 W | Gearhead mount: L type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: CE marked | Capacitor: 24 uF
S9I90GDL-S24Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Standard | Capacitor: 7 uF
S9I90GDL-S24(TP)Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GDL-S24CEOutput: 90 W | Gearhead mount: L type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: CE marked | Capacitor: 7 uF
S9I90GXL-S24Output: 90 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 5 uF
S9I90GXL-S24CEOutput: 90 W | Gearhead mount: L type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: CE marked | Capacitor: 5 uF
S9I90GAH-S12Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Standard | Capacitor: 24 uF
S9I90GAH-S12(TP)Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GAH-S12CEOutput: 90 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Version: CE marked | Capacitor: 24 uF
S9I90GBH-S12Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Standard | Capacitor: 7 uF
S9I90GBH-S12(TP)Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GBH-S12CEOutput: 90 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Version: CE marked | Capacitor: 7 uF
S9I90GCH-S12Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Standard | Capacitor: 24 uF
S9I90GCH-S12(TP)Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GCH-S12CEOutput: 90 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Version: CE marked | Capacitor: 24 uF
S9I90GDH-S12Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Standard | Capacitor: 7 uF
S9I90GDH-S12(TP)Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GDH-S12CEOutput: 90 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Version: CE marked | Capacitor: 7 uF
S9I90GXH-S12Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02 | Version: Standard (TP built in) | Capacitor: 5 uF
S9I90GXH-S12CEOutput: 90 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX02CE | Version: CE marked | Capacitor: 5 uF
S9I90GAH-S24Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Standard | Capacitor: 24 uF
S9I90GAH-S24(TP)Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GAH-S24CEOutput: 90 W | Gearhead mount: H type | Voltage: 1-ph 110 V 60 Hz | Controller: SSA03-SRSS | Version: CE marked | Capacitor: 24 uF
S9I90GBH-S24Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Standard | Capacitor: 7 uF
S9I90GBH-S24(TP)Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GBH-S24CEOutput: 90 W | Gearhead mount: H type | Voltage: 1-ph 220 V 60 Hz | Controller: SSB03-SRSS | Version: CE marked | Capacitor: 7 uF
S9I90GCH-S24Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Standard | Capacitor: 24 uF
S9I90GCH-S24(TP)Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: Thermal protector (TP) | Capacitor: 24 uF
S9I90GCH-S24CEOutput: 90 W | Gearhead mount: H type | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC03-SRSS | Version: CE marked | Capacitor: 24 uF
S9I90GDH-S24Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Standard | Capacitor: 7 uF
S9I90GDH-S24(TP)Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: Thermal protector (TP) | Capacitor: 7 uF
S9I90GDH-S24CEOutput: 90 W | Gearhead mount: H type | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD03-SRSS | Version: CE marked | Capacitor: 7 uF
S9I90GXH-S24Output: 90 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: Standard (TP built in) | Capacitor: 5 uF
S9I90GXH-S24CEOutput: 90 W | Gearhead mount: H type | Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX03-SRSS | Version: CE marked | Capacitor: 5 uF

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
