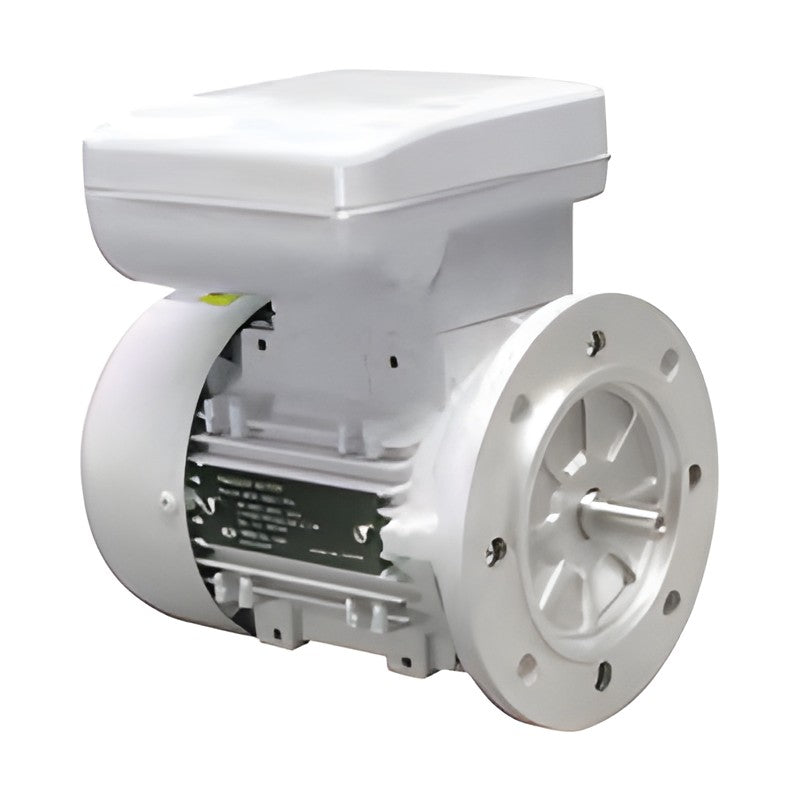

SPG P Series Single-Phase Induction Motors (0.2-0.4 kW)

SPG P Series Single-Phase Induction Motors (0.2-0.4 kW)

SPG P series single-phase 220 V 60 Hz four-pole power induction motors rated 0.2 and 0.4 kW.

Key features

  • Rated 0.18 kW (63M frame) and 0.37 kW (71M frame)
  • Single-phase 220 V 60 Hz (voltage code H1), 4 pole
  • Foot (L) or flange (F) mounting per the P series lineup
  • Lead box (A) or terminal box (B), IP55
  • Totally enclosed fan-cooled, class F insulation

Specifications

Series P Power Induction Motor
Voltage 1-ph 220 V 60 Hz
Poles 4
Duty Continuous (S1)
Protection IP55
Insulation class F
Cooling Totally enclosed fan-cooled
Source SPG Industrial Motor catalog, p. 9-10, 27-29
PMAG020-4H1LAT Output: 0.2 kW | Frame: 63M | Connection: Lead box (IP55) | Box position: 12 o'clock | Mounting: Foot
PMAG020-4H1LAL Output: 0.2 kW | Frame: 63M | Connection: Lead box (IP55) | Box position: 9 o'clock | Mounting: Foot
PMAG020-4H1LAR Output: 0.2 kW | Frame: 63M | Connection: Lead box (IP55) | Box position: 3 o'clock | Mounting: Foot
PMAG020-4H1FAT Output: 0.2 kW | Frame: 63M | Connection: Lead box (IP55) | Box position: 12 o'clock | Mounting: Flange
PMAG020-4H1LBT Output: 0.2 kW | Frame: 63M | Connection: Terminal box (IP55) | Box position: 12 o'clock | Mounting: Foot
PMAG020-4H1LBL Output: 0.2 kW | Frame: 63M | Connection: Terminal box (IP55) | Box position: 9 o'clock | Mounting: Foot
PMAG020-4H1LBR Output: 0.2 kW | Frame: 63M | Connection: Terminal box (IP55) | Box position: 3 o'clock | Mounting: Foot
PMAG020-4H1FBT Output: 0.2 kW | Frame: 63M | Connection: Terminal box (IP55) | Box position: 12 o'clock | Mounting: Flange
PMCH040-4H1LAT Output: 0.4 kW | Frame: 71M | Connection: Lead box (IP55) | Box position: 12 o'clock | Mounting: Foot
PMCH040-4H1LAL Output: 0.4 kW | Frame: 71M | Connection: Lead box (IP55) | Box position: 9 o'clock | Mounting: Foot
PMCH040-4H1LAR Output: 0.4 kW | Frame: 71M | Connection: Lead box (IP55) | Box position: 3 o'clock | Mounting: Foot
PMCH040-4H1FAT Output: 0.4 kW | Frame: 71M | Connection: Lead box (IP55) | Box position: 12 o'clock | Mounting: Flange
PMCH040-4H1LBT Output: 0.4 kW | Frame: 71M | Connection: Terminal box (IP55) | Box position: 12 o'clock | Mounting: Foot
PMCH040-4H1LBL Output: 0.4 kW | Frame: 71M | Connection: Terminal box (IP55) | Box position: 9 o'clock | Mounting: Foot
PMCH040-4H1LBR Output: 0.4 kW | Frame: 71M | Connection: Terminal box (IP55) | Box position: 3 o'clock | Mounting: Foot
PMCH040-4H1FBT Output: 0.4 kW | Frame: 71M | Connection: Terminal box (IP55) | Box position: 12 o'clock | Mounting: Flange
Industrial MotorsSPG
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG P Series Single-Phase Induction Motors (0.2-0.4 kW)

Brand SPG·Industrial Motors

Available part numbers (16)

PMAG020-4H1LAT, PMAG020-4H1LAL, PMAG020-4H1LAR, PMAG020-4H1FAT, PMAG020-4H1LBT, PMAG020-4H1LBL, PMAG020-4H1LBR, PMAG020-4H1FBT, PMCH040-4H1LAT, PMCH040-4H1LAL + 6 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PMAG020-4H1LATOutput: 0.2 kW | Frame: 63M | Connection: Lead box (IP55) | Box position: 12 o'clock | Mounting: Foot
PMAG020-4H1LALOutput: 0.2 kW | Frame: 63M | Connection: Lead box (IP55) | Box position: 9 o'clock | Mounting: Foot
PMAG020-4H1LAROutput: 0.2 kW | Frame: 63M | Connection: Lead box (IP55) | Box position: 3 o'clock | Mounting: Foot
PMAG020-4H1FATOutput: 0.2 kW | Frame: 63M | Connection: Lead box (IP55) | Box position: 12 o'clock | Mounting: Flange
PMAG020-4H1LBTOutput: 0.2 kW | Frame: 63M | Connection: Terminal box (IP55) | Box position: 12 o'clock | Mounting: Foot
PMAG020-4H1LBLOutput: 0.2 kW | Frame: 63M | Connection: Terminal box (IP55) | Box position: 9 o'clock | Mounting: Foot
PMAG020-4H1LBROutput: 0.2 kW | Frame: 63M | Connection: Terminal box (IP55) | Box position: 3 o'clock | Mounting: Foot
PMAG020-4H1FBTOutput: 0.2 kW | Frame: 63M | Connection: Terminal box (IP55) | Box position: 12 o'clock | Mounting: Flange
PMCH040-4H1LATOutput: 0.4 kW | Frame: 71M | Connection: Lead box (IP55) | Box position: 12 o'clock | Mounting: Foot
PMCH040-4H1LALOutput: 0.4 kW | Frame: 71M | Connection: Lead box (IP55) | Box position: 9 o'clock | Mounting: Foot
PMCH040-4H1LAROutput: 0.4 kW | Frame: 71M | Connection: Lead box (IP55) | Box position: 3 o'clock | Mounting: Foot
PMCH040-4H1FATOutput: 0.4 kW | Frame: 71M | Connection: Lead box (IP55) | Box position: 12 o'clock | Mounting: Flange
PMCH040-4H1LBTOutput: 0.4 kW | Frame: 71M | Connection: Terminal box (IP55) | Box position: 12 o'clock | Mounting: Foot
PMCH040-4H1LBLOutput: 0.4 kW | Frame: 71M | Connection: Terminal box (IP55) | Box position: 9 o'clock | Mounting: Foot
PMCH040-4H1LBROutput: 0.4 kW | Frame: 71M | Connection: Terminal box (IP55) | Box position: 3 o'clock | Mounting: Foot
PMCH040-4H1FBTOutput: 0.4 kW | Frame: 71M | Connection: Terminal box (IP55) | Box position: 12 o'clock | Mounting: Flange
