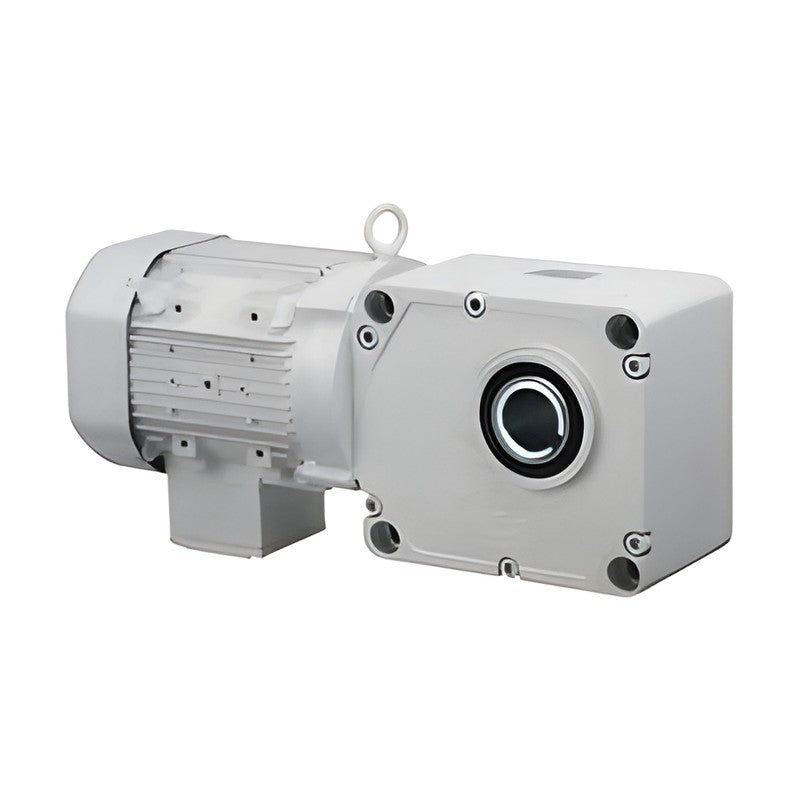

SPG PCH Frame 25 Hollow Shaft Right-Angle Geared Motors (0.2 kW)

SPG PCH Frame 25 Hollow Shaft Right-Angle Geared Motors (0.2 kW)

SPG PCH series right-angle hollow shaft industrial geared motor, gear frame 25, 3-phase 0.2 kW, ratios 1/5-1/60.

Key features

  • Right-angle hollow output shaft gearbox driven by a compact 3-phase 4-pole induction motor, 0.2 kW
  • Reduction ratios 1/5-1/60 on gear frame 25; ratios marked limited are capped by permissible gear torque
  • Motor options: A lead box (IP55), B terminal box (IP55), C terminal box + brake (IP40), D terminal box + brake waterproof (IP55)
  • Voltage codes R4 (220/380 V 60 Hz), W6 (200 V 50 Hz / 200/220 V 60 Hz) and X6 (380/400 V 50 Hz / 400/440 V 60 Hz)
  • Codes are listed with the standard terminal box direction (B); directions L/T/R are available by changing the last letter
  • Self-locking is not available; IP40 and IP55 versions share identical electrical characteristics

Specifications

Series PCH (hollow shaft, right-angle)
Gear frame 25
Output shaft Hollow shaft, bore 25 mm
Motor 3-phase induction, 4 poles
Efficiency code M - Standard efficiency
Reduction ratio range 1/5-1/60
Duty Continuous
Insulation class F
Cooling Totally enclosed fan-cooled
Terminal box location B - 6 o'clock (standard)
Source SPG Industrial Motor catalog, p. 71-87, 100
PCH25-5-MA020R4B Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-5-MB020R4B Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-5-MC020R4B Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-5-MD020R4B Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-5-MA020W6B Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-5-MB020W6B Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-5-MC020W6B Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-5-MD020W6B Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-5-MA020X6B Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-5-MB020X6B Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-5-MC020X6B Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-5-MD020X6B Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-7.5-MA020R4B Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-7.5-MB020R4B Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-7.5-MC020R4B Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-7.5-MD020R4B Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-7.5-MA020W6B Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-7.5-MB020W6B Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-7.5-MC020W6B Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-7.5-MD020W6B Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-7.5-MA020X6B Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-7.5-MB020X6B Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-7.5-MC020X6B Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-7.5-MD020X6B Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-10-MA020R4B Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-10-MB020R4B Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-10-MC020R4B Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-10-MD020R4B Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-10-MA020W6B Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-10-MB020W6B Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-10-MC020W6B Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-10-MD020W6B Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-10-MA020X6B Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-10-MB020X6B Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-10-MC020X6B Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-10-MD020X6B Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-12.5-MA020R4B Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-12.5-MB020R4B Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-12.5-MC020R4B Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-12.5-MD020R4B Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-12.5-MA020W6B Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-12.5-MB020W6B Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-12.5-MC020W6B Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-12.5-MD020W6B Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-12.5-MA020X6B Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-12.5-MB020X6B Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-12.5-MC020X6B Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-12.5-MD020X6B Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-15-MA020R4B Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-15-MB020R4B Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-15-MC020R4B Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-15-MD020R4B Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-15-MA020W6B Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-15-MB020W6B Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-15-MC020W6B Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-15-MD020W6B Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-15-MA020X6B Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-15-MB020X6B Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-15-MC020X6B Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-15-MD020X6B Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-20-MA020R4B Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-20-MB020R4B Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-20-MC020R4B Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-20-MD020R4B Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-20-MA020W6B Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-20-MB020W6B Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-20-MC020W6B Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-20-MD020W6B Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-20-MA020X6B Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-20-MB020X6B Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-20-MC020X6B Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-20-MD020X6B Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-25-MA020R4B Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-25-MB020R4B Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-25-MC020R4B Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-25-MD020R4B Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-25-MA020W6B Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-25-MB020W6B Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-25-MC020W6B Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-25-MD020W6B Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-25-MA020X6B Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-25-MB020X6B Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-25-MC020X6B Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-25-MD020X6B Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-30-MA020R4B Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-30-MB020R4B Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-30-MC020R4B Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-30-MD020R4B Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-30-MA020W6B Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-30-MB020W6B Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-30-MC020W6B Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-30-MD020W6B Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-30-MA020X6B Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-30-MB020X6B Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-30-MC020X6B Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-30-MD020X6B Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-40-MA020R4B Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-40-MB020R4B Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-40-MC020R4B Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-40-MD020R4B Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-40-MA020W6B Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-40-MB020W6B Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-40-MC020W6B Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-40-MD020W6B Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-40-MA020X6B Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-40-MB020X6B Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-40-MC020X6B Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-40-MD020X6B Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-50-MA020R4B Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-50-MB020R4B Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-50-MC020R4B Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-50-MD020R4B Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-50-MA020W6B Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-50-MB020W6B Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-50-MC020W6B Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-50-MD020W6B Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-50-MA020X6B Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-50-MB020X6B Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-50-MC020X6B Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-50-MD020X6B Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-60-MA020R4B Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-60-MB020R4B Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-60-MC020R4B Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-60-MD020R4B Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-60-MA020W6B Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-60-MB020W6B Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-60-MC020W6B Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-60-MD020W6B Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-60-MA020X6B Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-60-MB020X6B Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-60-MC020X6B Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-60-MD020X6B Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
Industrial MotorsSPG
132 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG PCH Frame 25 Hollow Shaft Right-Angle Geared Motors (0.2 kW)

Brand SPG·Industrial Motors

Available part numbers (132)

PCH25-5-MA020R4B, PCH25-5-MB020R4B, PCH25-5-MC020R4B, PCH25-5-MD020R4B, PCH25-5-MA020W6B, PCH25-5-MB020W6B, PCH25-5-MC020W6B, PCH25-5-MD020W6B, PCH25-5-MA020X6B, PCH25-5-MB020X6B + 122 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PCH25-5-MA020R4BOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-5-MB020R4BOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-5-MC020R4BOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-5-MD020R4BOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-5-MA020W6BOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-5-MB020W6BOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-5-MC020W6BOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-5-MD020W6BOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-5-MA020X6BOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-5-MB020X6BOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-5-MC020X6BOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-5-MD020X6BOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-7.5-MA020R4BOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-7.5-MB020R4BOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-7.5-MC020R4BOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-7.5-MD020R4BOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-7.5-MA020W6BOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-7.5-MB020W6BOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-7.5-MC020W6BOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-7.5-MD020W6BOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-7.5-MA020X6BOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-7.5-MB020X6BOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-7.5-MC020X6BOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-7.5-MD020X6BOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-10-MA020R4BOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-10-MB020R4BOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-10-MC020R4BOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-10-MD020R4BOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-10-MA020W6BOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-10-MB020W6BOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-10-MC020W6BOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-10-MD020W6BOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-10-MA020X6BOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-10-MB020X6BOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-10-MC020X6BOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-10-MD020X6BOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-12.5-MA020R4BOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-12.5-MB020R4BOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-12.5-MC020R4BOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-12.5-MD020R4BOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-12.5-MA020W6BOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-12.5-MB020W6BOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-12.5-MC020W6BOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-12.5-MD020W6BOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-12.5-MA020X6BOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-12.5-MB020X6BOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-12.5-MC020X6BOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-12.5-MD020X6BOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-15-MA020R4BOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-15-MB020R4BOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-15-MC020R4BOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-15-MD020R4BOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-15-MA020W6BOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-15-MB020W6BOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-15-MC020W6BOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-15-MD020W6BOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-15-MA020X6BOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-15-MB020X6BOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-15-MC020X6BOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-15-MD020X6BOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-20-MA020R4BOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-20-MB020R4BOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-20-MC020R4BOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-20-MD020R4BOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-20-MA020W6BOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-20-MB020W6BOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-20-MC020W6BOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-20-MD020W6BOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-20-MA020X6BOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-20-MB020X6BOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-20-MC020X6BOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-20-MD020X6BOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-25-MA020R4BOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-25-MB020R4BOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-25-MC020R4BOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-25-MD020R4BOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-25-MA020W6BOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-25-MB020W6BOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-25-MC020W6BOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-25-MD020W6BOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-25-MA020X6BOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-25-MB020X6BOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-25-MC020X6BOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-25-MD020X6BOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-30-MA020R4BOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-30-MB020R4BOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-30-MC020R4BOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-30-MD020R4BOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-30-MA020W6BOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-30-MB020W6BOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-30-MC020W6BOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-30-MD020W6BOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-30-MA020X6BOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-30-MB020X6BOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-30-MC020X6BOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-30-MD020X6BOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-40-MA020R4BOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-40-MB020R4BOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-40-MC020R4BOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-40-MD020R4BOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-40-MA020W6BOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-40-MB020W6BOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-40-MC020W6BOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-40-MD020W6BOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-40-MA020X6BOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-40-MB020X6BOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-40-MC020X6BOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-40-MD020X6BOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-50-MA020R4BOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-50-MB020R4BOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-50-MC020R4BOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-50-MD020R4BOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-50-MA020W6BOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-50-MB020W6BOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-50-MC020W6BOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-50-MD020W6BOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-50-MA020X6BOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-50-MB020X6BOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-50-MC020X6BOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-50-MD020X6BOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-60-MA020R4BOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-60-MB020R4BOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-60-MC020R4BOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-60-MD020R4BOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-60-MA020W6BOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-60-MB020W6BOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-60-MC020W6BOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-60-MD020W6BOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH25-60-MA020X6BOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH25-60-MB020X6BOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH25-60-MC020X6BOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH25-60-MD020X6BOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
