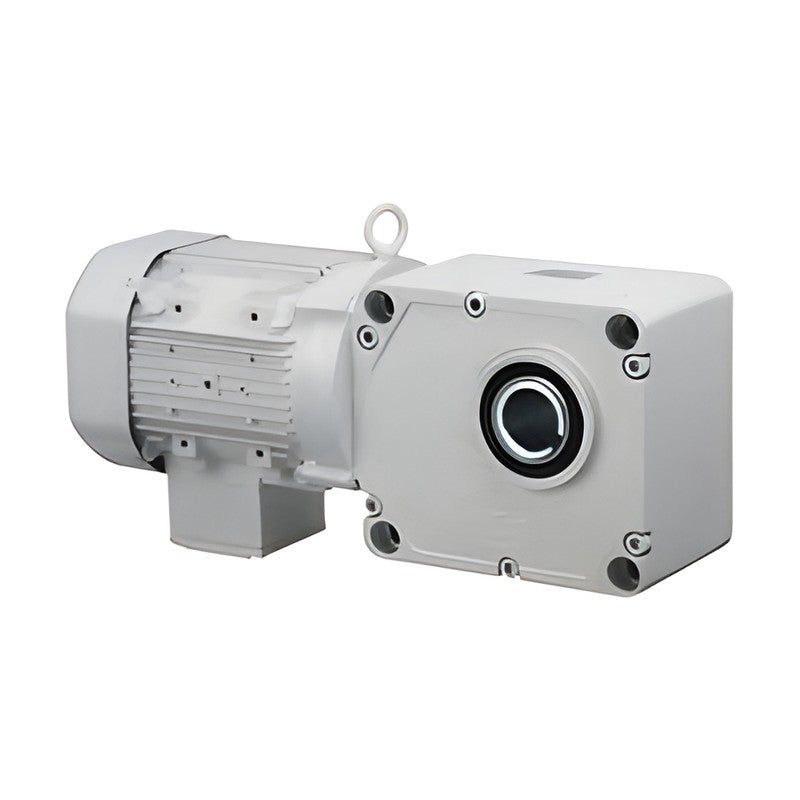

SPG PCH Frame 45 Hollow Shaft Right-Angle Geared Motors (0.75-1.5 kW)

SPG PCH Frame 45 Hollow Shaft Right-Angle Geared Motors (0.75-1.5 kW)

SPG PCH series right-angle hollow shaft industrial geared motor, gear frame 45, 3-phase 0.75-1.5 kW, ratios 1/80-1/60.

Key features

  • Right-angle hollow output shaft gearbox driven by a compact 3-phase 4-pole induction motor, 0.75-1.5 kW
  • Reduction ratios 1/80-1/60 on gear frame 45; ratios marked limited are capped by permissible gear torque
  • Motor options: A lead box (IP55), B terminal box (IP55), C terminal box + brake (IP40), D terminal box + brake waterproof (IP55)
  • Voltage codes R4 (220/380 V 60 Hz), W6 (200 V 50 Hz / 200/220 V 60 Hz) and X6 (380/400 V 50 Hz / 400/440 V 60 Hz)
  • Codes are listed with the standard terminal box direction (B); directions L/T/R are available by changing the last letter
  • Self-locking is not available; 0.75 kW and above meet premium (minimum efficiency) regulations

Specifications

Series PCH (hollow shaft, right-angle)
Gear frame 45
Output shaft Hollow shaft, bore 45 mm
Motor 3-phase induction, 4 poles
Efficiency code P - Premium efficiency
Reduction ratio range 1/80-1/60
Duty Continuous
Insulation class F
Cooling Totally enclosed fan-cooled
Terminal box location B - 6 o'clock (standard)
Source SPG Industrial Motor catalog, p. 71-87, 100
PCH45-80-PA075R4B Output: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-80-PB075R4B Output: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-80-PC075R4B Output: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-80-PD075R4B Output: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-80-PA075W6B Output: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-80-PB075W6B Output: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-80-PC075W6B Output: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-80-PD075W6B Output: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-80-PA075X6B Output: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-80-PB075X6B Output: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-80-PC075X6B Output: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-80-PD075X6B Output: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-100-PA075R4B Output: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-100-PB075R4B Output: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-100-PC075R4B Output: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-100-PD075R4B Output: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-100-PA075W6B Output: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-100-PB075W6B Output: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-100-PC075W6B Output: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-100-PD075W6B Output: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-100-PA075X6B Output: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-100-PB075X6B Output: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-100-PC075X6B Output: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-100-PD075X6B Output: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-120-PA075R4B Output: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-120-PB075R4B Output: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-120-PC075R4B Output: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-120-PD075R4B Output: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-120-PA075W6B Output: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-120-PB075W6B Output: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-120-PC075W6B Output: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-120-PD075W6B Output: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-120-PA075X6B Output: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-120-PB075X6B Output: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-120-PC075X6B Output: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-120-PD075X6B Output: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-160-PA075R4B Output: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-160-PB075R4B Output: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-160-PC075R4B Output: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-160-PD075R4B Output: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-160-PA075W6B Output: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-160-PB075W6B Output: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-160-PC075W6B Output: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-160-PD075W6B Output: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-160-PA075X6B Output: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-160-PB075X6B Output: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-160-PC075X6B Output: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-160-PD075X6B Output: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-200-PA075R4B Output: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-200-PB075R4B Output: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-200-PC075R4B Output: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-200-PD075R4B Output: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-200-PA075W6B Output: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-200-PB075W6B Output: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-200-PC075W6B Output: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-200-PD075W6B Output: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-200-PA075X6B Output: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-200-PB075X6B Output: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-200-PC075X6B Output: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-200-PD075X6B Output: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-240-PA075R4B Output: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-240-PB075R4B Output: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-240-PC075R4B Output: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-240-PD075R4B Output: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-240-PA075W6B Output: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-240-PB075W6B Output: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-240-PC075W6B Output: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-240-PD075W6B Output: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-240-PA075X6B Output: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-240-PB075X6B Output: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-240-PC075X6B Output: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-240-PD075X6B Output: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-5-PA150R4B Output: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-5-PB150R4B Output: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-5-PC150R4B Output: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-5-PD150R4B Output: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-5-PA150W6B Output: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-5-PB150W6B Output: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-5-PC150W6B Output: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-5-PD150W6B Output: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-5-PA150X6B Output: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-5-PB150X6B Output: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-5-PC150X6B Output: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-5-PD150X6B Output: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-7.5-PA150R4B Output: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-7.5-PB150R4B Output: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-7.5-PC150R4B Output: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-7.5-PD150R4B Output: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-7.5-PA150W6B Output: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-7.5-PB150W6B Output: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-7.5-PC150W6B Output: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-7.5-PD150W6B Output: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-7.5-PA150X6B Output: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-7.5-PB150X6B Output: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-7.5-PC150X6B Output: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-7.5-PD150X6B Output: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-10-PA150R4B Output: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-10-PB150R4B Output: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-10-PC150R4B Output: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-10-PD150R4B Output: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-10-PA150W6B Output: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-10-PB150W6B Output: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-10-PC150W6B Output: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-10-PD150W6B Output: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-10-PA150X6B Output: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-10-PB150X6B Output: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-10-PC150X6B Output: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-10-PD150X6B Output: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-12.5-PA150R4B Output: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-12.5-PB150R4B Output: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-12.5-PC150R4B Output: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-12.5-PD150R4B Output: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-12.5-PA150W6B Output: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-12.5-PB150W6B Output: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-12.5-PC150W6B Output: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-12.5-PD150W6B Output: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-12.5-PA150X6B Output: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-12.5-PB150X6B Output: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-12.5-PC150X6B Output: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-12.5-PD150X6B Output: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-15-PA150R4B Output: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-15-PB150R4B Output: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-15-PC150R4B Output: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-15-PD150R4B Output: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-15-PA150W6B Output: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-15-PB150W6B Output: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-15-PC150W6B Output: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-15-PD150W6B Output: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-15-PA150X6B Output: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-15-PB150X6B Output: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-15-PC150X6B Output: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-15-PD150X6B Output: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-20-PA150R4B Output: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-20-PB150R4B Output: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-20-PC150R4B Output: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-20-PD150R4B Output: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-20-PA150W6B Output: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-20-PB150W6B Output: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-20-PC150W6B Output: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-20-PD150W6B Output: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-20-PA150X6B Output: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-20-PB150X6B Output: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-20-PC150X6B Output: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-20-PD150X6B Output: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-25-PA150R4B Output: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-25-PB150R4B Output: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-25-PC150R4B Output: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-25-PD150R4B Output: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-25-PA150W6B Output: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-25-PB150W6B Output: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-25-PC150W6B Output: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-25-PD150W6B Output: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-25-PA150X6B Output: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-25-PB150X6B Output: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-25-PC150X6B Output: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-25-PD150X6B Output: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-30-PA150R4B Output: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-30-PB150R4B Output: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-30-PC150R4B Output: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-30-PD150R4B Output: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-30-PA150W6B Output: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-30-PB150W6B Output: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-30-PC150W6B Output: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-30-PD150W6B Output: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-30-PA150X6B Output: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-30-PB150X6B Output: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-30-PC150X6B Output: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-30-PD150X6B Output: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-40-PA150R4B Output: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-40-PB150R4B Output: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-40-PC150R4B Output: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-40-PD150R4B Output: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-40-PA150W6B Output: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-40-PB150W6B Output: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-40-PC150W6B Output: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-40-PD150W6B Output: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-40-PA150X6B Output: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-40-PB150X6B Output: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-40-PC150X6B Output: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-40-PD150X6B Output: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-50-PA150R4B Output: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-50-PB150R4B Output: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-50-PC150R4B Output: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-50-PD150R4B Output: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-50-PA150W6B Output: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-50-PB150W6B Output: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-50-PC150W6B Output: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-50-PD150W6B Output: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-50-PA150X6B Output: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-50-PB150X6B Output: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-50-PC150X6B Output: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-50-PD150X6B Output: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-60-PA150R4B Output: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-60-PB150R4B Output: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-60-PC150R4B Output: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-60-PD150R4B Output: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-60-PA150W6B Output: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-60-PB150W6B Output: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-60-PC150W6B Output: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-60-PD150W6B Output: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-60-PA150X6B Output: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-60-PB150X6B Output: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-60-PC150X6B Output: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-60-PD150X6B Output: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
Industrial MotorsSPG
204 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG PCH Frame 45 Hollow Shaft Right-Angle Geared Motors (0.75-1.5 kW)

Brand SPG·Industrial Motors

Available part numbers (204)

PCH45-80-PA075R4B, PCH45-80-PB075R4B, PCH45-80-PC075R4B, PCH45-80-PD075R4B, PCH45-80-PA075W6B, PCH45-80-PB075W6B, PCH45-80-PC075W6B, PCH45-80-PD075W6B, PCH45-80-PA075X6B, PCH45-80-PB075X6B + 194 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PCH45-80-PA075R4BOutput: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-80-PB075R4BOutput: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-80-PC075R4BOutput: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-80-PD075R4BOutput: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-80-PA075W6BOutput: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-80-PB075W6BOutput: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-80-PC075W6BOutput: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-80-PD075W6BOutput: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-80-PA075X6BOutput: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-80-PB075X6BOutput: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-80-PC075X6BOutput: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-80-PD075X6BOutput: 0.75 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 271 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-100-PA075R4BOutput: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-100-PB075R4BOutput: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-100-PC075R4BOutput: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-100-PD075R4BOutput: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-100-PA075W6BOutput: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-100-PB075W6BOutput: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-100-PC075W6BOutput: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-100-PD075W6BOutput: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-100-PA075X6BOutput: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-100-PB075X6BOutput: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-100-PC075X6BOutput: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-100-PD075X6BOutput: 0.75 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 338 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-120-PA075R4BOutput: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-120-PB075R4BOutput: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-120-PC075R4BOutput: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-120-PD075R4BOutput: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-120-PA075W6BOutput: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-120-PB075W6BOutput: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-120-PC075W6BOutput: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-120-PD075W6BOutput: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-120-PA075X6BOutput: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-120-PB075X6BOutput: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-120-PC075X6BOutput: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-120-PD075X6BOutput: 0.75 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-160-PA075R4BOutput: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-160-PB075R4BOutput: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-160-PC075R4BOutput: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-160-PD075R4BOutput: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-160-PA075W6BOutput: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-160-PB075W6BOutput: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-160-PC075W6BOutput: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-160-PD075W6BOutput: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-160-PA075X6BOutput: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-160-PB075X6BOutput: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-160-PC075X6BOutput: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-160-PD075X6BOutput: 0.75 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 502 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-200-PA075R4BOutput: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-200-PB075R4BOutput: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-200-PC075R4BOutput: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-200-PD075R4BOutput: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-200-PA075W6BOutput: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-200-PB075W6BOutput: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-200-PC075W6BOutput: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-200-PD075W6BOutput: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-200-PA075X6BOutput: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-200-PB075X6BOutput: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-200-PC075X6BOutput: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-200-PD075X6BOutput: 0.75 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 502 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-240-PA075R4BOutput: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-240-PB075R4BOutput: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-240-PC075R4BOutput: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-240-PD075R4BOutput: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-240-PA075W6BOutput: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-240-PB075W6BOutput: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-240-PC075W6BOutput: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-240-PD075W6BOutput: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-240-PA075X6BOutput: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-240-PB075X6BOutput: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-240-PC075X6BOutput: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-240-PD075X6BOutput: 0.75 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 535 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-5-PA150R4BOutput: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-5-PB150R4BOutput: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-5-PC150R4BOutput: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-5-PD150R4BOutput: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-5-PA150W6BOutput: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-5-PB150W6BOutput: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-5-PC150W6BOutput: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-5-PD150W6BOutput: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-5-PA150X6BOutput: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-5-PB150X6BOutput: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-5-PC150X6BOutput: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-5-PD150X6BOutput: 1.5 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-7.5-PA150R4BOutput: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-7.5-PB150R4BOutput: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-7.5-PC150R4BOutput: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-7.5-PD150R4BOutput: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-7.5-PA150W6BOutput: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-7.5-PB150W6BOutput: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-7.5-PC150W6BOutput: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-7.5-PD150W6BOutput: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-7.5-PA150X6BOutput: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-7.5-PB150X6BOutput: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-7.5-PC150X6BOutput: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-7.5-PD150X6BOutput: 1.5 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 52 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-10-PA150R4BOutput: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-10-PB150R4BOutput: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-10-PC150R4BOutput: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-10-PD150R4BOutput: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-10-PA150W6BOutput: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-10-PB150W6BOutput: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-10-PC150W6BOutput: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-10-PD150W6BOutput: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-10-PA150X6BOutput: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-10-PB150X6BOutput: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-10-PC150X6BOutput: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-10-PD150X6BOutput: 1.5 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-12.5-PA150R4BOutput: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-12.5-PB150R4BOutput: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-12.5-PC150R4BOutput: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-12.5-PD150R4BOutput: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-12.5-PA150W6BOutput: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-12.5-PB150W6BOutput: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-12.5-PC150W6BOutput: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-12.5-PD150W6BOutput: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-12.5-PA150X6BOutput: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-12.5-PB150X6BOutput: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-12.5-PC150X6BOutput: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-12.5-PD150X6BOutput: 1.5 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 86.8 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-15-PA150R4BOutput: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-15-PB150R4BOutput: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-15-PC150R4BOutput: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-15-PD150R4BOutput: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-15-PA150W6BOutput: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-15-PB150W6BOutput: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-15-PC150W6BOutput: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-15-PD150W6BOutput: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-15-PA150X6BOutput: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-15-PB150X6BOutput: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-15-PC150X6BOutput: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-15-PD150X6BOutput: 1.5 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-20-PA150R4BOutput: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-20-PB150R4BOutput: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-20-PC150R4BOutput: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-20-PD150R4BOutput: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-20-PA150W6BOutput: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-20-PB150W6BOutput: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-20-PC150W6BOutput: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-20-PD150W6BOutput: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-20-PA150X6BOutput: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-20-PB150X6BOutput: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-20-PC150X6BOutput: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-20-PD150X6BOutput: 1.5 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-25-PA150R4BOutput: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-25-PB150R4BOutput: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-25-PC150R4BOutput: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-25-PD150R4BOutput: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-25-PA150W6BOutput: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-25-PB150W6BOutput: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-25-PC150W6BOutput: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-25-PD150W6BOutput: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-25-PA150X6BOutput: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-25-PB150X6BOutput: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-25-PC150X6BOutput: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-25-PD150X6BOutput: 1.5 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-30-PA150R4BOutput: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-30-PB150R4BOutput: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-30-PC150R4BOutput: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-30-PD150R4BOutput: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-30-PA150W6BOutput: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-30-PB150W6BOutput: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-30-PC150W6BOutput: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-30-PD150W6BOutput: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-30-PA150X6BOutput: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-30-PB150X6BOutput: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-30-PC150X6BOutput: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-30-PD150X6BOutput: 1.5 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-40-PA150R4BOutput: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-40-PB150R4BOutput: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-40-PC150R4BOutput: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-40-PD150R4BOutput: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-40-PA150W6BOutput: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-40-PB150W6BOutput: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-40-PC150W6BOutput: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-40-PD150W6BOutput: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-40-PA150X6BOutput: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-40-PB150X6BOutput: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-40-PC150X6BOutput: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-40-PD150X6BOutput: 1.5 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 277 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-50-PA150R4BOutput: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-50-PB150R4BOutput: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-50-PC150R4BOutput: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-50-PD150R4BOutput: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-50-PA150W6BOutput: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-50-PB150W6BOutput: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-50-PC150W6BOutput: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-50-PD150W6BOutput: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-50-PA150X6BOutput: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-50-PB150X6BOutput: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-50-PC150X6BOutput: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-50-PD150X6BOutput: 1.5 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 346 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-60-PA150R4BOutput: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-60-PB150R4BOutput: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-60-PC150R4BOutput: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-60-PD150R4BOutput: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-60-PA150W6BOutput: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-60-PB150W6BOutput: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-60-PC150W6BOutput: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-60-PD150W6BOutput: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH45-60-PA150X6BOutput: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH45-60-PB150X6BOutput: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH45-60-PC150X6BOutput: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH45-60-PD150X6BOutput: 1.5 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 415 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
