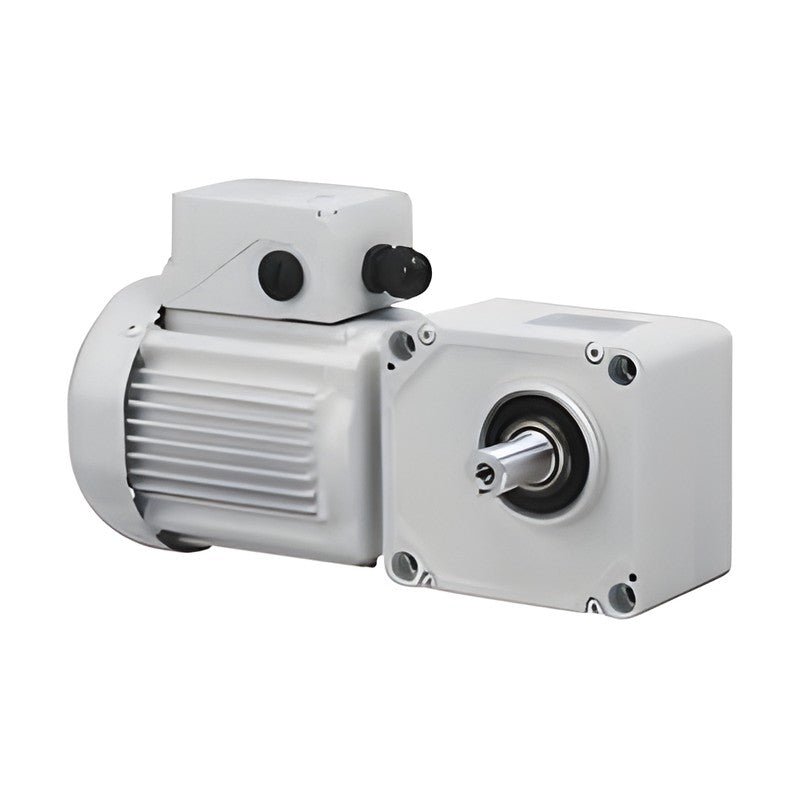

SPG PCS Frame 22 Solid Shaft Right-Angle Geared Motors (0.2 kW)

SPG PCS Frame 22 Solid Shaft Right-Angle Geared Motors (0.2 kW)

SPG PCS series right-angle solid shaft industrial geared motor, gear frame 22, 3-phase 0.2 kW, ratios 1/5-1/60.

Key features

  • Right-angle solid output shaft gearbox driven by a compact 3-phase 4-pole induction motor, 0.2 kW; output shaft on left, right or both sides
  • Reduction ratios 1/5-1/60 on gear frame 22; ratios marked limited are capped by permissible gear torque
  • Motor options: A lead box (IP55), B terminal box (IP55), C terminal box + brake (IP40), D terminal box + brake waterproof (IP55)
  • Voltage codes R4 (220/380 V 60 Hz), W6 (200 V 50 Hz / 200/220 V 60 Hz) and X6 (380/400 V 50 Hz / 400/440 V 60 Hz)
  • Codes are listed with the standard terminal box direction (T); directions L/R/B are available by changing the last letter
  • Self-locking is not available; IP40 and IP55 versions share identical electrical characteristics

Specifications

Series PCS (solid shaft, right-angle)
Gear frame 22
Output shaft Solid shaft, dia. 22 mm
Motor 3-phase induction, 4 poles
Efficiency code M - Standard efficiency
Reduction ratio range 1/5-1/60
Duty Continuous
Insulation class F
Cooling Totally enclosed fan-cooled
Terminal box location T - 12 o'clock (standard)
Source SPG Industrial Motor catalog, p. 71-76, 89-100
PCS22L-5-MA020R4T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-5-MA020R4T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-5-MA020R4T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-5-MB020R4T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-5-MB020R4T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-5-MB020R4T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-5-MC020R4T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-5-MC020R4T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-5-MC020R4T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-5-MD020R4T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-5-MD020R4T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-5-MD020R4T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-5-MA020W6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-5-MA020W6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-5-MA020W6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-5-MB020W6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-5-MB020W6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-5-MB020W6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-5-MC020W6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-5-MC020W6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-5-MC020W6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-5-MD020W6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-5-MD020W6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-5-MD020W6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-5-MA020X6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-5-MA020X6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-5-MA020X6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-5-MB020X6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-5-MB020X6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-5-MB020X6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-5-MC020X6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-5-MC020X6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-5-MC020X6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-5-MD020X6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-5-MD020X6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-5-MD020X6T Output: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-7.5-MA020R4T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-7.5-MA020R4T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-7.5-MA020R4T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-7.5-MB020R4T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-7.5-MB020R4T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-7.5-MB020R4T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-7.5-MC020R4T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-7.5-MC020R4T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-7.5-MC020R4T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-7.5-MD020R4T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-7.5-MD020R4T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-7.5-MD020R4T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-7.5-MA020W6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-7.5-MA020W6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-7.5-MA020W6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-7.5-MB020W6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-7.5-MB020W6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-7.5-MB020W6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-7.5-MC020W6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-7.5-MC020W6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-7.5-MC020W6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-7.5-MD020W6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-7.5-MD020W6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-7.5-MD020W6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-7.5-MA020X6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-7.5-MA020X6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-7.5-MA020X6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-7.5-MB020X6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-7.5-MB020X6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-7.5-MB020X6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-7.5-MC020X6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-7.5-MC020X6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-7.5-MC020X6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-7.5-MD020X6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-7.5-MD020X6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-7.5-MD020X6T Output: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-10-MA020R4T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-10-MA020R4T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-10-MA020R4T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-10-MB020R4T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-10-MB020R4T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-10-MB020R4T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-10-MC020R4T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-10-MC020R4T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-10-MC020R4T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-10-MD020R4T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-10-MD020R4T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-10-MD020R4T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-10-MA020W6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-10-MA020W6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-10-MA020W6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-10-MB020W6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-10-MB020W6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-10-MB020W6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-10-MC020W6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-10-MC020W6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-10-MC020W6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-10-MD020W6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-10-MD020W6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-10-MD020W6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-10-MA020X6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-10-MA020X6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-10-MA020X6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-10-MB020X6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-10-MB020X6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-10-MB020X6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-10-MC020X6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-10-MC020X6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-10-MC020X6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-10-MD020X6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-10-MD020X6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-10-MD020X6T Output: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-12.5-MA020R4T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-12.5-MA020R4T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-12.5-MA020R4T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-12.5-MB020R4T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-12.5-MB020R4T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-12.5-MB020R4T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-12.5-MC020R4T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-12.5-MC020R4T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-12.5-MC020R4T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-12.5-MD020R4T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-12.5-MD020R4T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-12.5-MD020R4T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-12.5-MA020W6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-12.5-MA020W6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-12.5-MA020W6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-12.5-MB020W6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-12.5-MB020W6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-12.5-MB020W6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-12.5-MC020W6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-12.5-MC020W6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-12.5-MC020W6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-12.5-MD020W6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-12.5-MD020W6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-12.5-MD020W6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-12.5-MA020X6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-12.5-MA020X6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-12.5-MA020X6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-12.5-MB020X6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-12.5-MB020X6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-12.5-MB020X6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-12.5-MC020X6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-12.5-MC020X6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-12.5-MC020X6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-12.5-MD020X6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-12.5-MD020X6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-12.5-MD020X6T Output: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-15-MA020R4T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-15-MA020R4T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-15-MA020R4T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-15-MB020R4T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-15-MB020R4T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-15-MB020R4T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-15-MC020R4T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-15-MC020R4T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-15-MC020R4T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-15-MD020R4T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-15-MD020R4T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-15-MD020R4T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-15-MA020W6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-15-MA020W6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-15-MA020W6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-15-MB020W6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-15-MB020W6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-15-MB020W6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-15-MC020W6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-15-MC020W6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-15-MC020W6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-15-MD020W6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-15-MD020W6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-15-MD020W6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-15-MA020X6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-15-MA020X6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-15-MA020X6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-15-MB020X6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-15-MB020X6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-15-MB020X6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-15-MC020X6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-15-MC020X6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-15-MC020X6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-15-MD020X6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-15-MD020X6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-15-MD020X6T Output: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-20-MA020R4T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-20-MA020R4T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-20-MA020R4T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-20-MB020R4T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-20-MB020R4T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-20-MB020R4T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-20-MC020R4T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-20-MC020R4T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-20-MC020R4T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-20-MD020R4T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-20-MD020R4T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-20-MD020R4T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-20-MA020W6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-20-MA020W6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-20-MA020W6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-20-MB020W6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-20-MB020W6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-20-MB020W6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-20-MC020W6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-20-MC020W6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-20-MC020W6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-20-MD020W6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-20-MD020W6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-20-MD020W6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-20-MA020X6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-20-MA020X6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-20-MA020X6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-20-MB020X6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-20-MB020X6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-20-MB020X6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-20-MC020X6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-20-MC020X6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-20-MC020X6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-20-MD020X6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-20-MD020X6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-20-MD020X6T Output: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-25-MA020R4T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-25-MA020R4T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-25-MA020R4T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-25-MB020R4T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-25-MB020R4T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-25-MB020R4T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-25-MC020R4T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-25-MC020R4T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-25-MC020R4T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-25-MD020R4T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-25-MD020R4T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-25-MD020R4T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-25-MA020W6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-25-MA020W6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-25-MA020W6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-25-MB020W6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-25-MB020W6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-25-MB020W6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-25-MC020W6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-25-MC020W6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-25-MC020W6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-25-MD020W6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-25-MD020W6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-25-MD020W6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-25-MA020X6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-25-MA020X6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-25-MA020X6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-25-MB020X6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-25-MB020X6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-25-MB020X6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-25-MC020X6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-25-MC020X6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-25-MC020X6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-25-MD020X6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-25-MD020X6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-25-MD020X6T Output: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-30-MA020R4T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-30-MA020R4T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-30-MA020R4T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-30-MB020R4T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-30-MB020R4T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-30-MB020R4T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-30-MC020R4T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-30-MC020R4T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-30-MC020R4T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-30-MD020R4T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-30-MD020R4T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-30-MD020R4T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-30-MA020W6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-30-MA020W6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-30-MA020W6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-30-MB020W6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-30-MB020W6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-30-MB020W6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-30-MC020W6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-30-MC020W6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-30-MC020W6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-30-MD020W6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-30-MD020W6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-30-MD020W6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-30-MA020X6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-30-MA020X6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-30-MA020X6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-30-MB020X6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-30-MB020X6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-30-MB020X6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-30-MC020X6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-30-MC020X6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-30-MC020X6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-30-MD020X6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-30-MD020X6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-30-MD020X6T Output: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-40-MA020R4T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-40-MA020R4T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-40-MA020R4T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-40-MB020R4T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-40-MB020R4T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-40-MB020R4T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-40-MC020R4T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-40-MC020R4T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-40-MC020R4T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-40-MD020R4T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-40-MD020R4T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-40-MD020R4T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-40-MA020W6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-40-MA020W6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-40-MA020W6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-40-MB020W6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-40-MB020W6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-40-MB020W6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-40-MC020W6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-40-MC020W6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-40-MC020W6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-40-MD020W6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-40-MD020W6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-40-MD020W6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-40-MA020X6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-40-MA020X6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-40-MA020X6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-40-MB020X6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-40-MB020X6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-40-MB020X6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-40-MC020X6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-40-MC020X6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-40-MC020X6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-40-MD020X6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-40-MD020X6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-40-MD020X6T Output: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-50-MA020R4T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-50-MA020R4T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-50-MA020R4T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-50-MB020R4T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-50-MB020R4T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-50-MB020R4T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-50-MC020R4T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-50-MC020R4T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-50-MC020R4T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-50-MD020R4T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-50-MD020R4T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-50-MD020R4T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-50-MA020W6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-50-MA020W6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-50-MA020W6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-50-MB020W6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-50-MB020W6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-50-MB020W6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-50-MC020W6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-50-MC020W6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-50-MC020W6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-50-MD020W6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-50-MD020W6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-50-MD020W6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-50-MA020X6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-50-MA020X6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-50-MA020X6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-50-MB020X6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-50-MB020X6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-50-MB020X6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-50-MC020X6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-50-MC020X6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-50-MC020X6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-50-MD020X6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-50-MD020X6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-50-MD020X6T Output: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-60-MA020R4T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-60-MA020R4T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-60-MA020R4T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-60-MB020R4T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-60-MB020R4T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-60-MB020R4T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-60-MC020R4T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-60-MC020R4T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-60-MC020R4T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-60-MD020R4T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-60-MD020R4T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-60-MD020R4T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-60-MA020W6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-60-MA020W6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-60-MA020W6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-60-MB020W6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-60-MB020W6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-60-MB020W6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-60-MC020W6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-60-MC020W6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-60-MC020W6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-60-MD020W6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-60-MD020W6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-60-MD020W6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-60-MA020X6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-60-MA020X6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-60-MA020X6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-60-MB020X6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-60-MB020X6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-60-MB020X6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-60-MC020X6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-60-MC020X6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-60-MC020X6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-60-MD020X6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-60-MD020X6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-60-MD020X6T Output: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
Industrial MotorsSPG
396 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG PCS Frame 22 Solid Shaft Right-Angle Geared Motors (0.2 kW)

Brand SPG·Industrial Motors

Available part numbers (396)

PCS22L-5-MA020R4T, PCS22R-5-MA020R4T, PCS22B-5-MA020R4T, PCS22L-5-MB020R4T, PCS22R-5-MB020R4T, PCS22B-5-MB020R4T, PCS22L-5-MC020R4T, PCS22R-5-MC020R4T, PCS22B-5-MC020R4T, PCS22L-5-MD020R4T + 386 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PCS22L-5-MA020R4TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-5-MA020R4TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-5-MA020R4TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-5-MB020R4TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-5-MB020R4TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-5-MB020R4TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-5-MC020R4TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-5-MC020R4TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-5-MC020R4TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-5-MD020R4TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-5-MD020R4TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-5-MD020R4TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-5-MA020W6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-5-MA020W6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-5-MA020W6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-5-MB020W6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-5-MB020W6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-5-MB020W6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-5-MC020W6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-5-MC020W6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-5-MC020W6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-5-MD020W6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-5-MD020W6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-5-MD020W6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-5-MA020X6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-5-MA020X6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-5-MA020X6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-5-MB020X6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-5-MB020X6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-5-MB020X6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-5-MC020X6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-5-MC020X6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-5-MC020X6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-5-MD020X6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-5-MD020X6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-5-MD020X6TOutput: 0.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 4.61 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-7.5-MA020R4TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-7.5-MA020R4TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-7.5-MA020R4TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-7.5-MB020R4TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-7.5-MB020R4TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-7.5-MB020R4TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-7.5-MC020R4TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-7.5-MC020R4TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-7.5-MC020R4TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-7.5-MD020R4TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-7.5-MD020R4TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-7.5-MD020R4TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-7.5-MA020W6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-7.5-MA020W6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-7.5-MA020W6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-7.5-MB020W6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-7.5-MB020W6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-7.5-MB020W6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-7.5-MC020W6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-7.5-MC020W6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-7.5-MC020W6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-7.5-MD020W6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-7.5-MD020W6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-7.5-MD020W6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-7.5-MA020X6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-7.5-MA020X6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-7.5-MA020X6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-7.5-MB020X6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-7.5-MB020X6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-7.5-MB020X6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-7.5-MC020X6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-7.5-MC020X6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-7.5-MC020X6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-7.5-MD020X6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-7.5-MD020X6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-7.5-MD020X6TOutput: 0.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 6.82 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-10-MA020R4TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-10-MA020R4TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-10-MA020R4TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-10-MB020R4TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-10-MB020R4TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-10-MB020R4TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-10-MC020R4TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-10-MC020R4TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-10-MC020R4TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-10-MD020R4TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-10-MD020R4TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-10-MD020R4TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-10-MA020W6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-10-MA020W6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-10-MA020W6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-10-MB020W6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-10-MB020W6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-10-MB020W6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-10-MC020W6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-10-MC020W6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-10-MC020W6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-10-MD020W6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-10-MD020W6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-10-MD020W6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-10-MA020X6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-10-MA020X6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-10-MA020X6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-10-MB020X6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-10-MB020X6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-10-MB020X6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-10-MC020X6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-10-MC020X6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-10-MC020X6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-10-MD020X6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-10-MD020X6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-10-MD020X6TOutput: 0.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 9.02 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-12.5-MA020R4TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-12.5-MA020R4TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-12.5-MA020R4TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-12.5-MB020R4TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-12.5-MB020R4TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-12.5-MB020R4TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-12.5-MC020R4TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-12.5-MC020R4TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-12.5-MC020R4TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-12.5-MD020R4TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-12.5-MD020R4TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-12.5-MD020R4TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-12.5-MA020W6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-12.5-MA020W6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-12.5-MA020W6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-12.5-MB020W6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-12.5-MB020W6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-12.5-MB020W6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-12.5-MC020W6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-12.5-MC020W6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-12.5-MC020W6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-12.5-MD020W6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-12.5-MD020W6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-12.5-MD020W6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-12.5-MA020X6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-12.5-MA020X6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-12.5-MA020X6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-12.5-MB020X6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-12.5-MB020X6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-12.5-MB020X6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-12.5-MC020X6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-12.5-MC020X6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-12.5-MC020X6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-12.5-MD020X6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-12.5-MD020X6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-12.5-MD020X6TOutput: 0.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 11.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-15-MA020R4TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-15-MA020R4TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-15-MA020R4TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-15-MB020R4TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-15-MB020R4TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-15-MB020R4TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-15-MC020R4TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-15-MC020R4TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-15-MC020R4TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-15-MD020R4TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-15-MD020R4TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-15-MD020R4TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-15-MA020W6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-15-MA020W6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-15-MA020W6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-15-MB020W6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-15-MB020W6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-15-MB020W6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-15-MC020W6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-15-MC020W6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-15-MC020W6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-15-MD020W6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-15-MD020W6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-15-MD020W6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-15-MA020X6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-15-MA020X6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-15-MA020X6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-15-MB020X6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-15-MB020X6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-15-MB020X6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-15-MC020X6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-15-MC020X6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-15-MC020X6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-15-MD020X6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-15-MD020X6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-15-MD020X6TOutput: 0.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 13.7 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-20-MA020R4TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-20-MA020R4TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-20-MA020R4TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-20-MB020R4TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-20-MB020R4TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-20-MB020R4TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-20-MC020R4TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-20-MC020R4TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-20-MC020R4TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-20-MD020R4TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-20-MD020R4TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-20-MD020R4TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-20-MA020W6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-20-MA020W6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-20-MA020W6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-20-MB020W6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-20-MB020W6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-20-MB020W6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-20-MC020W6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-20-MC020W6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-20-MC020W6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-20-MD020W6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-20-MD020W6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-20-MD020W6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-20-MA020X6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-20-MA020X6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-20-MA020X6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-20-MB020X6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-20-MB020X6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-20-MB020X6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-20-MC020X6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-20-MC020X6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-20-MC020X6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-20-MD020X6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-20-MD020X6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-20-MD020X6TOutput: 0.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 18.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-25-MA020R4TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-25-MA020R4TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-25-MA020R4TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-25-MB020R4TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-25-MB020R4TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-25-MB020R4TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-25-MC020R4TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-25-MC020R4TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-25-MC020R4TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-25-MD020R4TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-25-MD020R4TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-25-MD020R4TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-25-MA020W6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-25-MA020W6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-25-MA020W6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-25-MB020W6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-25-MB020W6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-25-MB020W6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-25-MC020W6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-25-MC020W6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-25-MC020W6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-25-MD020W6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-25-MD020W6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-25-MD020W6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-25-MA020X6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-25-MA020X6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-25-MA020X6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-25-MB020X6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-25-MB020X6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-25-MB020X6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-25-MC020X6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-25-MC020X6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-25-MC020X6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-25-MD020X6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-25-MD020X6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-25-MD020X6TOutput: 0.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 22.5 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-30-MA020R4TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-30-MA020R4TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-30-MA020R4TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-30-MB020R4TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-30-MB020R4TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-30-MB020R4TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-30-MC020R4TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-30-MC020R4TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-30-MC020R4TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-30-MD020R4TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-30-MD020R4TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-30-MD020R4TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-30-MA020W6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-30-MA020W6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-30-MA020W6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-30-MB020W6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-30-MB020W6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-30-MB020W6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-30-MC020W6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-30-MC020W6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-30-MC020W6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-30-MD020W6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-30-MD020W6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-30-MD020W6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-30-MA020X6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-30-MA020X6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-30-MA020X6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-30-MB020X6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-30-MB020X6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-30-MB020X6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-30-MC020X6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-30-MC020X6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-30-MC020X6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-30-MD020X6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-30-MD020X6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-30-MD020X6TOutput: 0.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 27.4 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-40-MA020R4TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-40-MA020R4TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-40-MA020R4TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-40-MB020R4TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-40-MB020R4TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-40-MB020R4TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-40-MC020R4TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-40-MC020R4TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-40-MC020R4TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-40-MD020R4TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-40-MD020R4TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-40-MD020R4TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-40-MA020W6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-40-MA020W6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-40-MA020W6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-40-MB020W6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-40-MB020W6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-40-MB020W6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-40-MC020W6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-40-MC020W6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-40-MC020W6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-40-MD020W6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-40-MD020W6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-40-MD020W6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-40-MA020X6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-40-MA020X6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-40-MA020X6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-40-MB020X6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-40-MB020X6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-40-MB020X6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-40-MC020X6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-40-MC020X6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-40-MC020X6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-40-MD020X6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-40-MD020X6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-40-MD020X6TOutput: 0.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 37.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-50-MA020R4TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-50-MA020R4TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-50-MA020R4TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-50-MB020R4TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-50-MB020R4TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-50-MB020R4TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-50-MC020R4TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-50-MC020R4TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-50-MC020R4TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-50-MD020R4TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-50-MD020R4TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-50-MD020R4TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-50-MA020W6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-50-MA020W6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-50-MA020W6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-50-MB020W6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-50-MB020W6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-50-MB020W6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-50-MC020W6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-50-MC020W6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-50-MC020W6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-50-MD020W6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-50-MD020W6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-50-MD020W6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-50-MA020X6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-50-MA020X6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-50-MA020X6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-50-MB020X6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-50-MB020X6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-50-MB020X6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-50-MC020X6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-50-MC020X6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-50-MC020X6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-50-MD020X6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-50-MD020X6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-50-MD020X6TOutput: 0.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 46.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-60-MA020R4TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-60-MA020R4TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-60-MA020R4TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-60-MB020R4TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-60-MB020R4TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-60-MB020R4TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-60-MC020R4TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-60-MC020R4TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-60-MC020R4TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-60-MD020R4TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-60-MD020R4TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-60-MD020R4TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-60-MA020W6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-60-MA020W6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-60-MA020W6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-60-MB020W6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-60-MB020W6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-60-MB020W6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-60-MC020W6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-60-MC020W6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-60-MC020W6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-60-MD020W6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-60-MD020W6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-60-MD020W6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both
PCS22L-60-MA020X6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Left
PCS22R-60-MA020X6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Right
PCS22B-60-MA020X6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55 | Output shaft side: Both
PCS22L-60-MB020X6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Left
PCS22R-60-MB020X6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Right
PCS22B-60-MB020X6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55 | Output shaft side: Both
PCS22L-60-MC020X6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Left
PCS22R-60-MC020X6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Right
PCS22B-60-MC020X6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40 | Output shaft side: Both
PCS22L-60-MD020X6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Left
PCS22R-60-MD020X6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Right
PCS22B-60-MD020X6TOutput: 0.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 55.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55 | Output shaft side: Both

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
