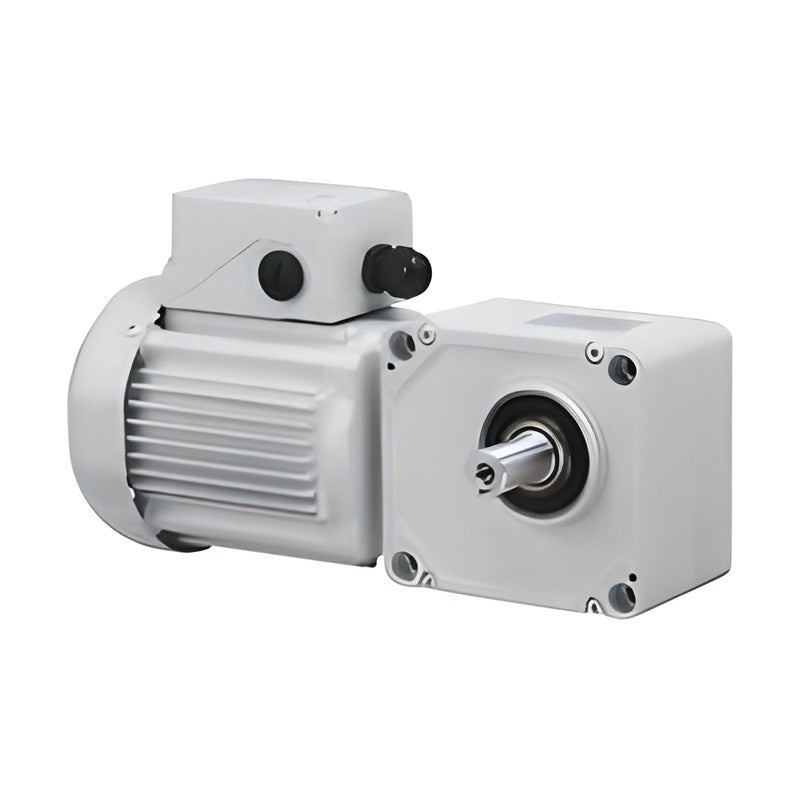

SPG PCS Frame 40 Solid Shaft Right-Angle Geared Motors (0.75-1.5 kW)

SPG PCS series right-angle solid shaft industrial geared motor, gear frame 40, 3-phase 0.75-1.5 kW, ratios 1/80-1/60.

Key features

Right-angle solid output shaft gearbox driven by a compact 3-phase 4-pole induction motor, 0.75-1.5 kW; output shaft on left, right or both sides
Reduction ratios 1/80-1/60 on gear frame 40; ratios marked limited are capped by permissible gear torque
Motor options: A lead box (IP55), B terminal box (IP55), C terminal box + brake (IP40), D terminal box + brake waterproof (IP55)
Voltage codes R4 (220/380 V 60 Hz), W6 (200 V 50 Hz / 200/220 V 60 Hz) and X6 (380/400 V 50 Hz / 400/440 V 60 Hz)
Codes are listed with the standard terminal box direction (T); directions L/R/B are available by changing the last letter
Self-locking is not available; 0.75 kW and above meet premium (minimum efficiency) regulations

Specifications

Series	PCS (solid shaft, right-angle)
Gear frame	40
Output shaft	Solid shaft, dia. 40 mm
Motor	3-phase induction, 4 poles
Efficiency code	P - Premium efficiency
Reduction ratio range	1/80-1/60
Duty	Continuous
Insulation class	F
Cooling	Totally enclosed fan-cooled
Terminal box location	T - 12 o'clock (standard)
Source	SPG Industrial Motor catalog, p. 71-76, 89-100

PCS40L-80-PA075R4T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-80-PA075R4T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-80-PA075R4T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-80-PB075R4T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-80-PB075R4T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-80-PB075R4T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-80-PC075R4T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-80-PC075R4T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-80-PC075R4T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-80-PD075R4T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-80-PD075R4T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-80-PD075R4T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-80-PA075W6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-80-PA075W6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-80-PA075W6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-80-PB075W6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-80-PB075W6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-80-PB075W6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-80-PC075W6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-80-PC075W6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-80-PC075W6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-80-PD075W6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-80-PD075W6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-80-PD075W6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-80-PA075X6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-80-PA075X6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-80-PA075X6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-80-PB075X6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-80-PB075X6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-80-PB075X6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-80-PC075X6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-80-PC075X6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-80-PC075X6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-80-PD075X6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-80-PD075X6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-80-PD075X6T		Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-100-PA075R4T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-100-PA075R4T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-100-PA075R4T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-100-PB075R4T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-100-PB075R4T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-100-PB075R4T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-100-PC075R4T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-100-PC075R4T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-100-PC075R4T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-100-PD075R4T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-100-PD075R4T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-100-PD075R4T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-100-PA075W6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-100-PA075W6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-100-PA075W6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-100-PB075W6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-100-PB075W6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-100-PB075W6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-100-PC075W6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-100-PC075W6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-100-PC075W6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-100-PD075W6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-100-PD075W6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-100-PD075W6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-100-PA075X6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-100-PA075X6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-100-PA075X6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-100-PB075X6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-100-PB075X6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-100-PB075X6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-100-PC075X6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-100-PC075X6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-100-PC075X6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-100-PD075X6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-100-PD075X6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-100-PD075X6T		Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-120-PA075R4T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-120-PA075R4T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-120-PA075R4T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-120-PB075R4T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-120-PB075R4T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-120-PB075R4T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-120-PC075R4T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-120-PC075R4T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-120-PC075R4T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-120-PD075R4T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-120-PD075R4T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-120-PD075R4T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-120-PA075W6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-120-PA075W6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-120-PA075W6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-120-PB075W6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-120-PB075W6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-120-PB075W6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-120-PC075W6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-120-PC075W6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-120-PC075W6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-120-PD075W6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-120-PD075W6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-120-PD075W6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-120-PA075X6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-120-PA075X6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-120-PA075X6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-120-PB075X6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-120-PB075X6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-120-PB075X6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-120-PC075X6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-120-PC075X6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-120-PC075X6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-120-PD075X6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-120-PD075X6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-120-PD075X6T		Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-160-PA075R4T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-160-PA075R4T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-160-PA075R4T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-160-PB075R4T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-160-PB075R4T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-160-PB075R4T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-160-PC075R4T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-160-PC075R4T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-160-PC075R4T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-160-PD075R4T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-160-PD075R4T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-160-PD075R4T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-160-PA075W6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-160-PA075W6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-160-PA075W6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-160-PB075W6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-160-PB075W6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-160-PB075W6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-160-PC075W6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-160-PC075W6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-160-PC075W6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-160-PD075W6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-160-PD075W6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-160-PD075W6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-160-PA075X6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-160-PA075X6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-160-PA075X6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-160-PB075X6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-160-PB075X6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-160-PB075X6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-160-PC075X6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-160-PC075X6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-160-PC075X6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-160-PD075X6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-160-PD075X6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-160-PD075X6T		Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-200-PA075R4T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-200-PA075R4T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-200-PA075R4T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-200-PB075R4T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-200-PB075R4T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-200-PB075R4T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-200-PC075R4T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-200-PC075R4T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-200-PC075R4T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-200-PD075R4T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-200-PD075R4T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-200-PD075R4T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-200-PA075W6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-200-PA075W6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-200-PA075W6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-200-PB075W6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-200-PB075W6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-200-PB075W6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-200-PC075W6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-200-PC075W6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-200-PC075W6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-200-PD075W6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-200-PD075W6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-200-PD075W6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-200-PA075X6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-200-PA075X6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-200-PA075X6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-200-PB075X6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-200-PB075X6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-200-PB075X6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-200-PC075X6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-200-PC075X6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-200-PC075X6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-200-PD075X6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-200-PD075X6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-200-PD075X6T		Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-240-PA075R4T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-240-PA075R4T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-240-PA075R4T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-240-PB075R4T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-240-PB075R4T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-240-PB075R4T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-240-PC075R4T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-240-PC075R4T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-240-PC075R4T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-240-PD075R4T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-240-PD075R4T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-240-PD075R4T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-240-PA075W6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-240-PA075W6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-240-PA075W6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-240-PB075W6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-240-PB075W6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-240-PB075W6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-240-PC075W6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-240-PC075W6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-240-PC075W6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-240-PD075W6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-240-PD075W6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-240-PD075W6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-240-PA075X6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-240-PA075X6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-240-PA075X6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-240-PB075X6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-240-PB075X6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-240-PB075X6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-240-PC075X6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-240-PC075X6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-240-PC075X6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-240-PD075X6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-240-PD075X6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-240-PD075X6T		Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-5-PA150R4T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-5-PA150R4T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-5-PA150R4T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-5-PB150R4T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-5-PB150R4T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-5-PB150R4T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-5-PC150R4T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-5-PC150R4T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-5-PC150R4T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-5-PD150R4T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-5-PD150R4T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-5-PD150R4T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-5-PA150W6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-5-PA150W6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-5-PA150W6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-5-PB150W6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-5-PB150W6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-5-PB150W6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-5-PC150W6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-5-PC150W6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-5-PC150W6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-5-PD150W6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-5-PD150W6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-5-PD150W6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-5-PA150X6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-5-PA150X6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-5-PA150X6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-5-PB150X6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-5-PB150X6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-5-PB150X6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-5-PC150X6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-5-PC150X6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-5-PC150X6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-5-PD150X6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-5-PD150X6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-5-PD150X6T		Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-7.5-PA150R4T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-7.5-PA150R4T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-7.5-PA150R4T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-7.5-PB150R4T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-7.5-PB150R4T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-7.5-PB150R4T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-7.5-PC150R4T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-7.5-PC150R4T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-7.5-PC150R4T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-7.5-PD150R4T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-7.5-PD150R4T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-7.5-PD150R4T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-7.5-PA150W6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-7.5-PA150W6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-7.5-PA150W6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-7.5-PB150W6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-7.5-PB150W6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-7.5-PB150W6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-7.5-PC150W6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-7.5-PC150W6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-7.5-PC150W6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-7.5-PD150W6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-7.5-PD150W6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-7.5-PD150W6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-7.5-PA150X6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-7.5-PA150X6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-7.5-PA150X6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-7.5-PB150X6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-7.5-PB150X6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-7.5-PB150X6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-7.5-PC150X6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-7.5-PC150X6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-7.5-PC150X6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-7.5-PD150X6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-7.5-PD150X6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-7.5-PD150X6T		Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-10-PA150R4T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-10-PA150R4T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-10-PA150R4T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-10-PB150R4T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-10-PB150R4T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-10-PB150R4T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-10-PC150R4T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-10-PC150R4T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-10-PC150R4T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-10-PD150R4T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-10-PD150R4T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-10-PD150R4T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-10-PA150W6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-10-PA150W6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-10-PA150W6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-10-PB150W6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-10-PB150W6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-10-PB150W6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-10-PC150W6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-10-PC150W6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-10-PC150W6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-10-PD150W6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-10-PD150W6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-10-PD150W6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-10-PA150X6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-10-PA150X6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-10-PA150X6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-10-PB150X6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-10-PB150X6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-10-PB150X6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-10-PC150X6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-10-PC150X6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-10-PC150X6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-10-PD150X6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-10-PD150X6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-10-PD150X6T		Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-12.5-PA150R4T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-12.5-PA150R4T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-12.5-PA150R4T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-12.5-PB150R4T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-12.5-PB150R4T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-12.5-PB150R4T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-12.5-PC150R4T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-12.5-PC150R4T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-12.5-PC150R4T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-12.5-PD150R4T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-12.5-PD150R4T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-12.5-PD150R4T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-12.5-PA150W6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-12.5-PA150W6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-12.5-PA150W6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-12.5-PB150W6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-12.5-PB150W6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-12.5-PB150W6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-12.5-PC150W6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-12.5-PC150W6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-12.5-PC150W6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-12.5-PD150W6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-12.5-PD150W6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-12.5-PD150W6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-12.5-PA150X6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-12.5-PA150X6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-12.5-PA150X6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-12.5-PB150X6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-12.5-PB150X6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-12.5-PB150X6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-12.5-PC150X6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-12.5-PC150X6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-12.5-PC150X6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-12.5-PD150X6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-12.5-PD150X6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-12.5-PD150X6T		Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-15-PA150R4T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-15-PA150R4T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-15-PA150R4T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-15-PB150R4T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-15-PB150R4T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-15-PB150R4T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-15-PC150R4T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-15-PC150R4T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-15-PC150R4T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-15-PD150R4T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-15-PD150R4T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-15-PD150R4T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-15-PA150W6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-15-PA150W6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-15-PA150W6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-15-PB150W6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-15-PB150W6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-15-PB150W6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-15-PC150W6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-15-PC150W6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-15-PC150W6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-15-PD150W6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-15-PD150W6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-15-PD150W6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-15-PA150X6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-15-PA150X6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-15-PA150X6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-15-PB150X6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-15-PB150X6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-15-PB150X6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-15-PC150X6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-15-PC150X6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-15-PC150X6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-15-PD150X6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-15-PD150X6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-15-PD150X6T		Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-20-PA150R4T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-20-PA150R4T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-20-PA150R4T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-20-PB150R4T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-20-PB150R4T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-20-PB150R4T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-20-PC150R4T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-20-PC150R4T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-20-PC150R4T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-20-PD150R4T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-20-PD150R4T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-20-PD150R4T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-20-PA150W6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-20-PA150W6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-20-PA150W6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-20-PB150W6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-20-PB150W6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-20-PB150W6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-20-PC150W6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-20-PC150W6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-20-PC150W6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-20-PD150W6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-20-PD150W6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-20-PD150W6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-20-PA150X6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-20-PA150X6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-20-PA150X6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-20-PB150X6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-20-PB150X6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-20-PB150X6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-20-PC150X6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-20-PC150X6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-20-PC150X6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-20-PD150X6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-20-PD150X6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-20-PD150X6T		Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-25-PA150R4T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-25-PA150R4T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-25-PA150R4T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-25-PB150R4T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-25-PB150R4T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-25-PB150R4T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-25-PC150R4T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-25-PC150R4T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-25-PC150R4T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-25-PD150R4T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-25-PD150R4T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-25-PD150R4T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-25-PA150W6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-25-PA150W6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-25-PA150W6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-25-PB150W6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-25-PB150W6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-25-PB150W6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-25-PC150W6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-25-PC150W6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-25-PC150W6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-25-PD150W6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-25-PD150W6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-25-PD150W6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-25-PA150X6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-25-PA150X6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-25-PA150X6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-25-PB150X6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-25-PB150X6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-25-PB150X6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-25-PC150X6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-25-PC150X6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-25-PC150X6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-25-PD150X6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-25-PD150X6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-25-PD150X6T		Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-30-PA150R4T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-30-PA150R4T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-30-PA150R4T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-30-PB150R4T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-30-PB150R4T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-30-PB150R4T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-30-PC150R4T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-30-PC150R4T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-30-PC150R4T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-30-PD150R4T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-30-PD150R4T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-30-PD150R4T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-30-PA150W6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-30-PA150W6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-30-PA150W6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-30-PB150W6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-30-PB150W6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-30-PB150W6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-30-PC150W6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-30-PC150W6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-30-PC150W6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-30-PD150W6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-30-PD150W6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-30-PD150W6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-30-PA150X6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-30-PA150X6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-30-PA150X6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-30-PB150X6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-30-PB150X6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-30-PB150X6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-30-PC150X6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-30-PC150X6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-30-PC150X6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-30-PD150X6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-30-PD150X6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-30-PD150X6T		Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-40-PA150R4T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-40-PA150R4T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-40-PA150R4T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-40-PB150R4T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-40-PB150R4T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-40-PB150R4T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-40-PC150R4T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-40-PC150R4T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-40-PC150R4T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-40-PD150R4T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-40-PD150R4T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-40-PD150R4T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-40-PA150W6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-40-PA150W6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-40-PA150W6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-40-PB150W6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-40-PB150W6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-40-PB150W6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-40-PC150W6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-40-PC150W6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-40-PC150W6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-40-PD150W6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-40-PD150W6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-40-PD150W6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-40-PA150X6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-40-PA150X6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-40-PA150X6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-40-PB150X6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-40-PB150X6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-40-PB150X6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-40-PC150X6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-40-PC150X6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-40-PC150X6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-40-PD150X6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-40-PD150X6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-40-PD150X6T		Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-50-PA150R4T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-50-PA150R4T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-50-PA150R4T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-50-PB150R4T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-50-PB150R4T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-50-PB150R4T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-50-PC150R4T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-50-PC150R4T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-50-PC150R4T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-50-PD150R4T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-50-PD150R4T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-50-PD150R4T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-50-PA150W6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-50-PA150W6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-50-PA150W6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-50-PB150W6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-50-PB150W6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-50-PB150W6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-50-PC150W6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-50-PC150W6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-50-PC150W6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-50-PD150W6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-50-PD150W6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-50-PD150W6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-50-PA150X6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-50-PA150X6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-50-PA150X6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-50-PB150X6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-50-PB150X6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-50-PB150X6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-50-PC150X6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-50-PC150X6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-50-PC150X6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-50-PD150X6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-50-PD150X6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-50-PD150X6T		Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-60-PA150R4T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-60-PA150R4T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-60-PA150R4T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-60-PB150R4T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-60-PB150R4T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-60-PB150R4T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-60-PC150R4T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-60-PC150R4T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-60-PC150R4T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-60-PD150R4T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-60-PD150R4T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-60-PD150R4T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-60-PA150W6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-60-PA150W6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-60-PA150W6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-60-PB150W6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-60-PB150W6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-60-PB150W6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-60-PC150W6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-60-PC150W6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-60-PC150W6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-60-PD150W6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-60-PD150W6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-60-PD150W6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
PCS40L-60-PA150X6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
PCS40R-60-PA150X6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
PCS40B-60-PA150X6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
PCS40L-60-PB150X6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
PCS40R-60-PB150X6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
PCS40B-60-PB150X6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
PCS40L-60-PC150X6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
PCS40R-60-PC150X6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
PCS40B-60-PC150X6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
PCS40L-60-PD150X6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
PCS40R-60-PD150X6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
PCS40B-60-PD150X6T		Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both

Industrial MotorsSPG

612 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG PCS Frame 40 Solid Shaft Right-Angle Geared Motors (0.75-1.5 kW)

Brand SPG·Industrial Motors

Available part numbers (612)

PCS40L-80-PA075R4T, PCS40R-80-PA075R4T, PCS40B-80-PA075R4T, PCS40L-80-PB075R4T, PCS40R-80-PB075R4T, PCS40B-80-PB075R4T, PCS40L-80-PC075R4T, PCS40R-80-PC075R4T, PCS40B-80-PC075R4T, PCS40L-80-PD075R4T + 602 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	PCS40L-80-PA075R4T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-80-PA075R4T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-80-PA075R4T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-80-PB075R4T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-80-PB075R4T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-80-PB075R4T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-80-PC075R4T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-80-PC075R4T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-80-PC075R4T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-80-PD075R4T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-80-PD075R4T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-80-PD075R4T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-80-PA075W6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-80-PA075W6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-80-PA075W6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-80-PB075W6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-80-PB075W6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-80-PB075W6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-80-PC075W6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-80-PC075W6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-80-PC075W6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-80-PD075W6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-80-PD075W6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-80-PD075W6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-80-PA075X6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-80-PA075X6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-80-PA075X6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-80-PB075X6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-80-PB075X6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-80-PB075X6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-80-PC075X6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-80-PC075X6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-80-PC075X6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-80-PD075X6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-80-PD075X6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-80-PD075X6T	Output: 0.75 kW \| Ratio: 1/80 (22.5 r/min) \| Allowable torque: 271 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-100-PA075R4T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-100-PA075R4T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-100-PA075R4T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-100-PB075R4T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-100-PB075R4T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-100-PB075R4T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-100-PC075R4T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-100-PC075R4T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-100-PC075R4T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-100-PD075R4T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-100-PD075R4T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-100-PD075R4T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-100-PA075W6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-100-PA075W6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-100-PA075W6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-100-PB075W6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-100-PB075W6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-100-PB075W6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-100-PC075W6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-100-PC075W6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-100-PC075W6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-100-PD075W6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-100-PD075W6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-100-PD075W6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-100-PA075X6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-100-PA075X6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-100-PA075X6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-100-PB075X6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-100-PB075X6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-100-PB075X6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-100-PC075X6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-100-PC075X6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-100-PC075X6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-100-PD075X6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-100-PD075X6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-100-PD075X6T	Output: 0.75 kW \| Ratio: 1/100 (18 r/min) \| Allowable torque: 338 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-120-PA075R4T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-120-PA075R4T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-120-PA075R4T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-120-PB075R4T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-120-PB075R4T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-120-PB075R4T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-120-PC075R4T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-120-PC075R4T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-120-PC075R4T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-120-PD075R4T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-120-PD075R4T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-120-PD075R4T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-120-PA075W6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-120-PA075W6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-120-PA075W6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-120-PB075W6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-120-PB075W6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-120-PB075W6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-120-PC075W6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-120-PC075W6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-120-PC075W6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-120-PD075W6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-120-PD075W6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-120-PD075W6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-120-PA075X6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-120-PA075X6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-120-PA075X6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-120-PB075X6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-120-PB075X6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-120-PB075X6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-120-PC075X6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-120-PC075X6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-120-PC075X6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-120-PD075X6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-120-PD075X6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-120-PD075X6T	Output: 0.75 kW \| Ratio: 1/120 (15 r/min) \| Allowable torque: 406 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-160-PA075R4T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-160-PA075R4T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-160-PA075R4T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-160-PB075R4T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-160-PB075R4T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-160-PB075R4T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-160-PC075R4T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-160-PC075R4T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-160-PC075R4T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-160-PD075R4T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-160-PD075R4T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-160-PD075R4T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-160-PA075W6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-160-PA075W6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-160-PA075W6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-160-PB075W6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-160-PB075W6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-160-PB075W6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-160-PC075W6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-160-PC075W6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-160-PC075W6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-160-PD075W6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-160-PD075W6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-160-PD075W6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-160-PA075X6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-160-PA075X6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-160-PA075X6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-160-PB075X6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-160-PB075X6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-160-PB075X6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-160-PC075X6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-160-PC075X6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-160-PC075X6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-160-PD075X6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-160-PD075X6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-160-PD075X6T	Output: 0.75 kW \| Ratio: 1/160 (11.3 r/min) \| Allowable torque: 502 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-200-PA075R4T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-200-PA075R4T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-200-PA075R4T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-200-PB075R4T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-200-PB075R4T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-200-PB075R4T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-200-PC075R4T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-200-PC075R4T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-200-PC075R4T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-200-PD075R4T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-200-PD075R4T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-200-PD075R4T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-200-PA075W6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-200-PA075W6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-200-PA075W6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-200-PB075W6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-200-PB075W6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-200-PB075W6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-200-PC075W6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-200-PC075W6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-200-PC075W6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-200-PD075W6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-200-PD075W6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-200-PD075W6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-200-PA075X6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-200-PA075X6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-200-PA075X6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-200-PB075X6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-200-PB075X6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-200-PB075X6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-200-PC075X6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-200-PC075X6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-200-PC075X6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-200-PD075X6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-200-PD075X6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-200-PD075X6T	Output: 0.75 kW \| Ratio: 1/200 (9 r/min) \| Allowable torque: 502 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-240-PA075R4T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-240-PA075R4T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-240-PA075R4T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-240-PB075R4T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-240-PB075R4T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-240-PB075R4T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-240-PC075R4T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-240-PC075R4T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-240-PC075R4T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-240-PD075R4T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-240-PD075R4T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-240-PD075R4T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-240-PA075W6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-240-PA075W6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-240-PA075W6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-240-PB075W6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-240-PB075W6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-240-PB075W6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-240-PC075W6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-240-PC075W6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-240-PC075W6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-240-PD075W6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-240-PD075W6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-240-PD075W6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-240-PA075X6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-240-PA075X6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-240-PA075X6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-240-PB075X6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-240-PB075X6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-240-PB075X6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-240-PC075X6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-240-PC075X6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-240-PC075X6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-240-PD075X6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-240-PD075X6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-240-PD075X6T	Output: 0.75 kW \| Ratio: 1/240 (7.5 r/min) \| Allowable torque: 535 N·m (limited) \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-5-PA150R4T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-5-PA150R4T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-5-PA150R4T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-5-PB150R4T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-5-PB150R4T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-5-PB150R4T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-5-PC150R4T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-5-PC150R4T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-5-PC150R4T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-5-PD150R4T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-5-PD150R4T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-5-PD150R4T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-5-PA150W6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-5-PA150W6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-5-PA150W6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-5-PB150W6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-5-PB150W6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-5-PB150W6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-5-PC150W6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-5-PC150W6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-5-PC150W6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-5-PD150W6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-5-PD150W6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-5-PD150W6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-5-PA150X6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-5-PA150X6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-5-PA150X6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-5-PB150X6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-5-PB150X6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-5-PB150X6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-5-PC150X6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-5-PC150X6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-5-PC150X6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-5-PD150X6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-5-PD150X6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-5-PD150X6T	Output: 1.5 kW \| Ratio: 1/5 (360 r/min) \| Allowable torque: 34.3 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-7.5-PA150R4T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-7.5-PA150R4T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-7.5-PA150R4T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-7.5-PB150R4T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-7.5-PB150R4T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-7.5-PB150R4T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-7.5-PC150R4T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-7.5-PC150R4T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-7.5-PC150R4T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-7.5-PD150R4T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-7.5-PD150R4T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-7.5-PD150R4T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-7.5-PA150W6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-7.5-PA150W6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-7.5-PA150W6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-7.5-PB150W6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-7.5-PB150W6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-7.5-PB150W6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-7.5-PC150W6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-7.5-PC150W6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-7.5-PC150W6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-7.5-PD150W6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-7.5-PD150W6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-7.5-PD150W6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-7.5-PA150X6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-7.5-PA150X6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-7.5-PA150X6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-7.5-PB150X6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-7.5-PB150X6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-7.5-PB150X6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-7.5-PC150X6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-7.5-PC150X6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-7.5-PC150X6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-7.5-PD150X6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-7.5-PD150X6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-7.5-PD150X6T	Output: 1.5 kW \| Ratio: 1/7.5 (240 r/min) \| Allowable torque: 52 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-10-PA150R4T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-10-PA150R4T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-10-PA150R4T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-10-PB150R4T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-10-PB150R4T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-10-PB150R4T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-10-PC150R4T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-10-PC150R4T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-10-PC150R4T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-10-PD150R4T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-10-PD150R4T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-10-PD150R4T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-10-PA150W6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-10-PA150W6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-10-PA150W6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-10-PB150W6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-10-PB150W6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-10-PB150W6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-10-PC150W6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-10-PC150W6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-10-PC150W6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-10-PD150W6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-10-PD150W6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-10-PD150W6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-10-PA150X6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-10-PA150X6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-10-PA150X6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-10-PB150X6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-10-PB150X6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-10-PB150X6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-10-PC150X6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-10-PC150X6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-10-PC150X6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-10-PD150X6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-10-PD150X6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-10-PD150X6T	Output: 1.5 kW \| Ratio: 1/10 (180 r/min) \| Allowable torque: 69.6 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-12.5-PA150R4T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-12.5-PA150R4T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-12.5-PA150R4T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-12.5-PB150R4T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-12.5-PB150R4T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-12.5-PB150R4T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-12.5-PC150R4T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-12.5-PC150R4T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-12.5-PC150R4T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-12.5-PD150R4T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-12.5-PD150R4T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-12.5-PD150R4T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-12.5-PA150W6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-12.5-PA150W6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-12.5-PA150W6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-12.5-PB150W6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-12.5-PB150W6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-12.5-PB150W6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-12.5-PC150W6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-12.5-PC150W6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-12.5-PC150W6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-12.5-PD150W6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-12.5-PD150W6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-12.5-PD150W6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-12.5-PA150X6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-12.5-PA150X6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-12.5-PA150X6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-12.5-PB150X6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-12.5-PB150X6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-12.5-PB150X6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-12.5-PC150X6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-12.5-PC150X6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-12.5-PC150X6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-12.5-PD150X6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-12.5-PD150X6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-12.5-PD150X6T	Output: 1.5 kW \| Ratio: 1/12.5 (144 r/min) \| Allowable torque: 86.8 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-15-PA150R4T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-15-PA150R4T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-15-PA150R4T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-15-PB150R4T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-15-PB150R4T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-15-PB150R4T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-15-PC150R4T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-15-PC150R4T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-15-PC150R4T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-15-PD150R4T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-15-PD150R4T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-15-PD150R4T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-15-PA150W6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-15-PA150W6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-15-PA150W6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-15-PB150W6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-15-PB150W6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-15-PB150W6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-15-PC150W6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-15-PC150W6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-15-PC150W6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-15-PD150W6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-15-PD150W6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-15-PD150W6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-15-PA150X6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-15-PA150X6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-15-PA150X6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-15-PB150X6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-15-PB150X6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-15-PB150X6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-15-PC150X6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-15-PC150X6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-15-PC150X6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-15-PD150X6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-15-PD150X6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-15-PD150X6T	Output: 1.5 kW \| Ratio: 1/15 (120 r/min) \| Allowable torque: 104 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-20-PA150R4T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-20-PA150R4T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-20-PA150R4T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-20-PB150R4T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-20-PB150R4T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-20-PB150R4T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-20-PC150R4T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-20-PC150R4T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-20-PC150R4T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-20-PD150R4T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-20-PD150R4T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-20-PD150R4T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-20-PA150W6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-20-PA150W6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-20-PA150W6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-20-PB150W6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-20-PB150W6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-20-PB150W6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-20-PC150W6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-20-PC150W6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-20-PC150W6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-20-PD150W6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-20-PD150W6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-20-PD150W6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-20-PA150X6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-20-PA150X6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-20-PA150X6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-20-PB150X6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-20-PB150X6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-20-PB150X6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-20-PC150X6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-20-PC150X6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-20-PC150X6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-20-PD150X6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-20-PD150X6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-20-PD150X6T	Output: 1.5 kW \| Ratio: 1/20 (90 r/min) \| Allowable torque: 138 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-25-PA150R4T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-25-PA150R4T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-25-PA150R4T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-25-PB150R4T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-25-PB150R4T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-25-PB150R4T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-25-PC150R4T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-25-PC150R4T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-25-PC150R4T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-25-PD150R4T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-25-PD150R4T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-25-PD150R4T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-25-PA150W6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-25-PA150W6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-25-PA150W6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-25-PB150W6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-25-PB150W6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-25-PB150W6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-25-PC150W6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-25-PC150W6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-25-PC150W6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-25-PD150W6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-25-PD150W6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-25-PD150W6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-25-PA150X6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-25-PA150X6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-25-PA150X6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-25-PB150X6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-25-PB150X6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-25-PB150X6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-25-PC150X6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-25-PC150X6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-25-PC150X6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-25-PD150X6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-25-PD150X6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-25-PD150X6T	Output: 1.5 kW \| Ratio: 1/25 (72 r/min) \| Allowable torque: 173 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-30-PA150R4T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-30-PA150R4T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-30-PA150R4T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-30-PB150R4T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-30-PB150R4T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-30-PB150R4T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-30-PC150R4T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-30-PC150R4T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-30-PC150R4T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-30-PD150R4T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-30-PD150R4T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-30-PD150R4T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-30-PA150W6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-30-PA150W6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-30-PA150W6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-30-PB150W6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-30-PB150W6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-30-PB150W6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-30-PC150W6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-30-PC150W6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-30-PC150W6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-30-PD150W6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-30-PD150W6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-30-PD150W6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-30-PA150X6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-30-PA150X6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-30-PA150X6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-30-PB150X6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-30-PB150X6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-30-PB150X6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-30-PC150X6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-30-PC150X6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-30-PC150X6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-30-PD150X6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-30-PD150X6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-30-PD150X6T	Output: 1.5 kW \| Ratio: 1/30 (60 r/min) \| Allowable torque: 208 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-40-PA150R4T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-40-PA150R4T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-40-PA150R4T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-40-PB150R4T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-40-PB150R4T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-40-PB150R4T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-40-PC150R4T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-40-PC150R4T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-40-PC150R4T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-40-PD150R4T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-40-PD150R4T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-40-PD150R4T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-40-PA150W6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-40-PA150W6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-40-PA150W6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-40-PB150W6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-40-PB150W6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-40-PB150W6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-40-PC150W6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-40-PC150W6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-40-PC150W6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-40-PD150W6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-40-PD150W6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-40-PD150W6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-40-PA150X6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-40-PA150X6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-40-PA150X6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-40-PB150X6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-40-PB150X6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-40-PB150X6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-40-PC150X6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-40-PC150X6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-40-PC150X6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-40-PD150X6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-40-PD150X6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-40-PD150X6T	Output: 1.5 kW \| Ratio: 1/40 (45 r/min) \| Allowable torque: 277 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-50-PA150R4T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-50-PA150R4T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-50-PA150R4T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-50-PB150R4T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-50-PB150R4T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-50-PB150R4T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-50-PC150R4T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-50-PC150R4T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-50-PC150R4T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-50-PD150R4T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-50-PD150R4T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-50-PD150R4T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-50-PA150W6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-50-PA150W6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-50-PA150W6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-50-PB150W6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-50-PB150W6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-50-PB150W6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-50-PC150W6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-50-PC150W6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-50-PC150W6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-50-PD150W6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-50-PD150W6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-50-PD150W6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-50-PA150X6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-50-PA150X6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-50-PA150X6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-50-PB150X6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-50-PB150X6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-50-PB150X6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-50-PC150X6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-50-PC150X6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-50-PC150X6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-50-PD150X6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-50-PD150X6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-50-PD150X6T	Output: 1.5 kW \| Ratio: 1/50 (36 r/min) \| Allowable torque: 346 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-60-PA150R4T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-60-PA150R4T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-60-PA150R4T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-60-PB150R4T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-60-PB150R4T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-60-PB150R4T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-60-PC150R4T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-60-PC150R4T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-60-PC150R4T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-60-PD150R4T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-60-PD150R4T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-60-PD150R4T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 220/380 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-60-PA150W6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-60-PA150W6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-60-PA150W6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-60-PB150W6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-60-PB150W6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-60-PB150W6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-60-PC150W6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-60-PC150W6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-60-PC150W6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-60-PD150W6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-60-PD150W6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-60-PD150W6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both
	PCS40L-60-PA150X6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Left
	PCS40R-60-PA150X6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Right
	PCS40B-60-PA150X6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: A - Lead box, IP55 \| Output shaft side: Both
	PCS40L-60-PB150X6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Left
	PCS40R-60-PB150X6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Right
	PCS40B-60-PB150X6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: B - Terminal box, IP55 \| Output shaft side: Both
	PCS40L-60-PC150X6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Left
	PCS40R-60-PC150X6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Right
	PCS40B-60-PC150X6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: C - Terminal box + brake, IP40 \| Output shaft side: Both
	PCS40L-60-PD150X6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Left
	PCS40R-60-PD150X6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Right
	PCS40B-60-PD150X6T	Output: 1.5 kW \| Ratio: 1/60 (30 r/min) \| Allowable torque: 415 N·m \| Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz \| Motor option: D - Terminal box + brake, IP55 \| Output shaft side: Both

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

SPG PCS Frame 40 Solid Shaft Right-Angle Geared Motors (0.75-1.5 kW)
