SPG PMK MEGA Small Flange-Mount Geared Motors (3-Phase 0.75 kW)

SPG PMK MEGA Small Flange-Mount Geared Motors (3-Phase 0.75 kW)

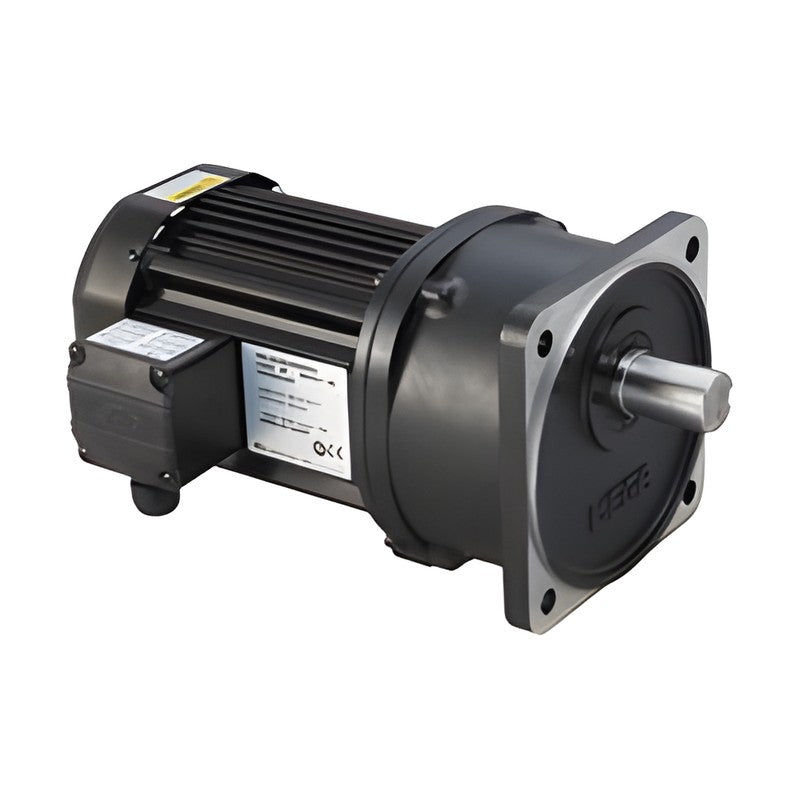

SPG PMK MEGA series small flange-mount 3-phase industrial geared motors, 0.75 kW, with parallel-shaft gearing in frames 105-153 and ratios 1/5-1/200.

Key features

  • PMK MEGA series parallel-shaft industrial geared motor, small flange mounted, vertical installation
  • 3-phase 4-pole motor, 0.75 kW, 3 gear frame sizes (105-153), ratios 1/5-1/200
  • Compact size meeting the Korean minimum-efficiency regulation; IP55 (brake type C: IP40), class F insulation
  • Mounting dimensions (A, B, C, D) compatible with geared motors of major Korean manufacturers
  • Ratios marked with a star in the catalog are speed-limited (output torque capped at the allowable torque); use a larger frame for torque duty
  • Motor option code: A lead box, B terminal box, C terminal box + brake (IP40), D terminal box + closed brake (IP55)

Specifications

Series PMK (MEGA series, parallel shaft, small flange mounted, vertical installation)
Phase / poles 3-phase, 4 poles
Motor output 0.75 kW
Efficiency grade P: premium efficiency (IE3 class)
Frame (output shaft height) 105, 135, 153
Reduction ratio 1/5 to 1/200
Duty / insulation / cooling Continuous / class F / TEFC
Rated load (R4, 60 Hz) 3.10/1.80 A, 1725 r/min, eff. 83.5%
Terminal box location L: 9 o'clock (standard); T/R/B on request
Source SPG Industrial Geared Motor (MEGA series) catalog, p. 5, 38-39
PMK105-5-PA075R4L Frame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-5-PA075W6L Frame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-5-PA075X6L Frame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-5-PB075R4L Frame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-5-PB075W6L Frame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-5-PB075X6L Frame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-5-PC075R4L Frame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-5-PC075W6L Frame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-5-PC075X6L Frame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-5-PD075R4L Frame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-5-PD075W6L Frame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-5-PD075X6L Frame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-10-PA075R4L Frame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-10-PA075W6L Frame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-10-PA075X6L Frame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-10-PB075R4L Frame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-10-PB075W6L Frame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-10-PB075X6L Frame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-10-PC075R4L Frame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-10-PC075W6L Frame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-10-PC075X6L Frame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-10-PD075R4L Frame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-10-PD075W6L Frame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-10-PD075X6L Frame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-15-PA075R4L Frame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-15-PA075W6L Frame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-15-PA075X6L Frame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-15-PB075R4L Frame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-15-PB075W6L Frame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-15-PB075X6L Frame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-15-PC075R4L Frame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-15-PC075W6L Frame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-15-PC075X6L Frame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-15-PD075R4L Frame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-15-PD075W6L Frame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-15-PD075X6L Frame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-20-PA075R4L Frame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-20-PA075W6L Frame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-20-PA075X6L Frame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-20-PB075R4L Frame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-20-PB075W6L Frame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-20-PB075X6L Frame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-20-PC075R4L Frame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-20-PC075W6L Frame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-20-PC075X6L Frame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-20-PD075R4L Frame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-20-PD075W6L Frame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-20-PD075X6L Frame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-30-PA075R4L Frame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-30-PA075W6L Frame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-30-PA075X6L Frame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-30-PB075R4L Frame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-30-PB075W6L Frame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-30-PB075X6L Frame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-30-PC075R4L Frame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-30-PC075W6L Frame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-30-PC075X6L Frame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-30-PD075R4L Frame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-30-PD075W6L Frame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-30-PD075X6L Frame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-5-PA075R4L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-5-PA075W6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-5-PA075X6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-5-PB075R4L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-5-PB075W6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-5-PB075X6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-5-PC075R4L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-5-PC075W6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-5-PC075X6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-5-PD075R4L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-5-PD075W6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-5-PD075X6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-10-PA075R4L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-10-PA075W6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-10-PA075X6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-10-PB075R4L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-10-PB075W6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-10-PB075X6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-10-PC075R4L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-10-PC075W6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-10-PC075X6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-10-PD075R4L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-10-PD075W6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-10-PD075X6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-15-PA075R4L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-15-PA075W6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-15-PA075X6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-15-PB075R4L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-15-PB075W6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-15-PB075X6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-15-PC075R4L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-15-PC075W6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-15-PC075X6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-15-PD075R4L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-15-PD075W6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-15-PD075X6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-20-PA075R4L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-20-PA075W6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-20-PA075X6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-20-PB075R4L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-20-PB075W6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-20-PB075X6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-20-PC075R4L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-20-PC075W6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-20-PC075X6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-20-PD075R4L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-20-PD075W6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-20-PD075X6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-30-PA075R4L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-30-PA075W6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-30-PA075X6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-30-PB075R4L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-30-PB075W6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-30-PB075X6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-30-PC075R4L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-30-PC075W6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-30-PC075X6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-30-PD075R4L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-30-PD075W6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-30-PD075X6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-40-PA075R4L Frame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-40-PA075W6L Frame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-40-PA075X6L Frame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-40-PB075R4L Frame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-40-PB075W6L Frame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-40-PB075X6L Frame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-40-PC075R4L Frame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-40-PC075W6L Frame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-40-PC075X6L Frame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-40-PD075R4L Frame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-40-PD075W6L Frame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-40-PD075X6L Frame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-50-PA075R4L Frame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-50-PA075W6L Frame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-50-PA075X6L Frame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-50-PB075R4L Frame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-50-PB075W6L Frame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-50-PB075X6L Frame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-50-PC075R4L Frame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-50-PC075W6L Frame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-50-PC075X6L Frame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-50-PD075R4L Frame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-50-PD075W6L Frame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-50-PD075X6L Frame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-60-PA075R4L Frame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-60-PA075W6L Frame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-60-PA075X6L Frame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-60-PB075R4L Frame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-60-PB075W6L Frame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-60-PB075X6L Frame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-60-PC075R4L Frame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-60-PC075W6L Frame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-60-PC075X6L Frame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-60-PD075R4L Frame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-60-PD075W6L Frame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-60-PD075X6L Frame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-75-PA075R4L Frame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-75-PA075W6L Frame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-75-PA075X6L Frame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-75-PB075R4L Frame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-75-PB075W6L Frame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-75-PB075X6L Frame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-75-PC075R4L Frame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-75-PC075W6L Frame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-75-PC075X6L Frame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-75-PD075R4L Frame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-75-PD075W6L Frame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-75-PD075X6L Frame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-90-PA075R4L Frame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-90-PA075W6L Frame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-90-PA075X6L Frame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-90-PB075R4L Frame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-90-PB075W6L Frame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-90-PB075X6L Frame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-90-PC075R4L Frame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-90-PC075W6L Frame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-90-PC075X6L Frame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-90-PD075R4L Frame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-90-PD075W6L Frame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-90-PD075X6L Frame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-100-PA075R4L Frame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-100-PA075W6L Frame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-100-PA075X6L Frame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-100-PB075R4L Frame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-100-PB075W6L Frame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-100-PB075X6L Frame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-100-PC075R4L Frame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-100-PC075W6L Frame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-100-PC075X6L Frame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-100-PD075R4L Frame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-100-PD075W6L Frame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-100-PD075X6L Frame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-40-PA075R4L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-40-PA075W6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-40-PA075X6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-40-PB075R4L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-40-PB075W6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-40-PB075X6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-40-PC075R4L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-40-PC075W6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-40-PC075X6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-40-PD075R4L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-40-PD075W6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-40-PD075X6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-50-PA075R4L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-50-PA075W6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-50-PA075X6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-50-PB075R4L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-50-PB075W6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-50-PB075X6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-50-PC075R4L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-50-PC075W6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-50-PC075X6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-50-PD075R4L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-50-PD075W6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-50-PD075X6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-60-PA075R4L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-60-PA075W6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-60-PA075X6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-60-PB075R4L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-60-PB075W6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-60-PB075X6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-60-PC075R4L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-60-PC075W6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-60-PC075X6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-60-PD075R4L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-60-PD075W6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-60-PD075X6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-75-PA075R4L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-75-PA075W6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-75-PA075X6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-75-PB075R4L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-75-PB075W6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-75-PB075X6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-75-PC075R4L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-75-PC075W6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-75-PC075X6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-75-PD075R4L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-75-PD075W6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-75-PD075X6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-90-PA075R4L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-90-PA075W6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-90-PA075X6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-90-PB075R4L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-90-PB075W6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-90-PB075X6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-90-PC075R4L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-90-PC075W6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-90-PC075X6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-90-PD075R4L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-90-PD075W6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-90-PD075X6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-100-PA075R4L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-100-PA075W6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-100-PA075X6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-100-PB075R4L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-100-PB075W6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-100-PB075X6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-100-PC075R4L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-100-PC075W6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-100-PC075X6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-100-PD075R4L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-100-PD075W6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-100-PD075X6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-120-PA075R4L Frame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-120-PA075W6L Frame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-120-PA075X6L Frame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-120-PB075R4L Frame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-120-PB075W6L Frame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-120-PB075X6L Frame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-120-PC075R4L Frame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-120-PC075W6L Frame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-120-PC075X6L Frame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-120-PD075R4L Frame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-120-PD075W6L Frame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-120-PD075X6L Frame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-140-PA075R4L Frame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-140-PA075W6L Frame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-140-PA075X6L Frame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-140-PB075R4L Frame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-140-PB075W6L Frame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-140-PB075X6L Frame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-140-PC075R4L Frame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-140-PC075W6L Frame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-140-PC075X6L Frame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-140-PD075R4L Frame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-140-PD075W6L Frame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-140-PD075X6L Frame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-150-PA075R4L Frame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-150-PA075W6L Frame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-150-PA075X6L Frame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-150-PB075R4L Frame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-150-PB075W6L Frame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-150-PB075X6L Frame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-150-PC075R4L Frame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-150-PC075W6L Frame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-150-PC075X6L Frame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-150-PD075R4L Frame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-150-PD075W6L Frame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-150-PD075X6L Frame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-160-PA075R4L Frame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-160-PA075W6L Frame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-160-PA075X6L Frame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-160-PB075R4L Frame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-160-PB075W6L Frame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-160-PB075X6L Frame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-160-PC075R4L Frame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-160-PC075W6L Frame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-160-PC075X6L Frame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-160-PD075R4L Frame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-160-PD075W6L Frame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-160-PD075X6L Frame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-180-PA075R4L Frame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-180-PA075W6L Frame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-180-PA075X6L Frame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-180-PB075R4L Frame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-180-PB075W6L Frame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-180-PB075X6L Frame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-180-PC075R4L Frame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-180-PC075W6L Frame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-180-PC075X6L Frame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-180-PD075R4L Frame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-180-PD075W6L Frame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-180-PD075X6L Frame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-200-PA075R4L Frame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-200-PA075W6L Frame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-200-PA075X6L Frame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-200-PB075R4L Frame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-200-PB075W6L Frame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-200-PB075X6L Frame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-200-PC075R4L Frame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-200-PC075W6L Frame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-200-PC075X6L Frame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-200-PD075R4L Frame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-200-PD075W6L Frame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-200-PD075X6L Frame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
Industrial MotorsSPG
336 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG PMK MEGA Small Flange-Mount Geared Motors (3-Phase 0.75 kW)

Brand SPG·Industrial Motors

Available part numbers (336)

PMK105-5-PA075R4L, PMK105-5-PA075W6L, PMK105-5-PA075X6L, PMK105-5-PB075R4L, PMK105-5-PB075W6L, PMK105-5-PB075X6L, PMK105-5-PC075R4L, PMK105-5-PC075W6L, PMK105-5-PC075X6L, PMK105-5-PD075R4L + 326 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PMK105-5-PA075R4LFrame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-5-PA075W6LFrame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-5-PA075X6LFrame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-5-PB075R4LFrame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-5-PB075W6LFrame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-5-PB075X6LFrame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-5-PC075R4LFrame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-5-PC075W6LFrame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-5-PC075X6LFrame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-5-PD075R4LFrame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-5-PD075W6LFrame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-5-PD075X6LFrame: 105 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-10-PA075R4LFrame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-10-PA075W6LFrame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-10-PA075X6LFrame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-10-PB075R4LFrame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-10-PB075W6LFrame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-10-PB075X6LFrame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-10-PC075R4LFrame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-10-PC075W6LFrame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-10-PC075X6LFrame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-10-PD075R4LFrame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-10-PD075W6LFrame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-10-PD075X6LFrame: 105 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-15-PA075R4LFrame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-15-PA075W6LFrame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-15-PA075X6LFrame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-15-PB075R4LFrame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-15-PB075W6LFrame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-15-PB075X6LFrame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-15-PC075R4LFrame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-15-PC075W6LFrame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-15-PC075X6LFrame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-15-PD075R4LFrame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-15-PD075W6LFrame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-15-PD075X6LFrame: 105 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-20-PA075R4LFrame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-20-PA075W6LFrame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-20-PA075X6LFrame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-20-PB075R4LFrame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-20-PB075W6LFrame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-20-PB075X6LFrame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-20-PC075R4LFrame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-20-PC075W6LFrame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-20-PC075X6LFrame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-20-PD075R4LFrame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-20-PD075W6LFrame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-20-PD075X6LFrame: 105 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-30-PA075R4LFrame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-30-PA075W6LFrame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-30-PA075X6LFrame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-30-PB075R4LFrame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-30-PB075W6LFrame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-30-PB075X6LFrame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-30-PC075R4LFrame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-30-PC075W6LFrame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-30-PC075X6LFrame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-30-PD075R4LFrame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-30-PD075W6LFrame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-30-PD075X6LFrame: 105 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-5-PA075R4LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-5-PA075W6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-5-PA075X6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-5-PB075R4LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-5-PB075W6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-5-PB075X6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-5-PC075R4LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-5-PC075W6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-5-PC075X6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-5-PD075R4LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-5-PD075W6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-5-PD075X6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-10-PA075R4LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-10-PA075W6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-10-PA075X6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-10-PB075R4LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-10-PB075W6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-10-PB075X6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-10-PC075R4LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-10-PC075W6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-10-PC075X6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-10-PD075R4LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-10-PD075W6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-10-PD075X6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-15-PA075R4LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-15-PA075W6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-15-PA075X6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-15-PB075R4LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-15-PB075W6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-15-PB075X6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-15-PC075R4LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-15-PC075W6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-15-PC075X6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-15-PD075R4LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-15-PD075W6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-15-PD075X6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-20-PA075R4LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-20-PA075W6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-20-PA075X6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-20-PB075R4LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-20-PB075W6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-20-PB075X6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-20-PC075R4LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-20-PC075W6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-20-PC075X6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-20-PD075R4LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-20-PD075W6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-20-PD075X6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-30-PA075R4LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-30-PA075W6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-30-PA075X6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-30-PB075R4LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-30-PB075W6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-30-PB075X6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-30-PC075R4LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-30-PC075W6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-30-PC075X6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-30-PD075R4LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-30-PD075W6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-30-PD075X6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-40-PA075R4LFrame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-40-PA075W6LFrame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-40-PA075X6LFrame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-40-PB075R4LFrame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-40-PB075W6LFrame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-40-PB075X6LFrame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-40-PC075R4LFrame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-40-PC075W6LFrame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-40-PC075X6LFrame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-40-PD075R4LFrame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-40-PD075W6LFrame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-40-PD075X6LFrame: 135 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-50-PA075R4LFrame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-50-PA075W6LFrame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-50-PA075X6LFrame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-50-PB075R4LFrame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-50-PB075W6LFrame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-50-PB075X6LFrame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-50-PC075R4LFrame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-50-PC075W6LFrame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-50-PC075X6LFrame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-50-PD075R4LFrame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-50-PD075W6LFrame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-50-PD075X6LFrame: 135 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-60-PA075R4LFrame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-60-PA075W6LFrame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-60-PA075X6LFrame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-60-PB075R4LFrame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-60-PB075W6LFrame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-60-PB075X6LFrame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-60-PC075R4LFrame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-60-PC075W6LFrame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-60-PC075X6LFrame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-60-PD075R4LFrame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-60-PD075W6LFrame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-60-PD075X6LFrame: 135 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-75-PA075R4LFrame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-75-PA075W6LFrame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-75-PA075X6LFrame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-75-PB075R4LFrame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-75-PB075W6LFrame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-75-PB075X6LFrame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-75-PC075R4LFrame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-75-PC075W6LFrame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-75-PC075X6LFrame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-75-PD075R4LFrame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-75-PD075W6LFrame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-75-PD075X6LFrame: 135 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-90-PA075R4LFrame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-90-PA075W6LFrame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-90-PA075X6LFrame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-90-PB075R4LFrame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-90-PB075W6LFrame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-90-PB075X6LFrame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-90-PC075R4LFrame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-90-PC075W6LFrame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-90-PC075X6LFrame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-90-PD075R4LFrame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-90-PD075W6LFrame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-90-PD075X6LFrame: 135 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-100-PA075R4LFrame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-100-PA075W6LFrame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-100-PA075X6LFrame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-100-PB075R4LFrame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-100-PB075W6LFrame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-100-PB075X6LFrame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-100-PC075R4LFrame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK135-100-PC075W6LFrame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-100-PC075X6LFrame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK135-100-PD075R4LFrame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK135-100-PD075W6LFrame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK135-100-PD075X6LFrame: 135 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-40-PA075R4LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-40-PA075W6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-40-PA075X6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-40-PB075R4LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-40-PB075W6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-40-PB075X6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-40-PC075R4LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-40-PC075W6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-40-PC075X6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-40-PD075R4LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-40-PD075W6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-40-PD075X6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-50-PA075R4LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-50-PA075W6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-50-PA075X6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-50-PB075R4LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-50-PB075W6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-50-PB075X6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-50-PC075R4LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-50-PC075W6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-50-PC075X6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-50-PD075R4LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-50-PD075W6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-50-PD075X6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-60-PA075R4LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-60-PA075W6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-60-PA075X6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-60-PB075R4LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-60-PB075W6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-60-PB075X6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-60-PC075R4LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-60-PC075W6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-60-PC075X6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-60-PD075R4LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-60-PD075W6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-60-PD075X6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-75-PA075R4LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-75-PA075W6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-75-PA075X6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-75-PB075R4LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-75-PB075W6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-75-PB075X6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-75-PC075R4LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-75-PC075W6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-75-PC075X6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-75-PD075R4LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-75-PD075W6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-75-PD075X6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-90-PA075R4LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-90-PA075W6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-90-PA075X6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-90-PB075R4LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-90-PB075W6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-90-PB075X6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-90-PC075R4LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-90-PC075W6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-90-PC075X6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-90-PD075R4LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-90-PD075W6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-90-PD075X6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-100-PA075R4LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-100-PA075W6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-100-PA075X6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-100-PB075R4LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-100-PB075W6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-100-PB075X6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-100-PC075R4LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-100-PC075W6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-100-PC075X6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-100-PD075R4LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-100-PD075W6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-100-PD075X6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-120-PA075R4LFrame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-120-PA075W6LFrame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-120-PA075X6LFrame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-120-PB075R4LFrame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-120-PB075W6LFrame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-120-PB075X6LFrame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-120-PC075R4LFrame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-120-PC075W6LFrame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-120-PC075X6LFrame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-120-PD075R4LFrame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-120-PD075W6LFrame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-120-PD075X6LFrame: 153 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-140-PA075R4LFrame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-140-PA075W6LFrame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-140-PA075X6LFrame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-140-PB075R4LFrame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-140-PB075W6LFrame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-140-PB075X6LFrame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-140-PC075R4LFrame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-140-PC075W6LFrame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-140-PC075X6LFrame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-140-PD075R4LFrame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-140-PD075W6LFrame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-140-PD075X6LFrame: 153 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-150-PA075R4LFrame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-150-PA075W6LFrame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-150-PA075X6LFrame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-150-PB075R4LFrame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-150-PB075W6LFrame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-150-PB075X6LFrame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-150-PC075R4LFrame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-150-PC075W6LFrame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-150-PC075X6LFrame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-150-PD075R4LFrame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-150-PD075W6LFrame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-150-PD075X6LFrame: 153 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-160-PA075R4LFrame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-160-PA075W6LFrame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-160-PA075X6LFrame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-160-PB075R4LFrame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-160-PB075W6LFrame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-160-PB075X6LFrame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-160-PC075R4LFrame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-160-PC075W6LFrame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-160-PC075X6LFrame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-160-PD075R4LFrame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-160-PD075W6LFrame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-160-PD075X6LFrame: 153 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-180-PA075R4LFrame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-180-PA075W6LFrame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-180-PA075X6LFrame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-180-PB075R4LFrame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-180-PB075W6LFrame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-180-PB075X6LFrame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-180-PC075R4LFrame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-180-PC075W6LFrame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-180-PC075X6LFrame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-180-PD075R4LFrame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-180-PD075W6LFrame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-180-PD075X6LFrame: 153 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-200-PA075R4LFrame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-200-PA075W6LFrame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-200-PA075X6LFrame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-200-PB075R4LFrame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-200-PB075W6LFrame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-200-PB075X6LFrame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-200-PC075R4LFrame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK153-200-PC075W6LFrame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-200-PC075X6LFrame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK153-200-PD075R4LFrame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK153-200-PD075W6LFrame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK153-200-PD075X6LFrame: 153 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
