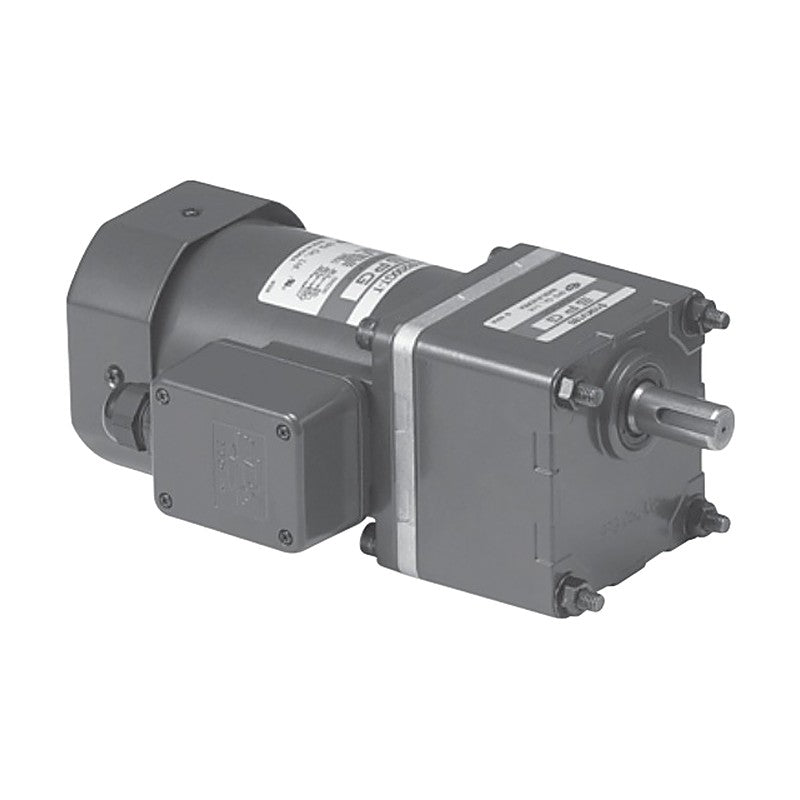

SPG S10KV 104 mm Gearheads (200 W, 3-180:1)

SPG S10KV 104 mm Gearheads (200 W, 3-180:1)

SPG S10[ ]V 104 mm parallel-shaft gearhead for the 200 W S10I200 motor, ratios 3:1 to 180:1 with straight, D-cut or keyed output shaft.

Key features

  • Max. permissible torque 400 kgf-cm (40 N-m), higher than 90 mm gearheads
  • High-strength ball and needle bearings; precision-machined gear box for low noise
  • 20 reduction ratios from 3:1 to 180:1
  • Output shaft code S (straight), D (D-cut) or K (keyed), dia. 18 mm
  • Permissible thrust load 200 N; overhung load up to 1000 N at 20 mm (1/50-1/180)

Specifications

Frame size 104 mm square
Matching motor S10I200G (200 W pinion)
Max. permissible torque 400 kgf-cm (40 N-m)
Efficiency 90% (3-9), 86% (12.5-36), 81% (50-180)
Overhung load 10 mm 550 N (3-36), 650 N (50-180)
Overhung load 20 mm 800 N (3-36), 1000 N (50-180)
Permissible thrust load 200 N (20 kgf)
Source SPG Standard AC Geared Motor catalog, p. 300-303
S10SV3 Ratio: 3:1 | Output shaft: Straight | Speed 60 Hz: 600 rpm | Perm. torque 50 Hz: 41 kgf-cm | Perm. torque 60 Hz: 34 kgf-cm
S10SV3.6 Ratio: 3.6:1 | Output shaft: Straight | Speed 60 Hz: 500 rpm | Perm. torque 50 Hz: 49 kgf-cm | Perm. torque 60 Hz: 41 kgf-cm
S10SV5 Ratio: 5:1 | Output shaft: Straight | Speed 60 Hz: 360 rpm | Perm. torque 50 Hz: 68 kgf-cm | Perm. torque 60 Hz: 57 kgf-cm
S10SV6 Ratio: 6:1 | Output shaft: Straight | Speed 60 Hz: 300 rpm | Perm. torque 50 Hz: 82 kgf-cm | Perm. torque 60 Hz: 69 kgf-cm
S10SV7.5 Ratio: 7.5:1 | Output shaft: Straight | Speed 60 Hz: 240 rpm | Perm. torque 50 Hz: 103 kgf-cm | Perm. torque 60 Hz: 86 kgf-cm
S10SV9 Ratio: 9:1 | Output shaft: Straight | Speed 60 Hz: 200 rpm | Perm. torque 50 Hz: 123 kgf-cm | Perm. torque 60 Hz: 103 kgf-cm
S10SV12.5 Ratio: 12.5:1 | Output shaft: Straight | Speed 60 Hz: 144 rpm | Perm. torque 50 Hz: 163 kgf-cm | Perm. torque 60 Hz: 137 kgf-cm
S10SV15 Ratio: 15:1 | Output shaft: Straight | Speed 60 Hz: 120 rpm | Perm. torque 50 Hz: 196 kgf-cm | Perm. torque 60 Hz: 164 kgf-cm
S10SV18 Ratio: 18:1 | Output shaft: Straight | Speed 60 Hz: 100 rpm | Perm. torque 50 Hz: 235 kgf-cm | Perm. torque 60 Hz: 197 kgf-cm
S10SV25 Ratio: 25:1 | Output shaft: Straight | Speed 60 Hz: 72 rpm | Perm. torque 50 Hz: 327 kgf-cm | Perm. torque 60 Hz: 273 kgf-cm
S10SV30 Ratio: 30:1 | Output shaft: Straight | Speed 60 Hz: 60 rpm | Perm. torque 50 Hz: 392 kgf-cm | Perm. torque 60 Hz: 328 kgf-cm
S10SV36 Ratio: 36:1 | Output shaft: Straight | Speed 60 Hz: 50 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 393 kgf-cm
S10SV50 Ratio: 50:1 | Output shaft: Straight | Speed 60 Hz: 36 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10SV60 Ratio: 60:1 | Output shaft: Straight | Speed 60 Hz: 30 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10SV75 Ratio: 75:1 | Output shaft: Straight | Speed 60 Hz: 24 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10SV90 Ratio: 90:1 | Output shaft: Straight | Speed 60 Hz: 20 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10SV100 Ratio: 100:1 | Output shaft: Straight | Speed 60 Hz: 18 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10SV120 Ratio: 120:1 | Output shaft: Straight | Speed 60 Hz: 15 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10SV150 Ratio: 150:1 | Output shaft: Straight | Speed 60 Hz: 12 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10SV180 Ratio: 180:1 | Output shaft: Straight | Speed 60 Hz: 10 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10DV3 Ratio: 3:1 | Output shaft: D-cut | Speed 60 Hz: 600 rpm | Perm. torque 50 Hz: 41 kgf-cm | Perm. torque 60 Hz: 34 kgf-cm
S10DV3.6 Ratio: 3.6:1 | Output shaft: D-cut | Speed 60 Hz: 500 rpm | Perm. torque 50 Hz: 49 kgf-cm | Perm. torque 60 Hz: 41 kgf-cm
S10DV5 Ratio: 5:1 | Output shaft: D-cut | Speed 60 Hz: 360 rpm | Perm. torque 50 Hz: 68 kgf-cm | Perm. torque 60 Hz: 57 kgf-cm
S10DV6 Ratio: 6:1 | Output shaft: D-cut | Speed 60 Hz: 300 rpm | Perm. torque 50 Hz: 82 kgf-cm | Perm. torque 60 Hz: 69 kgf-cm
S10DV7.5 Ratio: 7.5:1 | Output shaft: D-cut | Speed 60 Hz: 240 rpm | Perm. torque 50 Hz: 103 kgf-cm | Perm. torque 60 Hz: 86 kgf-cm
S10DV9 Ratio: 9:1 | Output shaft: D-cut | Speed 60 Hz: 200 rpm | Perm. torque 50 Hz: 123 kgf-cm | Perm. torque 60 Hz: 103 kgf-cm
S10DV12.5 Ratio: 12.5:1 | Output shaft: D-cut | Speed 60 Hz: 144 rpm | Perm. torque 50 Hz: 163 kgf-cm | Perm. torque 60 Hz: 137 kgf-cm
S10DV15 Ratio: 15:1 | Output shaft: D-cut | Speed 60 Hz: 120 rpm | Perm. torque 50 Hz: 196 kgf-cm | Perm. torque 60 Hz: 164 kgf-cm
S10DV18 Ratio: 18:1 | Output shaft: D-cut | Speed 60 Hz: 100 rpm | Perm. torque 50 Hz: 235 kgf-cm | Perm. torque 60 Hz: 197 kgf-cm
S10DV25 Ratio: 25:1 | Output shaft: D-cut | Speed 60 Hz: 72 rpm | Perm. torque 50 Hz: 327 kgf-cm | Perm. torque 60 Hz: 273 kgf-cm
S10DV30 Ratio: 30:1 | Output shaft: D-cut | Speed 60 Hz: 60 rpm | Perm. torque 50 Hz: 392 kgf-cm | Perm. torque 60 Hz: 328 kgf-cm
S10DV36 Ratio: 36:1 | Output shaft: D-cut | Speed 60 Hz: 50 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 393 kgf-cm
S10DV50 Ratio: 50:1 | Output shaft: D-cut | Speed 60 Hz: 36 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10DV60 Ratio: 60:1 | Output shaft: D-cut | Speed 60 Hz: 30 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10DV75 Ratio: 75:1 | Output shaft: D-cut | Speed 60 Hz: 24 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10DV90 Ratio: 90:1 | Output shaft: D-cut | Speed 60 Hz: 20 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10DV100 Ratio: 100:1 | Output shaft: D-cut | Speed 60 Hz: 18 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10DV120 Ratio: 120:1 | Output shaft: D-cut | Speed 60 Hz: 15 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10DV150 Ratio: 150:1 | Output shaft: D-cut | Speed 60 Hz: 12 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10DV180 Ratio: 180:1 | Output shaft: D-cut | Speed 60 Hz: 10 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10KV3 Ratio: 3:1 | Output shaft: Keyed | Speed 60 Hz: 600 rpm | Perm. torque 50 Hz: 41 kgf-cm | Perm. torque 60 Hz: 34 kgf-cm
S10KV3.6 Ratio: 3.6:1 | Output shaft: Keyed | Speed 60 Hz: 500 rpm | Perm. torque 50 Hz: 49 kgf-cm | Perm. torque 60 Hz: 41 kgf-cm
S10KV5 Ratio: 5:1 | Output shaft: Keyed | Speed 60 Hz: 360 rpm | Perm. torque 50 Hz: 68 kgf-cm | Perm. torque 60 Hz: 57 kgf-cm
S10KV6 Ratio: 6:1 | Output shaft: Keyed | Speed 60 Hz: 300 rpm | Perm. torque 50 Hz: 82 kgf-cm | Perm. torque 60 Hz: 69 kgf-cm
S10KV7.5 Ratio: 7.5:1 | Output shaft: Keyed | Speed 60 Hz: 240 rpm | Perm. torque 50 Hz: 103 kgf-cm | Perm. torque 60 Hz: 86 kgf-cm
S10KV9 Ratio: 9:1 | Output shaft: Keyed | Speed 60 Hz: 200 rpm | Perm. torque 50 Hz: 123 kgf-cm | Perm. torque 60 Hz: 103 kgf-cm
S10KV12.5 Ratio: 12.5:1 | Output shaft: Keyed | Speed 60 Hz: 144 rpm | Perm. torque 50 Hz: 163 kgf-cm | Perm. torque 60 Hz: 137 kgf-cm
S10KV15 Ratio: 15:1 | Output shaft: Keyed | Speed 60 Hz: 120 rpm | Perm. torque 50 Hz: 196 kgf-cm | Perm. torque 60 Hz: 164 kgf-cm
S10KV18 Ratio: 18:1 | Output shaft: Keyed | Speed 60 Hz: 100 rpm | Perm. torque 50 Hz: 235 kgf-cm | Perm. torque 60 Hz: 197 kgf-cm
S10KV25 Ratio: 25:1 | Output shaft: Keyed | Speed 60 Hz: 72 rpm | Perm. torque 50 Hz: 327 kgf-cm | Perm. torque 60 Hz: 273 kgf-cm
S10KV30 Ratio: 30:1 | Output shaft: Keyed | Speed 60 Hz: 60 rpm | Perm. torque 50 Hz: 392 kgf-cm | Perm. torque 60 Hz: 328 kgf-cm
S10KV36 Ratio: 36:1 | Output shaft: Keyed | Speed 60 Hz: 50 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 393 kgf-cm
S10KV50 Ratio: 50:1 | Output shaft: Keyed | Speed 60 Hz: 36 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10KV60 Ratio: 60:1 | Output shaft: Keyed | Speed 60 Hz: 30 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10KV75 Ratio: 75:1 | Output shaft: Keyed | Speed 60 Hz: 24 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10KV90 Ratio: 90:1 | Output shaft: Keyed | Speed 60 Hz: 20 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10KV100 Ratio: 100:1 | Output shaft: Keyed | Speed 60 Hz: 18 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10KV120 Ratio: 120:1 | Output shaft: Keyed | Speed 60 Hz: 15 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10KV150 Ratio: 150:1 | Output shaft: Keyed | Speed 60 Hz: 12 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
S10KV180 Ratio: 180:1 | Output shaft: Keyed | Speed 60 Hz: 10 rpm | Perm. torque 50 Hz: 400 kgf-cm | Perm. torque 60 Hz: 400 kgf-cm
