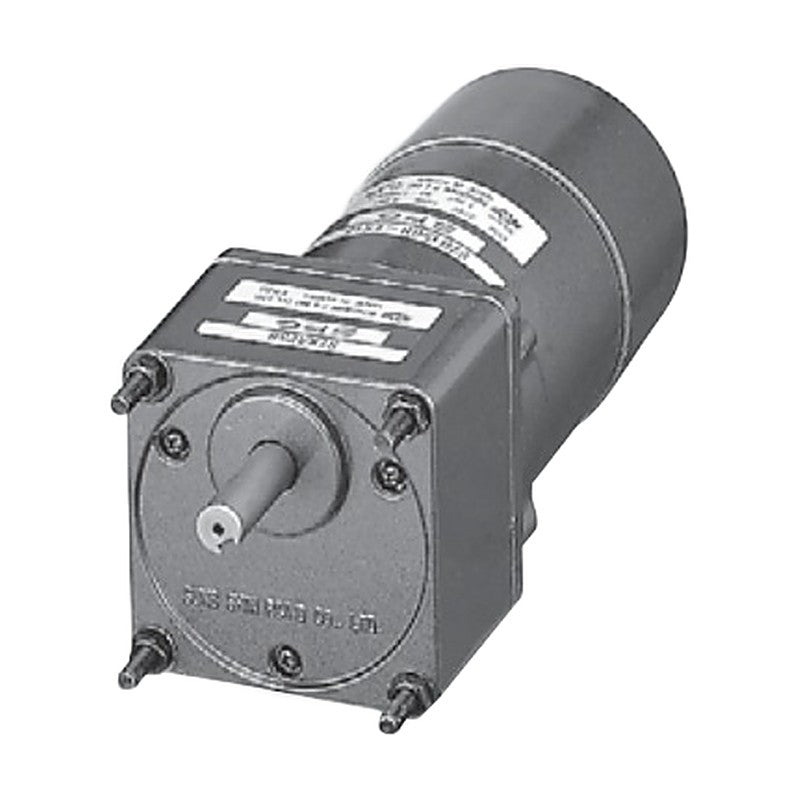

SPG 60 mm E-S Speed Control Brake Motors (6 W, Lead Wire)

SPG 60 mm E-S Speed Control Brake Motors (6 W, Lead Wire)

SPG 60 mm square single-phase E-S motors (6 W): reversible speed control motors with built-in electromagnetic brake and tachogenerator, lead wire type.

Key features

  • Variable speed 90-1700 rpm at 60 Hz, 90-1400 rpm at 50 Hz with matching speed controller
  • Electromagnetic brake integrated for holding the load when stopped
  • -ES12 motors (T.G. 12 V) pair with SR pack controllers (slow run / slow stop); -ES24 motors (T.G. 24 V) pair with SS socket controllers (run/stop)
  • Pinion (G) shaft for SPG gearheads; straight (S), D-cut (D) round shafts available
  • Thermal protector (TP) and CE-certified, thermally protected (CE suffix) versions

Specifications

Motor type Speed Control Electromagnetic Brake Motors
Frame size 60 mm square
Output 6 W
Phase / poles Single phase, 4 poles
Duty 30 min. rating
Speed range 90-1700 rpm (60 Hz), 90-1400 rpm (50 Hz)
Permissible torque at 1200 rpm 6 W: 0.047-0.062 N.m
Capacitor 6 W: 3.0/0.8/0.7 uF (110-100 V / 200-220 V / 220-240 V X)
Lead wire length 300 mm
Matching gearheads (sold separately) S6A3 to S6A250; decimal S6GX10B
Source SPG Standard AC Geared Motor catalog, p. 278-280
S6R06GA-ES12 Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA01 | Protection: Standard
S6R06GA-ES12CE Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA01CE | Protection: CE, thermally protected
S6R06GB-ES12 Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB01 | Protection: Standard
S6R06GB-ES12CE Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB01CE | Protection: CE, thermally protected
S6R06GC-ES12 Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC01 | Protection: Standard
S6R06GC-ES12CE Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC01CE | Protection: CE, thermally protected
S6R06GD-ES12 Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD01 | Protection: Standard
S6R06GD-ES12CE Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD01CE | Protection: CE, thermally protected
S6R06GX-ES12 Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX01 | Protection: Standard
S6R06GX-ES12CE Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX01CE | Protection: CE, thermally protected
S6R06SA-ES12 Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA01 | Protection: Standard
S6R06SA-ES12CE Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA01CE | Protection: CE, thermally protected
S6R06SB-ES12 Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB01 | Protection: Standard
S6R06SB-ES12CE Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB01CE | Protection: CE, thermally protected
S6R06SC-ES12 Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC01 | Protection: Standard
S6R06SC-ES12CE Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC01CE | Protection: CE, thermally protected
S6R06SD-ES12 Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD01 | Protection: Standard
S6R06SD-ES12CE Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD01CE | Protection: CE, thermally protected
S6R06SX-ES12 Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX01 | Protection: Standard
S6R06SX-ES12CE Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX01CE | Protection: CE, thermally protected
S6R06DA-ES12 Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA01 | Protection: Standard
S6R06DA-ES12CE Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA01CE | Protection: CE, thermally protected
S6R06DB-ES12 Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB01 | Protection: Standard
S6R06DB-ES12CE Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB01CE | Protection: CE, thermally protected
S6R06DC-ES12 Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC01 | Protection: Standard
S6R06DC-ES12CE Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC01CE | Protection: CE, thermally protected
S6R06DD-ES12 Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD01 | Protection: Standard
S6R06DD-ES12CE Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD01CE | Protection: CE, thermally protected
S6R06DX-ES12 Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX01 | Protection: Standard
S6R06DX-ES12CE Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX01CE | Protection: CE, thermally protected
S6R06GA-ES24 Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA01-SRSS / SSA03-SRSS | Protection: Standard
S6R06GA-ES24CE Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA01-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S6R06GB-ES24 Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB01-SRSS / SSB03-SRSS | Protection: Standard
S6R06GB-ES24CE Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB01-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S6R06GC-ES24 Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC01-SRSS / SSC03-SRSS | Protection: Standard
S6R06GC-ES24CE Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC01-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S6R06GD-ES24 Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD01-SRSS / SSD03-SRSS | Protection: Standard
S6R06GD-ES24CE Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD01-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S6R06GX-ES24 Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX01-SRSS / SSX03-SRSS | Protection: Standard
S6R06GX-ES24CE Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX01-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S6R06SA-ES24 Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA01-SRSS / SSA03-SRSS | Protection: Standard
S6R06SA-ES24CE Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA01-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S6R06SB-ES24 Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB01-SRSS / SSB03-SRSS | Protection: Standard
S6R06SB-ES24CE Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB01-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S6R06SC-ES24 Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC01-SRSS / SSC03-SRSS | Protection: Standard
S6R06SC-ES24CE Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC01-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S6R06SD-ES24 Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD01-SRSS / SSD03-SRSS | Protection: Standard
S6R06SD-ES24CE Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD01-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S6R06SX-ES24 Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX01-SRSS / SSX03-SRSS | Protection: Standard
S6R06SX-ES24CE Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX01-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S6R06DA-ES24 Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA01-SRSS / SSA03-SRSS | Protection: Standard
S6R06DA-ES24CE Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA01-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S6R06DB-ES24 Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB01-SRSS / SSB03-SRSS | Protection: Standard
S6R06DB-ES24CE Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB01-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S6R06DC-ES24 Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC01-SRSS / SSC03-SRSS | Protection: Standard
S6R06DC-ES24CE Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC01-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S6R06DD-ES24 Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD01-SRSS / SSD03-SRSS | Protection: Standard
S6R06DD-ES24CE Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD01-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S6R06DX-ES24 Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX01-SRSS / SSX03-SRSS | Protection: Standard
S6R06DX-ES24CE Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX01-SRSS / SSX03-SRSS | Protection: CE, thermally protected
Speed Control MotorsSPG
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 60 mm E-S Speed Control Brake Motors (6 W, Lead Wire)

Brand SPG·Speed Control Motors

Available part numbers (60)

S6R06GA-ES12, S6R06GA-ES12CE, S6R06GB-ES12, S6R06GB-ES12CE, S6R06GC-ES12, S6R06GC-ES12CE, S6R06GD-ES12, S6R06GD-ES12CE, S6R06GX-ES12, S6R06GX-ES12CE + 50 more — see full table ↓
