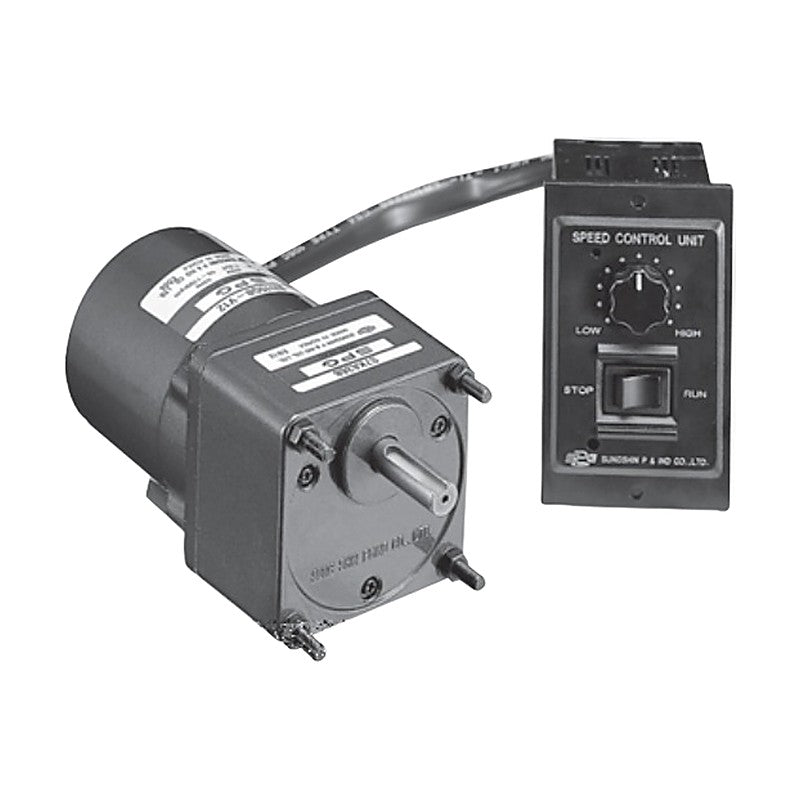

SPG 70 mm Unit Type Speed Control Motors (15 W)

SPG 70 mm Unit Type Speed Control Motors (15 W)

SPG 70 mm connector-type induction speed control motors, 15 W, with 12 V tacho-generator for SUA/SUD unit controllers.

Key features

  • Unit (connector) type: motor plugs into the matching SUA analogue or SUD digital speed controller with one touch
  • Speed set by the controller volume; 90-1400 rpm at 50 Hz, 90-1700 rpm at 60 Hz
  • Built-in 12 V tacho-generator for closed-loop speed control
  • Motor-controller distance up to 2 m with optional extension cable
  • Pinion (G) shaft for SPG K-type gearheads or straight/D-cut round shafts; (TP) thermal protector and CE versions

Specifications

Frame size 70 mm sq.
Output 15 W
Motor type Induction speed control motor, connector type
Tacho-generator T.G. 12 V (V12)
Speed range 90-1400 rpm (50 Hz), 90-1700 rpm (60 Hz)
Duty Continuous
Poles 4
Insulation class Class B (130°C)
Thermal protector (TP) Auto return: open 120±5°C, close 76±15°C
Source SPG Standard AC Geared Motor catalog, p. 180-181
S7I15GA-V12 Voltage: 1-ph 110 V 60 Hz | Controller: SUA15IA-V12 | Protection: Standard | Shaft: Pinion (gear type)
S7I15SA-V12 Voltage: 1-ph 110 V 60 Hz | Controller: SUA15IA-V12 | Protection: Standard | Shaft: Straight round shaft
S7I15DA-V12 Voltage: 1-ph 110 V 60 Hz | Controller: SUA15IA-V12 | Protection: Standard | Shaft: D-cut round shaft
S7I15GA-V12(TP) Voltage: 1-ph 110 V 60 Hz | Controller: SUA15IA-V12 | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S7I15SA-V12(TP) Voltage: 1-ph 110 V 60 Hz | Controller: SUA15IA-V12 | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S7I15DA-V12(TP) Voltage: 1-ph 110 V 60 Hz | Controller: SUA15IA-V12 | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S7I15GA-V12CE Voltage: 1-ph 110 V 60 Hz | Controller: SUA15IA-V12 | Protection: CE certified type | Shaft: Pinion (gear type)
S7I15SA-V12CE Voltage: 1-ph 110 V 60 Hz | Controller: SUA15IA-V12 | Protection: CE certified type | Shaft: Straight round shaft
S7I15DA-V12CE Voltage: 1-ph 110 V 60 Hz | Controller: SUA15IA-V12 | Protection: CE certified type | Shaft: D-cut round shaft
S7I15GB-V12 Voltage: 1-ph 220 V 60 Hz | Controller: SUA15IB-V12 | Protection: Standard | Shaft: Pinion (gear type)
S7I15SB-V12 Voltage: 1-ph 220 V 60 Hz | Controller: SUA15IB-V12 | Protection: Standard | Shaft: Straight round shaft
S7I15DB-V12 Voltage: 1-ph 220 V 60 Hz | Controller: SUA15IB-V12 | Protection: Standard | Shaft: D-cut round shaft
S7I15GB-V12(TP) Voltage: 1-ph 220 V 60 Hz | Controller: SUA15IB-V12 | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S7I15SB-V12(TP) Voltage: 1-ph 220 V 60 Hz | Controller: SUA15IB-V12 | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S7I15DB-V12(TP) Voltage: 1-ph 220 V 60 Hz | Controller: SUA15IB-V12 | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S7I15GB-V12CE Voltage: 1-ph 220 V 60 Hz | Controller: SUA15IB-V12 | Protection: CE certified type | Shaft: Pinion (gear type)
S7I15SB-V12CE Voltage: 1-ph 220 V 60 Hz | Controller: SUA15IB-V12 | Protection: CE certified type | Shaft: Straight round shaft
S7I15DB-V12CE Voltage: 1-ph 220 V 60 Hz | Controller: SUA15IB-V12 | Protection: CE certified type | Shaft: D-cut round shaft
S7I15GC-V12 Voltage: 1-ph 100 V 50/60 Hz | Controller: SUA15IC-V12 | Protection: Standard | Shaft: Pinion (gear type)
S7I15SC-V12 Voltage: 1-ph 100 V 50/60 Hz | Controller: SUA15IC-V12 | Protection: Standard | Shaft: Straight round shaft
S7I15DC-V12 Voltage: 1-ph 100 V 50/60 Hz | Controller: SUA15IC-V12 | Protection: Standard | Shaft: D-cut round shaft
S7I15GC-V12(TP) Voltage: 1-ph 100 V 50/60 Hz | Controller: SUA15IC-V12 | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S7I15SC-V12(TP) Voltage: 1-ph 100 V 50/60 Hz | Controller: SUA15IC-V12 | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S7I15DC-V12(TP) Voltage: 1-ph 100 V 50/60 Hz | Controller: SUA15IC-V12 | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S7I15GC-V12CE Voltage: 1-ph 100 V 50/60 Hz | Controller: SUA15IC-V12 | Protection: CE certified type | Shaft: Pinion (gear type)
S7I15SC-V12CE Voltage: 1-ph 100 V 50/60 Hz | Controller: SUA15IC-V12 | Protection: CE certified type | Shaft: Straight round shaft
S7I15DC-V12CE Voltage: 1-ph 100 V 50/60 Hz | Controller: SUA15IC-V12 | Protection: CE certified type | Shaft: D-cut round shaft
S7I15GD-V12 Voltage: 1-ph 200 V 50/60 Hz | Controller: SUA15ID-V12 | Protection: Standard | Shaft: Pinion (gear type)
S7I15SD-V12 Voltage: 1-ph 200 V 50/60 Hz | Controller: SUA15ID-V12 | Protection: Standard | Shaft: Straight round shaft
S7I15DD-V12 Voltage: 1-ph 200 V 50/60 Hz | Controller: SUA15ID-V12 | Protection: Standard | Shaft: D-cut round shaft
S7I15GD-V12(TP) Voltage: 1-ph 200 V 50/60 Hz | Controller: SUA15ID-V12 | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S7I15SD-V12(TP) Voltage: 1-ph 200 V 50/60 Hz | Controller: SUA15ID-V12 | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S7I15DD-V12(TP) Voltage: 1-ph 200 V 50/60 Hz | Controller: SUA15ID-V12 | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S7I15GD-V12CE Voltage: 1-ph 200 V 50/60 Hz | Controller: SUA15ID-V12 | Protection: CE certified type | Shaft: Pinion (gear type)
S7I15SD-V12CE Voltage: 1-ph 200 V 50/60 Hz | Controller: SUA15ID-V12 | Protection: CE certified type | Shaft: Straight round shaft
S7I15DD-V12CE Voltage: 1-ph 200 V 50/60 Hz | Controller: SUA15ID-V12 | Protection: CE certified type | Shaft: D-cut round shaft
S7I15GX-V12 Voltage: 1-ph 220/240 V 50 Hz | Controller: SUA15IX-V12 | Protection: Standard | Shaft: Pinion (gear type)
S7I15SX-V12 Voltage: 1-ph 220/240 V 50 Hz | Controller: SUA15IX-V12 | Protection: Standard | Shaft: Straight round shaft
S7I15DX-V12 Voltage: 1-ph 220/240 V 50 Hz | Controller: SUA15IX-V12 | Protection: Standard | Shaft: D-cut round shaft
S7I15GX-V12CE Voltage: 1-ph 220/240 V 50 Hz | Controller: SUA15IX-V12 | Protection: CE certified type | Shaft: Pinion (gear type)
S7I15SX-V12CE Voltage: 1-ph 220/240 V 50 Hz | Controller: SUA15IX-V12 | Protection: CE certified type | Shaft: Straight round shaft
S7I15DX-V12CE Voltage: 1-ph 220/240 V 50 Hz | Controller: SUA15IX-V12 | Protection: CE certified type | Shaft: D-cut round shaft
Speed Control MotorsSPG
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 70 mm Unit Type Speed Control Motors (15 W)

Brand SPG·Speed Control Motors

Available part numbers (42)

S7I15GA-V12, S7I15SA-V12, S7I15DA-V12, S7I15GA-V12(TP), S7I15SA-V12(TP), S7I15DA-V12(TP), S7I15GA-V12CE, S7I15SA-V12CE, S7I15DA-V12CE, S7I15GB-V12 + 32 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
