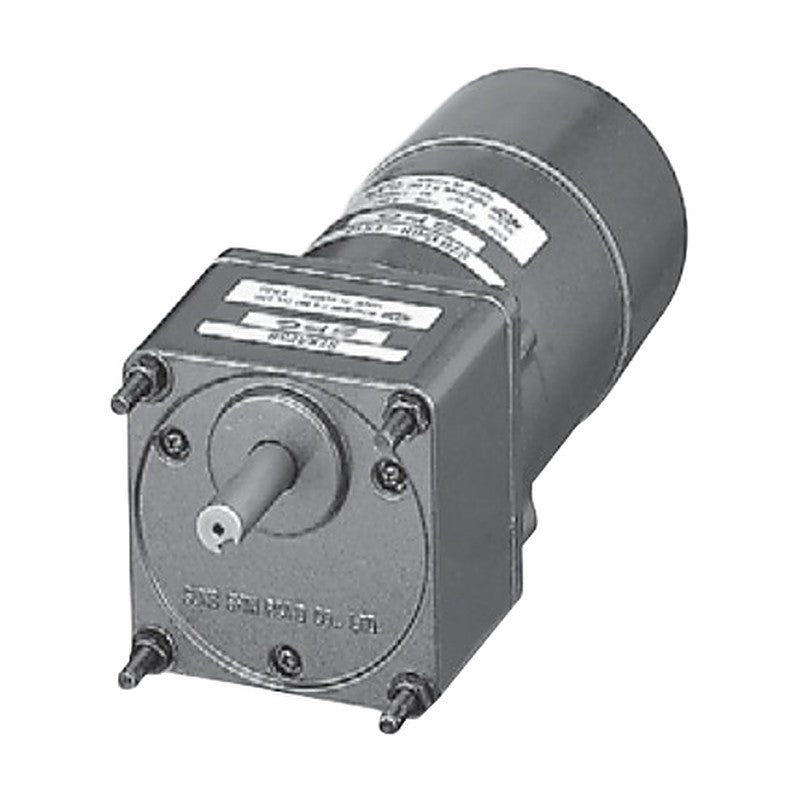

SPG 70 mm E-S Speed Control Brake Motors (15 W, Lead Wire)

SPG 70 mm E-S Speed Control Brake Motors (15 W, Lead Wire)

SPG 70 mm square single-phase E-S motors (15 W): reversible speed control motors with built-in electromagnetic brake and tachogenerator, lead wire type.

Key features

  • Variable speed 90-1700 rpm at 60 Hz, 90-1400 rpm at 50 Hz with matching speed controller
  • Electromagnetic brake integrated for holding the load when stopped
  • -ES12 motors (T.G. 12 V) pair with SR pack controllers (slow run / slow stop); -ES24 motors (T.G. 24 V) pair with SS socket controllers (run/stop)
  • Pinion (G) shaft for SPG gearheads; straight (S), D-cut (D) round shafts available
  • Thermal protector (TP) and CE-certified, thermally protected (CE suffix) versions

Specifications

Motor type Speed Control Electromagnetic Brake Motors
Frame size 70 mm square
Output 15 W
Phase / poles Single phase, 4 poles
Duty 30 min. rating
Speed range 90-1700 rpm (60 Hz), 90-1400 rpm (50 Hz)
Permissible torque at 1200 rpm 15 W: 0.090-0.140 N.m
Capacitor 15 W: 6.0/1.5/1.2 uF (110-100 V / 200-220 V / 220-240 V X)
Lead wire length 300 mm
Matching gearheads (sold separately) S7A3 to S7A200; decimal S7GX10B
Source SPG Standard AC Geared Motor catalog, p. 281-283
S7R15GA-ES12 Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S7R15GA-ES12(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S7R15GA-ES12CE Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S7R15GB-ES12 Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S7R15GB-ES12(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S7R15GB-ES12CE Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S7R15GC-ES12 Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S7R15GC-ES12(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S7R15GC-ES12CE Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S7R15GD-ES12 Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S7R15GD-ES12(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S7R15GD-ES12CE Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S7R15GX-ES12 Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S7R15GX-ES12CE Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S7R15SA-ES12 Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S7R15SA-ES12(TP) Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S7R15SA-ES12CE Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S7R15SB-ES12 Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S7R15SB-ES12(TP) Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S7R15SB-ES12CE Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S7R15SC-ES12 Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S7R15SC-ES12(TP) Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S7R15SC-ES12CE Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S7R15SD-ES12 Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S7R15SD-ES12(TP) Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S7R15SD-ES12CE Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S7R15SX-ES12 Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S7R15SX-ES12CE Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S7R15DA-ES12 Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S7R15DA-ES12(TP) Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S7R15DA-ES12CE Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S7R15DB-ES12 Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S7R15DB-ES12(TP) Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S7R15DB-ES12CE Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S7R15DC-ES12 Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S7R15DC-ES12(TP) Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S7R15DC-ES12CE Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S7R15DD-ES12 Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S7R15DD-ES12(TP) Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S7R15DD-ES12CE Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S7R15DX-ES12 Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S7R15DX-ES12CE Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S7R15GA-ES24 Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S7R15GA-ES24(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S7R15GA-ES24CE Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S7R15GB-ES24 Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S7R15GB-ES24(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S7R15GB-ES24CE Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S7R15GC-ES24 Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S7R15GC-ES24(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S7R15GC-ES24CE Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S7R15GD-ES24 Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S7R15GD-ES24(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S7R15GD-ES24CE Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S7R15GX-ES24 Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S7R15GX-ES24CE Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S7R15SA-ES24 Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S7R15SA-ES24(TP) Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S7R15SA-ES24CE Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S7R15SB-ES24 Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S7R15SB-ES24(TP) Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S7R15SB-ES24CE Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S7R15SC-ES24 Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S7R15SC-ES24(TP) Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S7R15SC-ES24CE Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S7R15SD-ES24 Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S7R15SD-ES24(TP) Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S7R15SD-ES24CE Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S7R15SX-ES24 Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S7R15SX-ES24CE Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S7R15DA-ES24 Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S7R15DA-ES24(TP) Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S7R15DA-ES24CE Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S7R15DB-ES24 Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S7R15DB-ES24(TP) Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S7R15DB-ES24CE Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S7R15DC-ES24 Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S7R15DC-ES24(TP) Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S7R15DC-ES24CE Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S7R15DD-ES24 Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S7R15DD-ES24(TP) Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S7R15DD-ES24CE Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S7R15DX-ES24 Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S7R15DX-ES24CE Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
