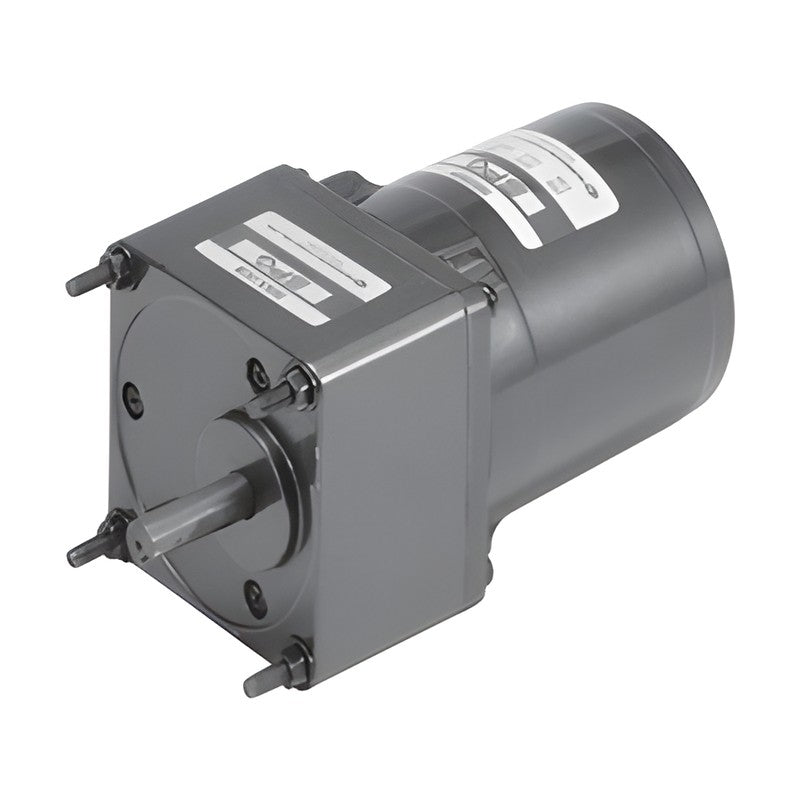

• SPG SG8KA 80 mm Gearheads (Key/D-cut/Straight, 1/5-1/360)
1 1

SPG S8SA/S8DA/S8KA 80 mm Gearheads (for 15-25 W Motors)

SPG S8SA/S8DA/S8KA 80 mm Gearheads (for 15-25 W Motors)

SPG 80 mm A-type parallel-shaft gearheads for 15 W and 25 W S8I motors, 24 ratios from 1/3 to 1/200 in three bearing versions.

Key features

  • Code S8<shaft>A<ratio><bearing>: straight S, D-cut D or key K output shaft
  • Bearing letter: B1 all ball bearing, B ball + metal bearing, M metal bearing
  • Permissible torque of motor + gearhead up to 7.84 N·m (80 kg·cm)
  • S8GX10B inter-decimal gearhead (1/10) for higher reduction

Specifications

Frame size 80 mm square
Gear type A (6-25 W)
Applicable motor S8I15G, S8I25G
Output shaft dia. 10 mm
Weight 0.43-0.61 kg
Source SPG Standard AC Geared Motor catalog, p. 48-51
S8SA3B1 Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA3B Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA3M Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA3.6B1 Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA3.6B Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA3.6M Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA5B1 Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA5B Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA5M Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA6B1 Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA6B Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA6M Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA7.5B1 Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA7.5B Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA7.5M Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA9B1 Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA9B Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA9M Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA10B1 Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA10B Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA10M Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA12.5B1 Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA12.5B Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA12.5M Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA15B1 Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA15B Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA15M Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA18B1 Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA18B Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA18M Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA20B1 Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA20B Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA20M Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA25B1 Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA25B Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA25M Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA30B1 Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA30B Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA30M Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA36B1 Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA36B Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA36M Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA40B1 Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA40B Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA40M Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA50B1 Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA50B Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA50M Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA60B1 Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA60B Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA60M Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA75B1 Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA75B Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA75M Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA90B1 Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA90B Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA90M Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA100B1 Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA100B Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA100M Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA120B1 Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA120B Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA120M Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA150B1 Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA150B Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA150M Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA180B1 Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA180B Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA180M Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA200B1 Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA200B Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA200M Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Bearing: Metal bearing
S8DA3B1 Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA3B Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA3M Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA3.6B1 Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA3.6B Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA3.6M Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA5B1 Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA5B Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA5M Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA6B1 Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA6B Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA6M Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA7.5B1 Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA7.5B Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA7.5M Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA9B1 Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA9B Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA9M Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA10B1 Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA10B Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA10M Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA12.5B1 Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA12.5B Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA12.5M Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA15B1 Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA15B Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA15M Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA18B1 Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA18B Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA18M Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA20B1 Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA20B Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA20M Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA25B1 Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA25B Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA25M Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA30B1 Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA30B Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA30M Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA36B1 Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA36B Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA36M Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA40B1 Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA40B Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA40M Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA50B1 Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA50B Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA50M Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA60B1 Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA60B Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA60M Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA75B1 Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA75B Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA75M Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA90B1 Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA90B Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA90M Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA100B1 Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA100B Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA100M Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA120B1 Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA120B Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA120M Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA150B1 Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA150B Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA150M Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA180B1 Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA180B Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA180M Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA200B1 Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA200B Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA200M Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8KA3B1 Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA3B Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA3M Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA3.6B1 Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA3.6B Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA3.6M Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA5B1 Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA5B Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA5M Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA6B1 Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA6B Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA6M Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA7.5B1 Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA7.5B Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA7.5M Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA9B1 Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA9B Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA9M Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA10B1 Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA10B Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA10M Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA12.5B1 Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA12.5B Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA12.5M Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA15B1 Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA15B Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA15M Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA18B1 Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA18B Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA18M Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA20B1 Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA20B Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA20M Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA25B1 Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA25B Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA25M Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA30B1 Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA30B Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA30M Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA36B1 Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA36B Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA36M Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA40B1 Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA40B Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA40M Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA50B1 Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA50B Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA50M Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA60B1 Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA60B Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA60M Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA75B1 Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA75B Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA75M Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA90B1 Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA90B Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA90M Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA100B1 Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA100B Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA100M Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA120B1 Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA120B Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA120M Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA150B1 Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA150B Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA150M Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA180B1 Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA180B Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA180M Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA200B1 Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA200B Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA200M Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Bearing: Metal bearing
GearheadsSPG
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG S8SA/S8DA/S8KA 80 mm Gearheads (for 15-25 W Motors)

Brand SPG·Gearheads

Available part numbers (216)

S8SA3B1, S8SA3B, S8SA3M, S8SA3.6B1, S8SA3.6B, S8SA3.6M, S8SA5B1, S8SA5B, S8SA5M, S8SA6B1 + 206 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S8SA3B1Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA3BRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA3MRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA3.6B1Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA3.6BRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA3.6MRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA5B1Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA5BRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA5MRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA6B1Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA6BRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA6MRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA7.5B1Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA7.5BRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA7.5MRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA9B1Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA9BRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA9MRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA10B1Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA10BRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA10MRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA12.5B1Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA12.5BRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA12.5MRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA15B1Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA15BRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA15MRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA18B1Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA18BRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA18MRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA20B1Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA20BRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA20MRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA25B1Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA25BRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA25MRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA30B1Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA30BRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA30MRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA36B1Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA36BRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA36MRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA40B1Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA40BRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA40MRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA50B1Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA50BRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA50MRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA60B1Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA60BRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA60MRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA75B1Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA75BRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA75MRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA90B1Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA90BRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA90MRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA100B1Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA100BRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA100MRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA120B1Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA120BRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA120MRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA150B1Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA150BRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA150MRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA180B1Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA180BRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA180MRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Bearing: Metal bearing
S8SA200B1Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Bearing: All ball bearing
S8SA200BRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S8SA200MRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Bearing: Metal bearing
S8DA3B1Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA3BRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA3MRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA3.6B1Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA3.6BRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA3.6MRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA5B1Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA5BRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA5MRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA6B1Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA6BRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA6MRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA7.5B1Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA7.5BRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA7.5MRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA9B1Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA9BRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA9MRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA10B1Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA10BRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA10MRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA12.5B1Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA12.5BRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA12.5MRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA15B1Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA15BRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA15MRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA18B1Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA18BRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA18MRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA20B1Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA20BRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA20MRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA25B1Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA25BRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA25MRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA30B1Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA30BRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA30MRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA36B1Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA36BRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA36MRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA40B1Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA40BRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA40MRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA50B1Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA50BRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA50MRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA60B1Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA60BRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA60MRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA75B1Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA75BRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA75MRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA90B1Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA90BRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA90MRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA100B1Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA100BRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA100MRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA120B1Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA120BRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA120MRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA150B1Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA150BRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA150MRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA180B1Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA180BRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA180MRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8DA200B1Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Bearing: All ball bearing
S8DA200BRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S8DA200MRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Bearing: Metal bearing
S8KA3B1Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA3BRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA3MRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA3.6B1Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA3.6BRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA3.6MRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA5B1Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA5BRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA5MRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA6B1Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA6BRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA6MRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA7.5B1Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA7.5BRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA7.5MRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA9B1Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA9BRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA9MRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA10B1Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA10BRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA10MRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA12.5B1Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA12.5BRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA12.5MRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA15B1Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA15BRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA15MRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA18B1Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA18BRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA18MRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA20B1Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA20BRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA20MRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA25B1Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA25BRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA25MRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA30B1Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA30BRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA30MRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA36B1Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA36BRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA36MRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA40B1Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA40BRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA40MRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA50B1Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA50BRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA50MRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA60B1Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA60BRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA60MRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA75B1Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA75BRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA75MRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA90B1Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA90BRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA90MRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA100B1Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA100BRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA100MRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA120B1Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA120BRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA120MRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA150B1Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA150BRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA150MRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA180B1Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA180BRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA180MRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Bearing: Metal bearing
S8KA200B1Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Bearing: All ball bearing
S8KA200BRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S8KA200MRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Bearing: Metal bearing

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
