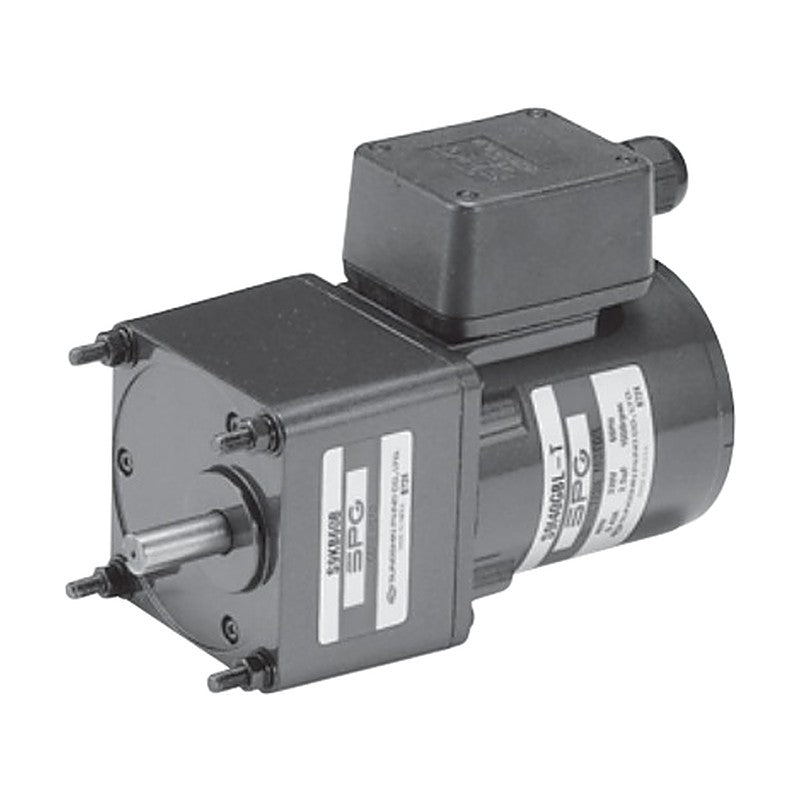

SPG 80 mm Terminal Box Reversible Motors (15–25 W)

SPG 80 mm Terminal Box Reversible Motors (15–25 W)

SPG 80 mm reversible motors in terminal box construction, 15–25 W, for use with SPG K-type gearheads.

Key features

  • Terminal box seals the lead-wire connection against dust and moisture for harsh environments (gasket sealed)
  • T type: terminal block box with VDE-certified terminal block; T1 type: PCB terminal block box (80 mm 15 W and up)
  • Pinion (G) shaft for SPG K-type gearheads, or straight, D-cut and key round shafts per the catalog shaft table
  • (TP) suffix: built-in automatic-return thermal protector; CE suffix: CE certified model
  • Reversible motors with built-in friction brake for instant CW/CCW reversal, 30 min rating

Specifications

Frame size 80 mm sq.
Motor type Reversible motor, terminal box type
Duty 30 min rating
Poles 4
Insulation class Class B (130°C)
Temperature rise 80 K max. after rated operation
Thermal protector (TP) Auto return: open 120±5°C, close 76±15°C
Source SPG Standard AC Geared Motor catalog, p. 130-137
S8R15GA-T Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SA-T Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DA-T Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KA-T Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GA-T1 Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SA-T1 Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DA-T1 Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KA-T1 Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GA-T(TP) Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SA-T(TP) Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DA-T(TP) Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KA-T(TP) Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GA-T1(TP) Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SA-T1(TP) Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DA-T1(TP) Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KA-T1(TP) Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GA-TCE Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SA-TCE Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DA-TCE Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KA-TCE Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GA-T1CE Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SA-T1CE Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DA-T1CE Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KA-T1CE Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GB-T Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SB-T Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DB-T Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KB-T Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GB-T1 Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SB-T1 Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DB-T1 Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KB-T1 Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GB-T(TP) Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SB-T(TP) Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DB-T(TP) Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KB-T(TP) Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GB-T1(TP) Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SB-T1(TP) Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DB-T1(TP) Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KB-T1(TP) Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GB-TCE Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SB-TCE Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DB-TCE Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KB-TCE Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GB-T1CE Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SB-T1CE Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DB-T1CE Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KB-T1CE Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GC-T Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SC-T Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DC-T Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KC-T Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GC-T1 Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SC-T1 Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DC-T1 Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KC-T1 Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GC-T(TP) Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SC-T(TP) Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DC-T(TP) Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KC-T(TP) Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GC-T1(TP) Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SC-T1(TP) Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DC-T1(TP) Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KC-T1(TP) Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GC-TCE Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SC-TCE Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DC-TCE Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KC-TCE Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GC-T1CE Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SC-T1CE Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DC-T1CE Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KC-T1CE Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GD-T Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SD-T Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DD-T Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KD-T Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GD-T1 Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SD-T1 Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DD-T1 Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KD-T1 Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GD-T(TP) Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SD-T(TP) Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DD-T(TP) Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KD-T(TP) Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GD-T1(TP) Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SD-T1(TP) Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DD-T1(TP) Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KD-T1(TP) Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GD-TCE Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SD-TCE Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DD-TCE Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KD-TCE Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GD-T1CE Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SD-T1CE Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DD-T1CE Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KD-T1CE Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GE-T Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SE-T Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DE-T Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KE-T Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GE-T1 Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SE-T1 Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DE-T1 Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KE-T1 Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GE-TCE Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SE-TCE Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DE-TCE Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KE-TCE Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GE-T1CE Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SE-T1CE Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DE-T1CE Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KE-T1CE Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GX-T Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SX-T Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DX-T Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KX-T Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GX-T1 Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SX-T1 Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DX-T1 Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KX-T1 Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GX-TCE Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SX-TCE Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DX-TCE Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KX-TCE Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GX-T1CE Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SX-T1CE Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DX-T1CE Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KX-T1CE Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GA-T Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SA-T Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DA-T Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KA-T Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GA-T1 Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SA-T1 Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DA-T1 Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KA-T1 Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GA-T(TP) Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SA-T(TP) Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DA-T(TP) Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KA-T(TP) Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GA-T1(TP) Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SA-T1(TP) Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DA-T1(TP) Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KA-T1(TP) Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GA-TCE Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SA-TCE Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DA-TCE Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KA-TCE Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GA-T1CE Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SA-T1CE Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DA-T1CE Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KA-T1CE Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GB-T Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SB-T Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DB-T Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KB-T Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GB-T1 Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SB-T1 Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DB-T1 Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KB-T1 Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GB-T(TP) Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SB-T(TP) Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DB-T(TP) Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KB-T(TP) Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GB-T1(TP) Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SB-T1(TP) Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DB-T1(TP) Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KB-T1(TP) Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GB-TCE Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SB-TCE Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DB-TCE Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KB-TCE Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GB-T1CE Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SB-T1CE Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DB-T1CE Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KB-T1CE Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GC-T Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SC-T Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DC-T Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KC-T Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GC-T1 Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SC-T1 Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DC-T1 Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KC-T1 Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GC-T(TP) Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SC-T(TP) Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DC-T(TP) Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KC-T(TP) Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GC-T1(TP) Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SC-T1(TP) Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DC-T1(TP) Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KC-T1(TP) Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GC-TCE Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SC-TCE Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DC-TCE Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KC-TCE Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GC-T1CE Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SC-T1CE Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DC-T1CE Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KC-T1CE Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GD-T Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SD-T Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DD-T Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KD-T Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GD-T1 Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SD-T1 Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DD-T1 Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KD-T1 Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GD-T(TP) Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SD-T(TP) Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DD-T(TP) Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KD-T(TP) Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GD-T1(TP) Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SD-T1(TP) Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DD-T1(TP) Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KD-T1(TP) Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GD-TCE Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SD-TCE Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DD-TCE Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KD-TCE Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GD-T1CE Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SD-T1CE Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DD-T1CE Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KD-T1CE Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GE-T Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SE-T Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DE-T Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KE-T Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GE-T1 Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SE-T1 Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DE-T1 Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KE-T1 Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GE-TCE Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SE-TCE Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DE-TCE Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KE-TCE Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GE-T1CE Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SE-T1CE Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DE-T1CE Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KE-T1CE Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GX-T Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SX-T Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DX-T Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KX-T Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GX-T1 Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SX-T1 Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DX-T1 Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KX-T1 Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GX-TCE Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SX-TCE Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DX-TCE Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KX-TCE Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GX-T1CE Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SX-T1CE Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DX-T1CE Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KX-T1CE Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
Reversible MotorsSPG
256 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 80 mm Terminal Box Reversible Motors (15–25 W)

Brand SPG·Reversible Motors

Available part numbers (256)

S8R15GA-T, S8R15SA-T, S8R15DA-T, S8R15KA-T, S8R15GA-T1, S8R15SA-T1, S8R15DA-T1, S8R15KA-T1, S8R15GA-T(TP), S8R15SA-T(TP) + 246 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S8R15GA-TOutput: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SA-TOutput: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DA-TOutput: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KA-TOutput: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GA-T1Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SA-T1Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DA-T1Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KA-T1Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GA-T(TP)Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SA-T(TP)Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DA-T(TP)Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KA-T(TP)Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GA-T1(TP)Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SA-T1(TP)Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DA-T1(TP)Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KA-T1(TP)Output: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GA-TCEOutput: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SA-TCEOutput: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DA-TCEOutput: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KA-TCEOutput: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GA-T1CEOutput: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SA-T1CEOutput: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DA-T1CEOutput: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KA-T1CEOutput: 15 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GB-TOutput: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SB-TOutput: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DB-TOutput: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KB-TOutput: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GB-T1Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SB-T1Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DB-T1Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KB-T1Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GB-T(TP)Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SB-T(TP)Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DB-T(TP)Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KB-T(TP)Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GB-T1(TP)Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SB-T1(TP)Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DB-T1(TP)Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KB-T1(TP)Output: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GB-TCEOutput: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SB-TCEOutput: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DB-TCEOutput: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KB-TCEOutput: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GB-T1CEOutput: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SB-T1CEOutput: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DB-T1CEOutput: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KB-T1CEOutput: 15 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GC-TOutput: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SC-TOutput: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DC-TOutput: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KC-TOutput: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GC-T1Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SC-T1Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DC-T1Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KC-T1Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GC-T(TP)Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SC-T(TP)Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DC-T(TP)Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KC-T(TP)Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GC-T1(TP)Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SC-T1(TP)Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DC-T1(TP)Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KC-T1(TP)Output: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GC-TCEOutput: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SC-TCEOutput: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DC-TCEOutput: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KC-TCEOutput: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GC-T1CEOutput: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SC-T1CEOutput: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DC-T1CEOutput: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KC-T1CEOutput: 15 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GD-TOutput: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SD-TOutput: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DD-TOutput: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KD-TOutput: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GD-T1Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SD-T1Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DD-T1Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KD-T1Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GD-T(TP)Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SD-T(TP)Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DD-T(TP)Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KD-T(TP)Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GD-T1(TP)Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R15SD-T1(TP)Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R15DD-T1(TP)Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R15KD-T1(TP)Output: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R15GD-TCEOutput: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SD-TCEOutput: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DD-TCEOutput: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KD-TCEOutput: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GD-T1CEOutput: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SD-T1CEOutput: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DD-T1CEOutput: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KD-T1CEOutput: 15 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GE-TOutput: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SE-TOutput: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DE-TOutput: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KE-TOutput: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GE-T1Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SE-T1Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DE-T1Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KE-T1Output: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GE-TCEOutput: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SE-TCEOutput: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DE-TCEOutput: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KE-TCEOutput: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GE-T1CEOutput: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SE-T1CEOutput: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DE-T1CEOutput: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KE-T1CEOutput: 15 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GX-TOutput: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SX-TOutput: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DX-TOutput: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KX-TOutput: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GX-T1Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R15SX-T1Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R15DX-T1Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R15KX-T1Output: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R15GX-TCEOutput: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SX-TCEOutput: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DX-TCEOutput: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KX-TCEOutput: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R15GX-T1CEOutput: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R15SX-T1CEOutput: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R15DX-T1CEOutput: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R15KX-T1CEOutput: 15 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GA-TOutput: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SA-TOutput: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DA-TOutput: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KA-TOutput: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GA-T1Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SA-T1Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DA-T1Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KA-T1Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GA-T(TP)Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SA-T(TP)Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DA-T(TP)Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KA-T(TP)Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GA-T1(TP)Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SA-T1(TP)Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DA-T1(TP)Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KA-T1(TP)Output: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GA-TCEOutput: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SA-TCEOutput: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DA-TCEOutput: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KA-TCEOutput: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GA-T1CEOutput: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SA-T1CEOutput: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DA-T1CEOutput: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KA-T1CEOutput: 25 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GB-TOutput: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SB-TOutput: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DB-TOutput: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KB-TOutput: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GB-T1Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SB-T1Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DB-T1Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KB-T1Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GB-T(TP)Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SB-T(TP)Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DB-T(TP)Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KB-T(TP)Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GB-T1(TP)Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SB-T1(TP)Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DB-T1(TP)Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KB-T1(TP)Output: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GB-TCEOutput: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SB-TCEOutput: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DB-TCEOutput: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KB-TCEOutput: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GB-T1CEOutput: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SB-T1CEOutput: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DB-T1CEOutput: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KB-T1CEOutput: 25 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GC-TOutput: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SC-TOutput: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DC-TOutput: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KC-TOutput: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GC-T1Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SC-T1Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DC-T1Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KC-T1Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GC-T(TP)Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SC-T(TP)Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DC-T(TP)Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KC-T(TP)Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GC-T1(TP)Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SC-T1(TP)Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DC-T1(TP)Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KC-T1(TP)Output: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GC-TCEOutput: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SC-TCEOutput: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DC-TCEOutput: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KC-TCEOutput: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GC-T1CEOutput: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SC-T1CEOutput: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DC-T1CEOutput: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KC-T1CEOutput: 25 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GD-TOutput: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SD-TOutput: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DD-TOutput: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KD-TOutput: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GD-T1Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SD-T1Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DD-T1Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KD-T1Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GD-T(TP)Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SD-T(TP)Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DD-T(TP)Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KD-T(TP)Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GD-T1(TP)Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S8R25SD-T1(TP)Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S8R25DD-T1(TP)Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S8R25KD-T1(TP)Output: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Thermal protector (TP) | Shaft: Key round shaft
S8R25GD-TCEOutput: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SD-TCEOutput: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DD-TCEOutput: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KD-TCEOutput: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GD-T1CEOutput: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SD-T1CEOutput: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DD-T1CEOutput: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KD-T1CEOutput: 25 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GE-TOutput: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SE-TOutput: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DE-TOutput: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KE-TOutput: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GE-T1Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SE-T1Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DE-T1Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KE-T1Output: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GE-TCEOutput: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SE-TCEOutput: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DE-TCEOutput: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KE-TCEOutput: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GE-T1CEOutput: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SE-T1CEOutput: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DE-T1CEOutput: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KE-T1CEOutput: 25 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GX-TOutput: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SX-TOutput: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DX-TOutput: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KX-TOutput: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GX-T1Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S8R25SX-T1Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S8R25DX-T1Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S8R25KX-T1Output: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S8R25GX-TCEOutput: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SX-TCEOutput: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DX-TCEOutput: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KX-TCEOutput: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S8R25GX-T1CEOutput: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S8R25SX-T1CEOutput: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S8R25DX-T1CEOutput: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S8R25KX-T1CEOutput: 25 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
