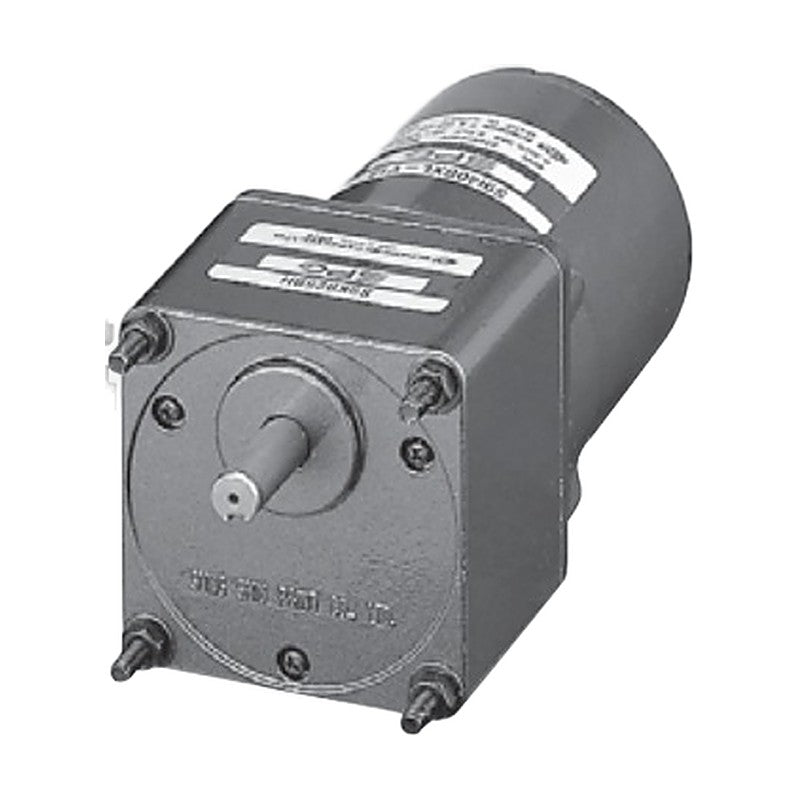

SPG 80 mm Speed Control Reversible Motors (15–25 W, SR/SS Control)

SPG 80 mm Speed Control Reversible Motors (15–25 W, SR/SS Control)

SPG 80 mm square single-phase reversible speed control motors (15–25 W), lead wire type, with built-in tachogenerator for use with SR or SS speed controllers.

Key features

  • Variable speed 90-1700 rpm at 60 Hz, 90-1400 rpm at 50 Hz with matching speed controller
  • -S12 motors (T.G. 12 V) pair with SR pack controllers (slow run / slow stop); -S24 motors (T.G. 24 V) pair with SS socket controllers (run/stop)
  • Pinion (G) shaft for SPG gearheads; straight (S), D-cut (D) and key (K) round shafts available
  • Thermal protector (TP) and CE-certified, thermally protected (CE suffix) versions

Specifications

Motor type Speed Control Reversible Motors
Frame size 80 mm square
Outputs 15 W, 25 W
Phase / poles Single phase, 4 poles
Duty 30 min. rating
Speed range 90-1700 rpm (60 Hz), 90-1400 rpm (50 Hz)
Permissible torque at 1200 rpm 15 W: 0.110-0.140 N.m; 25 W: 0.190-0.230 N.m
Capacitor 15 W: 6.0/1.5/1.2 uF; 25 W: 10.0/2.5/2.0 uF (110-100 V / 200-220 V / 220-240 V X)
Lead wire length 300 mm
Matching gearheads (sold separately) S8A3 to S8A200; decimal S8GX10B
Source SPG Standard AC Geared Motor catalog, p. 268-272
S8R15GA-S12 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15GA-S12(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15GA-S12CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15GB-S12 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15GB-S12(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15GB-S12CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15GC-S12 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15GC-S12(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15GC-S12CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15GD-S12 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15GD-S12(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15GD-S12CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15GX-S12 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15GX-S12CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15SA-S12 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15SA-S12(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15SA-S12CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15SB-S12 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15SB-S12(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15SB-S12CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15SC-S12 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15SC-S12(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15SC-S12CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15SD-S12 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15SD-S12(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15SD-S12CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15SX-S12 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15SX-S12CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15DA-S12 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15DA-S12(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15DA-S12CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15DB-S12 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15DB-S12(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15DB-S12CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15DC-S12 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15DC-S12(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15DC-S12CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15DD-S12 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15DD-S12(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15DD-S12CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15DX-S12 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15DX-S12CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15KA-S12 Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15KA-S12(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15KA-S12CE Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15KB-S12 Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15KB-S12(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15KB-S12CE Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15KC-S12 Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15KC-S12(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15KC-S12CE Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15KD-S12 Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15KD-S12(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15KD-S12CE Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15KX-S12 Output: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15KX-S12CE Output: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15GA-S24 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15GA-S24(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15GA-S24CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15GB-S24 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15GB-S24(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15GB-S24CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15GC-S24 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15GC-S24(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15GC-S24CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15GD-S24 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15GD-S24(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15GD-S24CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15GX-S24 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15GX-S24CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R15SA-S24 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15SA-S24(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15SA-S24CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15SB-S24 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15SB-S24(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15SB-S24CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15SC-S24 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15SC-S24(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15SC-S24CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15SD-S24 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15SD-S24(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15SD-S24CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15SX-S24 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15SX-S24CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R15DA-S24 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15DA-S24(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15DA-S24CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15DB-S24 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15DB-S24(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15DB-S24CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15DC-S24 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15DC-S24(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15DC-S24CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15DD-S24 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15DD-S24(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15DD-S24CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15DX-S24 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15DX-S24CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R15KA-S24 Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15KA-S24(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15KA-S24CE Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15KB-S24 Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15KB-S24(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15KB-S24CE Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15KC-S24 Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15KC-S24(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15KC-S24CE Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15KD-S24 Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15KD-S24(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15KD-S24CE Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15KX-S24 Output: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15KX-S24CE Output: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25GA-S12 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25GA-S12(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25GA-S12CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25GB-S12 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25GB-S12(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25GB-S12CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25GC-S12 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25GC-S12(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25GC-S12CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25GD-S12 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25GD-S12(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25GD-S12CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25GX-S12 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25GX-S12CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25SA-S12 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25SA-S12(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25SA-S12CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25SB-S12 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25SB-S12(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25SB-S12CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25SC-S12 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25SC-S12(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25SC-S12CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25SD-S12 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25SD-S12(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25SD-S12CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25SX-S12 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25SX-S12CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25DA-S12 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25DA-S12(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25DA-S12CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25DB-S12 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25DB-S12(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25DB-S12CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25DC-S12 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25DC-S12(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25DC-S12CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25DD-S12 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25DD-S12(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25DD-S12CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25DX-S12 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25DX-S12CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25KA-S12 Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25KA-S12(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25KA-S12CE Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25KB-S12 Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25KB-S12(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25KB-S12CE Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25KC-S12 Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25KC-S12(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25KC-S12CE Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25KD-S12 Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25KD-S12(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25KD-S12CE Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25KX-S12 Output: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25KX-S12CE Output: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25GA-S24 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25GA-S24(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25GA-S24CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25GB-S24 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25GB-S24(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25GB-S24CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25GC-S24 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25GC-S24(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25GC-S24CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25GD-S24 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25GD-S24(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25GD-S24CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25GX-S24 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25GX-S24CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25SA-S24 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25SA-S24(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25SA-S24CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25SB-S24 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25SB-S24(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25SB-S24CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25SC-S24 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25SC-S24(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25SC-S24CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25SD-S24 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25SD-S24(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25SD-S24CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25SX-S24 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25SX-S24CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25DA-S24 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25DA-S24(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25DA-S24CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25DB-S24 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25DB-S24(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25DB-S24CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25DC-S24 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25DC-S24(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25DC-S24CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25DD-S24 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25DD-S24(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25DD-S24CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25DX-S24 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25DX-S24CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25KA-S24 Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25KA-S24(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25KA-S24CE Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25KB-S24 Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25KB-S24(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25KB-S24CE Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25KC-S24 Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25KC-S24(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25KC-S24CE Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25KD-S24 Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25KD-S24(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25KD-S24CE Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25KX-S24 Output: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25KX-S24CE Output: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
Speed Control MotorsSPG
224 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 80 mm Speed Control Reversible Motors (15–25 W, SR/SS Control)

Brand SPG·Speed Control Motors

Available part numbers (224)

S8R15GA-S12, S8R15GA-S12(TP), S8R15GA-S12CE, S8R15GB-S12, S8R15GB-S12(TP), S8R15GB-S12CE, S8R15GC-S12, S8R15GC-S12(TP), S8R15GC-S12CE, S8R15GD-S12 + 214 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S8R15GA-S12Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15GA-S12(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15GA-S12CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15GB-S12Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15GB-S12(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15GB-S12CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15GC-S12Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15GC-S12(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15GC-S12CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15GD-S12Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15GD-S12(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15GD-S12CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15GX-S12Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15GX-S12CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15SA-S12Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15SA-S12(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15SA-S12CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15SB-S12Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15SB-S12(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15SB-S12CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15SC-S12Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15SC-S12(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15SC-S12CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15SD-S12Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15SD-S12(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15SD-S12CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15SX-S12Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15SX-S12CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15DA-S12Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15DA-S12(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15DA-S12CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15DB-S12Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15DB-S12(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15DB-S12CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15DC-S12Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15DC-S12(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15DC-S12CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15DD-S12Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15DD-S12(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15DD-S12CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15DX-S12Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15DX-S12CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15KA-S12Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15KA-S12(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15KA-S12CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15KB-S12Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15KB-S12(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15KB-S12CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15KC-S12Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15KC-S12(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15KC-S12CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15KD-S12Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15KD-S12(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15KD-S12CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15KX-S12Output: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15KX-S12CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15GA-S24Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15GA-S24(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15GA-S24CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15GB-S24Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15GB-S24(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15GB-S24CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15GC-S24Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15GC-S24(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15GC-S24CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15GD-S24Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15GD-S24(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15GD-S24CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15GX-S24Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15GX-S24CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R15SA-S24Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15SA-S24(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15SA-S24CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15SB-S24Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15SB-S24(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15SB-S24CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15SC-S24Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15SC-S24(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15SC-S24CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15SD-S24Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15SD-S24(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15SD-S24CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15SX-S24Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15SX-S24CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R15DA-S24Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15DA-S24(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15DA-S24CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15DB-S24Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15DB-S24(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15DB-S24CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15DC-S24Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15DC-S24(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15DC-S24CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15DD-S24Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15DD-S24(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15DD-S24CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15DX-S24Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15DX-S24CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R15KA-S24Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15KA-S24(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15KA-S24CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15KB-S24Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15KB-S24(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15KB-S24CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15KC-S24Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15KC-S24(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15KC-S24CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15KD-S24Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15KD-S24(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15KD-S24CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15KX-S24Output: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15KX-S24CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25GA-S12Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25GA-S12(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25GA-S12CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25GB-S12Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25GB-S12(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25GB-S12CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25GC-S12Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25GC-S12(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25GC-S12CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25GD-S12Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25GD-S12(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25GD-S12CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25GX-S12Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25GX-S12CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25SA-S12Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25SA-S12(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25SA-S12CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25SB-S12Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25SB-S12(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25SB-S12CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25SC-S12Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25SC-S12(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25SC-S12CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25SD-S12Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25SD-S12(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25SD-S12CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25SX-S12Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25SX-S12CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25DA-S12Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25DA-S12(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25DA-S12CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25DB-S12Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25DB-S12(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25DB-S12CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25DC-S12Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25DC-S12(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25DC-S12CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25DD-S12Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25DD-S12(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25DD-S12CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25DX-S12Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25DX-S12CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25KA-S12Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25KA-S12(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25KA-S12CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25KB-S12Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25KB-S12(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25KB-S12CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25KC-S12Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25KC-S12(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25KC-S12CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25KD-S12Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25KD-S12(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25KD-S12CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25KX-S12Output: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25KX-S12CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25GA-S24Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25GA-S24(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25GA-S24CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25GB-S24Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25GB-S24(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25GB-S24CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25GC-S24Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25GC-S24(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25GC-S24CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25GD-S24Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25GD-S24(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25GD-S24CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25GX-S24Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25GX-S24CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25SA-S24Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25SA-S24(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25SA-S24CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25SB-S24Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25SB-S24(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25SB-S24CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25SC-S24Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25SC-S24(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25SC-S24CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25SD-S24Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25SD-S24(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25SD-S24CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25SX-S24Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25SX-S24CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25DA-S24Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25DA-S24(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25DA-S24CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25DB-S24Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25DB-S24(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25DB-S24CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25DC-S24Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25DC-S24(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25DC-S24CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25DD-S24Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25DD-S24(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25DD-S24CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25DX-S24Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25DX-S24CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25KA-S24Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25KA-S24(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25KA-S24CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25KB-S24Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25KB-S24(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25KB-S24CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25KC-S24Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25KC-S24(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25KC-S24CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25KD-S24Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25KD-S24(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25KD-S24CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25KX-S24Output: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25KX-S24CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
