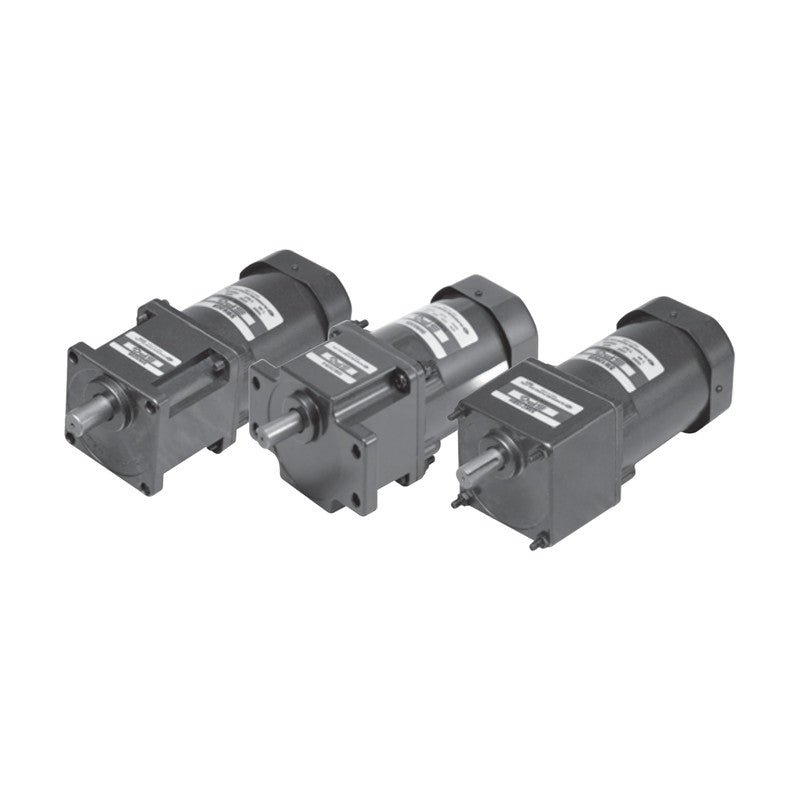

• SPG SG9KC 90 mm Gearheads (Key/D-cut/Straight, 1/5-1/200)
1 1

SPG S9SC/S9DC/S9KC 90 mm Gearheads (for 60-120 W Motors)

SPG S9SC/S9DC/S9KC 90 mm Gearheads (for 60-120 W Motors)

SPG 90 mm C-type all-ball-bearing parallel-shaft gearheads for 60-120 W S9I motors, 24 ratios from 1/3 to 1/200, standard or flange (-S) mounting.

Key features

  • Code S9<shaft>C<ratio>B<impact>[-S]: straight S, D-cut D or key K output shaft; -S = flange type with extra mounting holes
  • Impact letter H (heavy) or L (light) must match the motor pinion type; 120 W uses H only
  • Heat-treated gears, all ball bearing construction
  • Permissible torque of motor + gearhead up to 19.6 N·m (200 kg·cm)
  • S9GX10BH-S / S9GX10BL-S inter-decimal gearhead (1/10) for higher reduction

Specifications

Frame size 90 mm square
Gear type C (60-120 W)
Bearing All ball bearing
Applicable motor S9I60G, S9I90G (L/H), S9I120G
Output shaft dia. 15 mm
Weight 1.21-1.45 kg
Source SPG Standard AC Geared Motor catalog, p. 54-61
S9SC3BH Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC3BL Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC3BH-S Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC3BL-S Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC3.6BH Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC3.6BL Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC3.6BH-S Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC3.6BL-S Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC5BH Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC5BL Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC5BH-S Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC5BL-S Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC6BH Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC6BL Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC6BH-S Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC6BL-S Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC7.5BH Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC7.5BL Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC7.5BH-S Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC7.5BL-S Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC9BH Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC9BL Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC9BH-S Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC9BL-S Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC10BH Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC10BL Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC10BH-S Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC10BL-S Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC12.5BH Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC12.5BL Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC12.5BH-S Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC12.5BL-S Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC15BH Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC15BL Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC15BH-S Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC15BL-S Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC18BH Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC18BL Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC18BH-S Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC18BL-S Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC20BH Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC20BL Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC20BH-S Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC20BL-S Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC25BH Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC25BL Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC25BH-S Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC25BL-S Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC30BH Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC30BL Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC30BH-S Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC30BL-S Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC36BH Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC36BL Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC36BH-S Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC36BL-S Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC40BH Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC40BL Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC40BH-S Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC40BL-S Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC50BH Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC50BL Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC50BH-S Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC50BL-S Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC60BH Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC60BL Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC60BH-S Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC60BL-S Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC75BH Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC75BL Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC75BH-S Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC75BL-S Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC90BH Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC90BL Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC90BH-S Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC90BL-S Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC100BH Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC100BL Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC100BH-S Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC100BL-S Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC120BH Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC120BL Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC120BH-S Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC120BL-S Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC150BH Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC150BL Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC150BH-S Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC150BL-S Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC180BH Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC180BL Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC180BH-S Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC180BL-S Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC200BH Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC200BL Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC200BH-S Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC200BL-S Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC3BH Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC3BL Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC3BH-S Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC3BL-S Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC3.6BH Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC3.6BL Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC3.6BH-S Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC3.6BL-S Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC5BH Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC5BL Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC5BH-S Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC5BL-S Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC6BH Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC6BL Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC6BH-S Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC6BL-S Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC7.5BH Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC7.5BL Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC7.5BH-S Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC7.5BL-S Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC9BH Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC9BL Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC9BH-S Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC9BL-S Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC10BH Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC10BL Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC10BH-S Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC10BL-S Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC12.5BH Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC12.5BL Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC12.5BH-S Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC12.5BL-S Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC15BH Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC15BL Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC15BH-S Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC15BL-S Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC18BH Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC18BL Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC18BH-S Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC18BL-S Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC20BH Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC20BL Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC20BH-S Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC20BL-S Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC25BH Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC25BL Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC25BH-S Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC25BL-S Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC30BH Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC30BL Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC30BH-S Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC30BL-S Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC36BH Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC36BL Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC36BH-S Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC36BL-S Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC40BH Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC40BL Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC40BH-S Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC40BL-S Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC50BH Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC50BL Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC50BH-S Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC50BL-S Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC60BH Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC60BL Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC60BH-S Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC60BL-S Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC75BH Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC75BL Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC75BH-S Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC75BL-S Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC90BH Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC90BL Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC90BH-S Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC90BL-S Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC100BH Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC100BL Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC100BH-S Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC100BL-S Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC120BH Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC120BL Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC120BH-S Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC120BL-S Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC150BH Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC150BL Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC150BH-S Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC150BL-S Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC180BH Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC180BL Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC180BH-S Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC180BL-S Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC200BH Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC200BL Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC200BH-S Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC200BL-S Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC3BH Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC3BL Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC3BH-S Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC3BL-S Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC3.6BH Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC3.6BL Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC3.6BH-S Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC3.6BL-S Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC5BH Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC5BL Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC5BH-S Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC5BL-S Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC6BH Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC6BL Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC6BH-S Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC6BL-S Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC7.5BH Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC7.5BL Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC7.5BH-S Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC7.5BL-S Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC9BH Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC9BL Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC9BH-S Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC9BL-S Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC10BH Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC10BL Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC10BH-S Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC10BL-S Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC12.5BH Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC12.5BL Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC12.5BH-S Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC12.5BL-S Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC15BH Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC15BL Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC15BH-S Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC15BL-S Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC18BH Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC18BL Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC18BH-S Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC18BL-S Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC20BH Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC20BL Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC20BH-S Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC20BL-S Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC25BH Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC25BL Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC25BH-S Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC25BL-S Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC30BH Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC30BL Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC30BH-S Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC30BL-S Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC36BH Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC36BL Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC36BH-S Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC36BL-S Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC40BH Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC40BL Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC40BH-S Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC40BL-S Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC50BH Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC50BL Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC50BH-S Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC50BL-S Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC60BH Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC60BL Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC60BH-S Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC60BL-S Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC75BH Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC75BL Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC75BH-S Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC75BL-S Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC90BH Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC90BL Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC90BH-S Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC90BL-S Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC100BH Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC100BL Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC100BH-S Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC100BL-S Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC120BH Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC120BL Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC120BH-S Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC120BL-S Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC150BH Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC150BL Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC150BH-S Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC150BL-S Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC180BH Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC180BL Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC180BH-S Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC180BL-S Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC200BH Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC200BL Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC200BH-S Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC200BL-S Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC3B Legacy code, now ordered as S9KC3BH or BL | Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC3.6B Legacy code, now ordered as S9KC3.6BH or BL | Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC5B Legacy code, now ordered as S9KC5BH or BL | Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC6B Legacy code, now ordered as S9KC6BH or BL | Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC7.5B Legacy code, now ordered as S9KC7.5BH or BL | Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC9B Legacy code, now ordered as S9KC9BH or BL | Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC10B Legacy code, now ordered as S9KC10BH or BL | Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC12.5B Legacy code, now ordered as S9KC12.5BH or BL | Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC15B Legacy code, now ordered as S9KC15BH or BL | Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC18B Legacy code, now ordered as S9KC18BH or BL | Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC20B Legacy code, now ordered as S9KC20BH or BL | Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC25B Legacy code, now ordered as S9KC25BH or BL | Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC30B Legacy code, now ordered as S9KC30BH or BL | Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC36B Legacy code, now ordered as S9KC36BH or BL | Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC40B Legacy code, now ordered as S9KC40BH or BL | Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC50B Legacy code, now ordered as S9KC50BH or BL | Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC60B Legacy code, now ordered as S9KC60BH or BL | Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC75B Legacy code, now ordered as S9KC75BH or BL | Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC90B Legacy code, now ordered as S9KC90BH or BL | Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC100B Legacy code, now ordered as S9KC100BH or BL | Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC120B Legacy code, now ordered as S9KC120BH or BL | Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC150B Legacy code, now ordered as S9KC150BH or BL | Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC180B Legacy code, now ordered as S9KC180BH or BL | Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC200B Legacy code, now ordered as S9KC200BH or BL | Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC3B-S Legacy code, now ordered as S9KC3BH-S or BL-S | Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC3.6B-S Legacy code, now ordered as S9KC3.6BH-S or BL-S | Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC5B-S Legacy code, now ordered as S9KC5BH-S or BL-S | Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC6B-S Legacy code, now ordered as S9KC6BH-S or BL-S | Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC7.5B-S Legacy code, now ordered as S9KC7.5BH-S or BL-S | Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC9B-S Legacy code, now ordered as S9KC9BH-S or BL-S | Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC10B-S Legacy code, now ordered as S9KC10BH-S or BL-S | Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC12.5B-S Legacy code, now ordered as S9KC12.5BH-S or BL-S | Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC15B-S Legacy code, now ordered as S9KC15BH-S or BL-S | Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC18B-S Legacy code, now ordered as S9KC18BH-S or BL-S | Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC20B-S Legacy code, now ordered as S9KC20BH-S or BL-S | Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC25B-S Legacy code, now ordered as S9KC25BH-S or BL-S | Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC30B-S Legacy code, now ordered as S9KC30BH-S or BL-S | Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC36B-S Legacy code, now ordered as S9KC36BH-S or BL-S | Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC40B-S Legacy code, now ordered as S9KC40BH-S or BL-S | Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC50B-S Legacy code, now ordered as S9KC50BH-S or BL-S | Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC60B-S Legacy code, now ordered as S9KC60BH-S or BL-S | Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC75B-S Legacy code, now ordered as S9KC75BH-S or BL-S | Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC90B-S Legacy code, now ordered as S9KC90BH-S or BL-S | Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC100B-S Legacy code, now ordered as S9KC100BH-S or BL-S | Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC120B-S Legacy code, now ordered as S9KC120BH-S or BL-S | Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC150B-S Legacy code, now ordered as S9KC150BH-S or BL-S | Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC180B-S Legacy code, now ordered as S9KC180BH-S or BL-S | Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC200B-S Legacy code, now ordered as S9KC200BH-S or BL-S | Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
GearheadsSPG
336 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG S9SC/S9DC/S9KC 90 mm Gearheads (for 60-120 W Motors)

Brand SPG·Gearheads

Available part numbers (336)

S9SC3BH, S9SC3BL, S9SC3BH-S, S9SC3BL-S, S9SC3.6BH, S9SC3.6BL, S9SC3.6BH-S, S9SC3.6BL-S, S9SC5BH, S9SC5BL + 326 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S9SC3BHRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC3BLRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC3BH-SRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC3BL-SRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC3.6BHRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC3.6BLRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC3.6BH-SRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC3.6BL-SRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC5BHRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC5BLRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC5BH-SRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC5BL-SRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC6BHRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC6BLRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC6BH-SRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC6BL-SRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC7.5BHRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC7.5BLRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC7.5BH-SRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC7.5BL-SRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC9BHRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC9BLRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC9BH-SRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC9BL-SRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC10BHRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC10BLRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC10BH-SRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC10BL-SRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC12.5BHRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC12.5BLRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC12.5BH-SRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC12.5BL-SRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC15BHRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC15BLRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC15BH-SRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC15BL-SRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC18BHRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC18BLRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC18BH-SRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC18BL-SRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC20BHRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC20BLRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC20BH-SRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC20BL-SRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC25BHRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC25BLRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC25BH-SRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC25BL-SRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC30BHRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC30BLRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC30BH-SRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC30BL-SRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC36BHRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC36BLRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC36BH-SRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC36BL-SRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC40BHRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC40BLRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC40BH-SRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC40BL-SRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC50BHRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC50BLRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC50BH-SRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC50BL-SRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC60BHRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC60BLRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC60BH-SRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC60BL-SRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC75BHRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC75BLRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC75BH-SRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC75BL-SRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC90BHRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC90BLRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC90BH-SRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC90BL-SRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC100BHRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC100BLRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC100BH-SRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC100BL-SRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC120BHRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC120BLRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC120BH-SRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC120BL-SRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC150BHRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC150BLRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC150BH-SRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC150BL-SRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC180BHRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC180BLRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC180BH-SRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC180BL-SRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9SC200BHRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9SC200BLRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Standard (no flange)
S9SC200BH-SRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9SC200BL-SRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC3BHRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC3BLRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC3BH-SRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC3BL-SRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC3.6BHRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC3.6BLRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC3.6BH-SRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC3.6BL-SRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC5BHRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC5BLRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC5BH-SRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC5BL-SRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC6BHRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC6BLRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC6BH-SRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC6BL-SRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC7.5BHRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC7.5BLRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC7.5BH-SRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC7.5BL-SRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC9BHRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC9BLRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC9BH-SRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC9BL-SRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC10BHRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC10BLRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC10BH-SRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC10BL-SRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC12.5BHRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC12.5BLRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC12.5BH-SRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC12.5BL-SRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC15BHRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC15BLRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC15BH-SRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC15BL-SRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC18BHRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC18BLRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC18BH-SRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC18BL-SRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC20BHRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC20BLRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC20BH-SRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC20BL-SRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC25BHRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC25BLRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC25BH-SRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC25BL-SRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC30BHRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC30BLRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC30BH-SRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC30BL-SRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC36BHRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC36BLRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC36BH-SRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC36BL-SRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC40BHRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC40BLRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC40BH-SRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC40BL-SRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC50BHRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC50BLRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC50BH-SRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC50BL-SRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC60BHRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC60BLRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC60BH-SRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC60BL-SRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC75BHRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC75BLRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC75BH-SRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC75BL-SRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC90BHRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC90BLRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC90BH-SRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC90BL-SRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC100BHRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC100BLRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC100BH-SRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC100BL-SRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC120BHRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC120BLRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC120BH-SRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC120BL-SRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC150BHRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC150BLRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC150BH-SRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC150BL-SRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC180BHRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC180BLRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC180BH-SRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC180BL-SRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9DC200BHRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9DC200BLRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Standard (no flange)
S9DC200BH-SRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9DC200BL-SRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC3BHRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC3BLRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC3BH-SRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC3BL-SRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC3.6BHRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC3.6BLRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC3.6BH-SRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC3.6BL-SRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC5BHRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC5BLRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC5BH-SRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC5BL-SRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC6BHRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC6BLRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC6BH-SRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC6BL-SRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC7.5BHRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC7.5BLRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC7.5BH-SRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC7.5BL-SRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC9BHRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC9BLRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC9BH-SRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC9BL-SRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC10BHRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC10BLRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC10BH-SRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC10BL-SRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC12.5BHRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC12.5BLRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC12.5BH-SRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC12.5BL-SRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC15BHRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC15BLRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC15BH-SRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC15BL-SRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC18BHRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC18BLRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC18BH-SRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC18BL-SRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC20BHRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC20BLRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC20BH-SRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC20BL-SRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC25BHRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC25BLRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC25BH-SRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC25BL-SRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC30BHRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC30BLRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC30BH-SRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC30BL-SRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC36BHRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC36BLRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC36BH-SRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC36BL-SRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC40BHRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC40BLRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC40BH-SRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC40BL-SRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC50BHRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC50BLRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC50BH-SRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC50BL-SRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC60BHRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC60BLRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC60BH-SRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC60BL-SRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC75BHRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC75BLRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC75BH-SRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC75BL-SRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC90BHRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC90BLRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC90BH-SRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC90BL-SRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC100BHRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC100BLRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC100BH-SRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC100BL-SRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC120BHRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC120BLRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC120BH-SRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC120BL-SRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC150BHRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC150BLRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC150BH-SRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC150BL-SRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC180BHRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC180BLRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC180BH-SRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC180BL-SRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC200BHRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Standard (no flange)
S9KC200BLRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Standard (no flange)
S9KC200BH-SRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Impact type: H (heavy impact) | Mounting: Flange type (-S)
S9KC200BL-SRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Impact type: L (light impact) | Mounting: Flange type (-S)
S9KC3BLegacy code, now ordered as S9KC3BH or BL | Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC3.6BLegacy code, now ordered as S9KC3.6BH or BL | Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC5BLegacy code, now ordered as S9KC5BH or BL | Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC6BLegacy code, now ordered as S9KC6BH or BL | Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC7.5BLegacy code, now ordered as S9KC7.5BH or BL | Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC9BLegacy code, now ordered as S9KC9BH or BL | Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC10BLegacy code, now ordered as S9KC10BH or BL | Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC12.5BLegacy code, now ordered as S9KC12.5BH or BL | Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC15BLegacy code, now ordered as S9KC15BH or BL | Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC18BLegacy code, now ordered as S9KC18BH or BL | Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC20BLegacy code, now ordered as S9KC20BH or BL | Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC25BLegacy code, now ordered as S9KC25BH or BL | Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC30BLegacy code, now ordered as S9KC30BH or BL | Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC36BLegacy code, now ordered as S9KC36BH or BL | Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC40BLegacy code, now ordered as S9KC40BH or BL | Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC50BLegacy code, now ordered as S9KC50BH or BL | Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC60BLegacy code, now ordered as S9KC60BH or BL | Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC75BLegacy code, now ordered as S9KC75BH or BL | Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC90BLegacy code, now ordered as S9KC90BH or BL | Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC100BLegacy code, now ordered as S9KC100BH or BL | Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC120BLegacy code, now ordered as S9KC120BH or BL | Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC150BLegacy code, now ordered as S9KC150BH or BL | Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC180BLegacy code, now ordered as S9KC180BH or BL | Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC200BLegacy code, now ordered as S9KC200BH or BL | Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Standard (no flange)
S9KC3B-SLegacy code, now ordered as S9KC3BH-S or BL-S | Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC3.6B-SLegacy code, now ordered as S9KC3.6BH-S or BL-S | Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC5B-SLegacy code, now ordered as S9KC5BH-S or BL-S | Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC6B-SLegacy code, now ordered as S9KC6BH-S or BL-S | Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC7.5B-SLegacy code, now ordered as S9KC7.5BH-S or BL-S | Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC9B-SLegacy code, now ordered as S9KC9BH-S or BL-S | Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC10B-SLegacy code, now ordered as S9KC10BH-S or BL-S | Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC12.5B-SLegacy code, now ordered as S9KC12.5BH-S or BL-S | Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC15B-SLegacy code, now ordered as S9KC15BH-S or BL-S | Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC18B-SLegacy code, now ordered as S9KC18BH-S or BL-S | Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC20B-SLegacy code, now ordered as S9KC20BH-S or BL-S | Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC25B-SLegacy code, now ordered as S9KC25BH-S or BL-S | Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC30B-SLegacy code, now ordered as S9KC30BH-S or BL-S | Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC36B-SLegacy code, now ordered as S9KC36BH-S or BL-S | Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC40B-SLegacy code, now ordered as S9KC40BH-S or BL-S | Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC50B-SLegacy code, now ordered as S9KC50BH-S or BL-S | Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC60B-SLegacy code, now ordered as S9KC60BH-S or BL-S | Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC75B-SLegacy code, now ordered as S9KC75BH-S or BL-S | Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC90B-SLegacy code, now ordered as S9KC90BH-S or BL-S | Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC100B-SLegacy code, now ordered as S9KC100BH-S or BL-S | Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC120B-SLegacy code, now ordered as S9KC120BH-S or BL-S | Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC150B-SLegacy code, now ordered as S9KC150BH-S or BL-S | Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC180B-SLegacy code, now ordered as S9KC180BH-S or BL-S | Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)
S9KC200B-SLegacy code, now ordered as S9KC200BH-S or BL-S | Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Impact type: Not specified | Mounting: Flange type (-S)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
