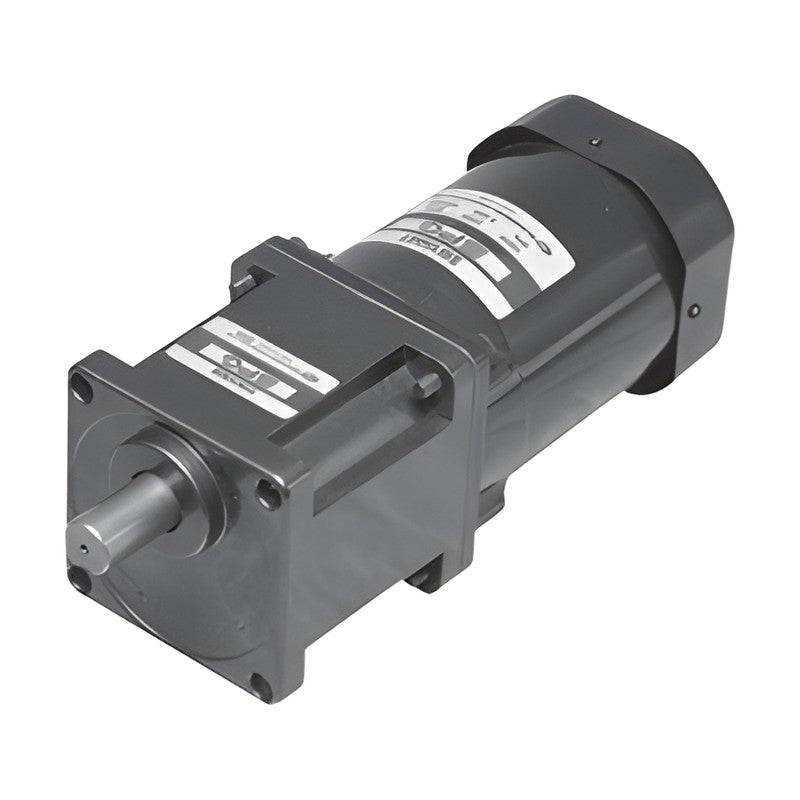

SPG S9SH/S9DH/S9KH 90 mm Gearheads (for 150-200 W Motors)

SPG S9SH/S9DH/S9KH 90 mm Gearheads (for 150-200 W Motors)

SPG 90 mm H-type parallel-shaft gearheads for 150-200 W S9I motors, 24 ratios from 1/3 to 1/200.

Key features

  • Code S9<shaft>H<ratio>B: straight S, D-cut D or key K output shaft
  • H type only (not marked in code)
  • Permissible torque of motor + gearhead up to 29.42 N·m (300 kg·cm)
  • Heat-treated gears, ball bearing construction, flange with mounting holes

Specifications

Frame size 90 mm square
Gear type H (150-200 W)
Bearing All ball bearing
Applicable motor S9I150G, S9I180G, S9I200G
Output shaft dia. 18 mm
Weight 1.65-1.95 kg
Source SPG Standard AC Geared Motor catalog, p. 63-68
S9SH3B Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight
S9SH3.6B Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight
S9SH5B Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight
S9SH6B Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight
S9SH7.5B Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight
S9SH9B Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight
S9SH10B Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight
S9SH12.5B Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight
S9SH15B Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight
S9SH18B Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight
S9SH20B Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight
S9SH25B Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight
S9SH30B Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight
S9SH36B Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight
S9SH40B Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight
S9SH50B Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight
S9SH60B Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight
S9SH75B Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight
S9SH90B Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight
S9SH100B Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight
S9SH120B Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight
S9SH150B Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight
S9SH180B Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight
S9SH200B Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight
S9DH3B Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut
S9DH3.6B Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut
S9DH5B Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut
S9DH6B Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut
S9DH7.5B Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut
S9DH9B Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut
S9DH10B Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut
S9DH12.5B Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut
S9DH15B Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut
S9DH18B Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut
S9DH20B Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut
S9DH25B Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut
S9DH30B Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut
S9DH36B Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut
S9DH40B Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut
S9DH50B Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut
S9DH60B Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut
S9DH75B Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut
S9DH90B Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut
S9DH100B Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut
S9DH120B Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut
S9DH150B Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut
S9DH180B Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut
S9DH200B Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut
S9KH3B Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key
S9KH3.6B Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key
S9KH5B Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key
S9KH6B Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key
S9KH7.5B Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key
S9KH9B Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key
S9KH10B Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key
S9KH12.5B Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key
S9KH15B Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key
S9KH18B Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key
S9KH20B Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key
S9KH25B Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key
S9KH30B Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key
S9KH36B Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key
S9KH40B Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key
S9KH50B Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key
S9KH60B Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key
S9KH75B Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key
S9KH90B Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key
S9KH100B Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key
S9KH120B Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key
S9KH150B Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key
S9KH180B Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key
S9KH200B Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key
