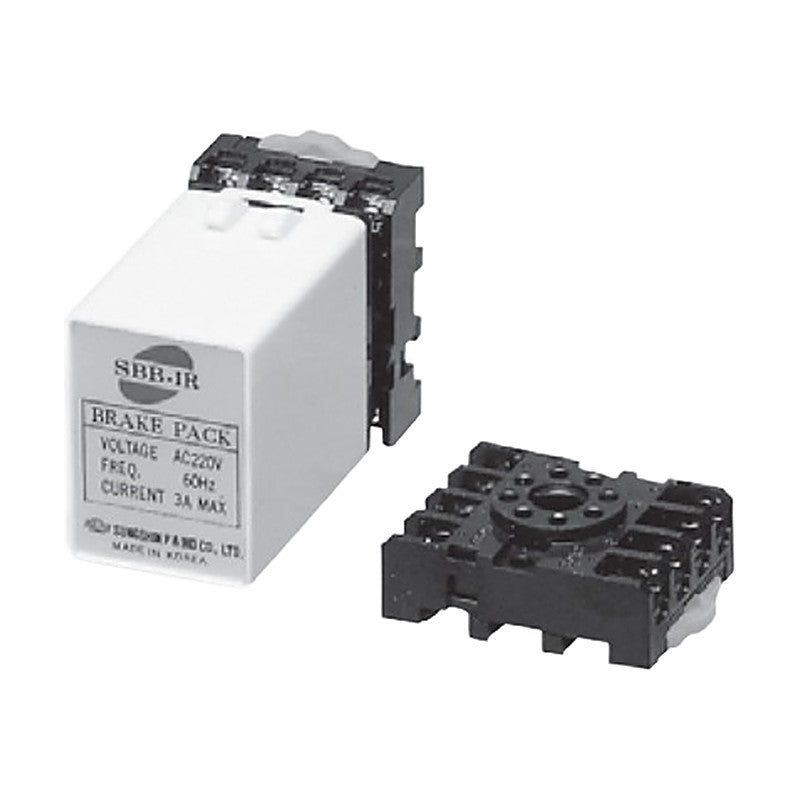

SPG SB Brake Packs (Contact Type, 1-ph/3-ph)

SPG SB Brake Packs (Contact Type, 1-ph/3-ph)

SPG contact-type electronic brake packs that stop single- and three-phase induction and reversible motors instantaneously when switched by external relays or switches.

Key features

  • Electronic braking circuit: motor alone stops in about 0.1 s
  • Braking current applied for about 0.4 s, then power cut automatically
  • Suitable for inching and short-cycle operation
  • Models for 1-ph 100/110/200/220/200-240 V and 3-ph 200/220/440 V supplies
  • External braking resistor needed for higher outputs (see wiring diagram A/B)
  • SBS-ICE carries the CE mark (TUV Rheinland)

Specifications

Brake type Contact (external switch) type
Permissible braking current 3 A or less
Braking current time About 0.4 s
Ambient temperature -10 to +50 C
Ambient humidity 85% or less, no condensation
Insulation resistance 100 MOhm min. at 500 V DC
Dielectric strength 1500 V AC 1 min (SBS-ICE 1800 V)
Source SPG Standard AC Geared Motor catalog, p. 341-356
SBA-IR Supply: 1-ph 110 V +/-10%, 60 Hz | Applicable motor: Induction <=90 W, reversible <=60 W | Mounting: Socket, 8-pin
SBC-IR Supply: 1-ph 100 V +/-10%, 50/60 Hz | Applicable motor: Induction <=90 W, reversible <=60 W | Mounting: Socket, 8-pin
SBB-IR Supply: 1-ph 220 V +/-10%, 60 Hz | Applicable motor: Induction <=90 W, reversible <=60 W | Mounting: Socket, 8-pin
SBD-IR Supply: 1-ph 200 V +/-10%, 50/60 Hz | Applicable motor: Induction <=90 W, reversible <=60 W | Mounting: Socket, 8-pin
SBX-IR Supply: 1-ph 200-240 V, 50 Hz | Applicable motor: Induction <=90 W, reversible <=60 W | Mounting: Socket, 8-pin
SBU-I Supply: 3-ph 200 V +/-10%, 50/60 Hz | Applicable motor: 3-ph induction <=90 W | Mounting: Socket, 8-pin
SBT-I Supply: 3-ph 220 V +/-10%, 50/60 Hz | Applicable motor: 3-ph induction <=90 W | Mounting: Socket, 8-pin
SBS-ICE Supply: 3-ph 440 V +/-10%, 50/60 Hz | Applicable motor: 3-ph induction 25-90 W | Mounting: Socket, 11-pin
Motor AccessoriesSPG
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SB Brake Packs (Contact Type, 1-ph/3-ph)

Brand SPG·Motor Accessories

Available part numbers (8)

SBA-IR, SBC-IR, SBB-IR, SBD-IR, SBX-IR, SBU-I, SBT-I, SBS-ICE

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SBA-IRSupply: 1-ph 110 V +/-10%, 60 Hz | Applicable motor: Induction <=90 W, reversible <=60 W | Mounting: Socket, 8-pin
SBC-IRSupply: 1-ph 100 V +/-10%, 50/60 Hz | Applicable motor: Induction <=90 W, reversible <=60 W | Mounting: Socket, 8-pin
SBB-IRSupply: 1-ph 220 V +/-10%, 60 Hz | Applicable motor: Induction <=90 W, reversible <=60 W | Mounting: Socket, 8-pin
SBD-IRSupply: 1-ph 200 V +/-10%, 50/60 Hz | Applicable motor: Induction <=90 W, reversible <=60 W | Mounting: Socket, 8-pin
SBX-IRSupply: 1-ph 200-240 V, 50 Hz | Applicable motor: Induction <=90 W, reversible <=60 W | Mounting: Socket, 8-pin
SBU-ISupply: 3-ph 200 V +/-10%, 50/60 Hz | Applicable motor: 3-ph induction <=90 W | Mounting: Socket, 8-pin
SBT-ISupply: 3-ph 220 V +/-10%, 50/60 Hz | Applicable motor: 3-ph induction <=90 W | Mounting: Socket, 8-pin
SBS-ICESupply: 3-ph 440 V +/-10%, 50/60 Hz | Applicable motor: 3-ph induction 25-90 W | Mounting: Socket, 11-pin
