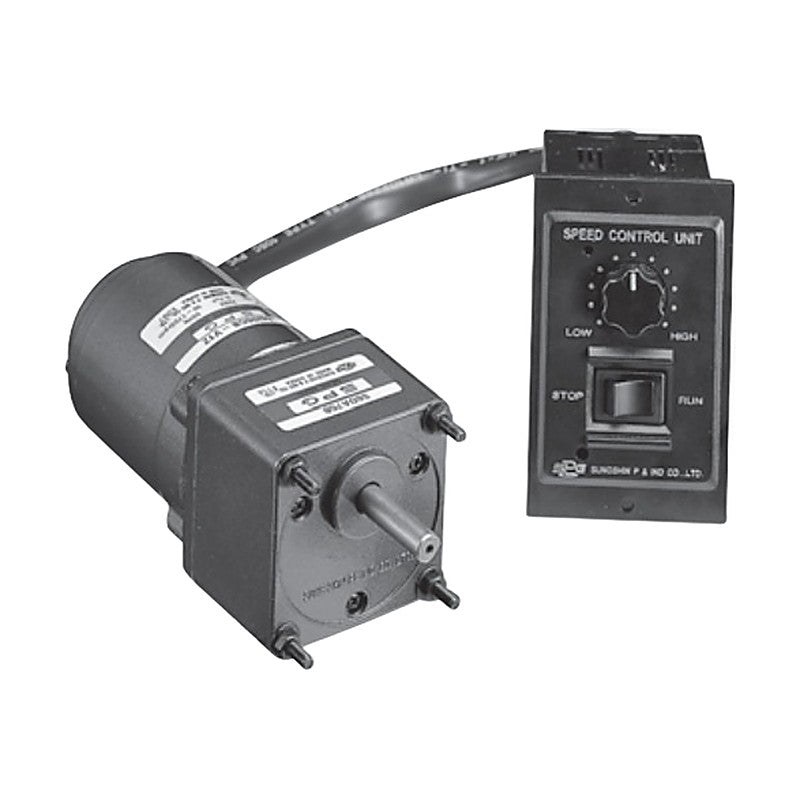

SPG SG 60 mm Speed Control Electromagnetic Brake Motors (6 W)

SPG SG 60 mm Speed Control Electromagnetic Brake Motors (6 W)

SPG SG global series SG6R06 6 W single-phase reversible speed control motor with built-in electromagnetic brake (E.S motor) for 60 mm frame, lead wire type, run with an SR or SS pack speed controller.

Key features

  • Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz) with the matching SPG speed controller
  • Electromagnetic brake (E.S motor) integrated at the motor rear to hold the load at stop
  • Built-in tacho generator: -S12/-ES12 for SR pack controllers (12 V), -S24/-ES24 for SS pack controllers (24 V)
  • Output shaft types: Pinion (gear type), D-cut, Straight (round)
  • Pinion-shaft motors mate with SPG SG6KA / SG6DA / SG6SA gearheads (key / D-cut / straight output, sold separately)
  • All SG series models carry UL, TUV and CCC certification; two capacitor ratings by supply voltage (AC 100 V / 200 V supplied on request)

Specifications

Series SG global series
Frame size 60 mm square
Output 6 W
Motor type Reversible with electromagnetic brake
Poles 4
Duty 30 min (S2)
Insulation class B (130 C)
Protection Impedance protected (Z.P.), IP23
Connection Lead wire, 300 mm
Motor weight 1.0 kg
Certifications UL, TUV (CE), CCC
Source SPG Standard SG AC Geared Motor catalog, p. 206-208
SG6R06GA-ES12 Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 4.5 uF (100 V), 3.5 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA01-A
SG6R06DA-ES12 Shaft: D-cut | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 4.5 uF (100 V), 3.5 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA01-A
SG6R06SA-ES12 Shaft: Straight (round) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 4.5 uF (100 V), 3.5 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA01-A
SG6R06GB-ES12 Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 1.0 uF (200 V), 0.8 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB01-B
SG6R06DB-ES12 Shaft: D-cut | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 1.0 uF (200 V), 0.8 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB01-B
SG6R06SB-ES12 Shaft: Straight (round) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 1.0 uF (200 V), 0.8 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB01-B
SG6R06GA-ES24 Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 4.5 uF (100 V), 3.5 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA01-SRSSA / SHA03-SRSSA
SG6R06DA-ES24 Shaft: D-cut | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 4.5 uF (100 V), 3.5 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA01-SRSSA / SHA03-SRSSA
SG6R06SA-ES24 Shaft: Straight (round) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 4.5 uF (100 V), 3.5 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA01-SRSSA / SHA03-SRSSA
SG6R06GB-ES24 Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 1.0 uF (200 V), 0.8 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB01-SRSSB / SHB03-SRSSB
SG6R06DB-ES24 Shaft: D-cut | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 1.0 uF (200 V), 0.8 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB01-SRSSB / SHB03-SRSSB
SG6R06SB-ES24 Shaft: Straight (round) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 1.0 uF (200 V), 0.8 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB01-SRSSB / SHB03-SRSSB
