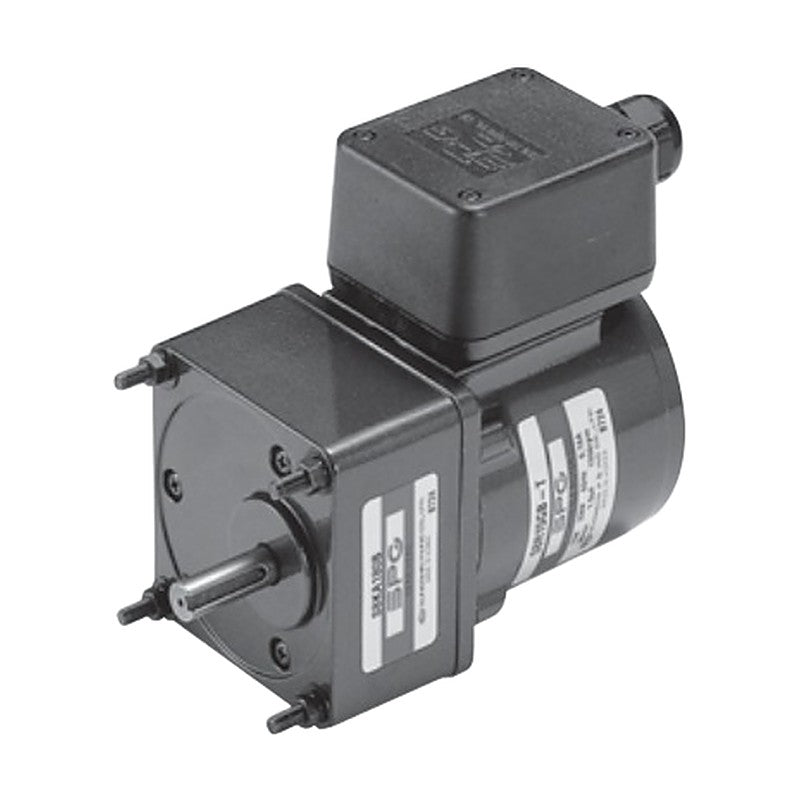

SPG SG 70 mm Terminal Box Induction Motors (15 W)

SPG SG 70 mm Terminal Box Induction Motors (15 W)

SPG SG series 70 mm square-flange AC induction motors, 15 W, terminal box type with a sealed connection box for dusty or damp environments.

Key features

  • Terminal box encloses the lead-wire connection with a gasket for protection against dust and moisture (terminal box IP54)
  • Terminal block box (T), plastic, for cable diameter 6.8-8.6 mm
  • VDE-certified terminal block; ground terminal provided on the motor
  • Single-phase capacitor-run motor, continuous rating
  • Shaft options: pinion (gear type) for SG gearheads, D-cut or straight round shaft
  • Two capacitor values per voltage code; specify AC 100 V or 200 V operation when ordering

Specifications

Output 15 W
Terminal box Terminal block box (T)
Frame size 70 mm square
Poles 4
Duty S1 (continuous)
Insulation class B (130 °C)
Degree of protection IP54
Overheat protection Thermal protector (T.P.), auto reset
Rated speed 1200-1350 r/min (50 Hz), 1500-1650 r/min (60 Hz)
Certifications UL, TUV, CCC (CE marked)
Source SPG Standard SG AC Geared Motor catalog, p. 78-79, 82-83
SG7I15GA-T Shaft: Pinion (gear type) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 5.5 uF @100 V / 4.5 uF @110-115 V
SG7I15DA-T Shaft: D-cut | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 5.5 uF @100 V / 4.5 uF @110-115 V
SG7I15SA-T Shaft: Straight (round) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 5.5 uF @100 V / 4.5 uF @110-115 V
SG7I15GB-T Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 1.5 uF @200 V / 1.0 uF @220-230 V
SG7I15DB-T Shaft: D-cut | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 1.5 uF @200 V / 1.0 uF @220-230 V
SG7I15SB-T Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 1.5 uF @200 V / 1.0 uF @220-230 V
AC Induction MotorsSPG
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SG 70 mm Terminal Box Induction Motors (15 W)

Brand SPG·AC Induction Motors

Available part numbers (6)

SG7I15GA-T, SG7I15DA-T, SG7I15SA-T, SG7I15GB-T, SG7I15DB-T, SG7I15SB-T

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SG7I15GA-TShaft: Pinion (gear type) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 5.5 uF @100 V / 4.5 uF @110-115 V
SG7I15DA-TShaft: D-cut | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 5.5 uF @100 V / 4.5 uF @110-115 V
SG7I15SA-TShaft: Straight (round) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 5.5 uF @100 V / 4.5 uF @110-115 V
SG7I15GB-TShaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 1.5 uF @200 V / 1.0 uF @220-230 V
SG7I15DB-TShaft: D-cut | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 1.5 uF @200 V / 1.0 uF @220-230 V
SG7I15SB-TShaft: Straight (round) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 1.5 uF @200 V / 1.0 uF @220-230 V
