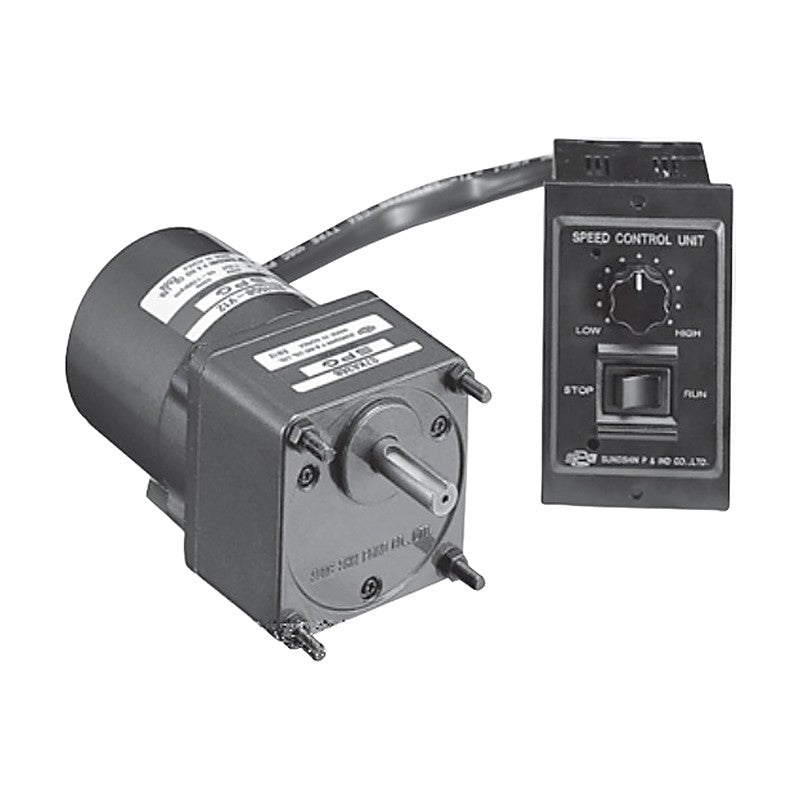

SPG SG 70 mm Reversible Speed Control Motors (15 W)

SPG SG 70 mm Reversible Speed Control Motors (15 W)

SPG SG global series SG7R15 15 W single-phase reversible speed control motor for 70 mm frame, lead wire type, run with an SR or SS pack speed controller.

Key features

  • Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz) with the matching SPG speed controller
  • Built-in tacho generator: -S12/-ES12 for SR pack controllers (12 V), -S24/-ES24 for SS pack controllers (24 V)
  • Output shaft types: Pinion (gear type), D-cut, Straight (round)
  • Pinion-shaft motors mate with SPG SG7KA / SG7DA / SG7SA gearheads (key / D-cut / straight output, sold separately)
  • All SG series models carry UL, TUV and CCC certification; two capacitor ratings by supply voltage (AC 100 V / 200 V supplied on request)

Specifications

Series SG global series
Frame size 70 mm square
Output 15 W
Motor type Reversible
Poles 4
Duty 30 min (S2)
Insulation class B (130 C)
Protection Thermally protected (T.P.), IP23
Connection Lead wire, 300 mm
Motor weight 1.04 kg
Certifications UL, TUV (CE), CCC
Source SPG Standard SG AC Geared Motor catalog, p. 195-197
SG7R15GA-S12 Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 7.5 uF (100 V), 6.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG7R15DA-S12 Shaft: D-cut | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 7.5 uF (100 V), 6.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG7R15SA-S12 Shaft: Straight (round) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 7.5 uF (100 V), 6.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG7R15GB-S12 Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 1.8 uF (200 V), 1.5 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG7R15DB-S12 Shaft: D-cut | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 1.8 uF (200 V), 1.5 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG7R15SB-S12 Shaft: Straight (round) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 1.8 uF (200 V), 1.5 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG7R15GA-S24 Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 7.5 uF (100 V), 6.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG7R15DA-S24 Shaft: D-cut | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 7.5 uF (100 V), 6.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG7R15SA-S24 Shaft: Straight (round) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 7.5 uF (100 V), 6.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG7R15GB-S24 Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 1.8 uF (200 V), 1.5 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
SG7R15DB-S24 Shaft: D-cut | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 1.8 uF (200 V), 1.5 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
SG7R15SB-S24 Shaft: Straight (round) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 1.8 uF (200 V), 1.5 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
