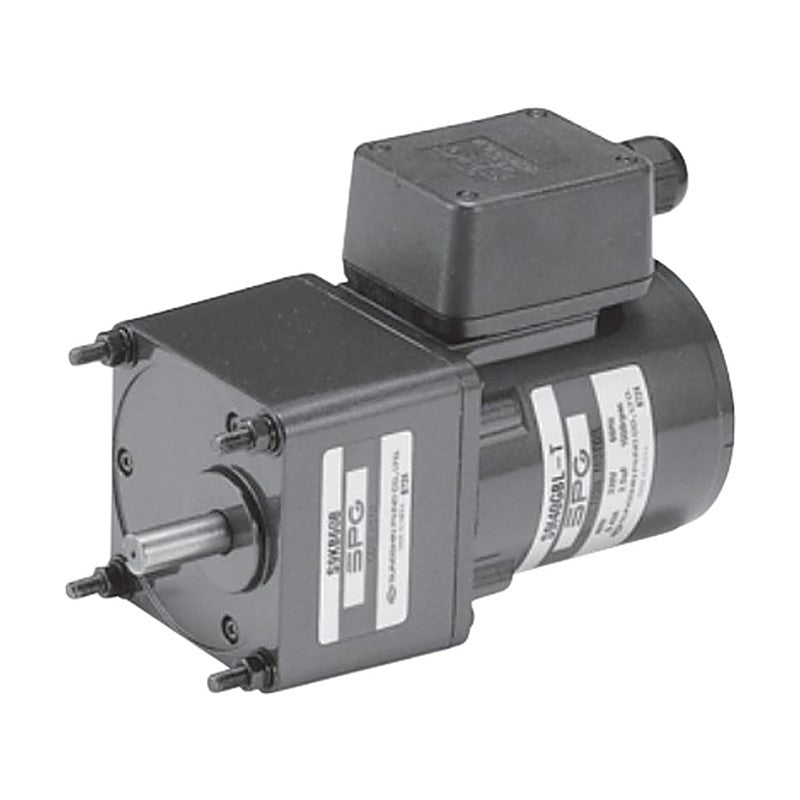

SPG SG 80 mm Terminal Box Reversible Motors (25 W)

SPG SG 80 mm Terminal Box Reversible Motors (25 W)

SPG SG series 80 mm square-flange AC reversible motors, 25 W, terminal box type with a sealed connection box for dusty or damp environments.

Key features

  • Terminal box encloses the lead-wire connection with a gasket for protection against dust and moisture (terminal box IP54)
  • Terminal box variants: terminal block box (T, aluminium, cable 6-12 mm), PCB terminal box (T1) or conduit box (T2)
  • VDE-certified terminal block; ground terminal provided on the motor
  • Single-phase reversible motor with built-in friction brake for frequent forward/reverse, S2 30 min rating
  • Shaft options: pinion (gear type) for SG gearheads, key, D-cut or straight round shaft
  • Two capacitor values per voltage code; specify AC 100 V or 200 V operation when ordering

Specifications

Output 25 W
Frame size 80 mm square
Poles 4
Duty S2 (30 min)
Insulation class B (130 °C)
Degree of protection IP23 motor table; terminal box IP54
Overheat protection Thermal protector (T.P.), auto reset
Rated speed 1200-1350 r/min (50 Hz), 1500-1650 r/min (60 Hz)
Certifications UL, TUV, CCC (CE marked)
Source SPG Standard SG AC Geared Motor catalog, p. 78-79, 100-102
SG8R25GA-T Shaft: Pinion (gear type) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Terminal block box (T)
SG8R25GA-T1 Shaft: Pinion (gear type) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: PCB terminal box (T1)
SG8R25GA-T2 Shaft: Pinion (gear type) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Conduit box (T2)
SG8R25KA-T Shaft: Key | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Terminal block box (T)
SG8R25KA-T1 Shaft: Key | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: PCB terminal box (T1)
SG8R25KA-T2 Shaft: Key | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Conduit box (T2)
SG8R25DA-T Shaft: D-cut | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Terminal block box (T)
SG8R25DA-T1 Shaft: D-cut | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: PCB terminal box (T1)
SG8R25DA-T2 Shaft: D-cut | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Conduit box (T2)
SG8R25SA-T Shaft: Straight (round) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Terminal block box (T)
SG8R25SA-T1 Shaft: Straight (round) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: PCB terminal box (T1)
SG8R25SA-T2 Shaft: Straight (round) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Conduit box (T2)
SG8R25GB-T Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Terminal block box (T)
SG8R25GB-T1 Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: PCB terminal box (T1)
SG8R25GB-T2 Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Conduit box (T2)
SG8R25KB-T Shaft: Key | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Terminal block box (T)
SG8R25KB-T1 Shaft: Key | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: PCB terminal box (T1)
SG8R25KB-T2 Shaft: Key | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Conduit box (T2)
SG8R25DB-T Shaft: D-cut | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Terminal block box (T)
SG8R25DB-T1 Shaft: D-cut | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: PCB terminal box (T1)
SG8R25DB-T2 Shaft: D-cut | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Conduit box (T2)
SG8R25SB-T Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Terminal block box (T)
SG8R25SB-T1 Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: PCB terminal box (T1)
SG8R25SB-T2 Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Conduit box (T2)
Reversible MotorsSPG
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SG 80 mm Terminal Box Reversible Motors (25 W)

Brand SPG·Reversible Motors

Available part numbers (24)

SG8R25GA-T, SG8R25GA-T1, SG8R25GA-T2, SG8R25KA-T, SG8R25KA-T1, SG8R25KA-T2, SG8R25DA-T, SG8R25DA-T1, SG8R25DA-T2, SG8R25SA-T + 14 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SG8R25GA-TShaft: Pinion (gear type) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Terminal block box (T)
SG8R25GA-T1Shaft: Pinion (gear type) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: PCB terminal box (T1)
SG8R25GA-T2Shaft: Pinion (gear type) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Conduit box (T2)
SG8R25KA-TShaft: Key | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Terminal block box (T)
SG8R25KA-T1Shaft: Key | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: PCB terminal box (T1)
SG8R25KA-T2Shaft: Key | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Conduit box (T2)
SG8R25DA-TShaft: D-cut | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Terminal block box (T)
SG8R25DA-T1Shaft: D-cut | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: PCB terminal box (T1)
SG8R25DA-T2Shaft: D-cut | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Conduit box (T2)
SG8R25SA-TShaft: Straight (round) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Terminal block box (T)
SG8R25SA-T1Shaft: Straight (round) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: PCB terminal box (T1)
SG8R25SA-T2Shaft: Straight (round) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Terminal box: Conduit box (T2)
SG8R25GB-TShaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Terminal block box (T)
SG8R25GB-T1Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: PCB terminal box (T1)
SG8R25GB-T2Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Conduit box (T2)
SG8R25KB-TShaft: Key | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Terminal block box (T)
SG8R25KB-T1Shaft: Key | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: PCB terminal box (T1)
SG8R25KB-T2Shaft: Key | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Conduit box (T2)
SG8R25DB-TShaft: D-cut | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Terminal block box (T)
SG8R25DB-T1Shaft: D-cut | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: PCB terminal box (T1)
SG8R25DB-T2Shaft: D-cut | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Conduit box (T2)
SG8R25SB-TShaft: Straight (round) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Terminal block box (T)
SG8R25SB-T1Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: PCB terminal box (T1)
SG8R25SB-T2Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Terminal box: Conduit box (T2)
