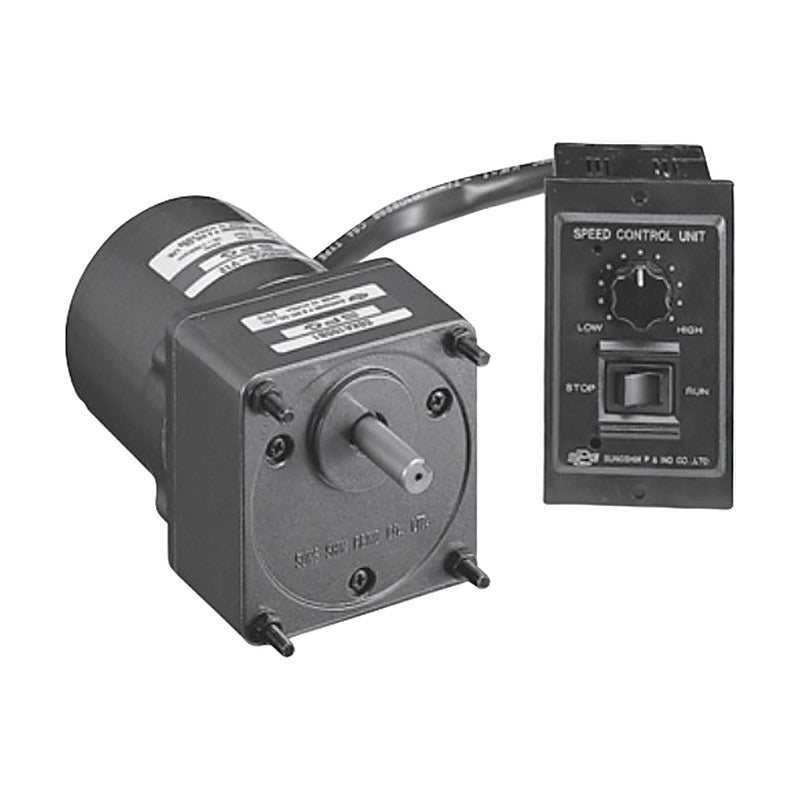

SPG SG 80 mm Speed Control Electromagnetic Brake Motors (25 W)

SPG SG 80 mm Speed Control Electromagnetic Brake Motors (25 W)

SPG SG global series SG8R25 25 W single-phase reversible speed control motor with built-in electromagnetic brake (E.S motor) for 80 mm frame, lead wire type, run with an SR or SS pack speed controller.

Key features

  • Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz) with the matching SPG speed controller
  • Electromagnetic brake (E.S motor) integrated at the motor rear to hold the load at stop
  • Built-in tacho generator: -S12/-ES12 for SR pack controllers (12 V), -S24/-ES24 for SS pack controllers (24 V)
  • Output shaft types: Pinion (gear type), Key, D-cut, Straight (round) (key type from 80 mm frame, 25 W and up)
  • Pinion-shaft motors mate with SPG SG8KA / SG8DA / SG8SA gearheads (key / D-cut / straight output, sold separately)
  • All SG series models carry UL, TUV and CCC certification; two capacitor ratings by supply voltage (AC 100 V / 200 V supplied on request)

Specifications

Series SG global series
Frame size 80 mm square
Output 25 W
Motor type Reversible with electromagnetic brake
Poles 4
Duty 30 min (S2)
Insulation class B (130 C)
Protection Thermally protected (T.P.), IP23
Connection Lead wire, 300 mm
Motor weight 1.86 kg
Certifications UL, TUV (CE), CCC
Source SPG Standard SG AC Geared Motor catalog, p. 212-214
SG8R25GA-ES12 Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG8R25KA-ES12 Shaft: Key | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG8R25DA-ES12 Shaft: D-cut | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG8R25SA-ES12 Shaft: Straight (round) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG8R25GB-ES12 Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG8R25KB-ES12 Shaft: Key | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG8R25DB-ES12 Shaft: D-cut | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG8R25SB-ES12 Shaft: Straight (round) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG8R25GA-ES24 Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG8R25KA-ES24 Shaft: Key | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG8R25DA-ES24 Shaft: D-cut | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG8R25SA-ES24 Shaft: Straight (round) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG8R25GB-ES24 Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
SG8R25KB-ES24 Shaft: Key | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
SG8R25DB-ES24 Shaft: D-cut | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
SG8R25SB-ES24 Shaft: Straight (round) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
