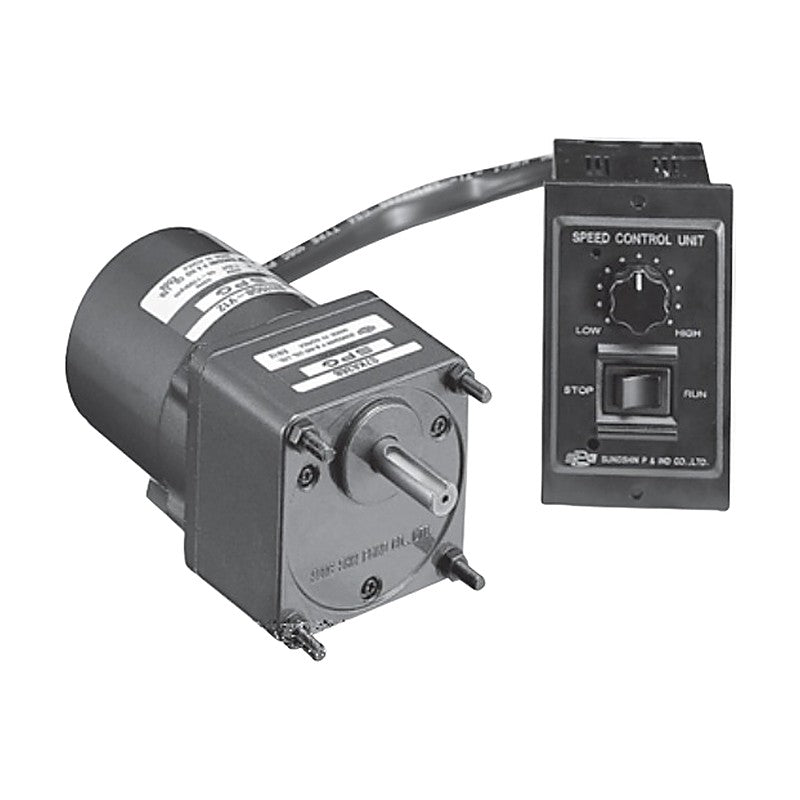

SPG SG 70 mm Pack Type Speed Control Induction Motors (15 W)

SPG SG 70 mm Pack Type Speed Control Induction Motors (15 W)

SPG SG series 70 mm lead-wire (pack/socket) type induction speed control motors, 15 W, with 12 V tacho generator for SR controllers or 24 V tacho generator for SS/SH controllers.

Key features

  • Used with plug-in SR, SS or SH pack speed controllers for wide variable-speed operation
  • Variable speed 90-1400 r/min at 50 Hz and 90-1700 r/min at 60 Hz; tacho feedback keeps speed independent of supply frequency
  • Order code SG<frame>I<output><shaft><voltage>-S12 (SR type) or -S24 (SS/SH type)
  • Voltage A = 1Ph 100/110/115 V, B = 1Ph 200/220/230 V; AC 100 V / 200 V capacitors on request
  • Shaft types: pinion (G), D-cut (D), straight (S)
  • Gearheads sold separately; slow run / slow stop available with SS and SH controllers

Specifications

Output 15 W
Motor type Induction speed control, 4-pole
Speed range 90-1400 r/min (50 Hz), 90-1700 r/min (60 Hz)
Insulation class B (130 C)
Degree of protection IP23, continuous duty (S1)
Certifications UL, CE, TUV, CCC
Connection Lead wire type, 11-pin socket controller
Torque at 1200 r/min (100 V 50 Hz) 1.10 kgf.cm (110 mN.m)
Protection Thermally protected (T.P.)
Matching gearheads SG7KA/SG7DA/SG7SA
Source SPG Standard SG AC Geared Motor catalog, p. 175-177
SG7I15GA-S12 Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V | Tacho generator: 12 V (SR type) | Controller: SRA02-A
SG7I15GA-S24 Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V | Tacho generator: 24 V (SS/SH type) | Controller: SSA02-SRSSA / SHA03-SRSSA
SG7I15DA-S12 Shaft: D-cut | Voltage: 1Ph 100/110/115 V | Tacho generator: 12 V (SR type) | Controller: SRA02-A
SG7I15DA-S24 Shaft: D-cut | Voltage: 1Ph 100/110/115 V | Tacho generator: 24 V (SS/SH type) | Controller: SSA02-SRSSA / SHA03-SRSSA
SG7I15SA-S12 Shaft: Straight | Voltage: 1Ph 100/110/115 V | Tacho generator: 12 V (SR type) | Controller: SRA02-A
SG7I15SA-S24 Shaft: Straight | Voltage: 1Ph 100/110/115 V | Tacho generator: 24 V (SS/SH type) | Controller: SSA02-SRSSA / SHA03-SRSSA
SG7I15GB-S12 Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V | Tacho generator: 12 V (SR type) | Controller: SRB02-B
SG7I15GB-S24 Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V | Tacho generator: 24 V (SS/SH type) | Controller: SSB02-SRSSB / SHB03-SRSSB
SG7I15DB-S12 Shaft: D-cut | Voltage: 1Ph 200/220/230 V | Tacho generator: 12 V (SR type) | Controller: SRB02-B
SG7I15DB-S24 Shaft: D-cut | Voltage: 1Ph 200/220/230 V | Tacho generator: 24 V (SS/SH type) | Controller: SSB02-SRSSB / SHB03-SRSSB
SG7I15SB-S12 Shaft: Straight | Voltage: 1Ph 200/220/230 V | Tacho generator: 12 V (SR type) | Controller: SRB02-B
SG7I15SB-S24 Shaft: Straight | Voltage: 1Ph 200/220/230 V | Tacho generator: 24 V (SS/SH type) | Controller: SSB02-SRSSB / SHB03-SRSSB
Speed Control MotorsSPG
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SG 70 mm Pack Type Speed Control Induction Motors (15 W)

Brand SPG·Speed Control Motors

Available part numbers (12)

SG7I15GA-S12, SG7I15GA-S24, SG7I15DA-S12, SG7I15DA-S24, SG7I15SA-S12, SG7I15SA-S24, SG7I15GB-S12, SG7I15GB-S24, SG7I15DB-S12, SG7I15DB-S24 + 2 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SG7I15GA-S12Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V | Tacho generator: 12 V (SR type) | Controller: SRA02-A
SG7I15GA-S24Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V | Tacho generator: 24 V (SS/SH type) | Controller: SSA02-SRSSA / SHA03-SRSSA
SG7I15DA-S12Shaft: D-cut | Voltage: 1Ph 100/110/115 V | Tacho generator: 12 V (SR type) | Controller: SRA02-A
SG7I15DA-S24Shaft: D-cut | Voltage: 1Ph 100/110/115 V | Tacho generator: 24 V (SS/SH type) | Controller: SSA02-SRSSA / SHA03-SRSSA
SG7I15SA-S12Shaft: Straight | Voltage: 1Ph 100/110/115 V | Tacho generator: 12 V (SR type) | Controller: SRA02-A
SG7I15SA-S24Shaft: Straight | Voltage: 1Ph 100/110/115 V | Tacho generator: 24 V (SS/SH type) | Controller: SSA02-SRSSA / SHA03-SRSSA
SG7I15GB-S12Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V | Tacho generator: 12 V (SR type) | Controller: SRB02-B
SG7I15GB-S24Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V | Tacho generator: 24 V (SS/SH type) | Controller: SSB02-SRSSB / SHB03-SRSSB
SG7I15DB-S12Shaft: D-cut | Voltage: 1Ph 200/220/230 V | Tacho generator: 12 V (SR type) | Controller: SRB02-B
SG7I15DB-S24Shaft: D-cut | Voltage: 1Ph 200/220/230 V | Tacho generator: 24 V (SS/SH type) | Controller: SSB02-SRSSB / SHB03-SRSSB
SG7I15SB-S12Shaft: Straight | Voltage: 1Ph 200/220/230 V | Tacho generator: 12 V (SR type) | Controller: SRB02-B
SG7I15SB-S24Shaft: Straight | Voltage: 1Ph 200/220/230 V | Tacho generator: 24 V (SS/SH type) | Controller: SSB02-SRSSB / SHB03-SRSSB
