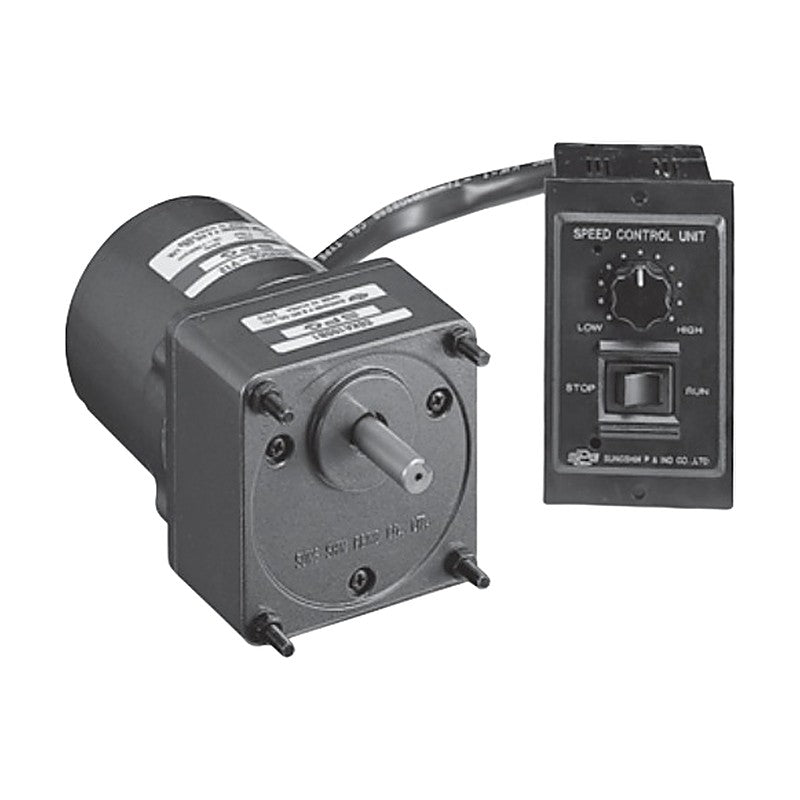

SPG SG 80 mm Unit Type Speed Control Motors (25 W)

SPG SG 80 mm Unit Type Speed Control Motors (25 W)

SPG SG series 80 mm connector (unit) type induction speed control motors, 25 W, with built-in tacho generator (12 V) for SUA analogue / SUD digital unit speed controllers.

Key features

  • Motor and unit controller connect by one-touch connector; plug into AC power, no wiring needed
  • Variable speed 90-1400 r/min at 50 Hz and 90-1700 r/min at 60 Hz with tacho feedback
  • Order code SG<frame>I<output><shaft><voltage>-V12; voltage A = 100-115 V, B = 200-230 V
  • Shaft types: pinion (G) for gearhead mounting, D-cut (D), straight (S), key (K)
  • Optional extension cord allows up to 2.0 m between motor and controller
  • Gearheads (SG8KA/SG8DA/SG8SA) sold separately

Specifications

Output 25 W
Motor type Induction speed control, 4-pole
Speed range 90-1400 r/min (50 Hz), 90-1700 r/min (60 Hz)
Insulation class B (130 C)
Degree of protection IP23, continuous duty (S1)
Certifications UL, CE, TUV, CCC
Connection Connector type, 300 mm lead wire
Torque at 1200 r/min (100 V 50 Hz) 1.90 kgf.cm (190 mN.m)
Protection Thermally protected (T.P.)
Matching gearheads SG8KA/SG8DA/SG8SA
Source SPG Standard SG AC Geared Motor catalog, p. 132-133
SG8I25GA-V12 Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V | Controller: SUA25IA-V12A / SUD25IA-V12A | Capacitor (50/60 Hz): 8.0/6.5 uF (250 V)
SG8I25KA-V12 Shaft: Key | Voltage: 1Ph 100/110/115 V | Controller: SUA25IA-V12A / SUD25IA-V12A | Capacitor (50/60 Hz): 8.0/6.5 uF (250 V)
SG8I25DA-V12 Shaft: D-cut | Voltage: 1Ph 100/110/115 V | Controller: SUA25IA-V12A / SUD25IA-V12A | Capacitor (50/60 Hz): 8.0/6.5 uF (250 V)
SG8I25SA-V12 Shaft: Straight | Voltage: 1Ph 100/110/115 V | Controller: SUA25IA-V12A / SUD25IA-V12A | Capacitor (50/60 Hz): 8.0/6.5 uF (250 V)
SG8I25GB-V12 Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V | Controller: SUA25IB-V12B / SUD25IB-V12B | Capacitor (50/60 Hz): 1.5/1.0 uF (450 V)
SG8I25KB-V12 Shaft: Key | Voltage: 1Ph 200/220/230 V | Controller: SUA25IB-V12B / SUD25IB-V12B | Capacitor (50/60 Hz): 1.5/1.0 uF (450 V)
SG8I25DB-V12 Shaft: D-cut | Voltage: 1Ph 200/220/230 V | Controller: SUA25IB-V12B / SUD25IB-V12B | Capacitor (50/60 Hz): 1.5/1.0 uF (450 V)
SG8I25SB-V12 Shaft: Straight | Voltage: 1Ph 200/220/230 V | Controller: SUA25IB-V12B / SUD25IB-V12B | Capacitor (50/60 Hz): 1.5/1.0 uF (450 V)
Speed Control MotorsSPG
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SG 80 mm Unit Type Speed Control Motors (25 W)

Brand SPG·Speed Control Motors

Available part numbers (8)

SG8I25GA-V12, SG8I25KA-V12, SG8I25DA-V12, SG8I25SA-V12, SG8I25GB-V12, SG8I25KB-V12, SG8I25DB-V12, SG8I25SB-V12

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SG8I25GA-V12Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V | Controller: SUA25IA-V12A / SUD25IA-V12A | Capacitor (50/60 Hz): 8.0/6.5 uF (250 V)
SG8I25KA-V12Shaft: Key | Voltage: 1Ph 100/110/115 V | Controller: SUA25IA-V12A / SUD25IA-V12A | Capacitor (50/60 Hz): 8.0/6.5 uF (250 V)
SG8I25DA-V12Shaft: D-cut | Voltage: 1Ph 100/110/115 V | Controller: SUA25IA-V12A / SUD25IA-V12A | Capacitor (50/60 Hz): 8.0/6.5 uF (250 V)
SG8I25SA-V12Shaft: Straight | Voltage: 1Ph 100/110/115 V | Controller: SUA25IA-V12A / SUD25IA-V12A | Capacitor (50/60 Hz): 8.0/6.5 uF (250 V)
SG8I25GB-V12Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V | Controller: SUA25IB-V12B / SUD25IB-V12B | Capacitor (50/60 Hz): 1.5/1.0 uF (450 V)
SG8I25KB-V12Shaft: Key | Voltage: 1Ph 200/220/230 V | Controller: SUA25IB-V12B / SUD25IB-V12B | Capacitor (50/60 Hz): 1.5/1.0 uF (450 V)
SG8I25DB-V12Shaft: D-cut | Voltage: 1Ph 200/220/230 V | Controller: SUA25IB-V12B / SUD25IB-V12B | Capacitor (50/60 Hz): 1.5/1.0 uF (450 V)
SG8I25SB-V12Shaft: Straight | Voltage: 1Ph 200/220/230 V | Controller: SUA25IB-V12B / SUD25IB-V12B | Capacitor (50/60 Hz): 1.5/1.0 uF (450 V)
