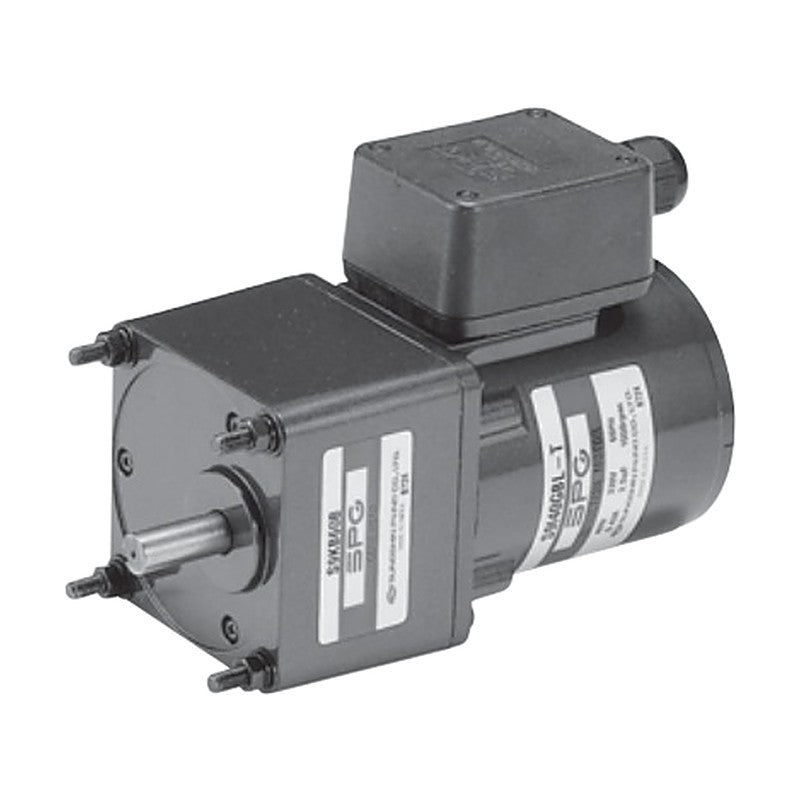

SPG SG 90 mm Induction Motors (Lead Wire Type, 40-90 W)

SPG SG 90 mm Induction Motors (Lead Wire Type, 40-90 W)

SPG SG global series 90 mm 40-90 W capacitor-run induction motors with lead wires, ordered by output, shaft type and voltage code.

Key features

  • Capacitor-run induction motor for continuous unidirectional operation at near-constant speed
  • 90 mm square frame, 40-90 W, 4-pole; lead wire type (300 mm leads)
  • Shaft options in the code: G pinion shaft for SG gearheads, D D-cut or S straight shaft, K key shaft
  • Voltage code A (1-ph 100-115 V) or B (1-ph 200-230 V), T (3-ph 200-230 V) and S (3-ph 380-440 V); capacitor supplied per voltage group
  • All SG series models carry cUL, TUV and CCC certification
  • Matching gearheads SG9KB/DB/SB (40-60 W), SG9KC/DC/SC (90 W) sold separately

Specifications

Motor type Induction motor (capacitor-run), lead wire type
Frame size 90 mm square
Poles 4
Duty Continuous (S1)
Degree of protection IP23
Overheat protection Thermally protected (T.P., auto reset)
Insulation class B (130 C)
Certifications cUL, TUV (CE), CCC
Rated torque (60 Hz) 40 W 2.4 / 60 W 3.5 / 90 W 5.3 kgf.cm
Source SPG Standard SG AC Geared Motor catalog, p. 40-45
SG9I40GA Output: 40 W | Shaft: Pinion (gear type) | Power supply: 1-ph 100/110/115 V | Capacitor: 11.0/9.0 uF (250 V)
SG9I40KA Output: 40 W | Shaft: Key | Power supply: 1-ph 100/110/115 V | Capacitor: 11.0/9.0 uF (250 V)
SG9I40DA Output: 40 W | Shaft: D-cut | Power supply: 1-ph 100/110/115 V | Capacitor: 11.0/9.0 uF (250 V)
SG9I40SA Output: 40 W | Shaft: Straight (round) | Power supply: 1-ph 100/110/115 V | Capacitor: 11.0/9.0 uF (250 V)
SG9I40GB Output: 40 W | Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V | Capacitor: 3.0/2.3 uF (450 V)
SG9I40KB Output: 40 W | Shaft: Key | Power supply: 1-ph 200/220/230 V | Capacitor: 3.0/2.3 uF (450 V)
SG9I40DB Output: 40 W | Shaft: D-cut | Power supply: 1-ph 200/220/230 V | Capacitor: 3.0/2.3 uF (450 V)
SG9I40SB Output: 40 W | Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V | Capacitor: 3.0/2.3 uF (450 V)
SG9I40GT Output: 40 W | Shaft: Pinion (gear type) | Power supply: 3-ph 200/220/230 V | Capacitor: Not required (3-phase)
SG9I40KT Output: 40 W | Shaft: Key | Power supply: 3-ph 200/220/230 V | Capacitor: Not required (3-phase)
SG9I40DT Output: 40 W | Shaft: D-cut | Power supply: 3-ph 200/220/230 V | Capacitor: Not required (3-phase)
SG9I40ST Output: 40 W | Shaft: Straight (round) | Power supply: 3-ph 200/220/230 V | Capacitor: Not required (3-phase)
SG9I40GS Output: 40 W | Shaft: Pinion (gear type) | Power supply: 3-ph 380/400/415/440 V | Capacitor: Not required (3-phase)
SG9I40KS Output: 40 W | Shaft: Key | Power supply: 3-ph 380/400/415/440 V | Capacitor: Not required (3-phase)
SG9I40DS Output: 40 W | Shaft: D-cut | Power supply: 3-ph 380/400/415/440 V | Capacitor: Not required (3-phase)
SG9I40SS Output: 40 W | Shaft: Straight (round) | Power supply: 3-ph 380/400/415/440 V | Capacitor: Not required (3-phase)
SG9I60GA Output: 60 W | Shaft: Pinion (gear type) | Power supply: 1-ph 100/110/115 V | Capacitor: 20.0/18.0 uF (250 V)
SG9I60KA Output: 60 W | Shaft: Key | Power supply: 1-ph 100/110/115 V | Capacitor: 20.0/18.0 uF (250 V)
SG9I60DA Output: 60 W | Shaft: D-cut | Power supply: 1-ph 100/110/115 V | Capacitor: 20.0/18.0 uF (250 V)
SG9I60SA Output: 60 W | Shaft: Straight (round) | Power supply: 1-ph 100/110/115 V | Capacitor: 20.0/18.0 uF (250 V)
SG9I60GB Output: 60 W | Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V | Capacitor: 5.0/4.0 uF (450 V)
SG9I60KB Output: 60 W | Shaft: Key | Power supply: 1-ph 200/220/230 V | Capacitor: 5.0/4.0 uF (450 V)
SG9I60DB Output: 60 W | Shaft: D-cut | Power supply: 1-ph 200/220/230 V | Capacitor: 5.0/4.0 uF (450 V)
SG9I60SB Output: 60 W | Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V | Capacitor: 5.0/4.0 uF (450 V)
SG9I60GT Output: 60 W | Shaft: Pinion (gear type) | Power supply: 3-ph 200/220/230 V | Capacitor: Not required (3-phase)
SG9I60KT Output: 60 W | Shaft: Key | Power supply: 3-ph 200/220/230 V | Capacitor: Not required (3-phase)
SG9I60DT Output: 60 W | Shaft: D-cut | Power supply: 3-ph 200/220/230 V | Capacitor: Not required (3-phase)
SG9I60ST Output: 60 W | Shaft: Straight (round) | Power supply: 3-ph 200/220/230 V | Capacitor: Not required (3-phase)
SG9I60GS Output: 60 W | Shaft: Pinion (gear type) | Power supply: 3-ph 380/400/415/440 V | Capacitor: Not required (3-phase)
SG9I60KS Output: 60 W | Shaft: Key | Power supply: 3-ph 380/400/415/440 V | Capacitor: Not required (3-phase)
SG9I60DS Output: 60 W | Shaft: D-cut | Power supply: 3-ph 380/400/415/440 V | Capacitor: Not required (3-phase)
SG9I60SS Output: 60 W | Shaft: Straight (round) | Power supply: 3-ph 380/400/415/440 V | Capacitor: Not required (3-phase)
SG9I90GA Output: 90 W | Shaft: Pinion (gear type) | Power supply: 1-ph 100/110/115 V | Capacitor: 28.0/20.0 uF (250 V)
SG9I90KA Output: 90 W | Shaft: Key | Power supply: 1-ph 100/110/115 V | Capacitor: 28.0/20.0 uF (250 V)
SG9I90DA Output: 90 W | Shaft: D-cut | Power supply: 1-ph 100/110/115 V | Capacitor: 28.0/20.0 uF (250 V)
SG9I90SA Output: 90 W | Shaft: Straight (round) | Power supply: 1-ph 100/110/115 V | Capacitor: 28.0/20.0 uF (250 V)
SG9I90GB Output: 90 W | Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V | Capacitor: 7.0/6.0 uF (450 V)
SG9I90KB Output: 90 W | Shaft: Key | Power supply: 1-ph 200/220/230 V | Capacitor: 7.0/6.0 uF (450 V)
SG9I90DB Output: 90 W | Shaft: D-cut | Power supply: 1-ph 200/220/230 V | Capacitor: 7.0/6.0 uF (450 V)
SG9I90SB Output: 90 W | Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V | Capacitor: 7.0/6.0 uF (450 V)
SG9I90GT Output: 90 W | Shaft: Pinion (gear type) | Power supply: 3-ph 200/220/230 V | Capacitor: Not required (3-phase)
SG9I90KT Output: 90 W | Shaft: Key | Power supply: 3-ph 200/220/230 V | Capacitor: Not required (3-phase)
SG9I90DT Output: 90 W | Shaft: D-cut | Power supply: 3-ph 200/220/230 V | Capacitor: Not required (3-phase)
SG9I90ST Output: 90 W | Shaft: Straight (round) | Power supply: 3-ph 200/220/230 V | Capacitor: Not required (3-phase)
SG9I90GS Output: 90 W | Shaft: Pinion (gear type) | Power supply: 3-ph 380/400/415/440 V | Capacitor: Not required (3-phase)
SG9I90KS Output: 90 W | Shaft: Key | Power supply: 3-ph 380/400/415/440 V | Capacitor: Not required (3-phase)
SG9I90DS Output: 90 W | Shaft: D-cut | Power supply: 3-ph 380/400/415/440 V | Capacitor: Not required (3-phase)
SG9I90SS Output: 90 W | Shaft: Straight (round) | Power supply: 3-ph 380/400/415/440 V | Capacitor: Not required (3-phase)
AC Induction MotorsSPG
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SG 90 mm Induction Motors (Lead Wire Type, 40-90 W)

Brand SPG·AC Induction Motors

Available part numbers (48)

SG9I40GA, SG9I40KA, SG9I40DA, SG9I40SA, SG9I40GB, SG9I40KB, SG9I40DB, SG9I40SB, SG9I40GT, SG9I40KT + 38 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
