SPG SHA series hollow rotary index table with helical planetary gearing and large-diameter hollow output table, for stepping or servo motor drive, frame 60 to 200 mm.

Key features

  • Large hollow output table (28 to 100 mm bore) for simple routing of wiring and piping
  • Cross-roller bearing output table (ball bearing on SHA 060) for high thrust and moment load

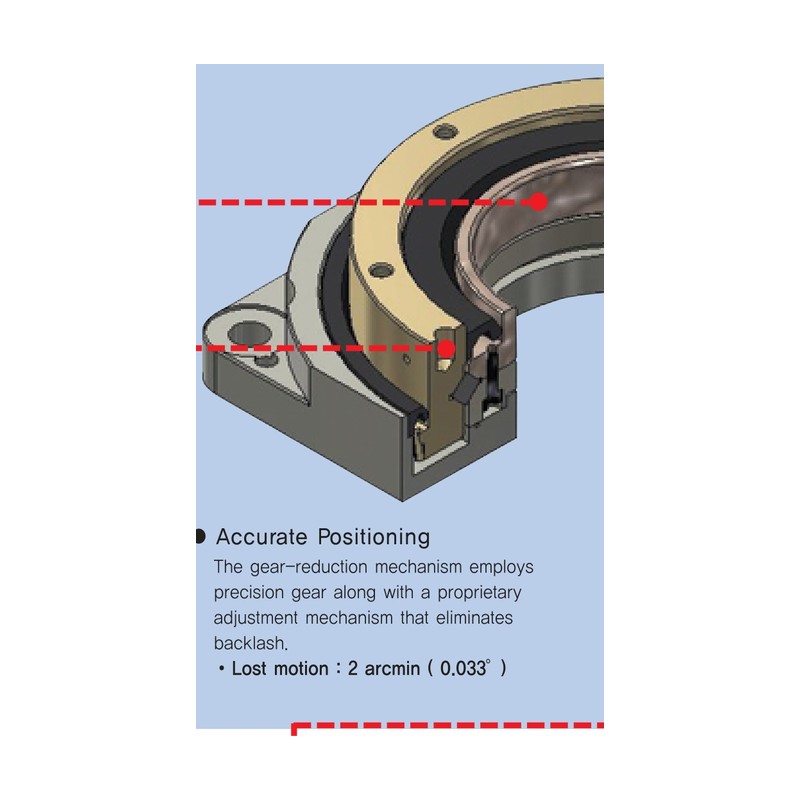

  • Helical planetary gearing with full-complement needle planet bearings; lost motion 2 arcmin
  • 1-stage ratios 1/10 and 1/18, 2-stage ratios 1/30, 1/40 and 1/50 (SHA 060: 1-stage only)
  • Universal motor mounting flange with balanced clamp ring for stepping (ST) or servo (SV) motors
  • Optional origin (home) sensor sets SHAS-A/AY/B/BY available as accessories

Specifications

Construction Hollow rotary table, helical planetary gear
Output bearing Cross roller bearing (SHA 060: ball bearing)
Lost motion 2 arcmin (0.033 deg)
Permissible thrust load 100 / 500 / 2,000 / 3,000 / 4,000 N (060/085/130/170/200)
Permissible moment load 2 / 10 / 50 / 75 / 100 N·m (060/085/130/170/200)
Degree of protection IP64
Operating temperature -10 to +90 deg C
Motor mounting Adapter flange A-G type per motor, specified at order
Source SPG Hollow Rotary Table catalog, p. 1-19
SHA060ST010 Frame: 60 mm | Hollow bore: 28 mm | Motor: Stepping motor | Ratio: 1/10 (1-stage) | Permissible torque: 1.2 N·m
SHA060ST018 Frame: 60 mm | Hollow bore: 28 mm | Motor: Stepping motor | Ratio: 1/18 (1-stage) | Permissible torque: 0.9 N·m
SHA060SV010 Frame: 60 mm | Hollow bore: 28 mm | Motor: Servo motor | Ratio: 1/10 (1-stage) | Permissible torque: 1.2 N·m
SHA060SV018 Frame: 60 mm | Hollow bore: 28 mm | Motor: Servo motor | Ratio: 1/18 (1-stage) | Permissible torque: 0.9 N·m
SHA085ST010 Frame: 85 mm | Hollow bore: 33 mm | Motor: Stepping motor | Ratio: 1/10 (1-stage) | Permissible torque: 3.5 N·m
SHA085ST018 Frame: 85 mm | Hollow bore: 33 mm | Motor: Stepping motor | Ratio: 1/18 (1-stage) | Permissible torque: 2.8 N·m
SHA085ST030 Frame: 85 mm | Hollow bore: 33 mm | Motor: Stepping motor | Ratio: 1/30 (2-stage) | Permissible torque: 3.5 N·m
SHA085ST040 Frame: 85 mm | Hollow bore: 33 mm | Motor: Stepping motor | Ratio: 1/40 (2-stage) | Permissible torque: 3.5 N·m
SHA085ST050 Frame: 85 mm | Hollow bore: 33 mm | Motor: Stepping motor | Ratio: 1/50 (2-stage) | Permissible torque: 3.5 N·m
SHA085SV010 Frame: 85 mm | Hollow bore: 33 mm | Motor: Servo motor | Ratio: 1/10 (1-stage) | Permissible torque: 3.5 N·m
SHA085SV018 Frame: 85 mm | Hollow bore: 33 mm | Motor: Servo motor | Ratio: 1/18 (1-stage) | Permissible torque: 2.8 N·m
SHA085SV030 Frame: 85 mm | Hollow bore: 33 mm | Motor: Servo motor | Ratio: 1/30 (2-stage) | Permissible torque: 3.5 N·m
SHA085SV040 Frame: 85 mm | Hollow bore: 33 mm | Motor: Servo motor | Ratio: 1/40 (2-stage) | Permissible torque: 3.5 N·m
SHA085SV050 Frame: 85 mm | Hollow bore: 33 mm | Motor: Servo motor | Ratio: 1/50 (2-stage) | Permissible torque: 3.5 N·m
SHA130ST010 Frame: 130 mm | Hollow bore: 62 mm | Motor: Stepping motor | Ratio: 1/10 (1-stage) | Permissible torque: 15 N·m
SHA130ST018 Frame: 130 mm | Hollow bore: 62 mm | Motor: Stepping motor | Ratio: 1/18 (1-stage) | Permissible torque: 12 N·m
SHA130ST030 Frame: 130 mm | Hollow bore: 62 mm | Motor: Stepping motor | Ratio: 1/30 (2-stage) | Permissible torque: 15 N·m
SHA130ST040 Frame: 130 mm | Hollow bore: 62 mm | Motor: Stepping motor | Ratio: 1/40 (2-stage) | Permissible torque: 15 N·m
SHA130ST050 Frame: 130 mm | Hollow bore: 62 mm | Motor: Stepping motor | Ratio: 1/50 (2-stage) | Permissible torque: 15 N·m
SHA130SV010 Frame: 130 mm | Hollow bore: 62 mm | Motor: Servo motor | Ratio: 1/10 (1-stage) | Permissible torque: 15 N·m
SHA130SV018 Frame: 130 mm | Hollow bore: 62 mm | Motor: Servo motor | Ratio: 1/18 (1-stage) | Permissible torque: 12 N·m
SHA130SV030 Frame: 130 mm | Hollow bore: 62 mm | Motor: Servo motor | Ratio: 1/30 (2-stage) | Permissible torque: 15 N·m
SHA130SV040 Frame: 130 mm | Hollow bore: 62 mm | Motor: Servo motor | Ratio: 1/40 (2-stage) | Permissible torque: 15 N·m
SHA130SV050 Frame: 130 mm | Hollow bore: 62 mm | Motor: Servo motor | Ratio: 1/50 (2-stage) | Permissible torque: 15 N·m
SHA170ST010 Frame: 170 mm | Hollow bore: 72 mm | Motor: Stepping motor | Ratio: 1/10 (1-stage) | Permissible torque: 40 N·m
SHA170ST018 Frame: 170 mm | Hollow bore: 72 mm | Motor: Stepping motor | Ratio: 1/18 (1-stage) | Permissible torque: 31 N·m
SHA170ST030 Frame: 170 mm | Hollow bore: 72 mm | Motor: Stepping motor | Ratio: 1/30 (2-stage) | Permissible torque: 40 N·m
SHA170ST040 Frame: 170 mm | Hollow bore: 72 mm | Motor: Stepping motor | Ratio: 1/40 (2-stage) | Permissible torque: 40 N·m
SHA170ST050 Frame: 170 mm | Hollow bore: 72 mm | Motor: Stepping motor | Ratio: 1/50 (2-stage) | Permissible torque: 40 N·m
SHA170SV010 Frame: 170 mm | Hollow bore: 72 mm | Motor: Servo motor | Ratio: 1/10 (1-stage) | Permissible torque: 40 N·m
SHA170SV018 Frame: 170 mm | Hollow bore: 72 mm | Motor: Servo motor | Ratio: 1/18 (1-stage) | Permissible torque: 31 N·m
SHA170SV030 Frame: 170 mm | Hollow bore: 72 mm | Motor: Servo motor | Ratio: 1/30 (2-stage) | Permissible torque: 40 N·m
SHA170SV040 Frame: 170 mm | Hollow bore: 72 mm | Motor: Servo motor | Ratio: 1/40 (2-stage) | Permissible torque: 40 N·m
SHA170SV050 Frame: 170 mm | Hollow bore: 72 mm | Motor: Servo motor | Ratio: 1/50 (2-stage) | Permissible torque: 40 N·m
SHA200ST010 Frame: 200 mm | Hollow bore: 100 mm | Motor: Stepping motor | Ratio: 1/10 (1-stage) | Permissible torque: 65 N·m
SHA200ST018 Frame: 200 mm | Hollow bore: 100 mm | Motor: Stepping motor | Ratio: 1/18 (1-stage) | Permissible torque: 50 N·m
SHA200ST030 Frame: 200 mm | Hollow bore: 100 mm | Motor: Stepping motor | Ratio: 1/30 (2-stage) | Permissible torque: 65 N·m
SHA200ST040 Frame: 200 mm | Hollow bore: 100 mm | Motor: Stepping motor | Ratio: 1/40 (2-stage) | Permissible torque: 65 N·m
SHA200ST050 Frame: 200 mm | Hollow bore: 100 mm | Motor: Stepping motor | Ratio: 1/50 (2-stage) | Permissible torque: 65 N·m
SHA200SV010 Frame: 200 mm | Hollow bore: 100 mm | Motor: Servo motor | Ratio: 1/10 (1-stage) | Permissible torque: 65 N·m
SHA200SV018 Frame: 200 mm | Hollow bore: 100 mm | Motor: Servo motor | Ratio: 1/18 (1-stage) | Permissible torque: 50 N·m
SHA200SV030 Frame: 200 mm | Hollow bore: 100 mm | Motor: Servo motor | Ratio: 1/30 (2-stage) | Permissible torque: 65 N·m
SHA200SV040 Frame: 200 mm | Hollow bore: 100 mm | Motor: Servo motor | Ratio: 1/40 (2-stage) | Permissible torque: 65 N·m
SHA200SV050 Frame: 200 mm | Hollow bore: 100 mm | Motor: Servo motor | Ratio: 1/50 (2-stage) | Permissible torque: 65 N·m
