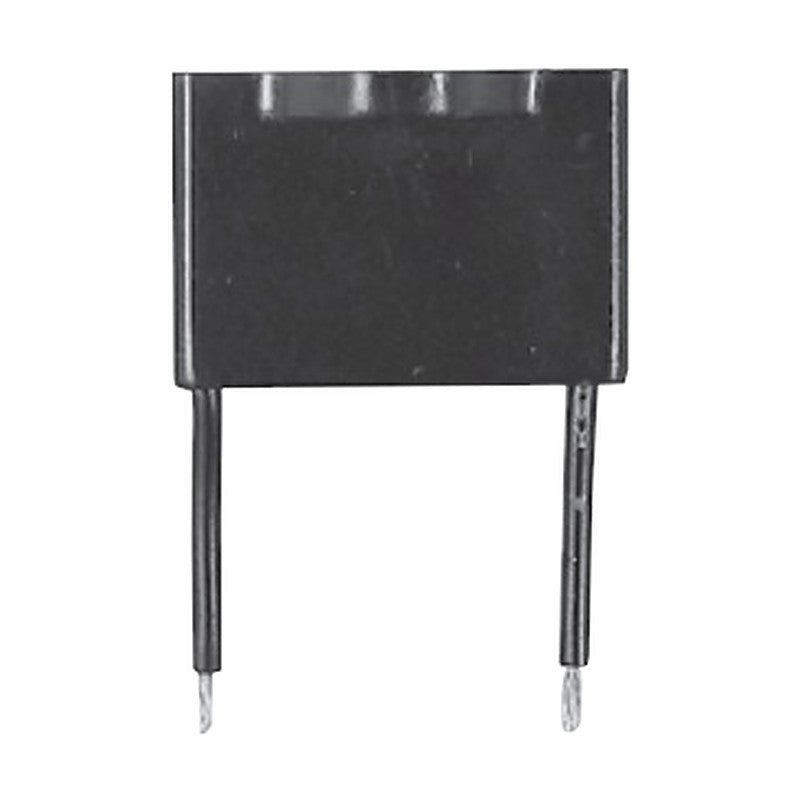

SPG SK1202 Surge Absorber CR Circuits (AC 250 / 500 V)

SPG SK1202 Surge Absorber CR Circuits (AC 250 / 500 V)

SPG SK1202 CR surge absorbers protect relay and switch contacts used for motor reversing and braking circuits.

Key features

  • Resistor-capacitor (CR) network of 120 Ohm and 0.2 uF
  • Absorbs surge voltage at relay/switch contacts during forward/reverse switching or instantaneous stop
  • Encapsulated block with 200 mm lead wires
  • Sold separately

Specifications

Resistance 120 Ohm
Capacitance 0.2 uF
Lead length D 200 mm
Source SPG Standard AC Geared Motor catalog, p. 372
SK1202-25 Voltage: 250 V AC | Body A x B x C: 26.0 x 16.5 x 8.5 mm | Lead wire: UL1007 AWG22
SK1202-50 Voltage: 500 V AC | Body A x B x C: 36.0 x 25.0 x 16.0 mm | Lead wire: UL1015 AWG20
Motor AccessoriesSPG
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SK1202 Surge Absorber CR Circuits (AC 250 / 500 V)

Brand SPG·Motor Accessories

Available part numbers (2)

SK1202-25, SK1202-50

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SK1202-25Voltage: 250 V AC | Body A x B x C: 26.0 x 16.5 x 8.5 mm | Lead wire: UL1007 AWG22
SK1202-50Voltage: 500 V AC | Body A x B x C: 36.0 x 25.0 x 16.0 mm | Lead wire: UL1015 AWG20
