SPG SMES Right-Angle Planetary Gearheads (Shaft Output, 60-140)

SPG SMES Right-Angle Planetary Gearheads (Shaft Output, 60-140)

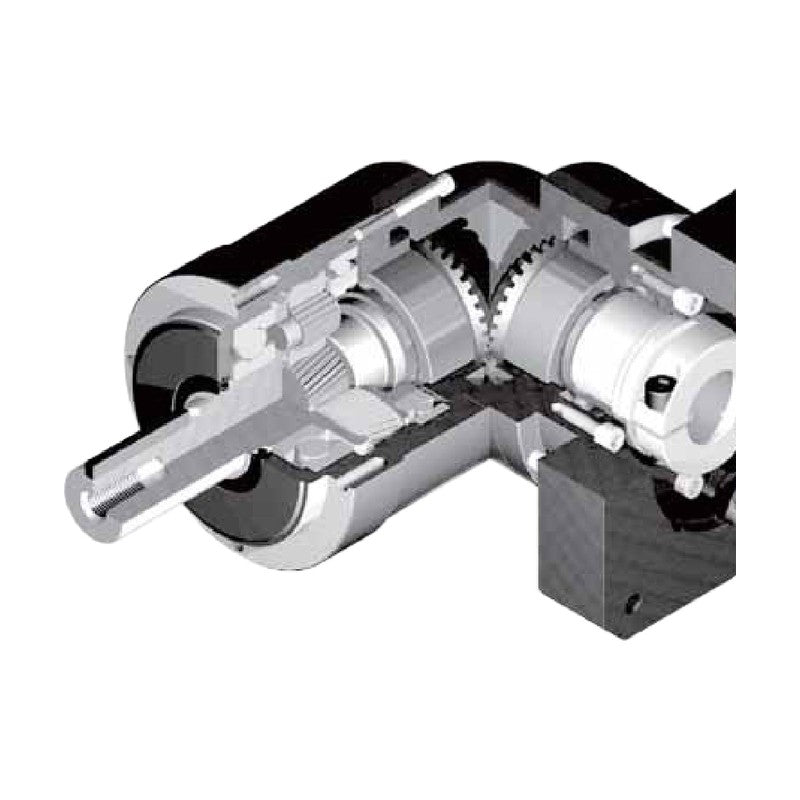

SPG SMES right-angle precision planetary gearheads with spiral bevel gearing and taper-roller-supported output shaft, frames 60 to 140.

Key features

  • Spiral bevel right-angle design places the motor at 90 degrees to save space
  • Taper roller bearings on the output shaft for higher radial and axial loads
  • Keyed (K) or smooth (S) output shaft
  • Uncaged needle roller bearings for high rigidity and torque
  • Adapter-bushing input fits servo motors worldwide; maintenance-free grease
  • 2-stage 1/3-1/10 and 3-stage 1/15-1/100 ratios

Specifications

Backlash class S (standard)
Rated output torque 30-580 Nm by frame and ratio
Efficiency >= 93% (2-stage), >= 90% (3-stage)
Max. acceleration torque 1.8 x rated output torque
Lubrication High-temp. extreme-pressure grease
Mounting position All directions
Protection IP65
Operating temperature -10 to +90 C
Service life 20,000 h
Motor mount Adapter-bushing; mount code on order
Source SPG SM Series Precision Planetary Gearhead catalog, p. 123-137
SMES060S003K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S003S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S004K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S004S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S005K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S005S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S006K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S006S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S007K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S007S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S008K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S008S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S009K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S009S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S010K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S010S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S015K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S015S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S016K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S016S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S020K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S020S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S025K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S025S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S028K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S028S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S030K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S030S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S035K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S035S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S040K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S040S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S045K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S045S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S050K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S050S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S060K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S060S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S070K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S070S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S080K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S080S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S090K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S090S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S100K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S100S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S003K Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S003S Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S004K Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S004S Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S005K Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S005S Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S006K Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S006S Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S007K Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S007S Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S008K Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S008S Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S009K Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S009S Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S010K Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S010S Frame: 75 mm (075) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S015K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S015S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S016K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S016S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S020K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S020S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S025K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S025S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S028K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S028S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S030K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S030S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S035K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S035S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S040K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S040S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S045K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S045S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S050K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S050S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S060K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S060S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S070K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S070S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S080K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S080S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S090K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S090S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S100K Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S100S Frame: 75 mm (075) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S003K Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S003S Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S004K Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S004S Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S005K Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S005S Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S006K Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S006S Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S007K Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S007S Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S008K Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S008S Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S009K Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S009S Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S010K Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S010S Frame: 100 mm (100) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S015K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S015S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S016K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S016S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S020K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S020S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S025K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S025S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S028K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S028S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S030K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S030S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S035K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S035S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S040K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S040S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S045K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S045S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S050K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S050S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S060K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S060S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S070K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S070S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S080K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S080S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S090K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S090S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S100K Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S100S Frame: 100 mm (100) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S003K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S003S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S004K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S004S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S005K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S005S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S006K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S006S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S007K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S007S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S008K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S008S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S009K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S009S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S010K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S010S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S015K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S015S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S016K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S016S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S020K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S020S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S025K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S025S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S028K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S028S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S030K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S030S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S035K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S035S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S040K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S040S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S045K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S045S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S050K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S050S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S060K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S060S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S070K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S070S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S080K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S080S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S090K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S090S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S100K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S100S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Smooth shaft (S)
Planetary GearboxesSPG
184 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SMES Right-Angle Planetary Gearheads (Shaft Output, 60-140)

Brand SPG·Planetary Gearboxes

Available part numbers (184)

SMES060S003K, SMES060S003S, SMES060S004K, SMES060S004S, SMES060S005K, SMES060S005S, SMES060S006K, SMES060S006S, SMES060S007K, SMES060S007S + 174 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMES060S003KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S003SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S004KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S004SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S005KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S005SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S006KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S006SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S007KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S007SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S008KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S008SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S009KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S009SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S010KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES060S010SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES060S015KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S015SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S016KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S016SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S020KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S020SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S025KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S025SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S028KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S028SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S030KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S030SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S035KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S035SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S040KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S040SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S045KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S045SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S050KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S050SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S060KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S060SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S070KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S070SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S080KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S080SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S090KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S090SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES060S100KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES060S100SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S003KFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S003SFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S004KFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S004SFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S005KFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S005SFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S006KFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S006SFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S007KFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S007SFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S008KFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S008SFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S009KFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S009SFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S010KFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES075S010SFrame: 75 mm (075) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES075S015KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S015SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S016KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S016SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S020KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S020SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S025KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S025SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S028KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S028SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S030KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S030SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S035KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S035SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S040KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S040SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S045KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S045SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S050KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S050SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S060KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S060SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S070KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S070SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S080KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S080SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S090KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S090SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES075S100KFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES075S100SFrame: 75 mm (075) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S003KFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S003SFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S004KFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S004SFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S005KFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S005SFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S006KFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S006SFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S007KFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S007SFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S008KFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S008SFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S009KFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S009SFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S010KFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES100S010SFrame: 100 mm (100) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES100S015KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S015SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S016KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S016SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S020KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S020SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S025KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S025SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S028KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S028SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S030KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S030SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S035KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S035SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S040KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S040SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S045KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S045SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S050KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S050SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S060KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S060SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S070KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S070SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S080KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S080SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S090KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S090SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES100S100KFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES100S100SFrame: 100 mm (100) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S003KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S003SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/3 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S004KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S004SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/4 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S005KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S005SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/5 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S006KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S006SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/6 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S007KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S007SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/7 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S008KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S008SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/8 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S009KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S009SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/9 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S010KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Keyed shaft (K)
SMES140S010SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/10 | Backlash: 6 arcmin | Output: Smooth shaft (S)
SMES140S015KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S015SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/15 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S016KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S016SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/16 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S020KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S020SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/20 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S025KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S025SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/25 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S028KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S028SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/28 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S030KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S030SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/30 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S035KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S035SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/35 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S040KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S040SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/40 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S045KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S045SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/45 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S050KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S050SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/50 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S060KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S060SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/60 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S070KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S070SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/70 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S080KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S080SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/80 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S090KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S090SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/90 | Backlash: 9 arcmin | Output: Smooth shaft (S)
SMES140S100KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Keyed shaft (K)
SMES140S100SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/100 | Backlash: 9 arcmin | Output: Smooth shaft (S)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
