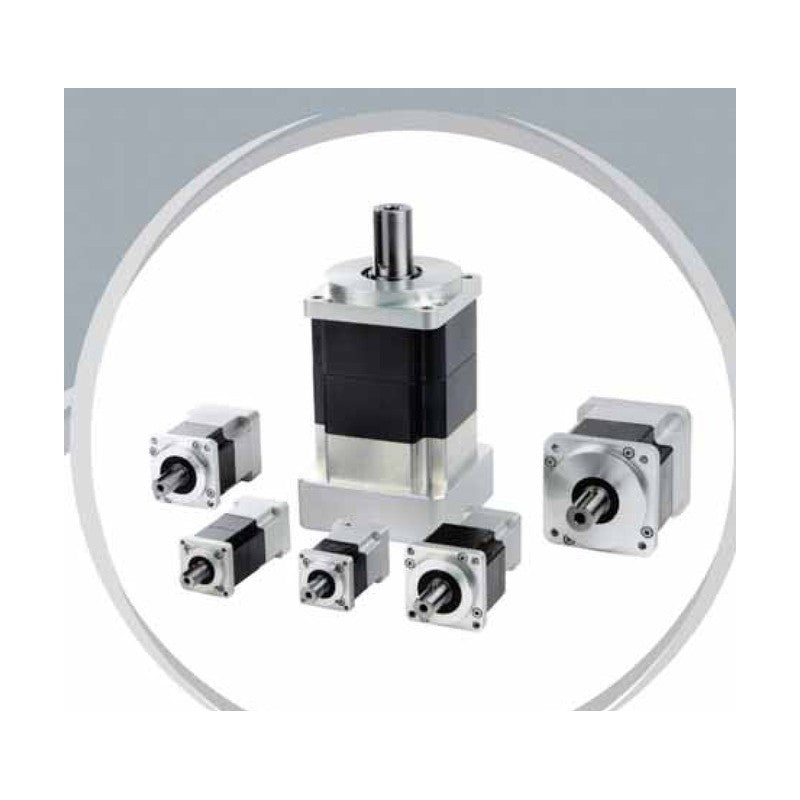

SPG SPI In-Line Spur Planetary Gearheads (42-115, 1/3-1/100)

SPG SPI In-Line Spur Planetary Gearheads (42-115, 1/3-1/100)

SPG SPI spur-gear in-line precision planetary gearheads for servo motors, in frame sizes 42-115 mm with 1- and 2-stage ratios.

Key features

  • Spur gear planetary design for servo motors, in-line configuration
  • Frame sizes 42 to 115 mm square, 1- and 2-stage
  • Reduction ratios 1/3-1/100 as printed in the specification table
  • Down-size (D) input frame for smaller servo motors on 2-stage ratios
  • Input adapter flange for Mitsubishi, Yaskawa, Tamagawa, HIGEN, LS (A), Panasonic (B), Rockwell (C)
  • IP65 sealed, high-temperature extreme-pressure grease, any mounting position

Specifications

Gear type Spur planetary, in-line
Backlash (1-/2-stage) Standard (S): 10/13 arcmin
Nominal input speed 3,000 rpm
Max. input speed 6,000 rpm (042/060), 5,000 rpm (090+)
Efficiency >= 97% (1-stage), >= 94% (2-stage)
Service life 20,000 h
Protection IP65
Operating temperature -10 to +90 C
Lubrication High-temp. extreme-pressure grease
Motor mount Adapter flange A/B/C on order
Source SPG Planetary Gearhead catalog, p. 22-25
SPI042S003S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI042S003K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI042S004S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI042S004K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI042S005S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI042S005K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI042S007S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI042S007K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI042S009S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI042S009K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI042S010S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI042S010K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI042S015S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S015K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S020S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S020K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S025S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S025K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S030S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S030K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S035S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S035K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S040S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S040K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S045S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S045K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S050S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S050K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S063S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S063K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S070S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S070K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S081S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S081K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S090S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S090K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S100S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S100K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S003S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S003K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S004S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S004K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S005S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S005K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S006S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S006K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S007S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S007K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S008S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S008K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S009S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S009K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S010S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S010K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S015S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S015K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S020S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S020K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S025S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S025K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S030S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S030K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S035S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S035K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S040S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S040K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S045S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S045K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S050S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S050K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S063S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S063K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S070S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S070K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S081S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S081K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S090S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S090K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S100S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S100K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S003S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S003K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S004S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S004K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S005S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S005K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S006S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S006K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S007S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S007K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S008S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S008K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S009S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S009K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S010S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S010K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S015S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S015K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S020S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S020K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S025S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S025K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S030S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S030K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S035S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S035K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S040S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S040K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S045S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S045K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S050S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S050K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S063S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S063K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S070S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S070K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S081S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S081K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S090S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S090K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S100S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S100K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S003S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI115S003K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI115S004S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI115S004K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI115S005S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI115S005K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI115S007S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI115S007K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI115S009S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI115S009K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI115S010S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI115S010K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI115S015S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S015K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S020S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S020K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S025S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S025K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S030S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S030K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S035S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S035K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S040S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S040K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S045S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S045K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S050S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S050K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S063S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S063K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S070S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S070K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S081S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S081K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S090S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S090K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S100S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S100K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS015S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS015K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS020S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS020K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS025S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS025K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS030S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS030K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS035S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS035K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS040S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS040K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS045S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS045K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS050S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS050K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS063S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS063K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS070S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS070K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS081S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS081K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS090S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS090K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS100S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS100K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS015S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS015K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS020S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS020K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS025S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS025K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS030S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS030K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS035S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS035K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS040S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS040K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS045S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS045K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS050S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS050K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS063S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS063K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS070S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS070K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS081S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS081K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS090S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS090K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS100S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS100K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS015S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS015K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS020S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS020K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS025S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS025K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS030S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS030K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS035S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS035K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS040S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS040K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS045S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS045K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS050S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS050K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS063S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS063K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS070S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS070K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS081S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS081K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS090S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS090K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS100S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS100K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
Planetary GearboxesSPG
238 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SPI In-Line Spur Planetary Gearheads (42-115, 1/3-1/100)

Brand SPG·Planetary Gearboxes

Available part numbers (238)

SPI042S003S, SPI042S003K, SPI042S004S, SPI042S004K, SPI042S005S, SPI042S005K, SPI042S007S, SPI042S007K, SPI042S009S, SPI042S009K + 228 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPI042S003SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI042S003KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI042S004SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI042S004KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI042S005SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI042S005KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI042S007SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI042S007KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI042S009SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI042S009KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI042S010SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI042S010KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI042S015SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S015KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S020SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S020KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S025SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S025KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S030SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S030KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S035SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S035KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S040SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S040KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S045SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S045KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S050SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S050KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S063SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S063KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S070SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S070KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S081SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S081KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S090SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S090KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI042S100SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI042S100KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S003SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S003KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S004SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S004KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S005SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S005KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S006SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S006KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S007SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S007KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S008SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S008KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S009SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S009KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S010SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI060S010KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI060S015SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S015KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S020SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S020KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S025SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S025KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S030SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S030KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S035SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S035KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S040SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S040KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S045SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S045KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S050SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S050KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S063SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S063KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S070SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S070KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S081SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S081KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S090SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S090KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060S100SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060S100KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S003SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S003KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S004SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S004KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S005SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S005KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S006SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S006KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S007SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S007KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S008SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S008KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S009SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S009KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S010SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI090S010KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI090S015SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S015KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S020SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S020KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S025SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S025KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S030SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S030KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S035SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S035KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S040SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S040KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S045SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S045KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S050SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S050KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S063SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S063KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S070SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S070KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S081SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S081KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S090SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S090KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090S100SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090S100KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S003SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI115S003KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI115S004SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI115S004KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI115S005SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI115S005KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI115S007SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI115S007KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI115S009SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI115S009KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI115S010SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPI115S010KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPI115S015SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S015KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S020SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S020KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S025SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S025KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S030SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S030KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S035SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S035KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S040SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S040KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S045SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S045KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S050SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S050KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S063SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S063KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S070SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S070KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S081SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S081KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S090SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S090KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115S100SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115S100KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS015SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS015KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS020SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS020KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS025SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS025KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS030SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS030KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS035SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS035KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS040SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS040KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS045SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS045KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS050SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS050KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS063SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS063KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS070SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS070KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS081SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS081KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS090SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS090KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI060DS100SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI060DS100KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS015SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS015KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS020SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS020KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS025SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS025KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS030SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS030KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS035SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS035KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS040SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS040KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS045SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS045KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS050SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS050KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS063SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS063KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS070SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS070KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS081SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS081KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS090SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS090KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI090DS100SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI090DS100KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS015SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS015KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS020SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS020KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS025SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS025KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS030SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS030KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS035SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS035KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS040SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS040KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS045SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS045KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS050SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS050KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS063SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS063KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS070SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS070KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS081SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS081KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS090SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS090KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPI115DS100SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPI115DS100KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
