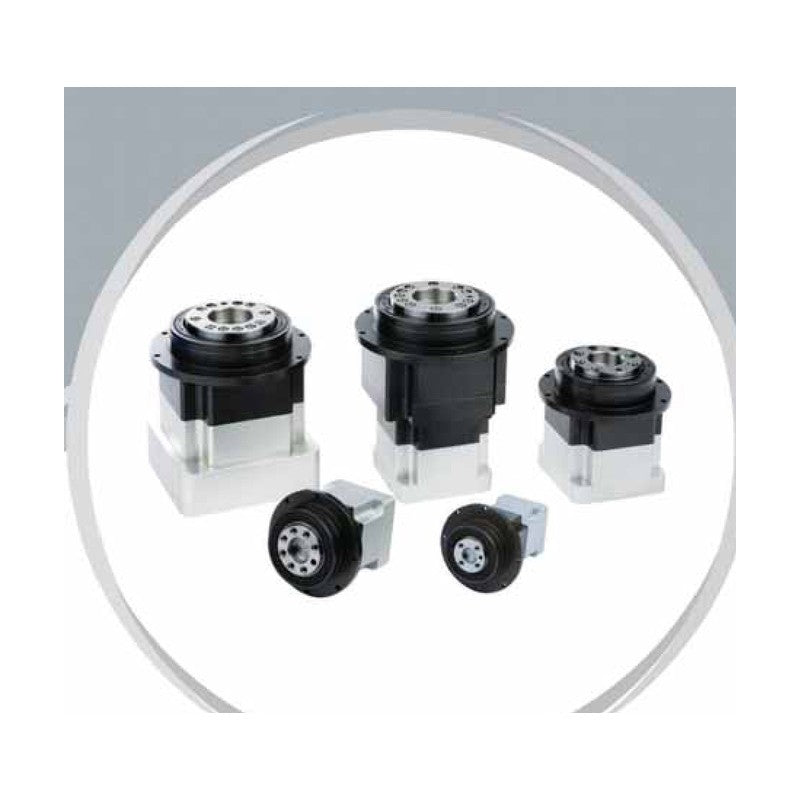

SPG SPIFH In-Line Flange Helical Gearheads (42-220, 1/4-1/100)

SPG SPIFH In-Line Flange Helical Gearheads (42-220, 1/4-1/100)

SPG SPIFH helical-gear in-line precision planetary gearheads for servo motors, in frame sizes 42-220 mm with 1- and 2-stage ratios.

Key features

  • Helical gear planetary design for servo motors, in-line configuration
  • Frame sizes 42 to 220 mm square, 1- and 2-stage
  • Reduction ratios 1/4-1/100 as printed in the specification table
  • Flange output shaft (F) for direct mounting of pinions and rotary loads
  • Input adapter flange for Mitsubishi, Yaskawa, Tamagawa, HIGEN, LS (A), Panasonic (B), Rockwell (C)
  • IP65 sealed, high-temperature extreme-pressure grease, any mounting position

Specifications

Gear type Helical planetary, in-line
Output Flange output shaft (F)
Backlash (1-/2-stage) Precision (P): 3/5, Standard (S): 5/7
Nominal input speed 3,000 rpm
Max. input speed 6,000 rpm (042/060), 5,000 rpm (090+)
Efficiency >= 97% (1-stage), >= 94% (2-stage)
Service life 30,000 h
Protection IP65
Operating temperature -10 to +90 C
Lubrication High-temp. extreme-pressure grease
Motor mount Adapter flange A/B/C on order
Source SPG Planetary Gearhead catalog, p. 14-17
SPIFH042P004F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH042S004F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH042P005F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH042S005F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH042P007F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH042S007F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH042P010F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH042S010F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH042P016F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S016F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P020F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S020F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P025F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S025F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P035F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S035F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P040F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S040F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P050F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S050F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P070F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S070F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P100F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S100F Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P004F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH060S004F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH060P005F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH060S005F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH060P007F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH060S007F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH060P010F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH060S010F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH060P016F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S016F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P020F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S020F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P025F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S025F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P035F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S035F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P040F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S040F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P050F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S050F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P070F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S070F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P100F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S100F Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P004F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH090S004F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH090P005F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH090S005F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH090P007F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH090S007F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH090P010F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH090S010F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH090P016F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S016F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P020F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S020F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P025F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S025F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P035F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S035F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P040F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S040F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P050F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S050F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P070F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S070F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P100F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S100F Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P004F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH115S004F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH115P005F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH115S005F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH115P007F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH115S007F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH115P010F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH115S010F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH115P016F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S016F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P020F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S020F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P025F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S025F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P035F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S035F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P040F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S040F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P050F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S050F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P070F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S070F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P100F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S100F Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142P004F Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH142S004F Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH142P005F Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH142S005F Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH142P007F Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH142S007F Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH142P010F Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH142S010F Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH180P004F Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH180S004F Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH180P005F Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH180S005F Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH180P007F Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH180S007F Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH180P010F Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH180S010F Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH220P004F Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH220S004F Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH220P005F Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH220S005F Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH220P007F Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH220S007F Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH220P010F Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH220S010F Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH060DP016F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS016F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP020F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS020F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP025F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS025F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP035F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS035F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP040F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS040F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP050F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS050F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP070F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS070F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP100F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS100F Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP016F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS016F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP020F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS020F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP025F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS025F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP035F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS035F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP040F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS040F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP050F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS050F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP070F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS070F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP100F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS100F Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP016F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS016F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP020F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS020F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP025F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS025F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP035F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS035F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP040F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS040F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP050F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS050F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP070F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS070F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP100F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS100F Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP016F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS016F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP020F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS020F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP025F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS025F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP035F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS035F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP040F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS040F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP050F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS050F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP070F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS070F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP100F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS100F Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP016F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS016F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP020F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS020F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP025F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS025F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP035F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS035F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP040F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS040F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP050F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS050F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP070F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS070F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP100F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS100F Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP016F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS016F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP020F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS020F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP025F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS025F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP035F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS035F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP040F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS040F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP050F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS050F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP070F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS070F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP100F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS100F Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
Planetary GearboxesSPG
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SPIFH In-Line Flange Helical Gearheads (42-220, 1/4-1/100)

Brand SPG·Planetary Gearboxes

Available part numbers (216)

SPIFH042P004F, SPIFH042S004F, SPIFH042P005F, SPIFH042S005F, SPIFH042P007F, SPIFH042S007F, SPIFH042P010F, SPIFH042S010F, SPIFH042P016F, SPIFH042S016F + 206 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPIFH042P004FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH042S004FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH042P005FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH042S005FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH042P007FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH042S007FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH042P010FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH042S010FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH042P016FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S016FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P020FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S020FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P025FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S025FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P035FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S035FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P040FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S040FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P050FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S050FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P070FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S070FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH042P100FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH042S100FFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P004FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH060S004FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH060P005FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH060S005FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH060P007FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH060S007FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH060P010FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH060S010FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH060P016FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S016FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P020FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S020FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P025FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S025FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P035FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S035FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P040FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S040FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P050FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S050FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P070FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S070FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060P100FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060S100FFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P004FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH090S004FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH090P005FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH090S005FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH090P007FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH090S007FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH090P010FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH090S010FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH090P016FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S016FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P020FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S020FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P025FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S025FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P035FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S035FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P040FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S040FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P050FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S050FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P070FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S070FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090P100FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090S100FFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P004FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH115S004FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH115P005FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH115S005FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH115P007FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH115S007FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH115P010FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH115S010FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH115P016FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S016FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P020FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S020FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P025FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S025FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P035FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S035FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P040FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S040FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P050FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S050FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P070FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S070FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115P100FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115S100FFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142P004FFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH142S004FFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH142P005FFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH142S005FFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH142P007FFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH142S007FFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH142P010FFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH142S010FFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH180P004FFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH180S004FFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH180P005FFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH180S005FFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH180P007FFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH180S007FFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH180P010FFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH180S010FFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH220P004FFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH220S004FFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH220P005FFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH220S005FFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH220P007FFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH220S007FFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH220P010FFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin
SPIFH220S010FFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin
SPIFH060DP016FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS016FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP020FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS020FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP025FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS025FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP035FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS035FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP040FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS040FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP050FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS050FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP070FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS070FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH060DP100FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH060DS100FFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP016FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS016FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP020FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS020FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP025FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS025FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP035FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS035FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP040FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS040FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP050FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS050FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP070FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS070FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH090DP100FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH090DS100FFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP016FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS016FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP020FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS020FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP025FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS025FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP035FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS035FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP040FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS040FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP050FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS050FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP070FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS070FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH115DP100FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH115DS100FFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP016FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS016FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP020FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS020FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP025FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS025FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP035FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS035FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP040FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS040FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP050FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS050FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP070FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS070FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH142DP100FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH142DS100FFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP016FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS016FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP020FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS020FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP025FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS025FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP035FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS035FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP040FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS040FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP050FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS050FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP070FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS070FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH180DP100FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH180DS100FFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP016FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS016FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/16 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP020FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS020FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP025FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS025FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP035FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS035FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP040FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS040FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP050FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS050FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP070FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS070FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin
SPIFH220DP100FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin
SPIFH220DS100FFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
