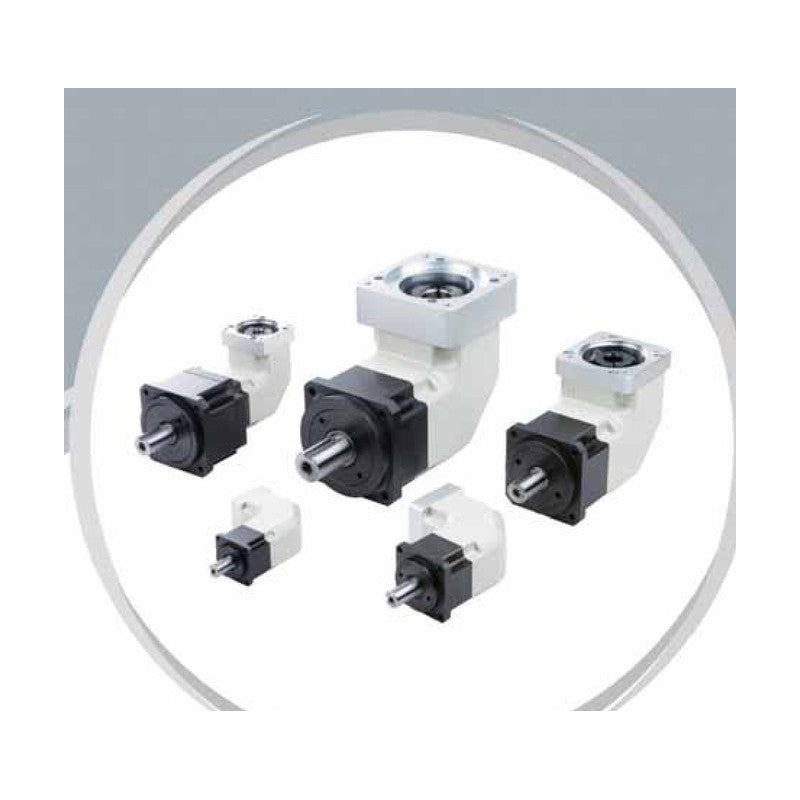

SPG SPLH Right-Angle Helical Planetary Gearheads (42-220, 1/3-1/100)

SPG SPLH Right-Angle Helical Planetary Gearheads (42-220, 1/3-1/100)

SPG SPLH helical-gear right angle precision planetary gearheads for servo motors, in frame sizes 42-220 mm with 1- and 2-stage ratios.

Key features

  • Helical gear planetary design for servo motors, right angle configuration
  • Frame sizes 42 to 220 mm square, 1- and 2-stage
  • Reduction ratios 1/3-1/100 as printed in the specification table
  • Down-size (D) input frame for smaller servo motors on 2-stage ratios
  • Input adapter flange for Mitsubishi, Yaskawa, Tamagawa, HIGEN, LS (A), Panasonic (B), Rockwell (C)
  • IP65 sealed, high-temperature extreme-pressure grease, any mounting position

Specifications

Gear type Helical planetary, right angle
Backlash (1-/2-stage) Precision (P): 5/8, Standard (S): 7/10
Nominal input speed 3,000 rpm
Max. input speed 6,000 rpm (042/060), 5,000 rpm (090+)
Efficiency >= 95% (1-stage), >= 92% (2-stage)
Service life 20,000 h
Protection IP65
Operating temperature -10 to +90 C
Lubrication High-temp. extreme-pressure grease
Motor mount Adapter flange A/B/C on order
Source SPG Planetary Gearhead catalog, p. 10-13
SPLH042P003S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P003K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S003S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S003K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P004S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P004K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S004S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S004K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P005S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P005K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S005S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S005K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P006S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P006K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S006S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S006K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P007S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P007K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S007S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S007K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P008S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P008K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S008S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S008K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P009S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P009K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S009S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S009K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P010S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P010K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S010S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S010K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P015S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P015K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S015S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S015K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P020S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P020K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S020S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S020K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P025S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P025K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S025S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S025K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P030S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P030K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S030S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S030K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P035S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P035K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S035S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S035K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P040S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P040K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S040S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S040K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P045S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P045K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S045S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S045K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P050S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P050K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S050S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S050K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P060S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P060K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S060S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S060K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P070S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P070K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S070S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S070K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P080S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P080K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S080S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S080K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P090S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P090K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S090S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S090K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P100S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P100K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S100S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S100K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P003S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P003K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S003S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S003K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P004S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P004K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S004S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S004K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P005S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P005K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S005S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S005K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P006S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P006K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S006S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S006K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P007S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P007K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S007S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S007K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P008S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P008K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S008S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S008K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P009S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P009K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S009S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S009K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P010S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P010K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S010S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S010K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P014S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P014K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S014S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S014K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P020S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P020K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S020S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S020K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P025S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P025K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S025S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S025K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P030S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P030K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S030S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S030K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P035S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P035K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S035S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S035K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P040S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P040K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S040S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S040K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P045S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P045K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S045S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S045K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P050S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P050K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S050S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S050K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P060S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P060K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S060S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S060K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P070S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P070K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S070S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S070K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P080S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P080K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S080S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S080K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P090S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P090K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S090S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S090K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P100S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P100K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S100S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S100K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P003S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P003K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S003S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S003K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P004S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P004K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S004S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S004K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P005S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P005K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S005S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S005K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P006S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P006K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S006S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S006K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P007S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P007K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S007S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S007K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P008S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P008K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S008S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S008K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P009S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P009K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S009S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S009K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P010S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P010K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S010S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S010K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P014S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P014K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S014S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S014K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P020S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P020K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S020S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S020K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P025S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P025K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S025S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S025K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P030S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P030K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S030S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S030K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P035S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P035K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S035S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S035K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P040S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P040K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S040S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S040K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P045S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P045K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S045S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S045K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P050S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P050K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S050S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S050K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P060S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P060K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S060S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S060K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P070S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P070K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S070S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S070K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P080S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P080K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S080S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S080K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P090S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P090K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S090S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S090K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P100S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P100K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S100S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S100K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P003S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P003K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S003S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S003K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P004S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P004K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S004S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S004K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P005S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P005K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S005S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S005K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P006S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P006K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S006S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S006K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P007S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P007K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S007S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S007K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P008S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P008K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S008S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S008K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P009S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P009K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S009S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S009K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P010S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P010K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S010S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S010K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P014S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P014K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S014S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S014K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P020S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P020K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S020S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S020K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P025S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P025K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S025S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S025K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P030S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P030K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S030S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S030K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P035S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P035K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S035S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S035K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P040S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P040K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S040S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S040K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P045S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P045K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S045S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S045K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P050S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P050K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S050S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S050K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P060S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P060K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S060S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S060K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P070S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P070K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S070S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S070K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P080S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P080K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S080S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S080K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P090S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P090K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S090S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S090K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P100S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P100K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S100S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S100K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142P003S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P003K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S003S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S003K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P004S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P004K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S004S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S004K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P005S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P005K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S005S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S005K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P006S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P006K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S006S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S006K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P007S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P007K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S007S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S007K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P008S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P008K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S008S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S008K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P009S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P009K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S009S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S009K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P010S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P010K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S010S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S010K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P014S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P014K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S014S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S014K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P020S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P020K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S020S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S020K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P003S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P003K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S003S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S003K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P004S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P004K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S004S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S004K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P005S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P005K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S005S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S005K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P006S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P006K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S006S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S006K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P007S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P007K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S007S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S007K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P008S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P008K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S008S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S008K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P009S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P009K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S009S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S009K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P010S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P010K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S010S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S010K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P014S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P014K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S014S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S014K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P020S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P020K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S020S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S020K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P003S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P003K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S003S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S003K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P004S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P004K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S004S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S004K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P005S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P005K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S005S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S005K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P006S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P006K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S006S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S006K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P007S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P007K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S007S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S007K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P008S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P008K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S008S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S008K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P009S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P009K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S009S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S009K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P010S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P010K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S010S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S010K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P014S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P014K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S014S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S014K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P020S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P020K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S020S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S020K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060DP025S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP025K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS025S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS025K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP030S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP030K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS030S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS030K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP035S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP035K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS035S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS035K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP040S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP040K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS040S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS040K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP045S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP045K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS045S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS045K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP050S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP050K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS050S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS050K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP060S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP060K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS060S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS060K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP070S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP070K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS070S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS070K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP080S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP080K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS080S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS080K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP090S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP090K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS090S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS090K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP100S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP100K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS100S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS100K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP025S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP025K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS025S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS025K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP030S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP030K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS030S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS030K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP035S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP035K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS035S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS035K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP040S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP040K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS040S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS040K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP045S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP045K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS045S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS045K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP050S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP050K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS050S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS050K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP060S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP060K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS060S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS060K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP070S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP070K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS070S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS070K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP080S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP080K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS080S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS080K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP090S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP090K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS090S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS090K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP100S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP100K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS100S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS100K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP025S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP025K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS025S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS025K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP030S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP030K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS030S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS030K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP035S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP035K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS035S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS035K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP040S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP040K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS040S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS040K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP045S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP045K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS045S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS045K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP050S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP050K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS050S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS050K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP060S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP060K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS060S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS060K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP070S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP070K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS070S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS070K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP080S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP080K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS080S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS080K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP090S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP090K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS090S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS090K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP100S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP100K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS100S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS100K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP025S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP025K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS025S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS025K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP030S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP030K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS030S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS030K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP035S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP035K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS035S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS035K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP040S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP040K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS040S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS040K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP045S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP045K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS045S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS045K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP050S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP050K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS050S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS050K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP060S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP060K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS060S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS060K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP070S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP070K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS070S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS070K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP080S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP080K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS080S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS080K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP090S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP090K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS090S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS090K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP100S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP100K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS100S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS100K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP025S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP025K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS025S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS025K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP030S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP030K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS030S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS030K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP035S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP035K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS035S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS035K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP040S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP040K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS040S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS040K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP045S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP045K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS045S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS045K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP050S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP050K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS050S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS050K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP060S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP060K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS060S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS060K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP070S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP070K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS070S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS070K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP080S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP080K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS080S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS080K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP090S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP090K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS090S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS090K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP100S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP100K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS100S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS100K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP025S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP025K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS025S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS025K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP030S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP030K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS030S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS030K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP035S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP035K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS035S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS035K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP040S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP040K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS040S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS040K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP045S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP045K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS045S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS045K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP050S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP050K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS050S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS050K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP060S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP060K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS060S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS060K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP070S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP070K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS070S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS070K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP080S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP080K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS080S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS080K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP090S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP090K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS090S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS090K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP100S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP100K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS100S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS100K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
Planetary GearboxesSPG
720 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SPLH Right-Angle Helical Planetary Gearheads (42-220, 1/3-1/100)

Brand SPG·Planetary Gearboxes

Available part numbers (720)

SPLH042P003S, SPLH042P003K, SPLH042S003S, SPLH042S003K, SPLH042P004S, SPLH042P004K, SPLH042S004S, SPLH042S004K, SPLH042P005S, SPLH042P005K + 710 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPLH042P003SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P003KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S003SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S003KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P004SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P004KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S004SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S004KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P005SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P005KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S005SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S005KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P006SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P006KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S006SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S006KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P007SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P007KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S007SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S007KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P008SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P008KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S008SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S008KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P009SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P009KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S009SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S009KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P010SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH042P010KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH042S010SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH042S010KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH042P015SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P015KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S015SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S015KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P020SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P020KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S020SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S020KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P025SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P025KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S025SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S025KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P030SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P030KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S030SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S030KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P035SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P035KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S035SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S035KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P040SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P040KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S040SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S040KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P045SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P045KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S045SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S045KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P050SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P050KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S050SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S050KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P060SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P060KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S060SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S060KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P070SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P070KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S070SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S070KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P080SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P080KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S080SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S080KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P090SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P090KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S090SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S090KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH042P100SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH042P100KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH042S100SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH042S100KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P003SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P003KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S003SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S003KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P004SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P004KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S004SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S004KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P005SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P005KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S005SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S005KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P006SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P006KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S006SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S006KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P007SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P007KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S007SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S007KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P008SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P008KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S008SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S008KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P009SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P009KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S009SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S009KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P010SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P010KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S010SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S010KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P014SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P014KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S014SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S014KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P020SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH060P020KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH060S020SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH060S020KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060P025SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P025KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S025SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S025KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P030SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P030KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S030SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S030KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P035SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P035KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S035SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S035KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P040SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P040KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S040SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S040KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P045SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P045KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S045SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S045KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P050SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P050KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S050SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S050KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P060SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P060KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S060SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S060KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P070SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P070KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S070SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S070KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P080SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P080KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S080SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S080KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P090SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P090KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S090SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S090KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060P100SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060P100KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060S100SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060S100KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P003SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P003KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S003SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S003KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P004SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P004KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S004SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S004KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P005SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P005KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S005SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S005KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P006SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P006KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S006SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S006KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P007SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P007KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S007SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S007KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P008SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P008KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S008SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S008KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P009SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P009KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S009SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S009KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P010SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P010KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S010SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S010KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P014SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P014KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S014SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S014KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P020SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH090P020KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH090S020SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH090S020KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH090P025SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P025KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S025SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S025KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P030SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P030KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S030SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S030KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P035SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P035KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S035SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S035KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P040SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P040KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S040SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S040KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P045SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P045KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S045SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S045KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P050SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P050KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S050SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S050KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P060SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P060KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S060SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S060KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P070SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P070KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S070SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S070KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P080SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P080KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S080SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S080KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P090SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P090KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S090SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S090KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090P100SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090P100KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090S100SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090S100KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P003SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P003KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S003SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S003KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P004SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P004KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S004SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S004KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P005SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P005KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S005SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S005KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P006SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P006KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S006SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S006KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P007SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P007KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S007SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S007KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P008SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P008KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S008SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S008KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P009SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P009KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S009SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S009KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P010SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P010KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S010SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S010KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P014SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P014KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S014SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S014KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P020SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH115P020KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH115S020SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH115S020KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH115P025SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P025KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S025SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S025KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P030SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P030KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S030SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S030KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P035SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P035KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S035SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S035KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P040SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P040KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S040SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S040KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P045SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P045KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S045SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S045KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P050SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P050KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S050SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S050KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P060SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P060KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S060SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S060KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P070SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P070KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S070SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S070KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P080SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P080KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S080SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S080KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P090SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P090KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S090SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S090KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115P100SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115P100KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115S100SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115S100KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142P003SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P003KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S003SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S003KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P004SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P004KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S004SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S004KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P005SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P005KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S005SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S005KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P006SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P006KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S006SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S006KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P007SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P007KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S007SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S007KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P008SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P008KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S008SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S008KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P009SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P009KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S009SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S009KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P010SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P010KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S010SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S010KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P014SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P014KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S014SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S014KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH142P020SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH142P020KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH142S020SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH142S020KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P003SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P003KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S003SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S003KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P004SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P004KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S004SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S004KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P005SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P005KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S005SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S005KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P006SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P006KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S006SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S006KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P007SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P007KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S007SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S007KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P008SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P008KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S008SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S008KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P009SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P009KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S009SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S009KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P010SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P010KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S010SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S010KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P014SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P014KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S014SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S014KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH180P020SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH180P020KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH180S020SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH180S020KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P003SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P003KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S003SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S003KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P004SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P004KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S004SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S004KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P005SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P005KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S005SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S005KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P006SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P006KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S006SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S006KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P007SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P007KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S007SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S007KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P008SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P008KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S008SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S008KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P009SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P009KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S009SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S009KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P010SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P010KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S010SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S010KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P014SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P014KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S014SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S014KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH220P020SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPLH220P020KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPLH220S020SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPLH220S020KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPLH060DP025SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP025KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS025SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS025KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP030SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP030KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS030SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS030KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP035SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP035KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS035SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS035KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP040SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP040KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS040SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS040KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP045SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP045KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS045SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS045KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP050SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP050KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS050SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS050KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP060SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP060KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS060SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS060KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP070SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP070KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS070SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS070KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP080SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP080KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS080SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS080KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP090SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP090KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS090SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS090KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH060DP100SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH060DP100KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH060DS100SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH060DS100KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP025SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP025KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS025SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS025KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP030SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP030KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS030SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS030KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP035SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP035KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS035SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS035KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP040SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP040KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS040SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS040KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP045SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP045KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS045SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS045KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP050SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP050KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS050SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS050KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP060SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP060KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS060SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS060KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP070SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP070KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS070SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS070KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP080SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP080KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS080SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS080KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP090SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP090KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS090SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS090KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH090DP100SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH090DP100KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH090DS100SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH090DS100KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP025SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP025KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS025SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS025KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP030SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP030KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS030SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS030KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP035SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP035KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS035SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS035KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP040SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP040KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS040SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS040KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP045SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP045KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS045SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS045KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP050SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP050KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS050SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS050KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP060SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP060KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS060SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS060KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP070SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP070KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS070SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS070KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP080SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP080KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS080SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS080KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP090SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP090KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS090SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS090KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH115DP100SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH115DP100KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH115DS100SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH115DS100KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP025SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP025KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS025SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS025KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP030SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP030KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS030SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS030KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP035SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP035KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS035SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS035KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP040SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP040KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS040SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS040KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP045SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP045KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS045SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS045KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP050SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP050KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS050SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS050KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP060SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP060KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS060SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS060KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP070SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP070KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS070SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS070KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP080SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP080KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS080SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS080KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP090SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP090KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS090SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS090KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH142DP100SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH142DP100KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH142DS100SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH142DS100KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP025SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP025KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS025SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS025KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP030SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP030KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS030SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS030KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP035SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP035KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS035SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS035KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP040SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP040KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS040SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS040KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP045SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP045KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS045SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS045KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP050SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP050KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS050SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS050KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP060SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP060KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS060SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS060KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP070SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP070KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS070SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS070KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP080SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP080KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS080SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS080KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP090SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP090KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS090SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS090KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH180DP100SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH180DP100KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH180DS100SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH180DS100KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP025SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP025KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS025SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS025KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP030SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP030KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS030SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS030KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP035SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP035KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS035SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS035KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP040SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP040KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS040SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS040KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP045SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP045KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS045SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS045KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP050SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP050KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS050SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS050KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP060SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP060KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS060SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS060KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP070SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP070KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS070SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS070KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP080SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP080KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS080SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS080KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP090SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP090KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS090SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS090KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)
SPLH220DP100SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Smooth (S)
SPLH220DP100KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 8 arcmin | Output shaft: Keyed (K)
SPLH220DS100SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Smooth (S)
SPLH220DS100KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 10 arcmin | Output shaft: Keyed (K)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
