SPG XFA BLDC Geared Motors (60/80/90 mm, 30-100 W, DC 24 V)

SPG XFA BLDC Geared Motors (60/80/90 mm, 30-100 W, DC 24 V)

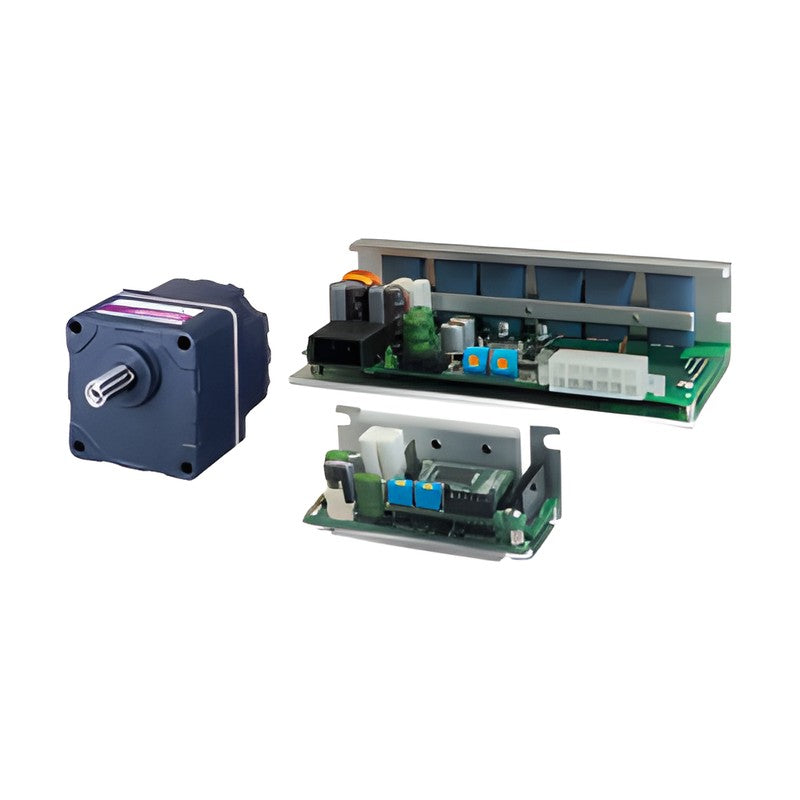

SPG X-TOR XFA series DC 24 V brushless DC geared motors with compact board-type driver, 30-100 W in 60, 80 and 90 mm frames.

Key features

  • Combination type: dedicated XTG gearhead factory-assembled to the motor
  • Speed control 200-3,000 r/min (1:15) with speed regulation within ±0.5%
  • Speed set by built-in potentiometer, external 20 kΩ potentiometer or DC 0-5 V
  • Slow run / slow stop 0.5-10 s; C-MOS inputs, open-collector speed and alarm outputs
  • Protection: overload, motor lock, open phase (sensor), low/over voltage and overspeed
  • Ordered as Combi (XFA), Unit motor+driver (XFU) or motor only (XFM); driver XFD sold separately

Specifications

Series X-TOR XFA
Supply voltage DC 24 V
Rated speed 2,500 r/min
Speed control range 200-3,000 r/min (motor shaft)
Speed regulation ±0.5% or less (load, voltage, temperature)
Max. extension distance 2 m (with extension cable)
Insulation class Class B (130 °C)
Rating Continuous
Protection Motor IP65 (excl. shaft side), driver IP00
Source SPG X-TOR BLDC Geared Motor catalog, p. 76-93
XFA630-5K Set: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:5 | Torque: 0.54 N·m perm. (40-500 r/min)
XFA630-10K Set: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:10 | Torque: 1.1 N·m perm. (20-250 r/min)
XFA630-15K Set: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:15 | Torque: 1.6 N·m perm. (13.4-167 r/min)
XFA630-20K Set: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:20 | Torque: 2.2 N·m perm. (10-125 r/min)
XFA630-30K Set: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:30 | Torque: 3.1 N·m perm. (6.6-83 r/min)
XFA630-50K Set: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:50 | Torque: 5.2 N·m perm. (4-50 r/min)
XFA630-100K Set: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:100 | Torque: 6 N·m perm. (2-25 r/min)
XFA630-200K Set: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:200 | Torque: 6 N·m perm. (1-12.5 r/min)
XFA850-5K Set: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:5 | Torque: 0.9 N·m perm. (40-500 r/min)
XFA850-10K Set: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:10 | Torque: 1.8 N·m perm. (20-250 r/min)
XFA850-15K Set: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:15 | Torque: 2.7 N·m perm. (13.4-167 r/min)
XFA850-20K Set: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:20 | Torque: 3.6 N·m perm. (10-125 r/min)
XFA850-30K Set: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:30 | Torque: 5.2 N·m perm. (6.6-83 r/min)
XFA850-50K Set: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:50 | Torque: 8.6 N·m perm. (4-50 r/min)
XFA850-100K Set: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:100 | Torque: 16 N·m perm. (2-25 r/min)
XFA850-200K Set: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:200 | Torque: 16 N·m perm. (1-12.5 r/min)
XFA9100-5K Set: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:5 | Torque: 1.8 N·m perm. (40-500 r/min)
XFA9100-10K Set: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:10 | Torque: 3.6 N·m perm. (20-250 r/min)
XFA9100-15K Set: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:15 | Torque: 5.4 N·m perm. (13.4-167 r/min)
XFA9100-20K Set: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:20 | Torque: 7.2 N·m perm. (10-125 r/min)
XFA9100-30K Set: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:30 | Torque: 10.3 N·m perm. (6.6-83 r/min)
XFA9100-50K Set: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:50 | Torque: 17.2 N·m perm. (4-50 r/min)
XFA9100-100K Set: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:100 | Torque: 30 N·m perm. (2-25 r/min)
XFA9100-200K Set: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:200 | Torque: 30 N·m perm. (1-12.5 r/min)
XFU630G Set: Unit: motor+driver | Frame: 60 mm | Output: 30 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.12 N·m rated (200-3,000 r/min)
XFU630D Set: Unit: motor+driver | Frame: 60 mm | Output: 30 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.12 N·m rated (200-3,000 r/min)
XFU850G Set: Unit: motor+driver | Frame: 80 mm | Output: 50 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.2 N·m rated (200-3,000 r/min)
XFU850D Set: Unit: motor+driver | Frame: 80 mm | Output: 50 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.2 N·m rated (200-3,000 r/min)
XFU9100G Set: Unit: motor+driver | Frame: 90 mm | Output: 100 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.4 N·m rated (200-3,000 r/min)
XFU9100D Set: Unit: motor+driver | Frame: 90 mm | Output: 100 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.4 N·m rated (200-3,000 r/min)
XFM630G Set: Motor only | Frame: 60 mm | Output: 30 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.12 N·m rated (200-3,000 r/min)
XFM630D Set: Motor only | Frame: 60 mm | Output: 30 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.12 N·m rated (200-3,000 r/min)
XFM850G Set: Motor only | Frame: 80 mm | Output: 50 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.2 N·m rated (200-3,000 r/min)
XFM850D Set: Motor only | Frame: 80 mm | Output: 50 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.2 N·m rated (200-3,000 r/min)
XFM9100G Set: Motor only | Frame: 90 mm | Output: 100 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.4 N·m rated (200-3,000 r/min)
XFM9100D Set: Motor only | Frame: 90 mm | Output: 100 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.4 N·m rated (200-3,000 r/min)
BLDC Geared MotorsSPG
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG XFA BLDC Geared Motors (60/80/90 mm, 30-100 W, DC 24 V)

Brand SPG·BLDC Geared Motors

Available part numbers (36)

XFA630-5K, XFA630-10K, XFA630-15K, XFA630-20K, XFA630-30K, XFA630-50K, XFA630-100K, XFA630-200K, XFA850-5K, XFA850-10K + 26 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XFA630-5KSet: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:5 | Torque: 0.54 N·m perm. (40-500 r/min)
XFA630-10KSet: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:10 | Torque: 1.1 N·m perm. (20-250 r/min)
XFA630-15KSet: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:15 | Torque: 1.6 N·m perm. (13.4-167 r/min)
XFA630-20KSet: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:20 | Torque: 2.2 N·m perm. (10-125 r/min)
XFA630-30KSet: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:30 | Torque: 3.1 N·m perm. (6.6-83 r/min)
XFA630-50KSet: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:50 | Torque: 5.2 N·m perm. (4-50 r/min)
XFA630-100KSet: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:100 | Torque: 6 N·m perm. (2-25 r/min)
XFA630-200KSet: Combi: motor+gearhead+driver | Frame: 60 mm | Output: 30 W | Output shaft: Key (gearhead) | Gear ratio: 1:200 | Torque: 6 N·m perm. (1-12.5 r/min)
XFA850-5KSet: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:5 | Torque: 0.9 N·m perm. (40-500 r/min)
XFA850-10KSet: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:10 | Torque: 1.8 N·m perm. (20-250 r/min)
XFA850-15KSet: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:15 | Torque: 2.7 N·m perm. (13.4-167 r/min)
XFA850-20KSet: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:20 | Torque: 3.6 N·m perm. (10-125 r/min)
XFA850-30KSet: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:30 | Torque: 5.2 N·m perm. (6.6-83 r/min)
XFA850-50KSet: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:50 | Torque: 8.6 N·m perm. (4-50 r/min)
XFA850-100KSet: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:100 | Torque: 16 N·m perm. (2-25 r/min)
XFA850-200KSet: Combi: motor+gearhead+driver | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:200 | Torque: 16 N·m perm. (1-12.5 r/min)
XFA9100-5KSet: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:5 | Torque: 1.8 N·m perm. (40-500 r/min)
XFA9100-10KSet: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:10 | Torque: 3.6 N·m perm. (20-250 r/min)
XFA9100-15KSet: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:15 | Torque: 5.4 N·m perm. (13.4-167 r/min)
XFA9100-20KSet: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:20 | Torque: 7.2 N·m perm. (10-125 r/min)
XFA9100-30KSet: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:30 | Torque: 10.3 N·m perm. (6.6-83 r/min)
XFA9100-50KSet: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:50 | Torque: 17.2 N·m perm. (4-50 r/min)
XFA9100-100KSet: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:100 | Torque: 30 N·m perm. (2-25 r/min)
XFA9100-200KSet: Combi: motor+gearhead+driver | Frame: 90 mm | Output: 100 W | Output shaft: Key (gearhead) | Gear ratio: 1:200 | Torque: 30 N·m perm. (1-12.5 r/min)
XFU630GSet: Unit: motor+driver | Frame: 60 mm | Output: 30 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.12 N·m rated (200-3,000 r/min)
XFU630DSet: Unit: motor+driver | Frame: 60 mm | Output: 30 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.12 N·m rated (200-3,000 r/min)
XFU850GSet: Unit: motor+driver | Frame: 80 mm | Output: 50 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.2 N·m rated (200-3,000 r/min)
XFU850DSet: Unit: motor+driver | Frame: 80 mm | Output: 50 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.2 N·m rated (200-3,000 r/min)
XFU9100GSet: Unit: motor+driver | Frame: 90 mm | Output: 100 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.4 N·m rated (200-3,000 r/min)
XFU9100DSet: Unit: motor+driver | Frame: 90 mm | Output: 100 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.4 N·m rated (200-3,000 r/min)
XFM630GSet: Motor only | Frame: 60 mm | Output: 30 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.12 N·m rated (200-3,000 r/min)
XFM630DSet: Motor only | Frame: 60 mm | Output: 30 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.12 N·m rated (200-3,000 r/min)
XFM850GSet: Motor only | Frame: 80 mm | Output: 50 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.2 N·m rated (200-3,000 r/min)
XFM850DSet: Motor only | Frame: 80 mm | Output: 50 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.2 N·m rated (200-3,000 r/min)
XFM9100GSet: Motor only | Frame: 90 mm | Output: 100 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.4 N·m rated (200-3,000 r/min)
XFM9100DSet: Motor only | Frame: 90 mm | Output: 100 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.4 N·m rated (200-3,000 r/min)
