SPG XGVA BLDC Geared Motors (80/90 mm, 50-130 W, 200-240 V)

SPG XGVA BLDC Geared Motors (80/90 mm, 50-130 W, 200-240 V)

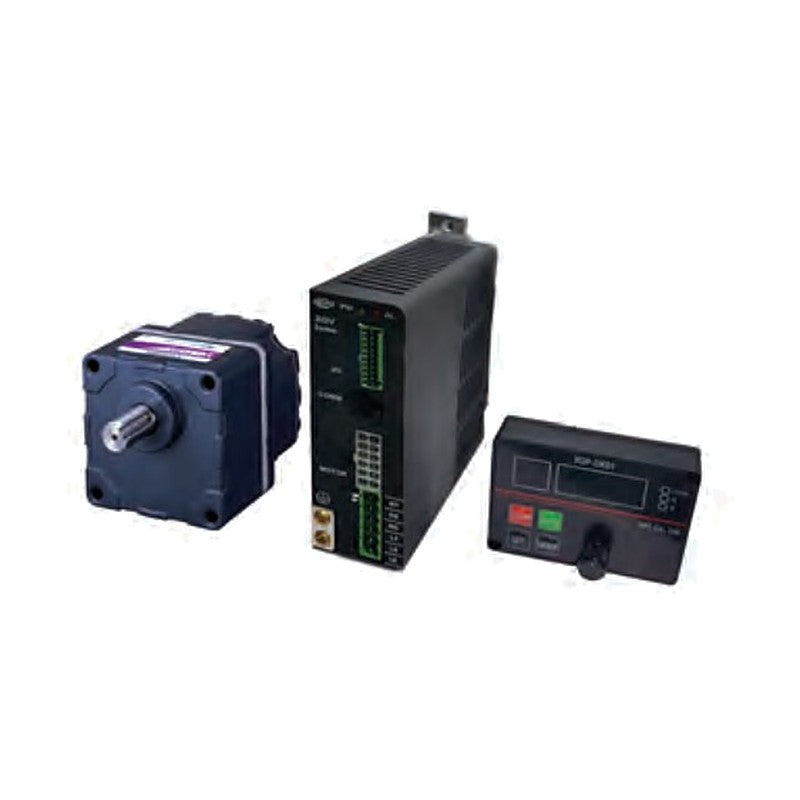

SPG X-TOR XGVA series brushless DC geared motors with box-type control unit, 50-130 W in 80 and 90 mm frames, for single- or three-phase 200-240 V supply.

Key features

  • Combination type: dedicated XTG gearhead factory-assembled to the motor for simple installation
  • Speed control 200-4,000 r/min (1:20) with flat torque; speed regulation within ±1% for load, voltage and temperature
  • Slow run / slow stop, multi-step speed setting and instantaneous stop functions
  • RS-485 communication (2400/4800/9600 bps, up to 31 units); optional XOP-DK01 digital keypad
  • Motor IP66 (excluding shaft side); motor-to-driver extension up to 10.5 m with option cable
  • Ordered as Combi (XGVA), Unit motor+control unit (XGVU) or motor only (XGVM); control unit XGVD sold separately

Specifications

Series X-TOR XGVA
Voltage code U = single/three phase 200-240 V, 50/60 Hz
Rated speed 3,000 r/min
Speed control range 200-4,000 r/min (motor shaft)
Speed regulation ±1% or less (load, voltage, temperature)
Input / output signals Photocoupler input DC 5 V; open-collector output
Insulation class Class B (130 °C)
Rating Continuous
Protection Motor IP66 (excl. shaft side), control unit IP20
Source SPG X-TOR BLDC Geared Motor catalog, p. 64-74
XGVA850U-5K Set: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:5 | Torque: 0.72 N·m perm. (40-800 r/min)
XGVA850U-10K Set: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:10 | Torque: 1.44 N·m perm. (20-400 r/min)
XGVA850U-15K Set: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:15 | Torque: 2.16 N·m perm. (13.4-267 r/min)
XGVA850U-20K Set: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:20 | Torque: 2.88 N·m perm. (10-200 r/min)
XGVA850U-30K Set: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:30 | Torque: 4.32 N·m perm. (6.7-133 r/min)
XGVA850U-50K Set: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:50 | Torque: 7.2 N·m perm. (4-80 r/min)
XGVA850U-100K Set: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:100 | Torque: 14.4 N·m perm. (2-40 r/min)
XGVA850U-200K Set: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:200 | Torque: 16 N·m perm. (1-20 r/min)
XGVA990U-5K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:5 | Torque: 1.35 N·m perm. (40-800 r/min)
XGVA990U-10K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:10 | Torque: 2.7 N·m perm. (20-400 r/min)
XGVA990U-15K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:15 | Torque: 4.05 N·m perm. (13.4-267 r/min)
XGVA990U-20K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:20 | Torque: 5.4 N·m perm. (10-200 r/min)
XGVA990U-30K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:30 | Torque: 8.1 N·m perm. (6.7-133 r/min)
XGVA990U-50K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:50 | Torque: 13.5 N·m perm. (4-80 r/min)
XGVA990U-100K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:100 | Torque: 27 N·m perm. (2-40 r/min)
XGVA990U-200K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:200 | Torque: 30 N·m perm. (1-20 r/min)
XGVA9130U-5K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:5 | Torque: 1.84 N·m perm. (40-800 r/min)
XGVA9130U-10K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:10 | Torque: 3.69 N·m perm. (20-400 r/min)
XGVA9130U-15K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:15 | Torque: 5.53 N·m perm. (13.4-267 r/min)
XGVA9130U-20K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:20 | Torque: 7.38 N·m perm. (10-200 r/min)
XGVA9130U-30K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:30 | Torque: 11.07 N·m perm. (6.7-133 r/min)
XGVA9130U-50K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:50 | Torque: 18.45 N·m perm. (4-80 r/min)
XGVA9130U-100K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:100 | Torque: 30 N·m perm. (2-40 r/min)
XGVA9130U-200K Set: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:200 | Torque: 30 N·m perm. (1-20 r/min)
XGVU850GU Set: Unit: motor+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.16 N·m rated (200-4,000 r/min)
XGVU850DU Set: Unit: motor+control unit | Frame: 80 mm | Output: 50 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.16 N·m rated (200-4,000 r/min)
XGVU990GU Set: Unit: motor+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.3 N·m rated (200-4,000 r/min)
XGVU990DU Set: Unit: motor+control unit | Frame: 90 mm | Output: 90 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.3 N·m rated (200-4,000 r/min)
XGVU9130GU Set: Unit: motor+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.41 N·m rated (200-4,000 r/min)
XGVU9130DU Set: Unit: motor+control unit | Frame: 90 mm | Output: 130 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.41 N·m rated (200-4,000 r/min)
XGVM850G Set: Motor only | Frame: 80 mm | Output: 50 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.16 N·m rated (200-4,000 r/min)
XGVM850D Set: Motor only | Frame: 80 mm | Output: 50 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.16 N·m rated (200-4,000 r/min)
XGVM990G Set: Motor only | Frame: 90 mm | Output: 90 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.3 N·m rated (200-4,000 r/min)
XGVM990D Set: Motor only | Frame: 90 mm | Output: 90 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.3 N·m rated (200-4,000 r/min)
XGVM9130G Set: Motor only | Frame: 90 mm | Output: 130 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.41 N·m rated (200-4,000 r/min)
XGVM9130D Set: Motor only | Frame: 90 mm | Output: 130 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.41 N·m rated (200-4,000 r/min)
BLDC Geared MotorsSPG
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG XGVA BLDC Geared Motors (80/90 mm, 50-130 W, 200-240 V)

Brand SPG·BLDC Geared Motors

Available part numbers (36)

XGVA850U-5K, XGVA850U-10K, XGVA850U-15K, XGVA850U-20K, XGVA850U-30K, XGVA850U-50K, XGVA850U-100K, XGVA850U-200K, XGVA990U-5K, XGVA990U-10K + 26 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XGVA850U-5KSet: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:5 | Torque: 0.72 N·m perm. (40-800 r/min)
XGVA850U-10KSet: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:10 | Torque: 1.44 N·m perm. (20-400 r/min)
XGVA850U-15KSet: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:15 | Torque: 2.16 N·m perm. (13.4-267 r/min)
XGVA850U-20KSet: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:20 | Torque: 2.88 N·m perm. (10-200 r/min)
XGVA850U-30KSet: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:30 | Torque: 4.32 N·m perm. (6.7-133 r/min)
XGVA850U-50KSet: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:50 | Torque: 7.2 N·m perm. (4-80 r/min)
XGVA850U-100KSet: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:100 | Torque: 14.4 N·m perm. (2-40 r/min)
XGVA850U-200KSet: Combi: motor+gearhead+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Key (gearhead) | Gear ratio: 1:200 | Torque: 16 N·m perm. (1-20 r/min)
XGVA990U-5KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:5 | Torque: 1.35 N·m perm. (40-800 r/min)
XGVA990U-10KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:10 | Torque: 2.7 N·m perm. (20-400 r/min)
XGVA990U-15KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:15 | Torque: 4.05 N·m perm. (13.4-267 r/min)
XGVA990U-20KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:20 | Torque: 5.4 N·m perm. (10-200 r/min)
XGVA990U-30KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:30 | Torque: 8.1 N·m perm. (6.7-133 r/min)
XGVA990U-50KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:50 | Torque: 13.5 N·m perm. (4-80 r/min)
XGVA990U-100KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:100 | Torque: 27 N·m perm. (2-40 r/min)
XGVA990U-200KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Key (gearhead) | Gear ratio: 1:200 | Torque: 30 N·m perm. (1-20 r/min)
XGVA9130U-5KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:5 | Torque: 1.84 N·m perm. (40-800 r/min)
XGVA9130U-10KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:10 | Torque: 3.69 N·m perm. (20-400 r/min)
XGVA9130U-15KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:15 | Torque: 5.53 N·m perm. (13.4-267 r/min)
XGVA9130U-20KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:20 | Torque: 7.38 N·m perm. (10-200 r/min)
XGVA9130U-30KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:30 | Torque: 11.07 N·m perm. (6.7-133 r/min)
XGVA9130U-50KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:50 | Torque: 18.45 N·m perm. (4-80 r/min)
XGVA9130U-100KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:100 | Torque: 30 N·m perm. (2-40 r/min)
XGVA9130U-200KSet: Combi: motor+gearhead+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Key (gearhead) | Gear ratio: 1:200 | Torque: 30 N·m perm. (1-20 r/min)
XGVU850GUSet: Unit: motor+control unit | Frame: 80 mm | Output: 50 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.16 N·m rated (200-4,000 r/min)
XGVU850DUSet: Unit: motor+control unit | Frame: 80 mm | Output: 50 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.16 N·m rated (200-4,000 r/min)
XGVU990GUSet: Unit: motor+control unit | Frame: 90 mm | Output: 90 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.3 N·m rated (200-4,000 r/min)
XGVU990DUSet: Unit: motor+control unit | Frame: 90 mm | Output: 90 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.3 N·m rated (200-4,000 r/min)
XGVU9130GUSet: Unit: motor+control unit | Frame: 90 mm | Output: 130 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.41 N·m rated (200-4,000 r/min)
XGVU9130DUSet: Unit: motor+control unit | Frame: 90 mm | Output: 130 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.41 N·m rated (200-4,000 r/min)
XGVM850GSet: Motor only | Frame: 80 mm | Output: 50 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.16 N·m rated (200-4,000 r/min)
XGVM850DSet: Motor only | Frame: 80 mm | Output: 50 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.16 N·m rated (200-4,000 r/min)
XGVM990GSet: Motor only | Frame: 90 mm | Output: 90 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.3 N·m rated (200-4,000 r/min)
XGVM990DSet: Motor only | Frame: 90 mm | Output: 90 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.3 N·m rated (200-4,000 r/min)
XGVM9130GSet: Motor only | Frame: 90 mm | Output: 130 W | Output shaft: Gear screw (pinion) | Gear ratio: None (motor shaft) | Torque: 0.41 N·m rated (200-4,000 r/min)
XGVM9130DSet: Motor only | Frame: 90 mm | Output: 130 W | Output shaft: D-cut | Gear ratio: None (motor shaft) | Torque: 0.41 N·m rated (200-4,000 r/min)
