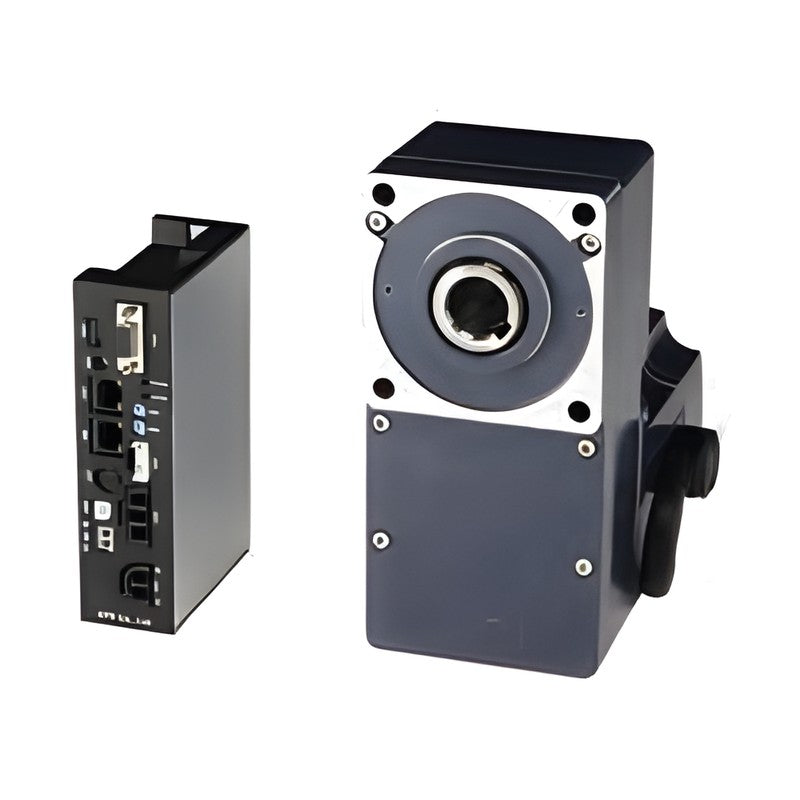

SPG XTG10 hollow-shaft flat-type gearheads for the X-TOR XVA 200/400 W brushless DC motors, reduction ratios 1:5 to 1:100.

Key features

  • Hollow output shaft (H) with flat-type reducer housing (F) for direct mounting on driven shafts
  • Dedicated to XVM10200G / XVM10400G motors (standard and electromagnetic brake types)
  • Seven reduction ratios from 1:5 to 1:100
  • Permissible thrust load 800 N; key supplied as accessory
  • Used in XVA10200F-HF / XVA10400R-HF combination geared motors

Specifications

Series X-TOR XTG (XVA series gearhead)
Size code 10
Output shaft H = hollow shaft
Reducer shape F = flat type
Permissible thrust load 800 N (80 kgf)
Applicable motors XVM10200G(-E), XVM10400G(-E)
Overhang load note Values at 100-3,000 r/min motor speed
Source SPG X-TOR BLDC Geared Motor catalog, p. 97-103
XTG105H-F Gear ratio: 1:5 | Overhang load 10 mm: 1230 N | Overhang load 20 mm: 1070 N | Motor speed: 100-3,000 r/min
XTG1010H-F Gear ratio: 1:10 | Overhang load 10 mm: 1230 N | Overhang load 20 mm: 1070 N | Motor speed: 100-3,000 r/min
XTG1015H-F Gear ratio: 1:15 | Overhang load 10 mm: 1680 N | Overhang load 20 mm: 1470 N | Motor speed: 100-3,000 r/min
XTG1020H-F Gear ratio: 1:20 | Overhang load 10 mm: 1680 N | Overhang load 20 mm: 1470 N | Motor speed: 100-3,000 r/min
XTG1030H-F Gear ratio: 1:30 | Overhang load 10 mm: 2040 N | Overhang load 20 mm: 1780 N | Motor speed: 100-3,000 r/min
XTG1050H-F Gear ratio: 1:50 | Overhang load 10 mm: 2040 N | Overhang load 20 mm: 1780 N | Motor speed: 100-3,000 r/min
XTG10100H-F Gear ratio: 1:100 | Overhang load 10 mm: 2040 N | Overhang load 20 mm: 1780 N | Motor speed: 100-3,000 r/min
