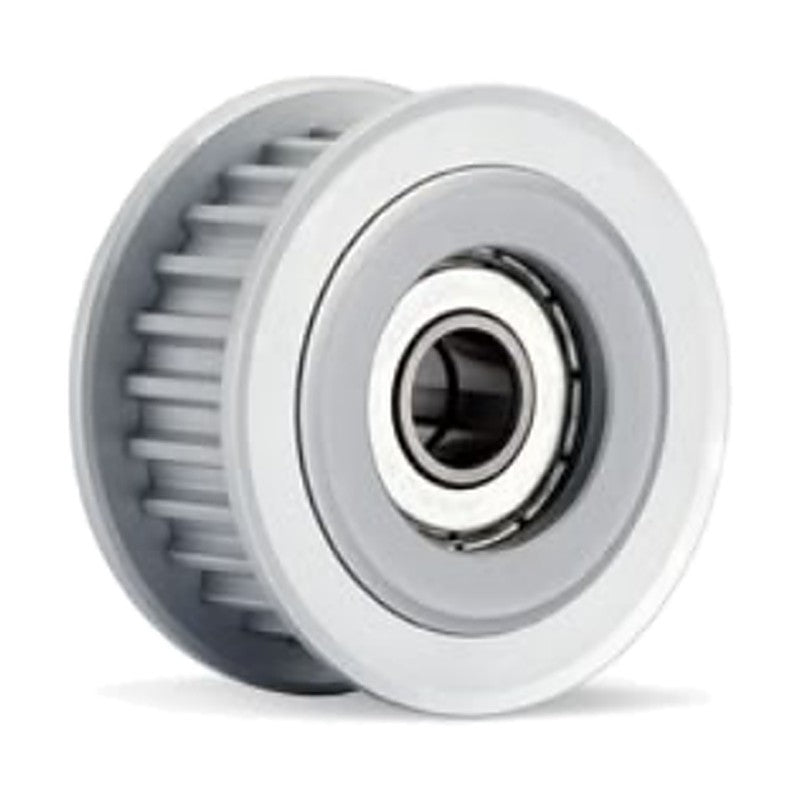

SUNGIL SATP-3GT Idler Timing Pulley (Bearing Mounted, IDOC/IDTC/IDTS)

SUNGIL SATP-3GT Idler Timing Pulley (Bearing Mounted, IDOC/IDTC/IDTS)

High-strength aluminum alloy 3GT toothed idler pulleys with pre-installed deep-groove ball bearings, used for belt tensioning and guiding. Available with one centre bearing (IDOC), two centre bearings (IDTC) or bearings on both sides (IDTS).

Key features

  • Pre-mounted shielded (ZZ) deep-groove ball bearings
  • IDOC, IDTC and IDTS bearing arrangements
  • Bore (d) defined by the fitted bearing
  • High-strength aluminum alloy body and flanges
  • Hard anodizing (HA) or white anodizing (WA) finish

Specifications

Tooth profile 3GT, pitch 3 mm
Type Idler, bearing mounted
Bearing arrangement IDOC 1 pc center; IDTC 2 pcs center; IDTS 2 pcs both sides
Body material High strength aluminum alloy
No. of teeth 30-60
Belt width codes BW090 (9 mm), BW150 (15 mm)
Surface treatment HA hard anodizing / WA white anodizing
Ordering code SATP-3GT-NT__-BW___-ID__-(d)-(HA/WA)
Source SUNGIL Catalogue (EN), Timing Pulley section
SATP-3GT-NT30-BW090-IDOC-6 Arrangement: 1 brg, center | PCD: 28.65 mm | OD: 27.89 mm | Bearing: 626ZZ | Bore d: 6 mm
SATP-3GT-NT34-BW090-IDOC-8 Arrangement: 1 brg, center | PCD: 32.47 mm | OD: 31.71 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-3GT-NT36-BW090-IDOC-8 Arrangement: 1 brg, center | PCD: 34.38 mm | OD: 33.62 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-3GT-NT40-BW090-IDOC-8 Arrangement: 1 brg, center | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 628ZZ | Bore d: 8 mm
SATP-3GT-NT40-BW090-IDOC-10 Arrangement: 1 brg, center | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-3GT-NT40-BW150-IDTC-10 Arrangement: 2 brg, center | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT40-BW150-IDTC-12 Arrangement: 2 brg, center | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-3GT-NT44-BW090-IDOC-8 Arrangement: 1 brg, center | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 628ZZ | Bore d: 8 mm
SATP-3GT-NT44-BW090-IDOC-10 Arrangement: 1 brg, center | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-3GT-NT44-BW150-IDTC-10 Arrangement: 2 brg, center | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT44-BW090-IDOC-12 Arrangement: 1 brg, center | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-3GT-NT44-BW150-IDTC-12 Arrangement: 2 brg, center | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-3GT-NT48-BW090-IDOC-10 Arrangement: 1 brg, center | PCD: 45.84 mm | OD: 45.07 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-3GT-NT48-BW150-IDTC-10 Arrangement: 2 brg, center | PCD: 45.84 mm | OD: 45.07 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT50-BW090-IDOC-10 Arrangement: 1 brg, center | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-3GT-NT50-BW150-IDTC-10 Arrangement: 2 brg, center | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT50-BW090-IDOC-12 Arrangement: 1 brg, center | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-3GT-NT50-BW150-IDTC-12 Arrangement: 2 brg, center | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-3GT-NT60-BW090-IDOC-10 Arrangement: 1 brg, center | PCD: 57.30 mm | OD: 56.53 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-3GT-NT30-BW090-IDTS-6 Arrangement: 2 brg, both sides | PCD: 28.65 mm | OD: 27.89 mm | Bearing: 696ZZ | Bore d: 6 mm
SATP-3GT-NT30-BW150-IDTS-6 Arrangement: 2 brg, both sides | PCD: 28.65 mm | OD: 27.89 mm | Bearing: 696ZZ | Bore d: 6 mm
SATP-3GT-NT30-BW090-IDTS-8 Arrangement: 2 brg, both sides | PCD: 28.65 mm | OD: 27.89 mm | Bearing: 688ZZ | Bore d: 8 mm
SATP-3GT-NT34-BW090-IDTS-6 Arrangement: 2 brg, both sides | PCD: 32.47 mm | OD: 31.71 mm | Bearing: 606ZZ | Bore d: 6 mm
SATP-3GT-NT34-BW150-IDTS-8 Arrangement: 2 brg, both sides | PCD: 32.47 mm | OD: 31.71 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-3GT-NT34-BW090-IDTS-8 Arrangement: 2 brg, both sides | PCD: 32.47 mm | OD: 31.71 mm | Bearing: 698ZZ | Bore d: 8 mm
SATP-3GT-NT36-BW090-IDTS-6 Arrangement: 2 brg, both sides | PCD: 34.38 mm | OD: 33.62 mm | Bearing: 606ZZ | Bore d: 6 mm
SATP-3GT-NT36-BW090-IDTS-10 Arrangement: 2 brg, both sides | PCD: 34.38 mm | OD: 33.62 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT36-BW150-IDTS-10 Arrangement: 2 brg, both sides | PCD: 34.38 mm | OD: 33.62 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT40-BW150-IDTS-8 Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-3GT-NT40-BW090-IDTS-8 Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 698ZZ | Bore d: 8 mm
SATP-3GT-NT40-BW090-IDTS-10 Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT40-BW150-IDTS-10 Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT40-BW150-IDTS-12 Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-3GT-NT40-BW090-IDTS-12 Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-3GT-NT44-BW150-IDTS-8 Arrangement: 2 brg, both sides | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-3GT-NT44-BW090-IDTS-10 Arrangement: 2 brg, both sides | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT44-BW150-IDTS-10 Arrangement: 2 brg, both sides | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT44-BW150-IDTS-12 Arrangement: 2 brg, both sides | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-3GT-NT44-BW090-IDTS-12 Arrangement: 2 brg, both sides | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-3GT-NT48-BW090-IDTS-10 Arrangement: 2 brg, both sides | PCD: 45.84 mm | OD: 45.07 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT48-BW150-IDTS-10 Arrangement: 2 brg, both sides | PCD: 45.84 mm | OD: 45.07 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT50-BW090-IDTS-10 Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT50-BW150-IDTS-10 Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT50-BW150-IDTS-12 Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-3GT-NT50-BW090-IDTS-12 Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-3GT-NT60-BW090-IDTS-10 Arrangement: 2 brg, both sides | PCD: 57.30 mm | OD: 56.53 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT60-BW150-IDTS-12 Arrangement: 2 brg, both sides | PCD: 57.30 mm | OD: 56.53 mm | Bearing: 6001ZZ | Bore d: 12 mm
Timing PulleySUNGIL
47 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SATP-3GT Idler Timing Pulley (Bearing Mounted, IDOC/IDTC/IDTS)

Brand SUNGIL·Timing Pulley

Available part numbers (47)

SATP-3GT-NT30-BW090-IDOC-6, SATP-3GT-NT34-BW090-IDOC-8, SATP-3GT-NT36-BW090-IDOC-8, SATP-3GT-NT40-BW090-IDOC-8, SATP-3GT-NT40-BW090-IDOC-10, SATP-3GT-NT40-BW150-IDTC-10, SATP-3GT-NT40-BW150-IDTC-12, SATP-3GT-NT44-BW090-IDOC-8, SATP-3GT-NT44-BW090-IDOC-10, SATP-3GT-NT44-BW150-IDTC-10 + 37 more — see full table ↓

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SATP-3GT-NT30-BW090-IDOC-6Arrangement: 1 brg, center | PCD: 28.65 mm | OD: 27.89 mm | Bearing: 626ZZ | Bore d: 6 mm
SATP-3GT-NT34-BW090-IDOC-8Arrangement: 1 brg, center | PCD: 32.47 mm | OD: 31.71 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-3GT-NT36-BW090-IDOC-8Arrangement: 1 brg, center | PCD: 34.38 mm | OD: 33.62 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-3GT-NT40-BW090-IDOC-8Arrangement: 1 brg, center | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 628ZZ | Bore d: 8 mm
SATP-3GT-NT40-BW090-IDOC-10Arrangement: 1 brg, center | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-3GT-NT40-BW150-IDTC-10Arrangement: 2 brg, center | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT40-BW150-IDTC-12Arrangement: 2 brg, center | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-3GT-NT44-BW090-IDOC-8Arrangement: 1 brg, center | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 628ZZ | Bore d: 8 mm
SATP-3GT-NT44-BW090-IDOC-10Arrangement: 1 brg, center | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-3GT-NT44-BW150-IDTC-10Arrangement: 2 brg, center | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT44-BW090-IDOC-12Arrangement: 1 brg, center | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-3GT-NT44-BW150-IDTC-12Arrangement: 2 brg, center | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-3GT-NT48-BW090-IDOC-10Arrangement: 1 brg, center | PCD: 45.84 mm | OD: 45.07 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-3GT-NT48-BW150-IDTC-10Arrangement: 2 brg, center | PCD: 45.84 mm | OD: 45.07 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT50-BW090-IDOC-10Arrangement: 1 brg, center | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-3GT-NT50-BW150-IDTC-10Arrangement: 2 brg, center | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT50-BW090-IDOC-12Arrangement: 1 brg, center | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-3GT-NT50-BW150-IDTC-12Arrangement: 2 brg, center | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-3GT-NT60-BW090-IDOC-10Arrangement: 1 brg, center | PCD: 57.30 mm | OD: 56.53 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-3GT-NT30-BW090-IDTS-6Arrangement: 2 brg, both sides | PCD: 28.65 mm | OD: 27.89 mm | Bearing: 696ZZ | Bore d: 6 mm
SATP-3GT-NT30-BW150-IDTS-6Arrangement: 2 brg, both sides | PCD: 28.65 mm | OD: 27.89 mm | Bearing: 696ZZ | Bore d: 6 mm
SATP-3GT-NT30-BW090-IDTS-8Arrangement: 2 brg, both sides | PCD: 28.65 mm | OD: 27.89 mm | Bearing: 688ZZ | Bore d: 8 mm
SATP-3GT-NT34-BW090-IDTS-6Arrangement: 2 brg, both sides | PCD: 32.47 mm | OD: 31.71 mm | Bearing: 606ZZ | Bore d: 6 mm
SATP-3GT-NT34-BW150-IDTS-8Arrangement: 2 brg, both sides | PCD: 32.47 mm | OD: 31.71 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-3GT-NT34-BW090-IDTS-8Arrangement: 2 brg, both sides | PCD: 32.47 mm | OD: 31.71 mm | Bearing: 698ZZ | Bore d: 8 mm
SATP-3GT-NT36-BW090-IDTS-6Arrangement: 2 brg, both sides | PCD: 34.38 mm | OD: 33.62 mm | Bearing: 606ZZ | Bore d: 6 mm
SATP-3GT-NT36-BW090-IDTS-10Arrangement: 2 brg, both sides | PCD: 34.38 mm | OD: 33.62 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT36-BW150-IDTS-10Arrangement: 2 brg, both sides | PCD: 34.38 mm | OD: 33.62 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT40-BW150-IDTS-8Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-3GT-NT40-BW090-IDTS-8Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 698ZZ | Bore d: 8 mm
SATP-3GT-NT40-BW090-IDTS-10Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT40-BW150-IDTS-10Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT40-BW150-IDTS-12Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-3GT-NT40-BW090-IDTS-12Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.44 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-3GT-NT44-BW150-IDTS-8Arrangement: 2 brg, both sides | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-3GT-NT44-BW090-IDTS-10Arrangement: 2 brg, both sides | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT44-BW150-IDTS-10Arrangement: 2 brg, both sides | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT44-BW150-IDTS-12Arrangement: 2 brg, both sides | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-3GT-NT44-BW090-IDTS-12Arrangement: 2 brg, both sides | PCD: 42.02 mm | OD: 41.25 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-3GT-NT48-BW090-IDTS-10Arrangement: 2 brg, both sides | PCD: 45.84 mm | OD: 45.07 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT48-BW150-IDTS-10Arrangement: 2 brg, both sides | PCD: 45.84 mm | OD: 45.07 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT50-BW090-IDTS-10Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT50-BW150-IDTS-10Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT50-BW150-IDTS-12Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-3GT-NT50-BW090-IDTS-12Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.98 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-3GT-NT60-BW090-IDTS-10Arrangement: 2 brg, both sides | PCD: 57.30 mm | OD: 56.53 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-3GT-NT60-BW150-IDTS-12Arrangement: 2 brg, both sides | PCD: 57.30 mm | OD: 56.53 mm | Bearing: 6001ZZ | Bore d: 12 mm

Need a different model, or a part not listed here? Send us your parts list →
