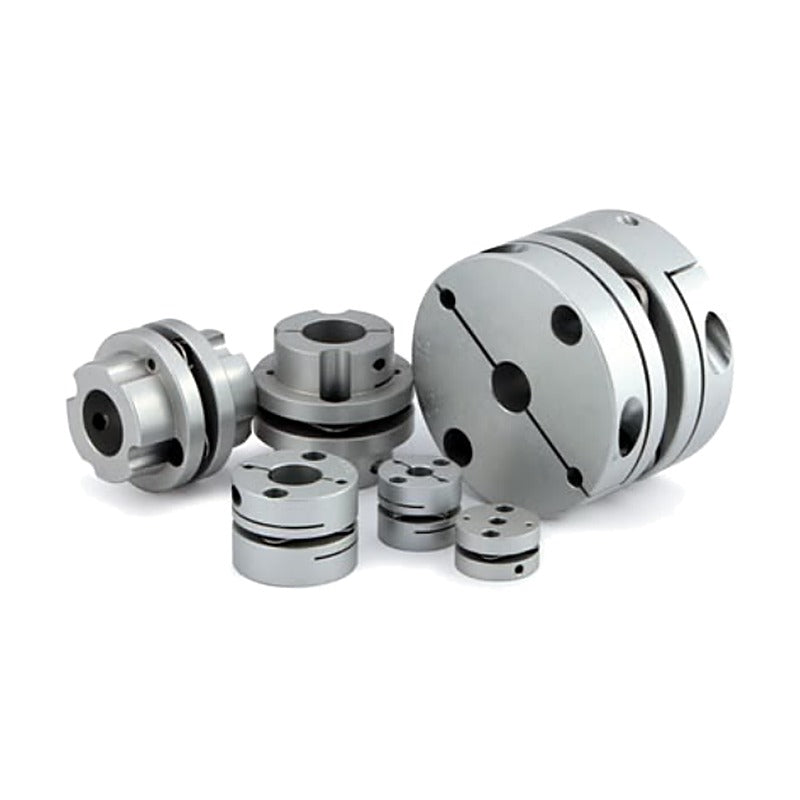

SUNGIL SDS Single Disk Coupling, Aluminum (OD 12-104.5 mm)

SUNGIL SDS Single Disk Coupling, Aluminum (OD 12-104.5 mm)

Single disk coupling with stainless steel plate springs between high strength aluminum alloy hubs. Backlash-free full metal design with high torsional stiffness and a short overall length for precise positioning.

Key features

  • Stainless steel plate spring absorbs misalignment with zero backlash
  • High static torsional stiffness for servo and stepping motors
  • Set-screw, side-clamp (cylinder or flange, low inertia) and hub-split versions
  • Flange/cylinder shapes; cylinder type identified by suffix D after the bore
  • Alternative screw finishes: electroless nickel (NI/ASS) or stainless (SUS/ASS)

Specifications

Hub material High strength aluminum alloy, anodized
Plate spring Stainless steel
Spacer Steel, black oxide
Screws SCM435, black oxide
Clamping Set-screw / side-clamp (C) / hub split (CW)
Shaft tolerance h7 recommended
Options Keyway, NI/ASS or SUS/ASS screws
Applications Semiconductor equipment, SMT, Cartesian robots, machine tools, index tables
Source SUNGIL Product Catalogue 2026 (SD series SDS, pp. 30-34)
SDS-16 Clamping: Set-screw | OD x L: 16 x 12 mm | Torque: 0.6 N·m | Max speed: 16,000 rpm | Std bores (mm): 3,4,4.5,5
SDS-19 Clamping: Set-screw | OD x L: 19 x 14.1 mm | Torque: 0.9 N·m | Max speed: 16,000 rpm | Std bores (mm): 3,4,4.5,5,6
SDS-22 Clamping: Set-screw | OD x L: 22.2 x 14.8 mm | Torque: 1.2 N·m | Max speed: 12,000 rpm | Std bores (mm): 3,4,4.5,5,6,6.35,7,8,9,9.525
SDS-26 Clamping: Set-screw | OD x L: 26.6 x 17.6 mm | Torque: 2.2 N·m | Max speed: 12,000 rpm | Std bores (mm): 4,4.5,5,6,6.35,7,8,9,9.525,10
SDS-31 Clamping: Set-screw | OD x L: 31.8 x 17.6 mm | Torque: 4 N·m | Max speed: 10,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDS-42 Clamping: Set-screw | OD x L: 42.5 x 30.8 / 31.4 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDS-42(3) Clamping: Set-screw | OD x L: 42.5 x 31.1 / 31.7 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDS-47 Clamping: Set-screw | OD x L: 47 x 31.4 / 35.7 mm | Torque: 14 N·m | Max speed: 8,000 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDS-54 Clamping: Set-screw | OD x L: 54 x 42.3 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20
SDS-64 Clamping: Set-screw | OD x L: 64 x 58.2 mm | Torque: 40 N·m | Max speed: 7,000 rpm | Std bores (mm): 12,12.7,14,15,15.875,16,17,18,19,20,21,22,24,25,26,28,30
SDS-12C Clamping: Side-clamp | OD x L: 12 x 12.3 mm | Torque: 0.2 N·m | Max speed: 14,000 rpm | Std bores (mm): 3,4,5
SDS-16C Clamping: Side-clamp | OD x L: 16 x 17.4 mm | Torque: 0.6 N·m | Max speed: 14,000 rpm | Std bores (mm): 3,4,4.5,5
SDS-19C Clamping: Side-clamp | OD x L: 19 x 19.3 mm | Torque: 0.9 N·m | Max speed: 14,000 rpm | Std bores (mm): 3,4,4.5,5,6
SDS-22C Clamping: Side-clamp | OD x L: 22.2 x 19.7 mm | Torque: 1.2 N·m | Max speed: 10,000 rpm | Std bores (mm): 3,4,4.5,5,6,6.35,7,8,9,9.525
SDS-26C Clamping: Side-clamp | OD x L: 26.6 x 24.1 mm | Torque: 2.2 N·m | Max speed: 10,000 rpm | Std bores (mm): 4,4.5,5,6,6.35,7,8,9,9.525,10
SDS-31C Clamping: Side-clamp | OD x L: 31.8 x 26.4 mm | Torque: 4 N·m | Max speed: 9,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDCS-35C Clamping: Side-clamp | OD x L: 35 x 28 mm | Torque: 5 N·m | Max speed: 8,500 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SDS-39C Clamping: Side-clamp | OD x L: 39 x 31.3 mm | Torque: 6 N·m | Max speed: 8,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SDS-39C(3) Clamping: Side-clamp | OD x L: 39 x 31.6 mm | Torque: 9 N·m | Max speed: 8,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SDCS-42C Clamping: Side-clamp | OD x L: 42.5 x 31.4 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDCS-42C(3) Clamping: Side-clamp | OD x L: 42.5 x 31.7 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDCS-47C Clamping: Side-clamp | OD x L: 47 x 35.6 mm | Torque: 14 N·m | Max speed: 7,500 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19,20
SDCS-54C Clamping: Side-clamp | OD x L: 54 x 42.3 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20,22,24,25
SDCS-54CW Clamping: Side-clamp, hub split | OD x L: 54 x 42.3 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20,22,24,25
SDCS-64C Clamping: Side-clamp | OD x L: 64 x 58.2 mm | Torque: 40 N·m | Max speed: 7,000 rpm | Std bores (mm): 12,12.7,14,15,15.875,16,17,18,19,20,22,24,25,26,28,30,32
SDCS-64CW Clamping: Side-clamp, hub split | OD x L: 64 x 58.2 mm | Torque: 40 N·m | Max speed: 7,000 rpm | Std bores (mm): 12,12.7,14,15,15.875,16,17,18,19,20,22,24,25,26,28,30,32
SDS-80C Clamping: Side-clamp | OD x L: 80 x 66.1 mm | Torque: 85 N·m | Max speed: 7,000 rpm | Std bores (mm): 15,15.875,16,17,18,19,20,22,24,25,26,28,30,32,35
SDS-80CW Clamping: Side-clamp, hub split | OD x L: 80 x 66.1 mm | Torque: 85 N·m | Max speed: 7,000 rpm | Std bores (mm): 15,15.875,16,17,18,19,20,22,24,25,26,28,30,32,35
SDS-90C Clamping: Side-clamp | OD x L: 94.5 x 68.9 mm | Torque: 180 N·m | Max speed: 6,000 rpm | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45
SDS-90CW Clamping: Side-clamp, hub split | OD x L: 94.5 x 68.9 mm | Torque: 180 N·m | Max speed: 6,000 rpm | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45
SDS-100C Clamping: Side-clamp | OD x L: 104.5 x 71.7 mm | Torque: 250 N·m | Max speed: 6,000 rpm | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50
SDS-100CW Clamping: Side-clamp, hub split | OD x L: 104.5 x 71.7 mm | Torque: 250 N·m | Max speed: 6,000 rpm | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50
SDS-35C Clamping: Side-clamp | OD x L: 35 x 28 mm | Torque: 5 N·m | Max speed: 8,500 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10
SDS-42C Clamping: Side-clamp | OD x L: 42.5 x 30.8 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDS-42C(3) Clamping: Side-clamp | OD x L: 42.5 x 31.1 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDS-47C Clamping: Side-clamp | OD x L: 47 x 37 mm | Torque: 14 N·m | Max speed: 8,000 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDS-54C Clamping: Side-clamp | OD x L: 54 x 47.1 mm | Torque: 25 N·m | Max speed: 8,000 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20
SDS-64C Clamping: Side-clamp | OD x L: 64 x 58.2 mm | Torque: 40 N·m | Max speed: 7,000 rpm | Std bores (mm): 12,12.7,14,15,15.875,16,17,18,19,20,22,24,25
