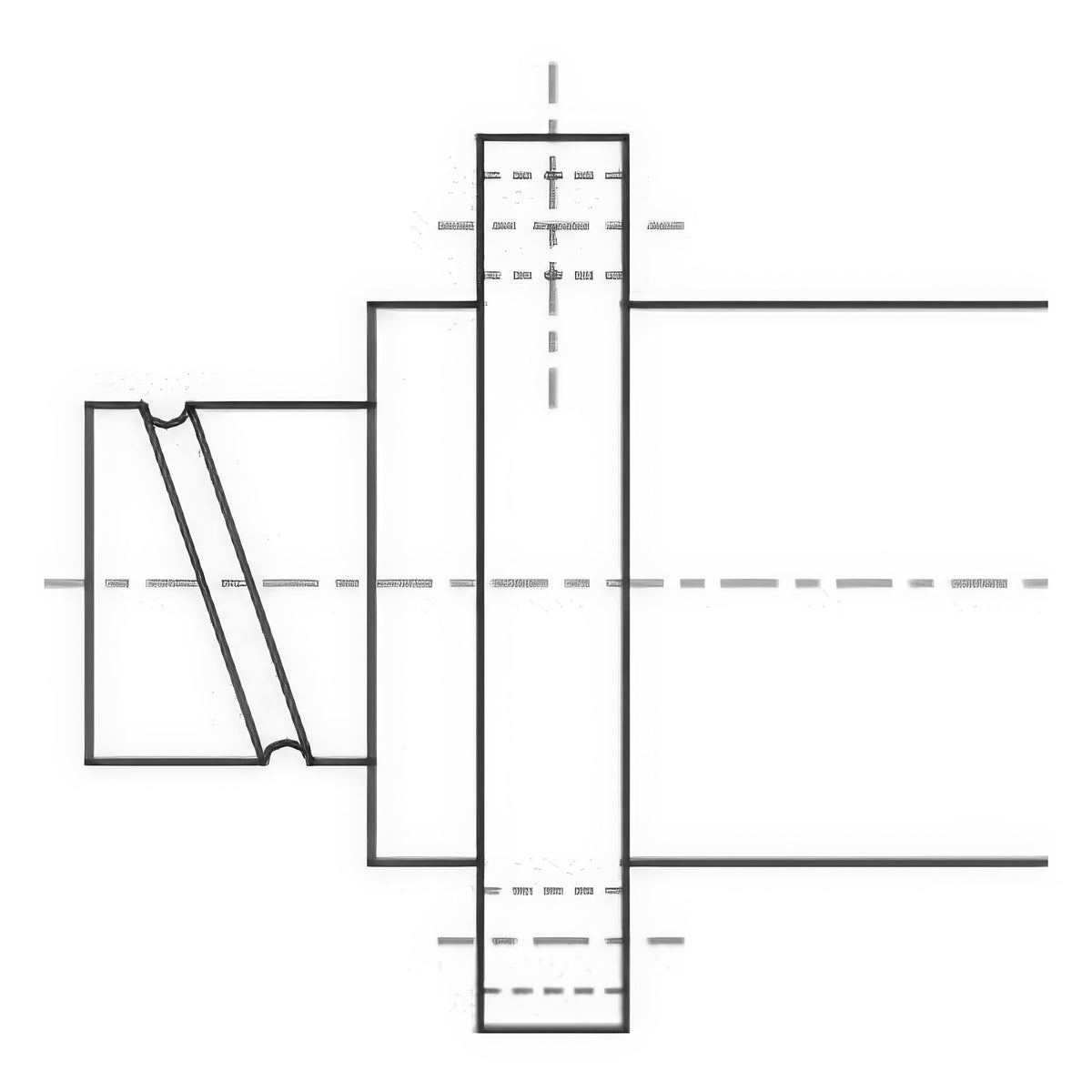

TBI MOTION SFA Precision Ground Ball Screw Flange Nut

SFA is the current precision ground ball screw flange nut that replaces the former SFNH/SFH/SFS series.

Key features

It provides a compact DIN-style flange nut with end-cap recirculation for high-speed slide tables and dust-proof applications
Sizes cover 12 to 50 mm screw diameter with leads from 5 to 50 mm, including the 16 mm x 30 mm high-lead version
Nuts are ordered to the TBI MOTION nut ordering format (series, thread direction, shaft diameter, lead, circuits, flange cut, surface treatment)
Preload classes and accuracy grades (C0-C10) are selected separately

SFA01205-2.8		Nominal screw diameter: 12 mm \| Lead: 5 mm \| Ball diameter: 2.5 mm \| Circuits: 2.8x1 \| Nut OD D: 24 mm \| Flange OD A: 40 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 30 mm \| Bolt PCD W: 32 mm \| Flange width H: 30 mm \| Mounting hole X: 4.5 mm \| Dynamic load rating Ca: 661 kgf \| Static load rating C0a: 1316 kgf \| Stiffness: 19 kgf/um \| Left-hand thread available
SFA01210-2.8		Nominal screw diameter: 12 mm \| Lead: 10 mm \| Ball diameter: 2.5 mm \| Circuits: 2.8x1 \| Nut OD D: 24 mm \| Flange OD A: 40 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 42 mm \| Bolt PCD W: 32 mm \| Flange width H: 30 mm \| Mounting hole X: 4.5 mm \| Dynamic load rating Ca: 642 kgf \| Static load rating C0a: 1287 kgf \| Stiffness: 19 kgf/um \| Left-hand thread available
SFA01605-3.8		Nominal screw diameter: 16 mm \| Lead: 5 mm \| Ball diameter: 2.778 mm \| Circuits: 3.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 31 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1112 kgf \| Static load rating C0a: 2507 kgf \| Stiffness: 30 kgf/um \| Left-hand thread available
SFA01610-2.8		Nominal screw diameter: 16 mm \| Lead: 10 mm \| Ball diameter: 2.778 mm \| Circuits: 2.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 42 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 839 kgf \| Static load rating C0a: 1821 kgf \| Stiffness: 23 kgf/um \| Left-hand thread available
SFA01616-1.8		Nominal screw diameter: 16 mm \| Lead: 16 mm \| Ball diameter: 2.778 mm \| Circuits: 1.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 43 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 552 kgf \| Static load rating C0a: 1137 kgf \| Stiffness: 14 kgf/um \| Left-hand thread available
SFA01616-2.8		Nominal screw diameter: 16 mm \| Lead: 16 mm \| Ball diameter: 2.778 mm \| Circuits: 2.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 59 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 808 kgf \| Static load rating C0a: 1769 kgf \| Stiffness: 22 kgf/um \| Left-hand thread available
SFA01620-1.8		Nominal screw diameter: 16 mm \| Lead: 20 mm \| Ball diameter: 2.778 mm \| Circuits: 1.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 50 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 554 kgf \| Static load rating C0a: 1170 kgf \| Stiffness: 14 kgf/um \| Left-hand thread available
SFA01630-1.8		Nominal screw diameter: 16 mm \| Lead: 30 mm \| Ball diameter: 2.778 mm \| Circuits: 1.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 70 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 534 kgf \| Static load rating C0a: 1195 kgf \| Stiffness: 14 kgf/um \| Left-hand thread available
SFA02005-3.8		Nominal screw diameter: 20 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 36 mm \| Flange OD A: 58 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 33 mm \| Bolt PCD W: 47 mm \| Flange width H: 44 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1484 kgf \| Static load rating C0a: 3681 kgf \| Stiffness: 37 kgf/um \| Left-hand thread available
SFA02010-3.8		Nominal screw diameter: 20 mm \| Lead: 10 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 36 mm \| Flange OD A: 58 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 52 mm \| Bolt PCD W: 47 mm \| Flange width H: 44 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1516 kgf \| Static load rating C0a: 3833 kgf \| Stiffness: 40 kgf/um \| Left-hand thread available
SFA02020-1.8		Nominal screw diameter: 20 mm \| Lead: 20 mm \| Ball diameter: 3.175 mm \| Circuits: 1.8x1 \| Nut OD D: 36 mm \| Flange OD A: 58 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 52 mm \| Bolt PCD W: 47 mm \| Flange width H: 44 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 764 kgf \| Static load rating C0a: 1758 kgf \| Stiffness: 19 kgf/um \| Left-hand thread available
SFA02020-2.8		Nominal screw diameter: 20 mm \| Lead: 20 mm \| Ball diameter: 3.175 mm \| Circuits: 2.8x1 \| Nut OD D: 36 mm \| Flange OD A: 58 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 72 mm \| Bolt PCD W: 47 mm \| Flange width H: 44 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1118 kgf \| Static load rating C0a: 2734 kgf \| Stiffness: 29 kgf/um \| Left-hand thread available
SFA02505-3.8		Nominal screw diameter: 25 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 40 mm \| Flange OD A: 62 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 33 mm \| Bolt PCD W: 51 mm \| Flange width H: 48 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1650 kgf \| Static load rating C0a: 4658 kgf \| Stiffness: 43 kgf/um \| Left-hand thread available
SFA02510-3.8		Nominal screw diameter: 25 mm \| Lead: 10 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 40 mm \| Flange OD A: 62 mm \| Flange thickness B: 12 mm \| E: 7 mm \| Nut length L: 52 mm \| Bolt PCD W: 51 mm \| Flange width H: 48 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1638 kgf \| Static load rating C0a: 4633 kgf \| Stiffness: 45 kgf/um \| Left-hand thread available
SFA02525-1.8		Nominal screw diameter: 25 mm \| Lead: 25 mm \| Ball diameter: 3.175 mm \| Circuits: 1.8x1 \| Nut OD D: 40 mm \| Flange OD A: 62 mm \| Flange thickness B: 12 mm \| E: 7 mm \| Nut length L: 60 mm \| Bolt PCD W: 51 mm \| Flange width H: 48 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 843 kgf \| Static load rating C0a: 2199 kgf \| Stiffness: 22 kgf/um \| Left-hand thread available
SFA02525-2.8		Nominal screw diameter: 25 mm \| Lead: 25 mm \| Ball diameter: 3.175 mm \| Circuits: 2.8x1 \| Nut OD D: 40 mm \| Flange OD A: 62 mm \| Flange thickness B: 12 mm \| E: 7 mm \| Nut length L: 85 mm \| Bolt PCD W: 51 mm \| Flange width H: 48 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1232 kgf \| Static load rating C0a: 3421 kgf \| Stiffness: 34 kgf/um \| Left-hand thread available
SFA03205-3.8		Nominal screw diameter: 32 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 35 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1839 kgf \| Static load rating C0a: 6026 kgf \| Stiffness: 51 kgf/um
SFA03210-3.8		Nominal screw diameter: 32 mm \| Lead: 10 mm \| Ball diameter: 3.969 mm \| Circuits: 3.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 53 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 2460 kgf \| Static load rating C0a: 7255 kgf \| Stiffness: 55 kgf/um
SFA03220-2.8		Nominal screw diameter: 32 mm \| Lead: 20 mm \| Ball diameter: 3.969 mm \| Circuits: 2.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 72 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1907 kgf \| Static load rating C0a: 5482 kgf \| Stiffness: 43 kgf/um
SFA03232-1.8		Nominal screw diameter: 32 mm \| Lead: 32 mm \| Ball diameter: 3.969 mm \| Circuits: 1.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 78 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1257 kgf \| Static load rating C0a: 3426 kgf \| Stiffness: 27 kgf/um
SFA03232-2.8		Nominal screw diameter: 32 mm \| Lead: 32 mm \| Ball diameter: 3.969 mm \| Circuits: 2.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 110 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1838 kgf \| Static load rating C0a: 5329 kgf \| Stiffness: 42 kgf/um
SFA04005-3.8		Nominal screw diameter: 40 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 39 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 2018 kgf \| Static load rating C0a: 7589 kgf \| Stiffness: 60 kgf/um
SFA04010-3.8		Nominal screw diameter: 40 mm \| Lead: 10 mm \| Ball diameter: 6.35 mm \| Circuits: 3.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 57 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 5035 kgf \| Static load rating C0a: 13943 kgf \| Stiffness: 67 kgf/um
SFA04020-2.8		Nominal screw diameter: 40 mm \| Lead: 20 mm \| Ball diameter: 6.35 mm \| Circuits: 2.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 78 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 3959 kgf \| Static load rating C0a: 10715 kgf \| Stiffness: 54 kgf/um
SFA04040-1.8		Nominal screw diameter: 40 mm \| Lead: 40 mm \| Ball diameter: 6.35 mm \| Circuits: 1.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 96 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 2585 kgf \| Static load rating C0a: 6648 kgf \| Stiffness: 34 kgf/um
SFA04040-2.8		Nominal screw diameter: 40 mm \| Lead: 40 mm \| Ball diameter: 6.35 mm \| Circuits: 2.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 136 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 3780 kgf \| Static load rating C0a: 10341 kgf \| Stiffness: 52 kgf/um
SFA05005-3.8		Nominal screw diameter: 50 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 15 mm \| E: 10.5 mm \| Nut length L: 42 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 2207 kgf \| Static load rating C0a: 9542 kgf \| Stiffness: 68 kgf/um
SFA05010-3.8		Nominal screw diameter: 50 mm \| Lead: 10 mm \| Ball diameter: 6.35 mm \| Circuits: 3.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 18 mm \| E: 10.5 mm \| Nut length L: 57 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 5638 kgf \| Static load rating C0a: 17852 kgf \| Stiffness: 79 kgf/um
SFA05020-3.8		Nominal screw diameter: 50 mm \| Lead: 20 mm \| Ball diameter: 6.35 mm \| Circuits: 3.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 18 mm \| E: 10.5 mm \| Nut length L: 98 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 5749 kgf \| Static load rating C0a: 18485 kgf \| Stiffness: 87 kgf/um
SFA05050-1.8		Nominal screw diameter: 50 mm \| Lead: 50 mm \| Ball diameter: 6.35 mm \| Circuits: 1.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 18 mm \| E: 10.5 mm \| Nut length L: 117 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 2946 kgf \| Static load rating C0a: 8749 kgf \| Stiffness: 42 kgf/um
SFA05050-2.8		Nominal screw diameter: 50 mm \| Lead: 50 mm \| Ball diameter: 6.35 mm \| Circuits: 2.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 18 mm \| E: 10.5 mm \| Nut length L: 167 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 4308 kgf \| Static load rating C0a: 13610 kgf \| Stiffness: 65 kgf/um

Ball ScrewsTBI MOTION

31 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TBI MOTION SFA Precision Ground Ball Screw Flange Nut

Brand TBI MOTION·Ball Screws

Available part numbers (31)

SFA01205-2.8, SFA01210-2.8, SFA01605-3.8, SFA01610-2.8, SFA01616-1.8, SFA01616-2.8, SFA01620-1.8, SFA01630-1.8, SFA02005-3.8, SFA02010-3.8 + 21 more — see full table ↓

How to order

Send the TBI MOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SFA01205-2.8	Nominal screw diameter: 12 mm \| Lead: 5 mm \| Ball diameter: 2.5 mm \| Circuits: 2.8x1 \| Nut OD D: 24 mm \| Flange OD A: 40 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 30 mm \| Bolt PCD W: 32 mm \| Flange width H: 30 mm \| Mounting hole X: 4.5 mm \| Dynamic load rating Ca: 661 kgf \| Static load rating C0a: 1316 kgf \| Stiffness: 19 kgf/um \| Left-hand thread available
	SFA01210-2.8	Nominal screw diameter: 12 mm \| Lead: 10 mm \| Ball diameter: 2.5 mm \| Circuits: 2.8x1 \| Nut OD D: 24 mm \| Flange OD A: 40 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 42 mm \| Bolt PCD W: 32 mm \| Flange width H: 30 mm \| Mounting hole X: 4.5 mm \| Dynamic load rating Ca: 642 kgf \| Static load rating C0a: 1287 kgf \| Stiffness: 19 kgf/um \| Left-hand thread available
	SFA01605-3.8	Nominal screw diameter: 16 mm \| Lead: 5 mm \| Ball diameter: 2.778 mm \| Circuits: 3.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 31 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1112 kgf \| Static load rating C0a: 2507 kgf \| Stiffness: 30 kgf/um \| Left-hand thread available
	SFA01610-2.8	Nominal screw diameter: 16 mm \| Lead: 10 mm \| Ball diameter: 2.778 mm \| Circuits: 2.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 42 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 839 kgf \| Static load rating C0a: 1821 kgf \| Stiffness: 23 kgf/um \| Left-hand thread available
	SFA01616-1.8	Nominal screw diameter: 16 mm \| Lead: 16 mm \| Ball diameter: 2.778 mm \| Circuits: 1.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 43 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 552 kgf \| Static load rating C0a: 1137 kgf \| Stiffness: 14 kgf/um \| Left-hand thread available
	SFA01616-2.8	Nominal screw diameter: 16 mm \| Lead: 16 mm \| Ball diameter: 2.778 mm \| Circuits: 2.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 59 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 808 kgf \| Static load rating C0a: 1769 kgf \| Stiffness: 22 kgf/um \| Left-hand thread available
	SFA01620-1.8	Nominal screw diameter: 16 mm \| Lead: 20 mm \| Ball diameter: 2.778 mm \| Circuits: 1.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 50 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 554 kgf \| Static load rating C0a: 1170 kgf \| Stiffness: 14 kgf/um \| Left-hand thread available
	SFA01630-1.8	Nominal screw diameter: 16 mm \| Lead: 30 mm \| Ball diameter: 2.778 mm \| Circuits: 1.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 70 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 534 kgf \| Static load rating C0a: 1195 kgf \| Stiffness: 14 kgf/um \| Left-hand thread available
	SFA02005-3.8	Nominal screw diameter: 20 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 36 mm \| Flange OD A: 58 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 33 mm \| Bolt PCD W: 47 mm \| Flange width H: 44 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1484 kgf \| Static load rating C0a: 3681 kgf \| Stiffness: 37 kgf/um \| Left-hand thread available
	SFA02010-3.8	Nominal screw diameter: 20 mm \| Lead: 10 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 36 mm \| Flange OD A: 58 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 52 mm \| Bolt PCD W: 47 mm \| Flange width H: 44 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1516 kgf \| Static load rating C0a: 3833 kgf \| Stiffness: 40 kgf/um \| Left-hand thread available
	SFA02020-1.8	Nominal screw diameter: 20 mm \| Lead: 20 mm \| Ball diameter: 3.175 mm \| Circuits: 1.8x1 \| Nut OD D: 36 mm \| Flange OD A: 58 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 52 mm \| Bolt PCD W: 47 mm \| Flange width H: 44 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 764 kgf \| Static load rating C0a: 1758 kgf \| Stiffness: 19 kgf/um \| Left-hand thread available
	SFA02020-2.8	Nominal screw diameter: 20 mm \| Lead: 20 mm \| Ball diameter: 3.175 mm \| Circuits: 2.8x1 \| Nut OD D: 36 mm \| Flange OD A: 58 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 72 mm \| Bolt PCD W: 47 mm \| Flange width H: 44 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1118 kgf \| Static load rating C0a: 2734 kgf \| Stiffness: 29 kgf/um \| Left-hand thread available
	SFA02505-3.8	Nominal screw diameter: 25 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 40 mm \| Flange OD A: 62 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 33 mm \| Bolt PCD W: 51 mm \| Flange width H: 48 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1650 kgf \| Static load rating C0a: 4658 kgf \| Stiffness: 43 kgf/um \| Left-hand thread available
	SFA02510-3.8	Nominal screw diameter: 25 mm \| Lead: 10 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 40 mm \| Flange OD A: 62 mm \| Flange thickness B: 12 mm \| E: 7 mm \| Nut length L: 52 mm \| Bolt PCD W: 51 mm \| Flange width H: 48 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1638 kgf \| Static load rating C0a: 4633 kgf \| Stiffness: 45 kgf/um \| Left-hand thread available
	SFA02525-1.8	Nominal screw diameter: 25 mm \| Lead: 25 mm \| Ball diameter: 3.175 mm \| Circuits: 1.8x1 \| Nut OD D: 40 mm \| Flange OD A: 62 mm \| Flange thickness B: 12 mm \| E: 7 mm \| Nut length L: 60 mm \| Bolt PCD W: 51 mm \| Flange width H: 48 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 843 kgf \| Static load rating C0a: 2199 kgf \| Stiffness: 22 kgf/um \| Left-hand thread available
	SFA02525-2.8	Nominal screw diameter: 25 mm \| Lead: 25 mm \| Ball diameter: 3.175 mm \| Circuits: 2.8x1 \| Nut OD D: 40 mm \| Flange OD A: 62 mm \| Flange thickness B: 12 mm \| E: 7 mm \| Nut length L: 85 mm \| Bolt PCD W: 51 mm \| Flange width H: 48 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1232 kgf \| Static load rating C0a: 3421 kgf \| Stiffness: 34 kgf/um \| Left-hand thread available
	SFA03205-3.8	Nominal screw diameter: 32 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 35 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1839 kgf \| Static load rating C0a: 6026 kgf \| Stiffness: 51 kgf/um
	SFA03210-3.8	Nominal screw diameter: 32 mm \| Lead: 10 mm \| Ball diameter: 3.969 mm \| Circuits: 3.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 53 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 2460 kgf \| Static load rating C0a: 7255 kgf \| Stiffness: 55 kgf/um
	SFA03220-2.8	Nominal screw diameter: 32 mm \| Lead: 20 mm \| Ball diameter: 3.969 mm \| Circuits: 2.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 72 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1907 kgf \| Static load rating C0a: 5482 kgf \| Stiffness: 43 kgf/um
	SFA03232-1.8	Nominal screw diameter: 32 mm \| Lead: 32 mm \| Ball diameter: 3.969 mm \| Circuits: 1.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 78 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1257 kgf \| Static load rating C0a: 3426 kgf \| Stiffness: 27 kgf/um
	SFA03232-2.8	Nominal screw diameter: 32 mm \| Lead: 32 mm \| Ball diameter: 3.969 mm \| Circuits: 2.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 110 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1838 kgf \| Static load rating C0a: 5329 kgf \| Stiffness: 42 kgf/um
	SFA04005-3.8	Nominal screw diameter: 40 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 39 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 2018 kgf \| Static load rating C0a: 7589 kgf \| Stiffness: 60 kgf/um
	SFA04010-3.8	Nominal screw diameter: 40 mm \| Lead: 10 mm \| Ball diameter: 6.35 mm \| Circuits: 3.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 57 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 5035 kgf \| Static load rating C0a: 13943 kgf \| Stiffness: 67 kgf/um
	SFA04020-2.8	Nominal screw diameter: 40 mm \| Lead: 20 mm \| Ball diameter: 6.35 mm \| Circuits: 2.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 78 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 3959 kgf \| Static load rating C0a: 10715 kgf \| Stiffness: 54 kgf/um
	SFA04040-1.8	Nominal screw diameter: 40 mm \| Lead: 40 mm \| Ball diameter: 6.35 mm \| Circuits: 1.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 96 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 2585 kgf \| Static load rating C0a: 6648 kgf \| Stiffness: 34 kgf/um
	SFA04040-2.8	Nominal screw diameter: 40 mm \| Lead: 40 mm \| Ball diameter: 6.35 mm \| Circuits: 2.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 136 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 3780 kgf \| Static load rating C0a: 10341 kgf \| Stiffness: 52 kgf/um
	SFA05005-3.8	Nominal screw diameter: 50 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 15 mm \| E: 10.5 mm \| Nut length L: 42 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 2207 kgf \| Static load rating C0a: 9542 kgf \| Stiffness: 68 kgf/um
	SFA05010-3.8	Nominal screw diameter: 50 mm \| Lead: 10 mm \| Ball diameter: 6.35 mm \| Circuits: 3.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 18 mm \| E: 10.5 mm \| Nut length L: 57 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 5638 kgf \| Static load rating C0a: 17852 kgf \| Stiffness: 79 kgf/um
	SFA05020-3.8	Nominal screw diameter: 50 mm \| Lead: 20 mm \| Ball diameter: 6.35 mm \| Circuits: 3.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 18 mm \| E: 10.5 mm \| Nut length L: 98 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 5749 kgf \| Static load rating C0a: 18485 kgf \| Stiffness: 87 kgf/um
	SFA05050-1.8	Nominal screw diameter: 50 mm \| Lead: 50 mm \| Ball diameter: 6.35 mm \| Circuits: 1.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 18 mm \| E: 10.5 mm \| Nut length L: 117 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 2946 kgf \| Static load rating C0a: 8749 kgf \| Stiffness: 42 kgf/um
	SFA05050-2.8	Nominal screw diameter: 50 mm \| Lead: 50 mm \| Ball diameter: 6.35 mm \| Circuits: 2.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 18 mm \| E: 10.5 mm \| Nut length L: 167 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 4308 kgf \| Static load rating C0a: 13610 kgf \| Stiffness: 65 kgf/um
