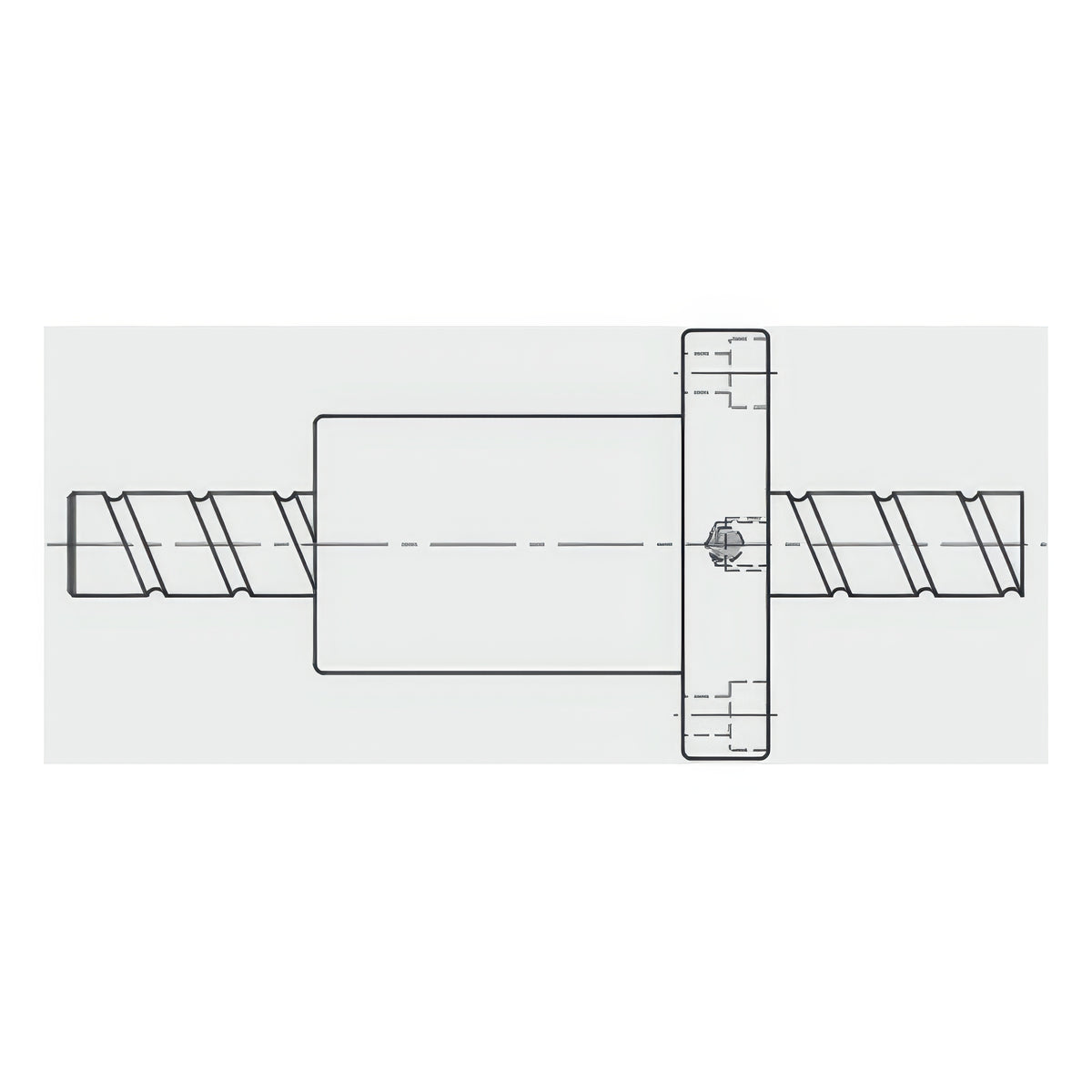

TBI MOTION XSSR/XSNHR Slide-Table Ball Screw Flange Nut

XSNHR (XSSR/XSNHR series) is a ball screw flange nut designed for slide tables and factory automation modules.

Key features

It has a square-cut four-bolt flange, double seals and two M6 oil holes
Sizes cover 12, 16 and 20 mm screw diameter with leads of 5 to 20 mm

Specifications

Oil hole	2-M6x1P

XSNHR1205-06		Nominal screw diameter: 12 mm \| Lead: 5 mm \| Ball diameter: 2.5 mm \| Circuits: 1.8x1 \| Nut OD D (h7): 30 mm \| Flange OD D1: 50 mm \| Nut length L: 40 mm \| Flange thickness L1: 10 mm \| Flange width W: 32 mm \| Flange height H: 45 mm \| Bolt PCD: 40 mm \| Mounting hole x/y/z: 4.5/8/5.5 mm \| Q1: 16 mm \| Oil hole: 2-M6x1P \| Dynamic load rating Ca: 1814 kgf \| Static load rating C0a: 4650 kgf \| Stiffness: 19 kgf/um
XSNHR1210-08		Nominal screw diameter: 12 mm \| Lead: 10 mm \| Ball diameter: 2.5 mm \| Circuits: 2.8x1 \| Nut OD D (h7): 30 mm \| Flange OD D1: 50 mm \| Nut length L: 45 mm \| Flange thickness L1: 10 mm \| Flange width W: 32 mm \| Flange height H: 45 mm \| Bolt PCD: 40 mm \| Mounting hole x/y/z: 4.5/8/5 mm \| Q1: 16 mm \| Oil hole: 2-M6x1P \| Dynamic load rating Ca: 422 kgf \| Static load rating C0a: 711 kgf \| Stiffness: 19 kgf/um
XSNHR1605-04		Nominal screw diameter: 16 mm \| Lead: 5 mm \| Ball diameter: 2.778 mm \| Circuits: 3.8x1 \| Nut OD D (h7): 34 mm \| Flange OD D1: 58 mm \| Nut length L: 37 mm \| Flange thickness L1: 12 mm \| Flange width W: 34 mm \| Flange height H: 50 mm \| Bolt PCD: 45 mm \| Mounting hole x/y/z: 6/9.5/6.5 mm \| Q1: 18 mm \| Oil hole: 2-M6x1P \| Dynamic load rating Ca: 730 kgf \| Static load rating C0a: 1501 kgf \| Stiffness: 30 kgf/um
XSNHR1610-03		Nominal screw diameter: 16 mm \| Lead: 10 mm \| Ball diameter: 2.778 mm \| Circuits: 2.8x1 \| Nut OD D (h7): 34 mm \| Flange OD D1: 57 mm \| Nut length L: 45 mm \| Flange thickness L1: 12 mm \| Flange width W: 34 mm \| Flange height H: 50 mm \| Bolt PCD: 45 mm \| Mounting hole x/y/z: 6/9.5/6 mm \| Q1: 18 mm \| Oil hole: 2-M6x1P \| Dynamic load rating Ca: 551 kgf \| Static load rating C0a: 1090 kgf \| Stiffness: 23 kgf/um
XSNHR1620-03		Nominal screw diameter: 16 mm \| Lead: 20 mm \| Ball diameter: 2.778 mm \| Circuits: 1.8x1 \| Nut OD D (h7): 34 mm \| Flange OD D1: 58 mm \| Nut length L: 58 mm \| Flange thickness L1: 12 mm \| Flange width W: 34 mm \| Flange height H: 50 mm \| Bolt PCD: 45 mm \| Mounting hole x/y/z: 6/9.5/6 mm \| Q1: 18 mm \| Oil hole: 2-M6x1P \| Dynamic load rating Ca: 554 kgf \| Static load rating C0a: 1170 kgf \| Stiffness: 14 kgf/um
XSNHR2010-03		Nominal screw diameter: 20 mm \| Lead: 10 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D (h7): 46 mm \| Flange OD D1: 74 mm \| Nut length L: 55 mm \| Flange thickness L1: 13 mm \| Flange width W: 46 mm \| Flange height H: 66 mm \| Bolt PCD: 59 mm \| Mounting hole x/y/z: 6.6/11/6.5 mm \| Q1: 24 mm \| Oil hole: 2-M6x1P \| Dynamic load rating Ca: 1516 kgf \| Static load rating C0a: 3833 kgf \| Stiffness: 40 kgf/um
XSNHR2020-03		Nominal screw diameter: 20 mm \| Lead: 20 mm \| Ball diameter: 3.175 mm \| Circuits: 1.8x1 \| Nut OD D (h7): 46 mm \| Flange OD D1: 74 mm \| Nut length L: 54 mm \| Flange thickness L1: 13 mm \| Flange width W: 46 mm \| Flange height H: 66 mm \| Bolt PCD: 59 mm \| Mounting hole x/y/z: 6.6/11/6.5 mm \| Q1: 24 mm \| Oil hole: 2-M6x1P \| Dynamic load rating Ca: 764 kgf \| Static load rating C0a: 1758 kgf \| Stiffness: 19 kgf/um
