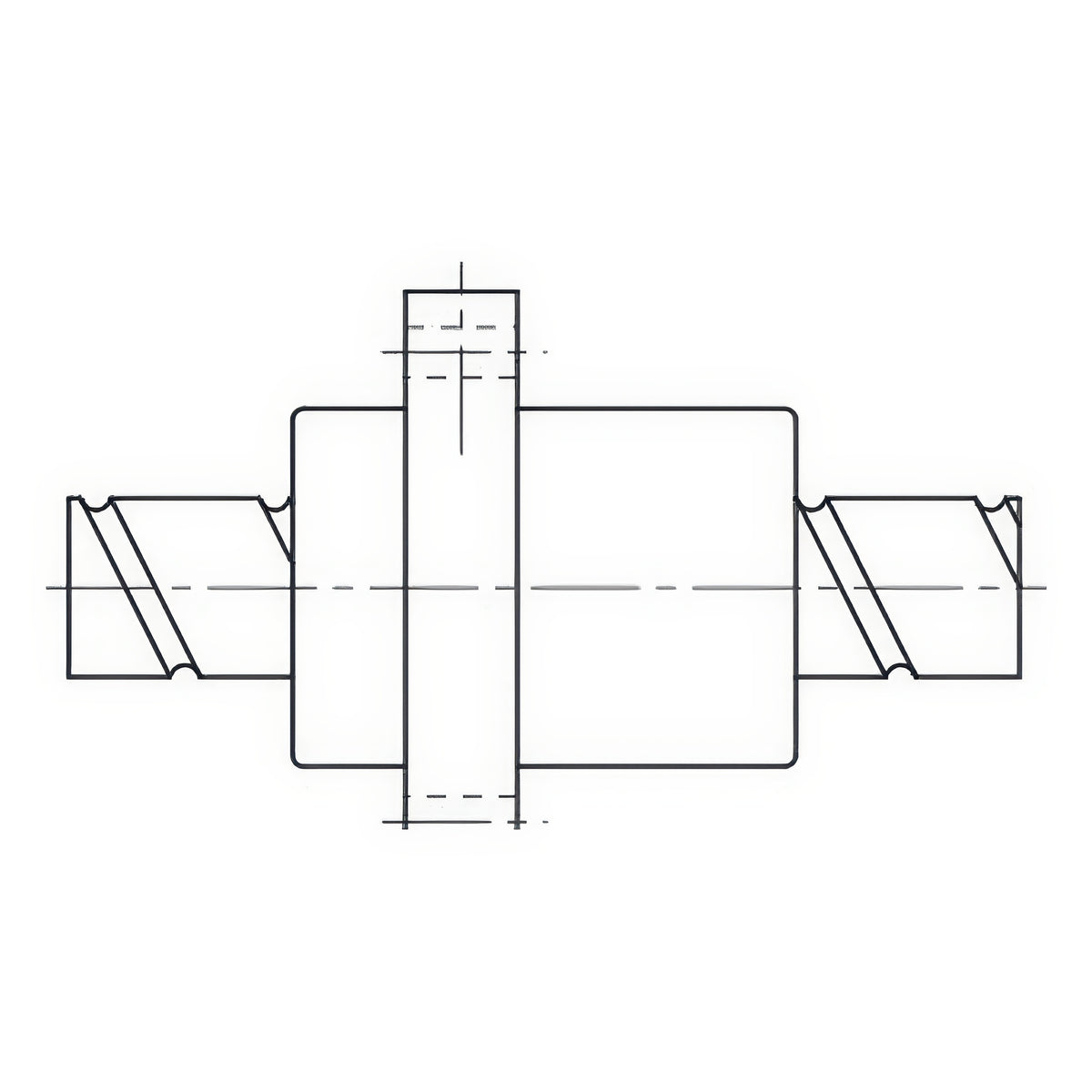

TBI MOTION XSYR High-Lead Miniature Ball Screw Flange Nut

TBI MOTION XSYR High-Lead Miniature Ball Screw Flange Nut

XSYR01220A2D-00 is a high-lead ball screw flange nut for a 12 mm screw with 20 mm lead.

Key features

  • It uses two-start circuits (1.8x2) with a double-cut flange for compact high-speed axes
  • It is suited to small pick-and-place and transfer units that need fast travel

Specifications

Nominal screw diameter 12 mm
Lead 20 mm
Ball diameter 2.5 mm
Circuits 1.8x2
Nut OD D 24 mm
Flange OD A 41 mm
E 3.8 mm
Flange thickness B 5 mm
Nut length L 50 mm
Bolt PCD W 32 mm
Flange width H 24 mm
H2 36 mm
XSYR01220A2D-00 Nominal screw diameter: 12 mm | Lead: 20 mm | Ball diameter: 2.5 mm | Circuits: 1.8x2 | Nut OD D: 24 mm | Flange OD A: 41 mm | E: 3.8 mm | Flange thickness B: 5 mm | Nut length L: 50 mm | Bolt PCD W: 32 mm | Flange width H: 24 mm | H2: 36 mm | Mounting hole X: 4.5 mm | Dynamic load rating Ca: 777 kgf | Static load rating C0a: 1718 kgf | Stiffness: 13 kgf/um
