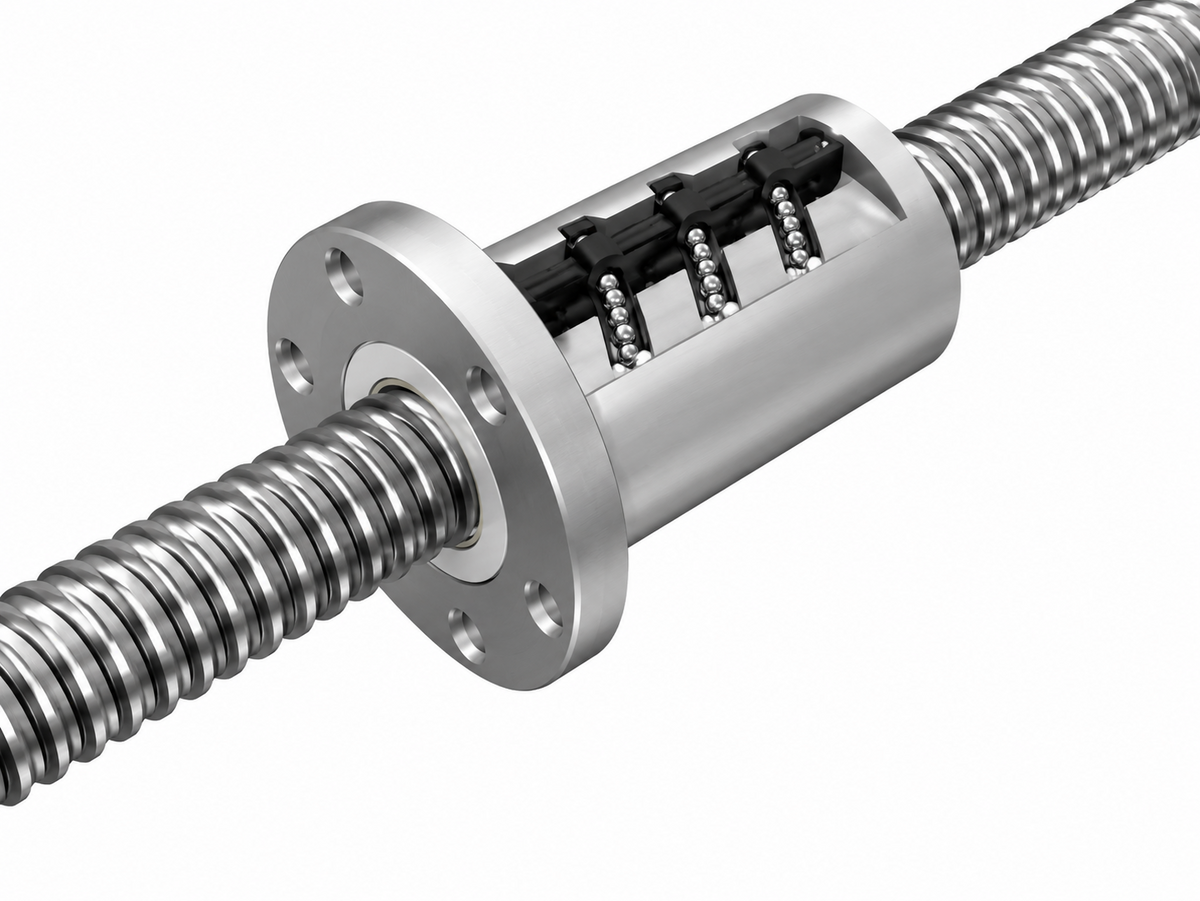

THK BIF Ball Screw (Offset Preload Nut, Shaft φ36)

THK BIF Ball Screw (Offset Preload Nut, Shaft φ36)

THK BIF Series Precision Ball Screw with Offset Preload Nut.

Key features

  • Phase-shifted left/right threads eliminate axial clearance (preloaded)
  • Compact design with smooth motion
  • Unfinished shaft end — easy additional machining
  • Shaft diameter φ36mm

Specifications

Shaft Diameter φ36mm
Lead 10mm
Nut OD D 75mm
Flange D1 120mm
PCD 98mm
Type Offset Preload Nut, Unfinished Shaft End (BIF)
BIF3610-5 THK BIF3610-5, φ36 Lead10, Ca=27.6kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 27.6kN | C0a: 63.3kN | Nut OD D: 75mm | Flange D1: 120mm | Nut Length L1: 111mm | PCD: 98mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
BIF3610-10 THK BIF3610-10, φ36 Lead10, Ca=50.1kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 50.1kN | C0a: 126.4kN | Nut OD D: 75mm | Flange D1: 120mm | Nut Length L1: 171mm | PCD: 98mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
Ball ScrewsTHK
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BIF Ball Screw (Offset Preload Nut, Shaft φ36)

Brand THK·Ball Screws

Available part numbers (2)

BIF3610-5, BIF3610-10

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BIF3610-5THK BIF3610-5, φ36 Lead10, Ca=27.6kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 27.6kN | C0a: 63.3kN | Nut OD D: 75mm | Flange D1: 120mm | Nut Length L1: 111mm | PCD: 98mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
BIF3610-10THK BIF3610-10, φ36 Lead10, Ca=50.1kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 50.1kN | C0a: 126.4kN | Nut OD D: 75mm | Flange D1: 120mm | Nut Length L1: 171mm | PCD: 98mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
