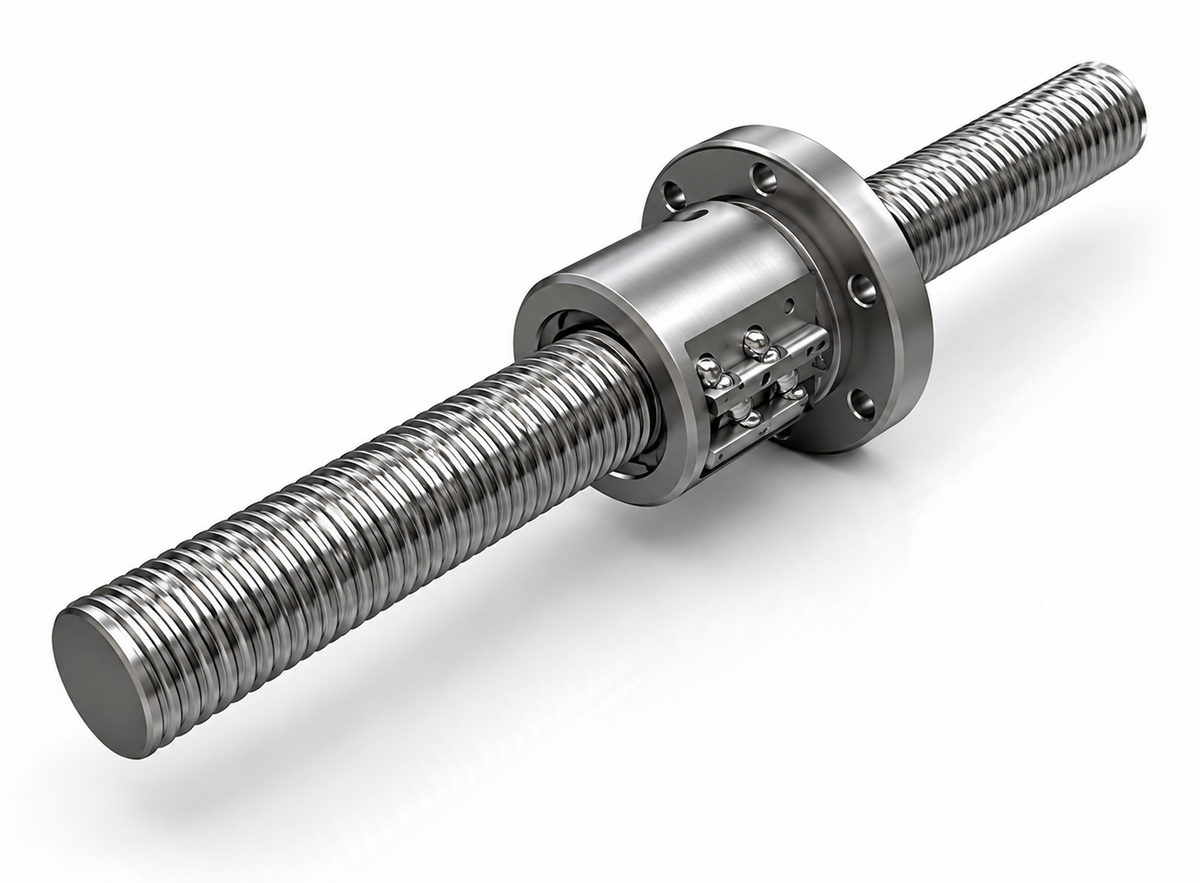

THK BIF1605V-5 Ball Screw Nut Unit (Small, Shaft φ16, Lead 5mm)

THK BIF1605V-5 Ball Screw Nut Unit (Small, Shaft φ16, Lead 5mm)

THK BIF-V Series Precision Ground Ball Screw Nut Unit (Small type, preloaded).

Key features

  • Shaft diameter φ16mm, lead 5mm. 1×2.5 ball circuit
  • Unfinished shaft end (BIF-V type)
  • DN value 100,000
  • Flanged nut, basic dynamic load rating Ca=7.4kN, static C0a=13.9kN, rigidity K=330N/μm

Specifications

Shaft Diameter φ16mm
Lead 5mm
Nut Length L1 56mm
Ball Circuit 1×2.5
Ca 7.4kN
C0a 13.9kN
K 330N/μm
Nut OD D 40mm
Flange D1 60mm
Type Preloaded, Unfinished Shaft End
BIF1605V-5+510 THK BIF1605V-5, φ16 Lead5, L=510mm | Shaft Diameter: φ16mm | Lead: 5mm | Shaft Total Length L: 510mm | Nut Length L1: 56mm | Ball Circuit: 1×2.5 | Ca: 7.4kN | C0a: 13.9kN | K: 330N/μm | Nut OD D: 40mm | Flange D1: 60mm | Type: Preloaded, Unfinished Shaft End
BIF1605V-5+710 THK BIF1605V-5, φ16 Lead5, L=710mm | Shaft Diameter: φ16mm | Lead: 5mm | Shaft Total Length L: 710mm | Nut Length L1: 56mm | Ball Circuit: 1×2.5 | Ca: 7.4kN | C0a: 13.9kN | K: 330N/μm | Nut OD D: 40mm | Flange D1: 60mm | Type: Preloaded, Unfinished Shaft End
Ball ScrewsTHK
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BIF1605V-5 Ball Screw Nut Unit (Small, Shaft φ16, Lead 5mm)

Brand THK·Ball Screws

Available part numbers (2)

BIF1605V-5+510, BIF1605V-5+710

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BIF1605V-5+510THK BIF1605V-5, φ16 Lead5, L=510mm | Shaft Diameter: φ16mm | Lead: 5mm | Shaft Total Length L: 510mm | Nut Length L1: 56mm | Ball Circuit: 1×2.5 | Ca: 7.4kN | C0a: 13.9kN | K: 330N/μm | Nut OD D: 40mm | Flange D1: 60mm | Type: Preloaded, Unfinished Shaft End
BIF1605V-5+710THK BIF1605V-5, φ16 Lead5, L=710mm | Shaft Diameter: φ16mm | Lead: 5mm | Shaft Total Length L: 710mm | Nut Length L1: 56mm | Ball Circuit: 1×2.5 | Ca: 7.4kN | C0a: 13.9kN | K: 330N/μm | Nut OD D: 40mm | Flange D1: 60mm | Type: Preloaded, Unfinished Shaft End

Need a different model, or a part not listed here? Send us your parts list →
