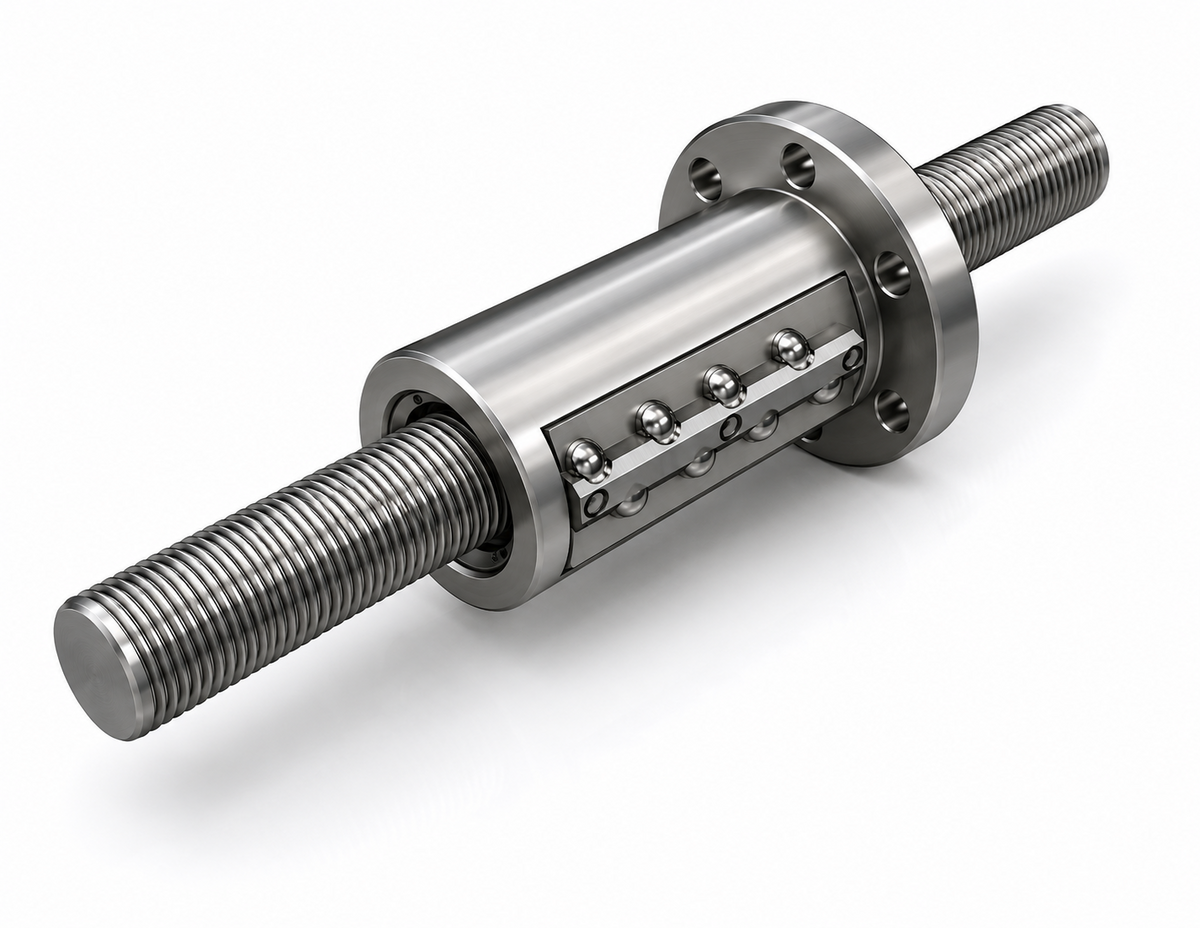

THK BIF2510V-5 Ball Screw Nut Unit (Medium, Shaft φ25, Lead 10mm)

THK BIF2510V-5 Ball Screw Nut Unit (Medium, Shaft φ25, Lead 10mm)

THK BIF-V Series Precision Ground Ball Screw Nut Unit (Medium type, preloaded).

Key features

  • Shaft diameter φ25mm, lead 10mm. 1×2.5 ball circuit
  • Unfinished shaft end (BIF-V type)
  • DN value 130,000
  • Flanged nut, basic dynamic load rating Ca=15.8kN, static C0a=32.9kN, rigidity K=500N/μm

Specifications

Shaft Diameter φ25mm
Lead 10mm
Nut Length L1 100mm
Ball Circuit 1×2.5
Ca 15.8kN
C0a 32.9kN
K 500N/μm
Nut OD D 58mm
Flange D1 85mm
Type Preloaded, Unfinished Shaft End
BIF2510V-5+620 THK BIF2510V-5, φ25 Lead10, L=620mm | Shaft Diameter: φ25mm | Lead: 10mm | Shaft Total Length L: 620mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 15.8kN | C0a: 32.9kN | K: 500N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End
BIF2510V-5+1020 THK BIF2510V-5, φ25 Lead10, L=1020mm | Shaft Diameter: φ25mm | Lead: 10mm | Shaft Total Length L: 1020mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 15.8kN | C0a: 32.9kN | K: 500N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End
BIF2510V-5+1420 THK BIF2510V-5, φ25 Lead10, L=1420mm | Shaft Diameter: φ25mm | Lead: 10mm | Shaft Total Length L: 1420mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 15.8kN | C0a: 32.9kN | K: 500N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End
Ball ScrewsTHK
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BIF2510V-5 Ball Screw Nut Unit (Medium, Shaft φ25, Lead 10mm)

Brand THK·Ball Screws

Available part numbers (3)

BIF2510V-5+620, BIF2510V-5+1020, BIF2510V-5+1420

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BIF2510V-5+620THK BIF2510V-5, φ25 Lead10, L=620mm | Shaft Diameter: φ25mm | Lead: 10mm | Shaft Total Length L: 620mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 15.8kN | C0a: 32.9kN | K: 500N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End
BIF2510V-5+1020THK BIF2510V-5, φ25 Lead10, L=1020mm | Shaft Diameter: φ25mm | Lead: 10mm | Shaft Total Length L: 1020mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 15.8kN | C0a: 32.9kN | K: 500N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End
BIF2510V-5+1420THK BIF2510V-5, φ25 Lead10, L=1420mm | Shaft Diameter: φ25mm | Lead: 10mm | Shaft Total Length L: 1420mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 15.8kN | C0a: 32.9kN | K: 500N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End
