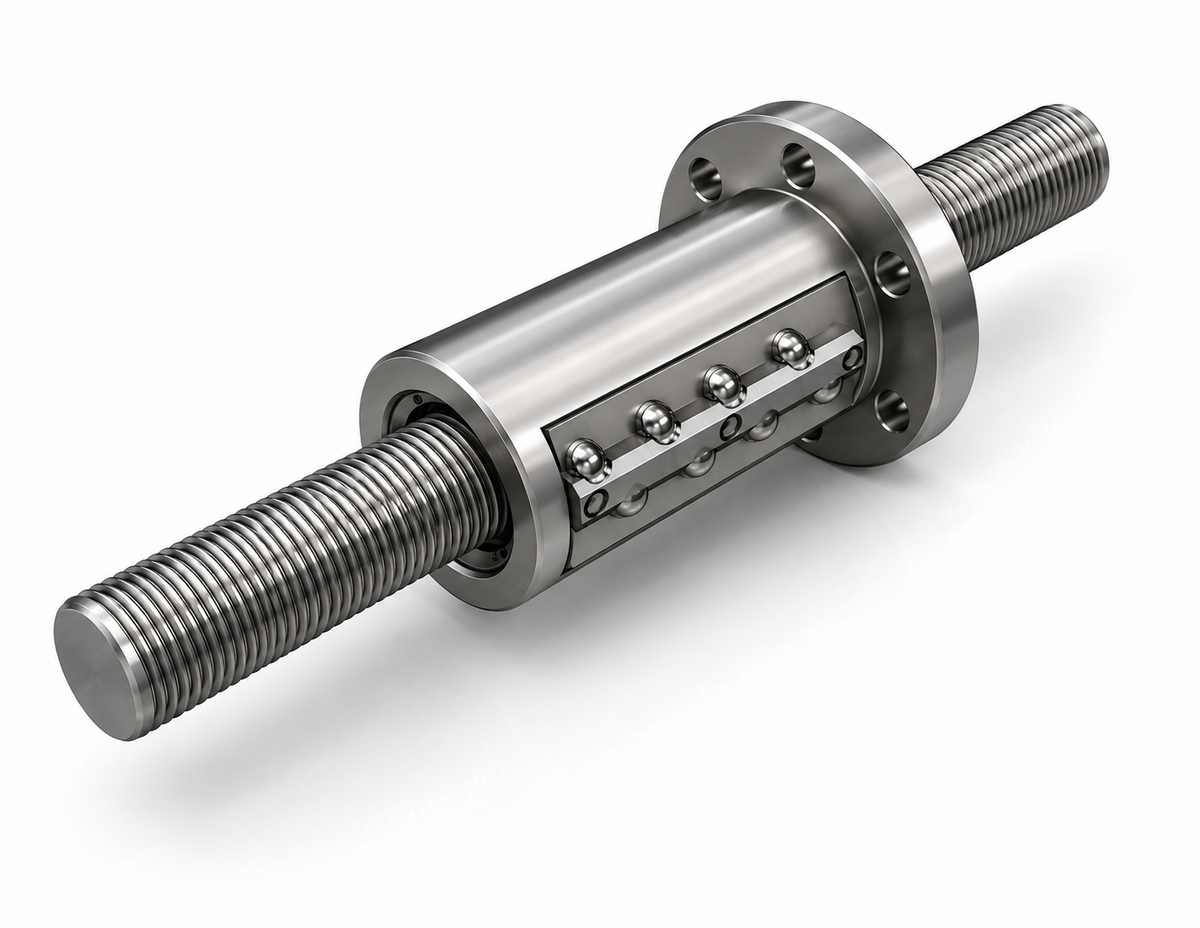

• THK BIF3210V-5 Ball Screw Nut Unit (Medium, Shaft φ32, Lead 10mm)
1 1

THK BIF3210V-5 Ball Screw Nut Unit (Medium, Shaft φ32, Lead 10mm)

THK BIF3210V-5 Ball Screw Nut Unit (Medium, Shaft φ32, Lead 10mm)

THK BIF-V Series Precision Ground Ball Screw Nut Unit (Medium type, preloaded).

Key features

  • Shaft diameter φ32mm, lead 10mm. 1×2.5 ball circuit
  • Unfinished shaft end (BIF-V type)
  • DN value 130,000
  • Flanged nut, basic dynamic load rating Ca=26.0kN, static C0a=56.2kN, rigidity K=640N/μm

Specifications

Shaft Diameter φ32mm
Lead 10mm
Nut Length L1 100mm
Ball Circuit 1×2.5
Ca 26.0kN
C0a 56.2kN
K 640N/μm
Nut OD D 74mm
Flange D1 108mm
Type Preloaded, Unfinished Shaft End
BIF3210V-5+930 THK BIF3210V-5, φ32 Lead10, L=930mm | Shaft Diameter: φ32mm | Lead: 10mm | Shaft Total Length L: 930mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 26.0kN | C0a: 56.2kN | K: 640N/μm | Nut OD D: 74mm | Flange D1: 108mm | Type: Preloaded, Unfinished Shaft End
BIF3210V-5+1830 THK BIF3210V-5, φ32 Lead10, L=1830mm | Shaft Diameter: φ32mm | Lead: 10mm | Shaft Total Length L: 1830mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 26.0kN | C0a: 56.2kN | K: 640N/μm | Nut OD D: 74mm | Flange D1: 108mm | Type: Preloaded, Unfinished Shaft End
Ball ScrewsTHK
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BIF3210V-5 Ball Screw Nut Unit (Medium, Shaft φ32, Lead 10mm)

Brand THK·Ball Screws

Available part numbers (2)

BIF3210V-5+930, BIF3210V-5+1830

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BIF3210V-5+930THK BIF3210V-5, φ32 Lead10, L=930mm | Shaft Diameter: φ32mm | Lead: 10mm | Shaft Total Length L: 930mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 26.0kN | C0a: 56.2kN | K: 640N/μm | Nut OD D: 74mm | Flange D1: 108mm | Type: Preloaded, Unfinished Shaft End
BIF3210V-5+1830THK BIF3210V-5, φ32 Lead10, L=1830mm | Shaft Diameter: φ32mm | Lead: 10mm | Shaft Total Length L: 1830mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 26.0kN | C0a: 56.2kN | K: 640N/μm | Nut OD D: 74mm | Flange D1: 108mm | Type: Preloaded, Unfinished Shaft End

Need a different model, or a part not listed here? Send us your parts list →
