• THK BNS-A Ball Screw / Spline Combined Unit (Compact, Linear + Rotary, φ8~40)
1 1

THK BNS-A Ball Screw / Spline Combined Unit (Compact, Linear + Rotary, φ8~40)

THK BNS-A Ball Screw / Spline Combined Unit (Compact, Linear + Rotary, φ8~40)

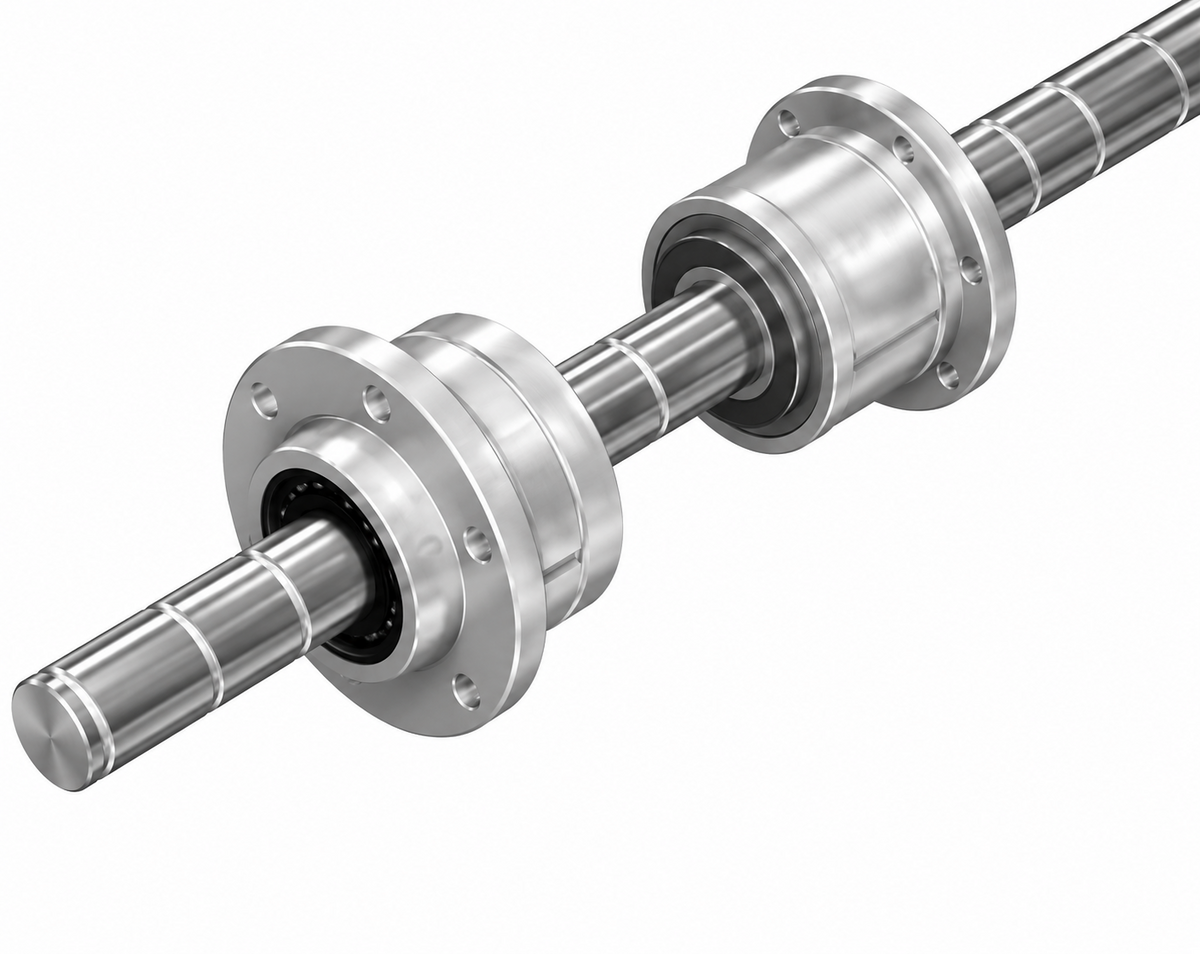

THK BNS-A Series Ball Screw / Ball Spline Combined Unit (Compact Type).

Key features

  • Ball screw and ball spline grooves on a single shaft — enables three motion modes (rotation, linear, and helical) with one axis
  • Integrated support bearing on nut OD
  • Shaft diameter range φ8~40mm
  • Custom shaft length available

Specifications

Shaft Length Custom order
Type Ball Screw + Ball Spline Combined (BNS-A)
BNS0812A+C3 THK BNS0812A, φ8 Lead8, C3 | Shaft Diameter: φ8mm | Lead: 8mm | Ca: 1.1kN | C0a: 1.8kN | Flange D1: 44mm | Nut Length L1: 28.5mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS0812A+C5 THK BNS0812A, φ8 Lead8, C5 | Shaft Diameter: φ8mm | Lead: 8mm | Ca: 1.1kN | C0a: 1.8kN | Flange D1: 44mm | Nut Length L1: 28.5mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS0812A+C7 THK BNS0812A, φ8 Lead8, C7 | Shaft Diameter: φ8mm | Lead: 8mm | Ca: 1.1kN | C0a: 1.8kN | Flange D1: 44mm | Nut Length L1: 28.5mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS1015A+C3 THK BNS1015A, φ10 Lead10, C3 | Shaft Diameter: φ10mm | Lead: 10mm | Ca: 1.7kN | C0a: 2.7kN | Flange D1: 48mm | Nut Length L1: 34.5mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS1015A+C5 THK BNS1015A, φ10 Lead10, C5 | Shaft Diameter: φ10mm | Lead: 10mm | Ca: 1.7kN | C0a: 2.7kN | Flange D1: 48mm | Nut Length L1: 34.5mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS1015A+C7 THK BNS1015A, φ10 Lead10, C7 | Shaft Diameter: φ10mm | Lead: 10mm | Ca: 1.7kN | C0a: 2.7kN | Flange D1: 48mm | Nut Length L1: 34.5mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS1616A+C3 THK BNS1616A, φ16 Lead16, C3 | Shaft Diameter: φ16mm | Lead: 16mm | Ca: 3.9kN | C0a: 7.2kN | Flange D1: 64mm | Nut Length L1: 40.0mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS1616A+C5 THK BNS1616A, φ16 Lead16, C5 | Shaft Diameter: φ16mm | Lead: 16mm | Ca: 3.9kN | C0a: 7.2kN | Flange D1: 64mm | Nut Length L1: 40.0mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS1616A+C7 THK BNS1616A, φ16 Lead16, C7 | Shaft Diameter: φ16mm | Lead: 16mm | Ca: 3.9kN | C0a: 7.2kN | Flange D1: 64mm | Nut Length L1: 40.0mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS2020A+C3 THK BNS2020A, φ20 Lead20, C3 | Shaft Diameter: φ20mm | Lead: 20mm | Ca: 6.1kN | C0a: 12.3kN | Flange D1: 72mm | Nut Length L1: 48.0mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS2020A+C5 THK BNS2020A, φ20 Lead20, C5 | Shaft Diameter: φ20mm | Lead: 20mm | Ca: 6.1kN | C0a: 12.3kN | Flange D1: 72mm | Nut Length L1: 48.0mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS2020A+C7 THK BNS2020A, φ20 Lead20, C7 | Shaft Diameter: φ20mm | Lead: 20mm | Ca: 6.1kN | C0a: 12.3kN | Flange D1: 72mm | Nut Length L1: 48.0mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS2525A+C3 THK BNS2525A, φ25 Lead25, C3 | Shaft Diameter: φ25mm | Lead: 25mm | Ca: 9.1kN | C0a: 19.3kN | Flange D1: 86mm | Nut Length L1: 58.0mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS2525A+C5 THK BNS2525A, φ25 Lead25, C5 | Shaft Diameter: φ25mm | Lead: 25mm | Ca: 9.1kN | C0a: 19.3kN | Flange D1: 86mm | Nut Length L1: 58.0mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS2525A+C7 THK BNS2525A, φ25 Lead25, C7 | Shaft Diameter: φ25mm | Lead: 25mm | Ca: 9.1kN | C0a: 19.3kN | Flange D1: 86mm | Nut Length L1: 58.0mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS3232A+C3 THK BNS3232A, φ32 Lead32, C3 | Shaft Diameter: φ32mm | Lead: 32mm | Ca: 13.0kN | C0a: 29.8kN | Flange D1: 103mm | Nut Length L1: 72.0mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS3232A+C5 THK BNS3232A, φ32 Lead32, C5 | Shaft Diameter: φ32mm | Lead: 32mm | Ca: 13.0kN | C0a: 29.8kN | Flange D1: 103mm | Nut Length L1: 72.0mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS3232A+C7 THK BNS3232A, φ32 Lead32, C7 | Shaft Diameter: φ32mm | Lead: 32mm | Ca: 13.0kN | C0a: 29.8kN | Flange D1: 103mm | Nut Length L1: 72.0mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS4040A+C3 THK BNS4040A, φ40 Lead40, C3 | Shaft Diameter: φ40mm | Lead: 40mm | Ca: 21.4kN | C0a: 49.7kN | Flange D1: 130mm | Nut Length L1: 88.0mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS4040A+C5 THK BNS4040A, φ40 Lead40, C5 | Shaft Diameter: φ40mm | Lead: 40mm | Ca: 21.4kN | C0a: 49.7kN | Flange D1: 130mm | Nut Length L1: 88.0mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS4040A+C7 THK BNS4040A, φ40 Lead40, C7 | Shaft Diameter: φ40mm | Lead: 40mm | Ca: 21.4kN | C0a: 49.7kN | Flange D1: 130mm | Nut Length L1: 88.0mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
Ball ScrewsTHK
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BNS-A Ball Screw / Spline Combined Unit (Compact, Linear + Rotary, φ8~40)

Brand THK·Ball Screws

Available part numbers (21)

BNS0812A+C3, BNS0812A+C5, BNS0812A+C7, BNS1015A+C3, BNS1015A+C5, BNS1015A+C7, BNS1616A+C3, BNS1616A+C5, BNS1616A+C7, BNS2020A+C3 + 11 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BNS0812A+C3THK BNS0812A, φ8 Lead8, C3 | Shaft Diameter: φ8mm | Lead: 8mm | Ca: 1.1kN | C0a: 1.8kN | Flange D1: 44mm | Nut Length L1: 28.5mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS0812A+C5THK BNS0812A, φ8 Lead8, C5 | Shaft Diameter: φ8mm | Lead: 8mm | Ca: 1.1kN | C0a: 1.8kN | Flange D1: 44mm | Nut Length L1: 28.5mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS0812A+C7THK BNS0812A, φ8 Lead8, C7 | Shaft Diameter: φ8mm | Lead: 8mm | Ca: 1.1kN | C0a: 1.8kN | Flange D1: 44mm | Nut Length L1: 28.5mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS1015A+C3THK BNS1015A, φ10 Lead10, C3 | Shaft Diameter: φ10mm | Lead: 10mm | Ca: 1.7kN | C0a: 2.7kN | Flange D1: 48mm | Nut Length L1: 34.5mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS1015A+C5THK BNS1015A, φ10 Lead10, C5 | Shaft Diameter: φ10mm | Lead: 10mm | Ca: 1.7kN | C0a: 2.7kN | Flange D1: 48mm | Nut Length L1: 34.5mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS1015A+C7THK BNS1015A, φ10 Lead10, C7 | Shaft Diameter: φ10mm | Lead: 10mm | Ca: 1.7kN | C0a: 2.7kN | Flange D1: 48mm | Nut Length L1: 34.5mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS1616A+C3THK BNS1616A, φ16 Lead16, C3 | Shaft Diameter: φ16mm | Lead: 16mm | Ca: 3.9kN | C0a: 7.2kN | Flange D1: 64mm | Nut Length L1: 40.0mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS1616A+C5THK BNS1616A, φ16 Lead16, C5 | Shaft Diameter: φ16mm | Lead: 16mm | Ca: 3.9kN | C0a: 7.2kN | Flange D1: 64mm | Nut Length L1: 40.0mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS1616A+C7THK BNS1616A, φ16 Lead16, C7 | Shaft Diameter: φ16mm | Lead: 16mm | Ca: 3.9kN | C0a: 7.2kN | Flange D1: 64mm | Nut Length L1: 40.0mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS2020A+C3THK BNS2020A, φ20 Lead20, C3 | Shaft Diameter: φ20mm | Lead: 20mm | Ca: 6.1kN | C0a: 12.3kN | Flange D1: 72mm | Nut Length L1: 48.0mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS2020A+C5THK BNS2020A, φ20 Lead20, C5 | Shaft Diameter: φ20mm | Lead: 20mm | Ca: 6.1kN | C0a: 12.3kN | Flange D1: 72mm | Nut Length L1: 48.0mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS2020A+C7THK BNS2020A, φ20 Lead20, C7 | Shaft Diameter: φ20mm | Lead: 20mm | Ca: 6.1kN | C0a: 12.3kN | Flange D1: 72mm | Nut Length L1: 48.0mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS2525A+C3THK BNS2525A, φ25 Lead25, C3 | Shaft Diameter: φ25mm | Lead: 25mm | Ca: 9.1kN | C0a: 19.3kN | Flange D1: 86mm | Nut Length L1: 58.0mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS2525A+C5THK BNS2525A, φ25 Lead25, C5 | Shaft Diameter: φ25mm | Lead: 25mm | Ca: 9.1kN | C0a: 19.3kN | Flange D1: 86mm | Nut Length L1: 58.0mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS2525A+C7THK BNS2525A, φ25 Lead25, C7 | Shaft Diameter: φ25mm | Lead: 25mm | Ca: 9.1kN | C0a: 19.3kN | Flange D1: 86mm | Nut Length L1: 58.0mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS3232A+C3THK BNS3232A, φ32 Lead32, C3 | Shaft Diameter: φ32mm | Lead: 32mm | Ca: 13.0kN | C0a: 29.8kN | Flange D1: 103mm | Nut Length L1: 72.0mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS3232A+C5THK BNS3232A, φ32 Lead32, C5 | Shaft Diameter: φ32mm | Lead: 32mm | Ca: 13.0kN | C0a: 29.8kN | Flange D1: 103mm | Nut Length L1: 72.0mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS3232A+C7THK BNS3232A, φ32 Lead32, C7 | Shaft Diameter: φ32mm | Lead: 32mm | Ca: 13.0kN | C0a: 29.8kN | Flange D1: 103mm | Nut Length L1: 72.0mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS4040A+C3THK BNS4040A, φ40 Lead40, C3 | Shaft Diameter: φ40mm | Lead: 40mm | Ca: 21.4kN | C0a: 49.7kN | Flange D1: 130mm | Nut Length L1: 88.0mm | Grade: C3 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS4040A+C5THK BNS4040A, φ40 Lead40, C5 | Shaft Diameter: φ40mm | Lead: 40mm | Ca: 21.4kN | C0a: 49.7kN | Flange D1: 130mm | Nut Length L1: 88.0mm | Grade: C5 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
BNS4040A+C7THK BNS4040A, φ40 Lead40, C7 | Shaft Diameter: φ40mm | Lead: 40mm | Ca: 21.4kN | C0a: 49.7kN | Flange D1: 130mm | Nut Length L1: 88.0mm | Grade: C7 | Shaft Length: Custom order | Type: Ball Screw + Ball Spline Combined (BNS-A)
