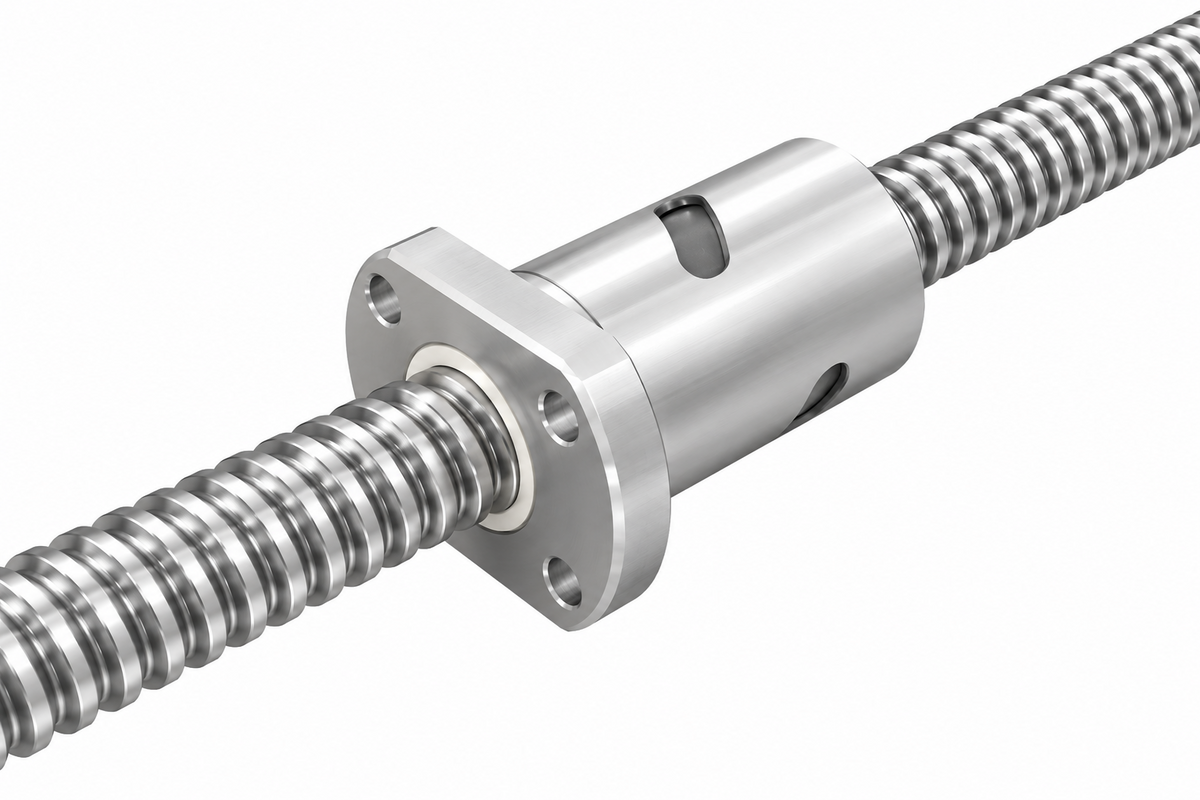

• THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ36)
1 1

THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ36)

THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ36)

THK DIK Series Precision Ball Screw with Offset Preload Single Nut.

Key features

  • Phase-shifted left/right threads in a single nut eliminate axial clearance (preloaded)
  • Compact and smooth motion
  • Shaft diameter φ36mm

Specifications

Shaft Diameter φ36mm
Lead 10mm
Nut OD D 58mm
Flange D1 98mm
Type Offset Preload, Single Nut (DIK)
DIK3610-6 THK DIK3610-6, φ36 Lead10, Ca=28.8kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 28.8kN | C0a: 63.8kN | Nut OD D: 58mm | Flange D1: 98mm | Nut Length L1: 122mm | Type: Offset Preload, Single Nut (DIK)
DIK3610-8 THK DIK3610-8, φ36 Lead10, Ca=36.8kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 36.8kN | C0a: 85.0kN | Nut OD D: 58mm | Flange D1: 98mm | Nut Length L1: 143mm | Type: Offset Preload, Single Nut (DIK)
DIK3610-10 THK DIK3610-10, φ36 Lead10, Ca=44.6kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 44.6kN | C0a: 106.3kN | Nut OD D: 58mm | Flange D1: 98mm | Nut Length L1: 164mm | Type: Offset Preload, Single Nut (DIK)
Ball ScrewsTHK
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ36)

Brand THK·Ball Screws

Available part numbers (3)

DIK3610-6, DIK3610-8, DIK3610-10

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DIK3610-6THK DIK3610-6, φ36 Lead10, Ca=28.8kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 28.8kN | C0a: 63.8kN | Nut OD D: 58mm | Flange D1: 98mm | Nut Length L1: 122mm | Type: Offset Preload, Single Nut (DIK)
DIK3610-8THK DIK3610-8, φ36 Lead10, Ca=36.8kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 36.8kN | C0a: 85.0kN | Nut OD D: 58mm | Flange D1: 98mm | Nut Length L1: 143mm | Type: Offset Preload, Single Nut (DIK)
DIK3610-10THK DIK3610-10, φ36 Lead10, Ca=44.6kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 44.6kN | C0a: 106.3kN | Nut OD D: 58mm | Flange D1: 98mm | Nut Length L1: 164mm | Type: Offset Preload, Single Nut (DIK)

Need a different model, or a part not listed here? Send us your parts list →
