• THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ63)
1 1

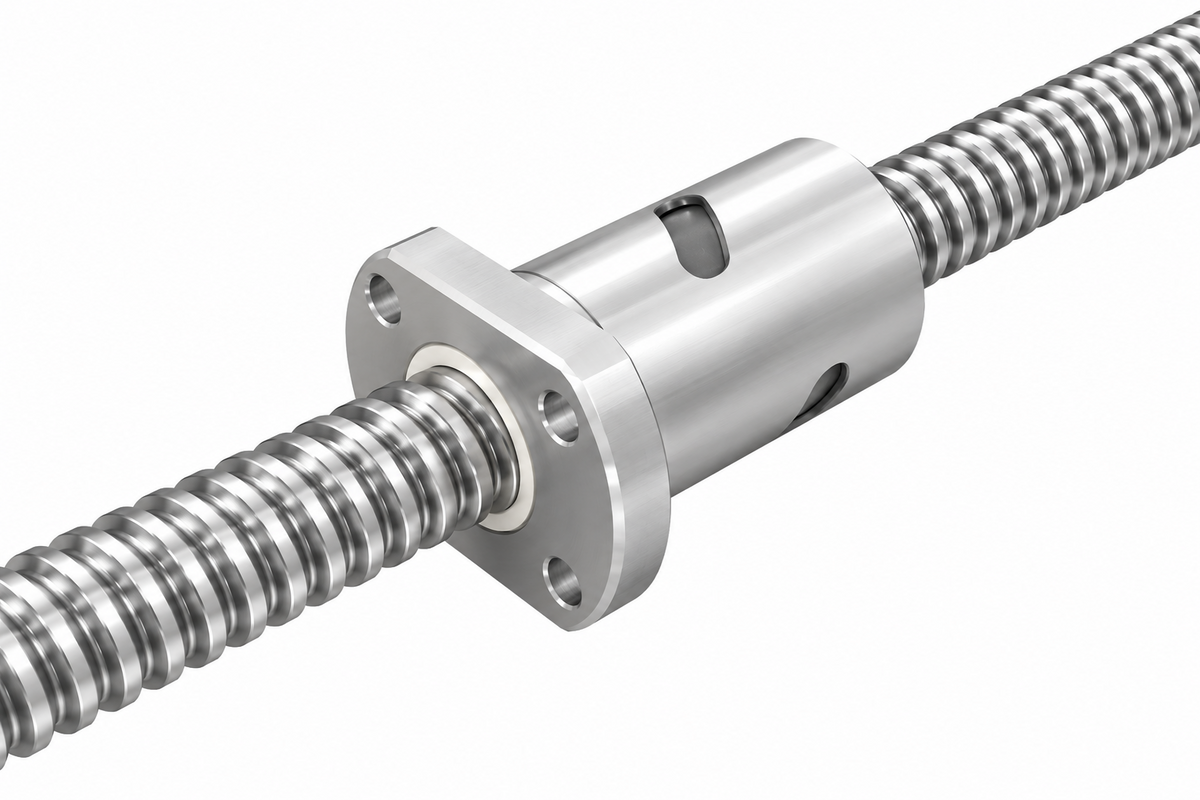

THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ63)

THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ63)

THK DIK Series Precision Ball Screw with Offset Preload Single Nut.

Key features

  • Phase-shifted left/right threads in a single nut eliminate axial clearance (preloaded)
  • Compact and smooth motion
  • Shaft diameter φ63mm

Specifications

Shaft Diameter φ63mm
Flange D1 146mm
Type Offset Preload, Single Nut (DIK)
DIK6310-8 THK DIK6310-8, φ63 Lead10, Ca=49.5kN | Shaft Diameter: φ63mm | Lead: 10mm | Ca: 49.5kN | C0a: 160.7kN | Nut OD D: 85mm | Flange D1: 146mm | Nut Length L1: 141mm | Type: Offset Preload, Single Nut (DIK)
DIK6312-6 THK DIK6312-6, φ63 Lead12, Ca=51.9kN | Shaft Diameter: φ63mm | Lead: 12mm | Ca: 51.9kN | C0a: 147.4kN | Nut OD D: 90mm | Flange D1: 146mm | Nut Length L1: 146mm | Type: Offset Preload, Single Nut (DIK)
DIK6312-8 THK DIK6312-8, φ63 Lead12, Ca=66.4kN | Shaft Diameter: φ63mm | Lead: 12mm | Ca: 66.4kN | C0a: 196.6kN | Nut OD D: 90mm | Flange D1: 146mm | Nut Length L1: 171mm | Type: Offset Preload, Single Nut (DIK)
Ball ScrewsTHK
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ63)

Brand THK·Ball Screws

Available part numbers (3)

DIK6310-8, DIK6312-6, DIK6312-8

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DIK6310-8THK DIK6310-8, φ63 Lead10, Ca=49.5kN | Shaft Diameter: φ63mm | Lead: 10mm | Ca: 49.5kN | C0a: 160.7kN | Nut OD D: 85mm | Flange D1: 146mm | Nut Length L1: 141mm | Type: Offset Preload, Single Nut (DIK)
DIK6312-6THK DIK6312-6, φ63 Lead12, Ca=51.9kN | Shaft Diameter: φ63mm | Lead: 12mm | Ca: 51.9kN | C0a: 147.4kN | Nut OD D: 90mm | Flange D1: 146mm | Nut Length L1: 146mm | Type: Offset Preload, Single Nut (DIK)
DIK6312-8THK DIK6312-8, φ63 Lead12, Ca=66.4kN | Shaft Diameter: φ63mm | Lead: 12mm | Ca: 66.4kN | C0a: 196.6kN | Nut OD D: 90mm | Flange D1: 146mm | Nut Length L1: 171mm | Type: Offset Preload, Single Nut (DIK)
